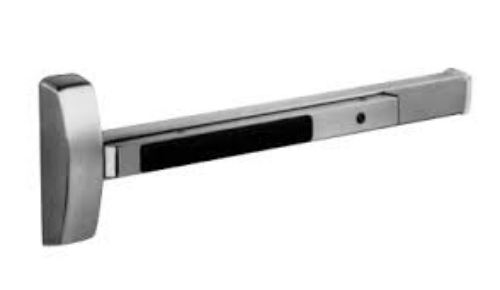

Sargent AD8613-F-32D Concealed Vertical Rod Exit Device for Aluminum Doors - Less Trim - 36" - Satin Stainless Steel

Sargent AD8613-F-32D Concealed Vertical Rod Exit Device for Aluminum Doors - Less Trim - 36" - Satin Stainless Steel

For doors:  33" through 36"  (82cm through 91cm)

 Designed for standard width stile applications on aluminum doors Concealed rods for security and aesthetics Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Panic listed onlyDoor TypesAluminum, 1-3/4" (44mm) minimum thickness

Strike640 Strikes for Top & Bottom Strike

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting FastenersSupplied standard with machine screws

Top BoltStainless steel

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Device Centerline from Finished Floor :  41" (1041mm) for Standard Applications 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
