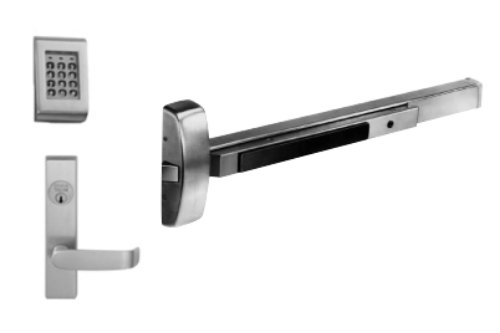

Sargent KP8877ETL-32D Rim Panic Exit Device W/ Keypad Lever Trim

Sargent KP8877ETL-32D Rim Panic Exit Device W/ Keypad Lever Trim

Product Details

Sargent KP8877ETL-32D Rim Panic Exit Device W/ Keypad Lever Trim - Satin Stainless Steel*- 36"*

For doors: 33" through 36" (82cm through 91cm)

Features and Benefits

Non-volatile memory

All programming at keypad LEDs on keypad

Green indicates unlocked
Yellow indicates programming mode
Flashing green and solid yellow indicates deadbolt thrown

UL Listed to Canadian safety standards

Built-in remote “Request to Enter" requires wire harness (52-2071)

User Codes - over 1,100,000 possible user combinations

100 user codes
Operates utilizing any one to six digits per code - digits may be repeated or start with “0"
One master code - assigns emergency, supervisory and user codes, allows access during low battery

One emergency code - allows entry during low battery

One supervisory code - allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, and may add user codes
“One time" user codes allows visitors “one time" entry
Entry of three wrong user codes in succession disables all codes for ten seconds
Unit can be put in “passage only" mode at keypad

Keypad made of ultraviolet stable textured material

Operating temperature for keypad: 4 Degree F – 140 Degree F

Adjustable unlock time

Use on exterior doors with weatherseal gasket and shroud

Low battery indication - four chirps after code entry

Operates with 4 “C" alkaline batteries (included)

Typical 40,000 operations per set of batteries

Infrared link to DTD to view audit trail

Mechanical Features

Certified to ANSI A156.3 Grade 1 requirements

Latchbolt 3/4" (19mm) projection

Cylinder override use 34 rim cylinder,

Designed for standard width stile applications on wood and metal doors

Single and double door applications with a mullion

For DoorsWood or metal. 1-3/4" (44 mm) minimum thickness

MountingSupplied standard with wood and machine screws Available with through-bolts and mortise nuts

Chassis CoverCold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes

ChassisNonferrous alloy (Panic) Ferrous alloy (Fire Rated)

RailsRoll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

LatchboltStainless steel, 3/4" (19mm) throw

Strike649 Strike supplied standard for panic & fire rated openings - Devices are ANSI A156.3 - Grade 1

ANSI/BHMA architectural finishes

Model:Sargent KP8877ETL-32D,KP-8877-ETL-32D, KP8877ETL32D, KP 8877 ETL 32D

Sargent KP8877ETL-32D Rim Panic Exit Device W/ Keypad Lever Trim

Name: Sargent KP8877ETL-32D Rim Panic Exit Device W/ Keypad Lever Trim
SKU: KP8877ETL-32D
Price: 2816.81 USD
Availability: InStock

SKU: KP8877ETL-32D

In Stock

Chat

$2,816.81

$4,187.00

You saved $1,370.19

About this item

The KP Series Keypad locks are designed for openings that require standalone, basic authorized entry capabilities. They are battery powered, motor driven, self contained locks that use a microprocessor based controller with non-volatile memory. All programming is done at the door using the keypad with functions selected by the user according to opening requirements.

SARGENT manufactures a full line of exit devices providing the best combination of simplicity, strength, durability, aesthetics and innovation.

Resources

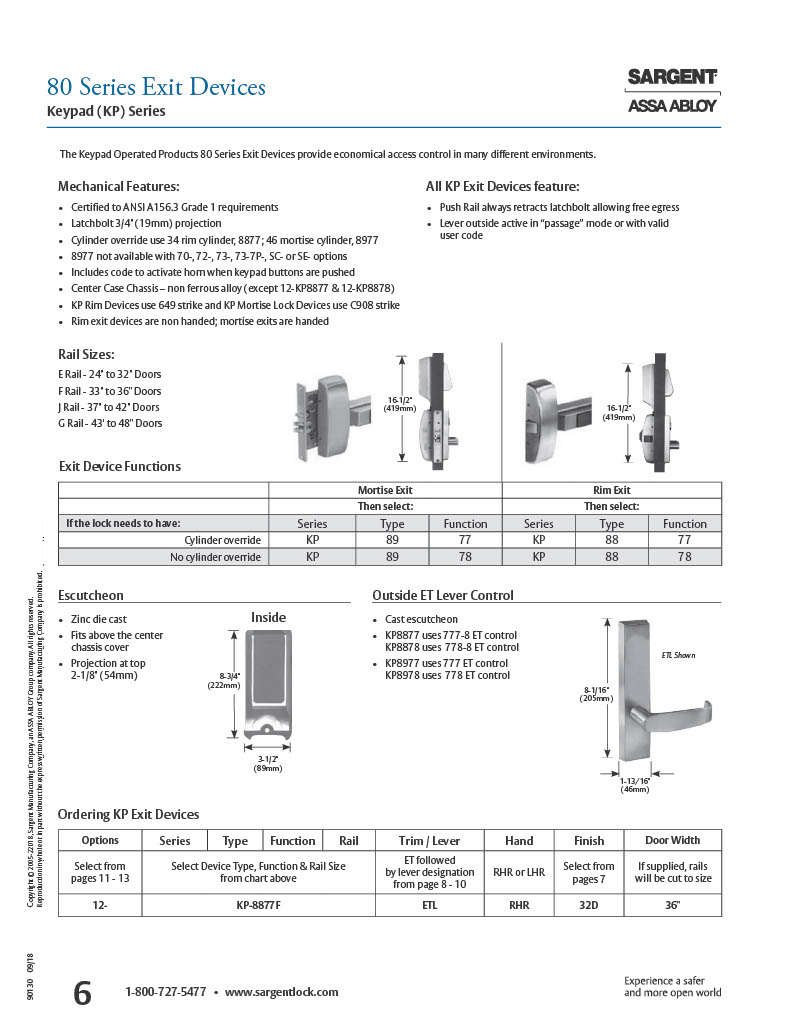

*Keypad Operated Products Catalog*

Sargent KP8877ETL-32D Rim Panic Exit Device W/ Keypad Lever Trim - Satin Stainless Steel*- 36"*

For doors: 33" through 36" (82cm through 91cm)

Features and Benefits

Non-volatile memory

All programming at keypad LEDs on keypad

Green indicates unlocked
Yellow indicates programming mode
Flashing green and solid yellow indicates deadbolt thrown

UL Listed to Canadian safety standards

Built-in remote “Request to Enter" requires wire harness (52-2071)

User Codes - over 1,100,000 possible user combinations

100 user codes
Operates utilizing any one to six digits per code - digits may be repeated or start with “0"
One master code - assigns emergency, supervisory and user codes, allows access during low battery

One emergency code - allows entry during low battery

One supervisory code - allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, and may add user codes
“One time" user codes allows visitors “one time" entry
Entry of three wrong user codes in succession disables all codes for ten seconds
Unit can be put in “passage only" mode at keypad

Keypad made of ultraviolet stable textured material

Operating temperature for keypad: 4 Degree F – 140 Degree F

Adjustable unlock time

Use on exterior doors with weatherseal gasket and shroud

Low battery indication - four chirps after code entry

Operates with 4 “C" alkaline batteries (included)

Typical 40,000 operations per set of batteries

Infrared link to DTD to view audit trail

Mechanical Features

Certified to ANSI A156.3 Grade 1 requirements

Latchbolt 3/4" (19mm) projection

Cylinder override use 34 rim cylinder,

Designed for standard width stile applications on wood and metal doors

Single and double door applications with a mullion

For DoorsWood or metal. 1-3/4" (44 mm) minimum thickness

MountingSupplied standard with wood and machine screws Available with through-bolts and mortise nuts

Chassis CoverCold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes

ChassisNonferrous alloy (Panic) Ferrous alloy (Fire Rated)

RailsRoll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

LatchboltStainless steel, 3/4" (19mm) throw

Strike649 Strike supplied standard for panic & fire rated openings - Devices are ANSI A156.3 - Grade 1

ANSI/BHMA architectural finishes

Model:Sargent KP8877ETL-32D,KP-8877-ETL-32D, KP8877ETL32D, KP 8877 ETL 32D
