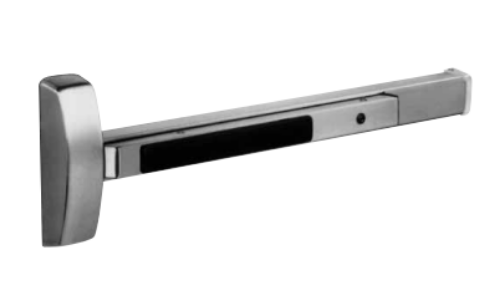

Sargent MD8610-F Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 36"

Sargent MD8610-F Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 36"

Door Width: for 33" to 36" door widths, No cutting required for 36" door

 Designed for standard width stile applications on Hollow Metal doors Concealed rods offer security and aesthetics  Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor TypesMetal Doors, 1-3/4" (44mm) minimum thickness

Strike650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)

Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)

Mounting*Fasteners*Supplied standard with wood screws

Top BoltStainless steel

Device Centerline from Finished Floor 41" (1041mm) for Standard Applications,  38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used

Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)

ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)

Model:Sargent Md8610F, 12-Md-8610-F, Md-8610-F-32D, Md8610F-10B, Md-8610-F-10, Md8610-F-10, Md8610F10B, Md8610F32D
