The Sargent MD8610-F is the 36-inch wide stile concealed vertical rod exit device in the Sargent 8600 Series, built for hollow metal door applications where surface-mounted rod hardware is not acceptable. Both the top and bottom rods run inside the door itself, eliminating exposed hardware on the exterior face, reducing rod manipulation risk, and delivering the clean profile that architects and facility managers require on institutional door pairs. American Locksets is an authorized Sargent distributor stocking the MD8610-F with same-day shipping and free shipping on all orders over $300.

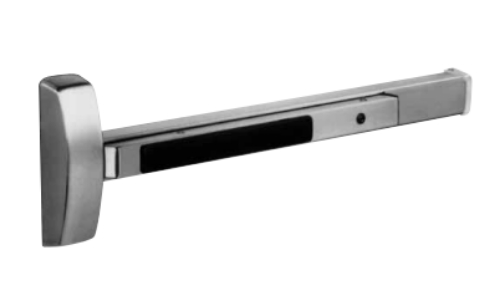

Sargent MD8610-F Concealed Vertical Rod Exit Device, 36-Inch Rail, Metal Doors, Exit Only
The MD8610-F carries ANSI/BHMA A156.3 Grade 1 certification, UL listing for Panic Exit Hardware, UL listing for Fire Exit Hardware, and Windstorm Rating. That combination makes it the correct specification for coastal and hurricane-zone jurisdictions where exit hardware must meet impact and pressure resistance requirements beyond standard panic certification, and for any project where the hardware schedule requires a single device rated for both panic and fire-rated openings.
The device is manufactured with 61 percent post-consumer recycled content and carries a five-year manufacturer's warranty, both of which matter for LEED-aligned building documentation and facilities capital planning.
Door Requirements and Stile Compatibility
The MD8610 is designed for hollow metal doors only. Minimum door thickness is 1-3/4 inches (44mm). For doors between 1-3/4 and 2-1/4 inches thick, specify at order using the 31- prefix. Minimum stile width with trim is 4-1/2 inches (114mm). Without outside trim, the minimum stile drops to 3-1/2 inches (44mm). For wood doors, specify the WD8610. For aluminum storefront, specify the AD8613. The MD8610 is metal door only.
Rail Size F: 36-Inch Door Coverage
The F suffix designates the 36-inch rail, covering door widths from 33 to 36 inches. No field cutting is required for a 36-inch door. Other rail sizes in the MD8610 series: Size E for 24 to 32 inch doors, Size J for 37 to 42 inch doors, and Size G for 43 to 48 inch doors.
Function, Dogging, and Strikes
The MD8610-F ships as Function 10, Exit Only, ANSI Function F01. Both the top and bottom latching points release from a single pushpad depression. There is no outside trim and no outside entry capability. Both levers are exit-only, making this the correct choice for stairwell exits, perimeter egress doors, and any opening where exit control without entry access is the requirement.
Hex key dogging is standard on the non-fire rated configuration, allowing the pushpad to be held depressed for continuous push-pull traffic during building hours. Fire-rated configurations (12- prefix) do not allow dogging per code. For cylinder-keyed dogging, the 16-MD8610 ships with a Sargent 41 mortise cylinder included.
The 650 Top Strike is furnished standard, stainless steel with nylon coating for hollow metal frames. The 606 Bottom Strike mortises into the floor with expansion shields, stainless steel construction, rated for panic and fire applications.

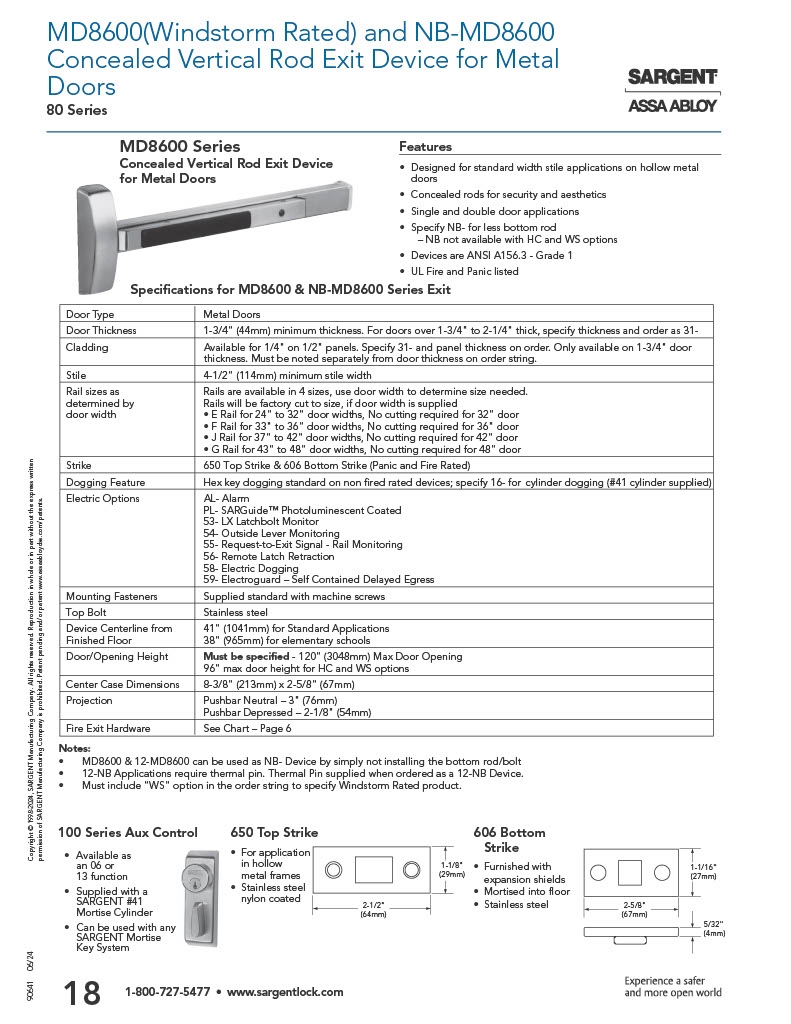

Specifications
Device centerline from finished floor is 41 inches (1041mm) standard, 38 inches (965mm) for elementary school applications. Center case dimensions are 8-3/8 inches x 2-5/8 inches (213mm x 67mm). Pushbar projection is 3 inches (76mm) neutral and 2-1/8 inches (54mm) depressed. Designed for standard 84-inch door height. Handing is required at order: specify RHR (right hand reverse) or LHR (left hand reverse).
Available finishes: 32D Satin Stainless, 10 Satin Bronze, 4 Satin Brass, 3 Bright Brass, 10B Dark Oxidized Bronze, 32 Bright Stainless, BSP Black Suede Powder Coat, WSP White Suede Powder Coat.
Electric Options
The 55- prefix adds a Request to Exit (REX) switch for access control panel integration and valid exit logging. The 56- prefix adds Electric Latch Retraction (ELR) for remote unlock and push-pull operation from an access control signal. The Sargent QC12 Electrolynx connector on the associated hinge provides plug-and-play electrical connection without field-terminated wiring in the door gap.
