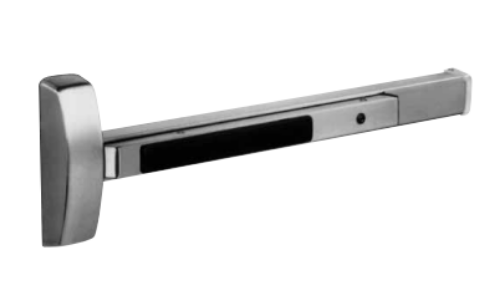

Sargent MD8610-G Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 48"
Product Details
Sargent MD8610-G Concealed Vertical Rod Exit Device For Metal Doors - Exit Only - 48"
Door Width: for 43" to 48" door widths, No cutting required for 48" door
Designed for standard width stile applications on wood doors Concealed rods offer security Single and double door applications Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedDoor TypesWood, 1-3/4" (44mm) minimum thickness
Strike650 Top Strike & 606 Bottom Strike (Panic and Fire Rated)
Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
MountingFasteners Supplied standard with wood screws
Top BoltStainless steel
Device Centerline from Finished Floor 41" (1041mm) for Standard Applications, 38" (965mm) for elementary schools and to meet local accessibility standards when a 100 Series Auxiliary Control is used
Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)
ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
Model:Sargent Md8610G, Md-8610-G, Md-8610-G-32D, Md8610G-10B, Md8610G10B, Md8610G32D
