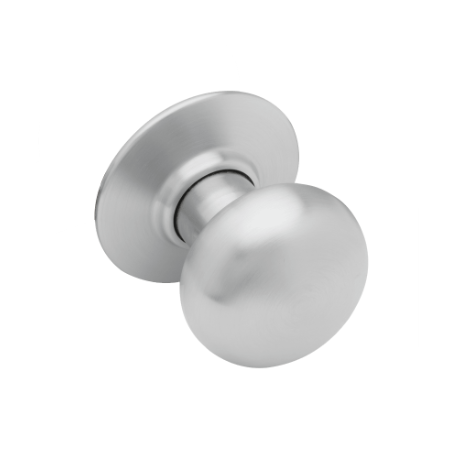

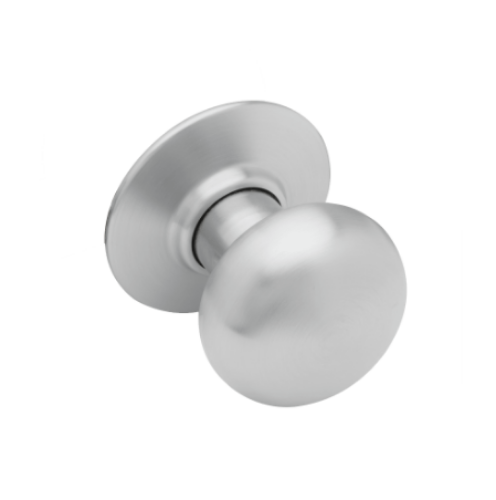

Schlage A170 Plymouth (PLY) Grade 2 Dummy Cylindrical Lock

Schlage A170 Plymouth (PLY) Single Dummy

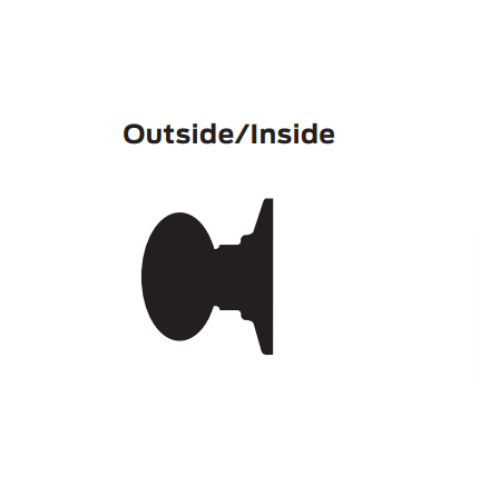

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

Finishes:626 - Satin Chrome, 605 - Bright Brass, 630 - Satin Stainless Steel, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome

Applications:Heavy duty residential, light and medium duty commercial.

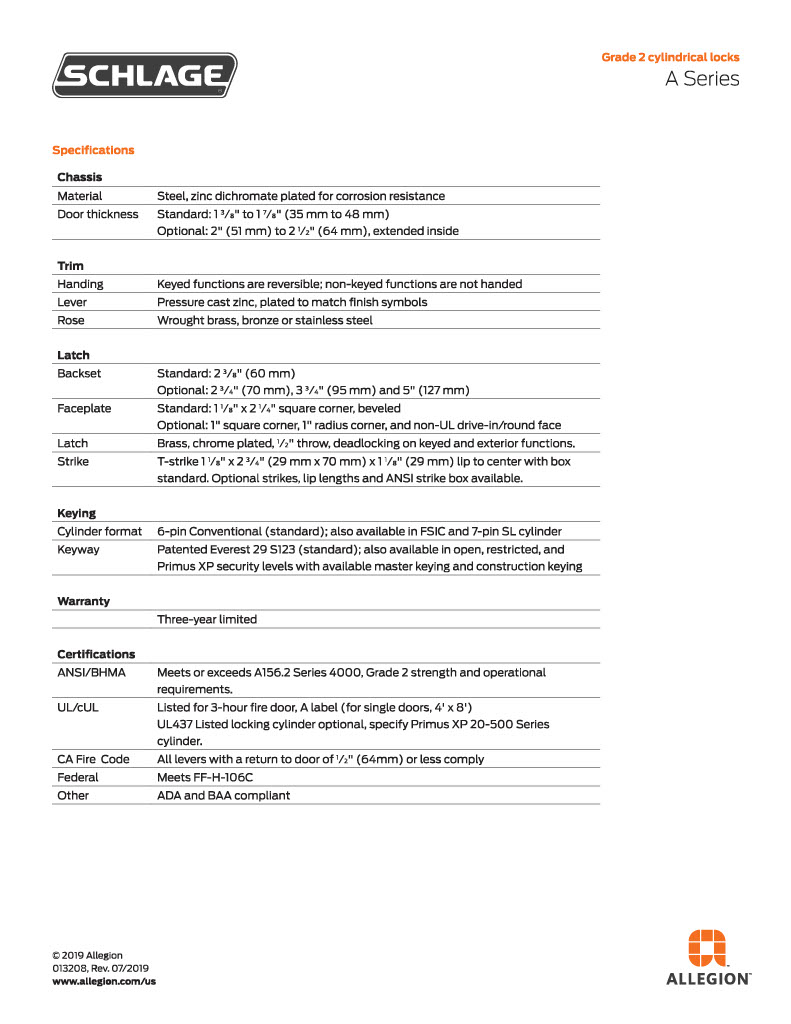

Certifications:ANSI 156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3 hours.

Door Range:1-3/8" -1-7/8" (35 mm-48 mm) standard.

Warranty:Commercial: three-year limited.Residential: Full mechanical lifetime.

Model:Schlage A170, A170PLY,  A170PLY605, A170PLY630, A170PLY612, A170PLY613, A170PLY625, A170PLY626

Exposed Trim:Wrought brass, bronze, or stainless steel. Lever is zinc based, plated to match BHMA symbols.

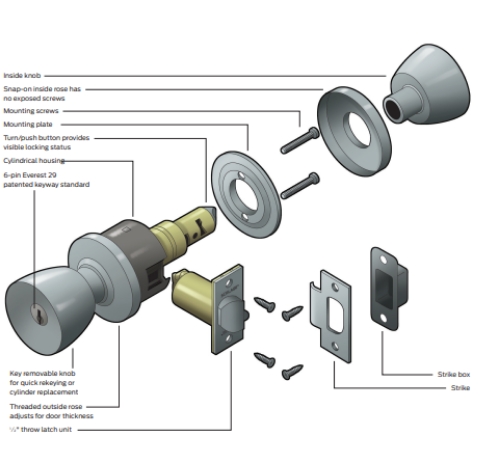

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Meets or exceeds 400,000 cycle ANSI Grade 2 requirements
