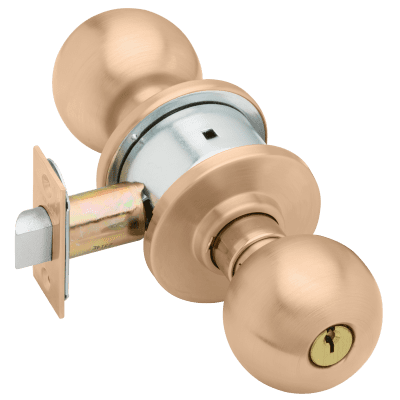

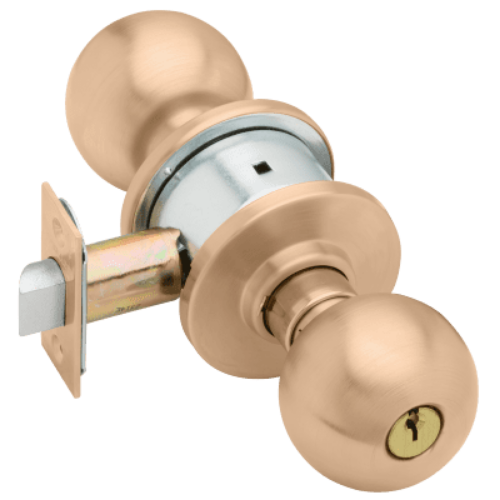

Schlage A53 612 Orbit (ORB) Grade 2 Entrance Cylindrical Lock

Schlage A53 612 Orbit (ORB) Entrance Lock - ANSI - F109

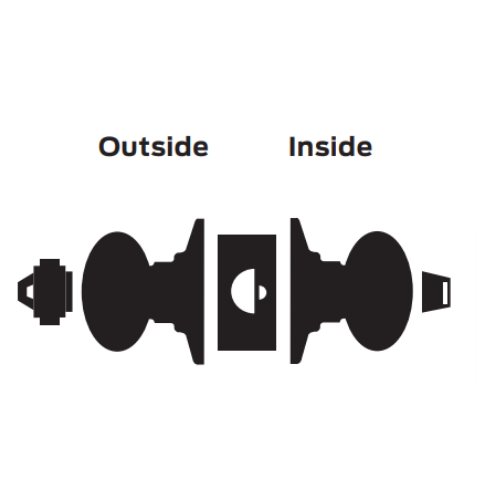

Pushing button locks outside knob until unlocked by key or by turning inside knob. Pushingand turningbutton locks outside knob requiring use of key until button is manually unlocked. Inside knob is always free for immediate egress.

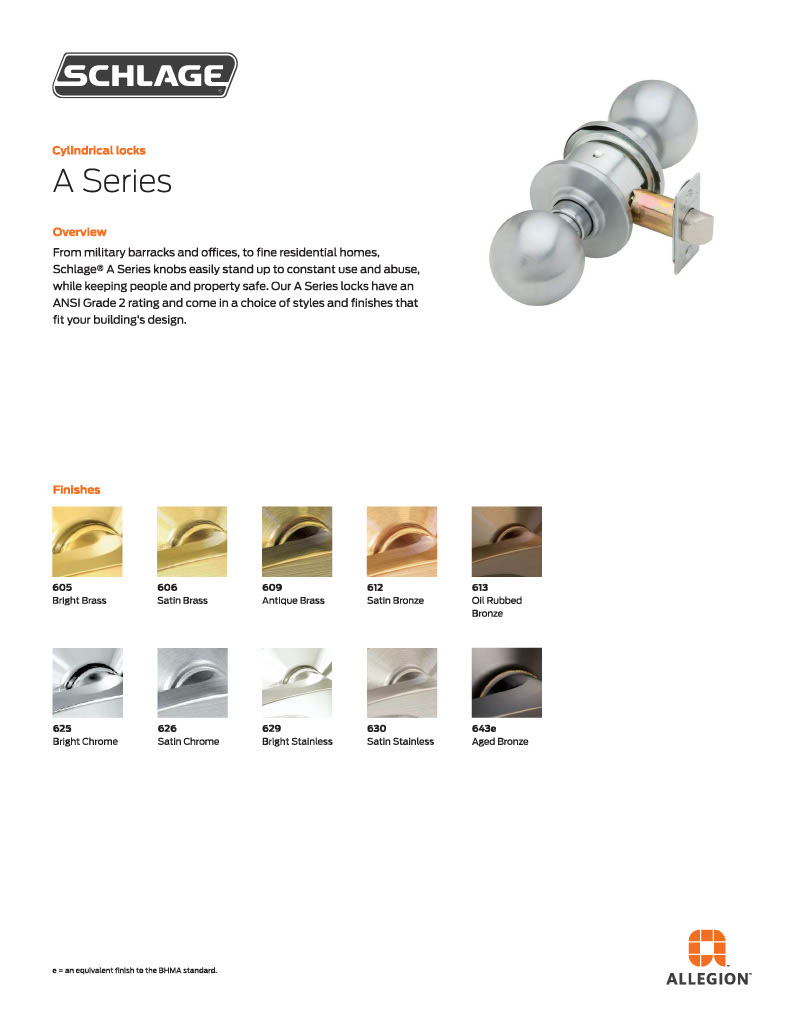

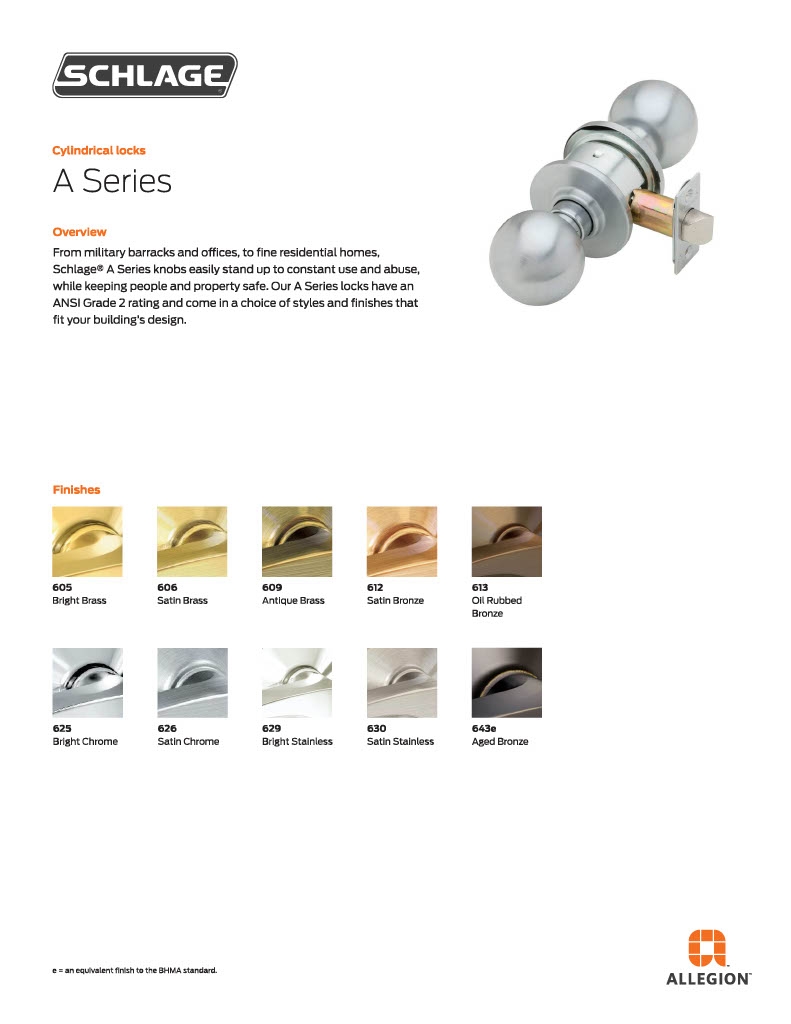

Finishes:626 - Satin Chrome, 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome, 643E - Aged Bronze, 609 - Antique Brass

Applications:Heavy duty residential, light and medium duty commercial.

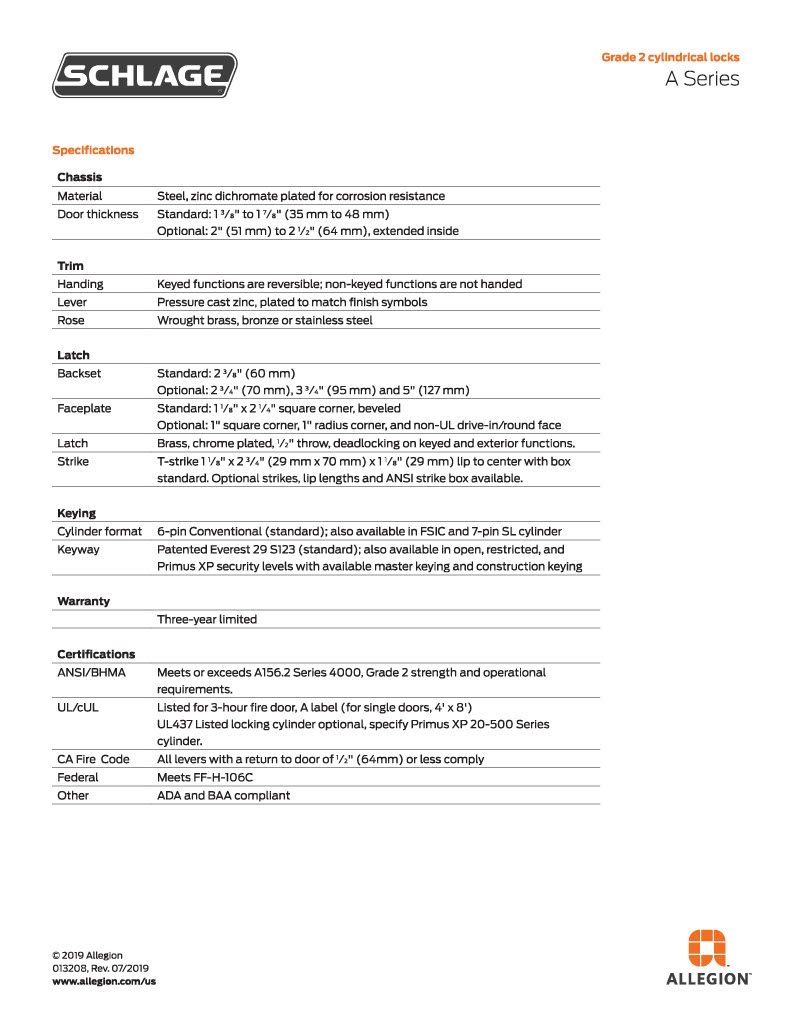

Certifications:ANSI 156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3 hours.

Door Range:1-3/8" -1-7/8" (35 mm-48 mm) standard.

Backset:2-3/8" (60 mm) or 2-3/4" (70 mm) standard.

Latches:1" x 2-1/4" (25 mm x 57 mm), 1/2" (13 mm) throw standard.

Strikes:Square corner. 1-1/8" x 2-3/4" with 1-1/8" lip T-strike, furnished with dust box, standard.

Keying:6-Pin/Keyed 5 tumbler with two nickel silver keys per lock. Other keying options include master keying, grand master keying, construction keying, and interchangeable core (IC) are also available.

Warranty:Commercial: three-year limited.Residential: Full mechanical lifetime.

Model: Schlage A53, A53PD, A53JD, A53PDORB, A53ORBJD, A53PDORB605, A53PDORB606, A53PDORB612, A53PDORB613, A53PDORB625, A53PDORB626, A53PDORB643E, A53PDORB609, A53LDORB605, A53LDORB606, A53LDORB612, A53LDORB613, A53LDORB625, A53LDORB626, A53LDORB643E, A53LDORB609

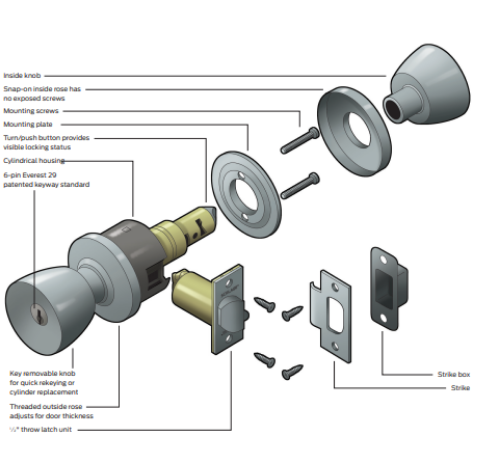

Exposed Trim:Wrought brass, bronze, or stainless steel. Lever is zinc based, plated to match BHMA symbols.

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Meets or exceeds 400,000 cycle ANSI Grade 2 requirements
