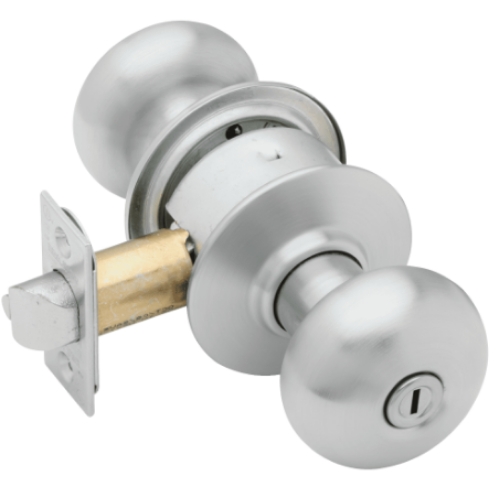

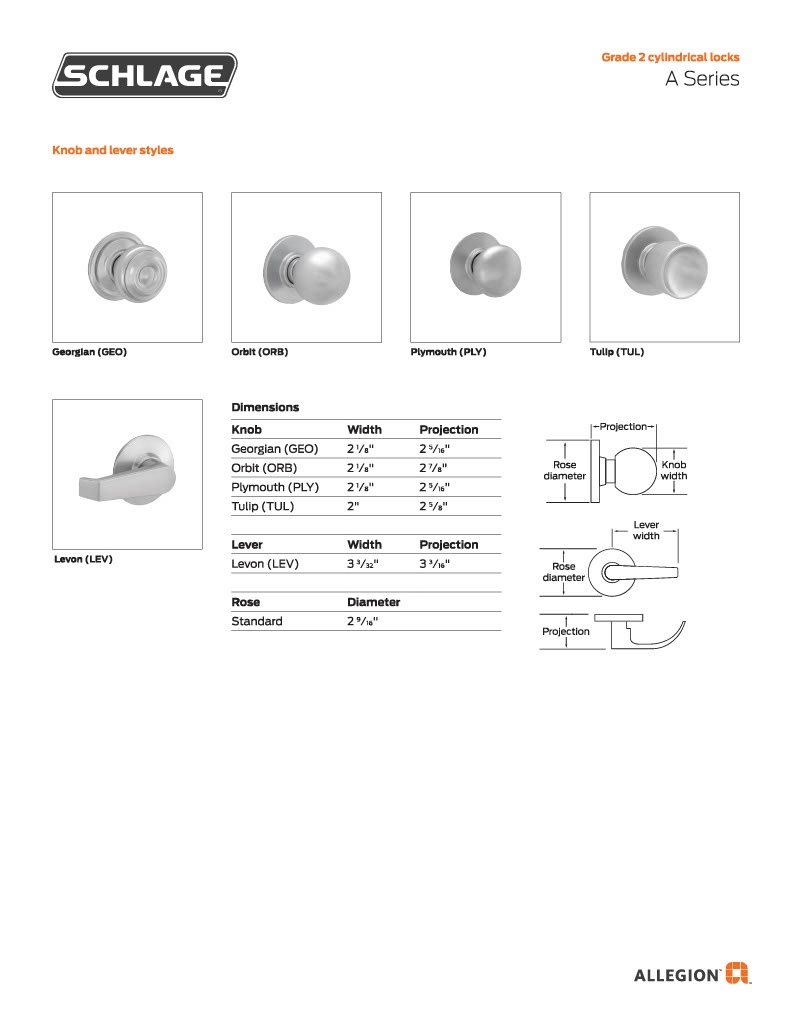

Schlage A40S Plymouth (PLY) Grade 2 Privacy Cylindrical Lock,

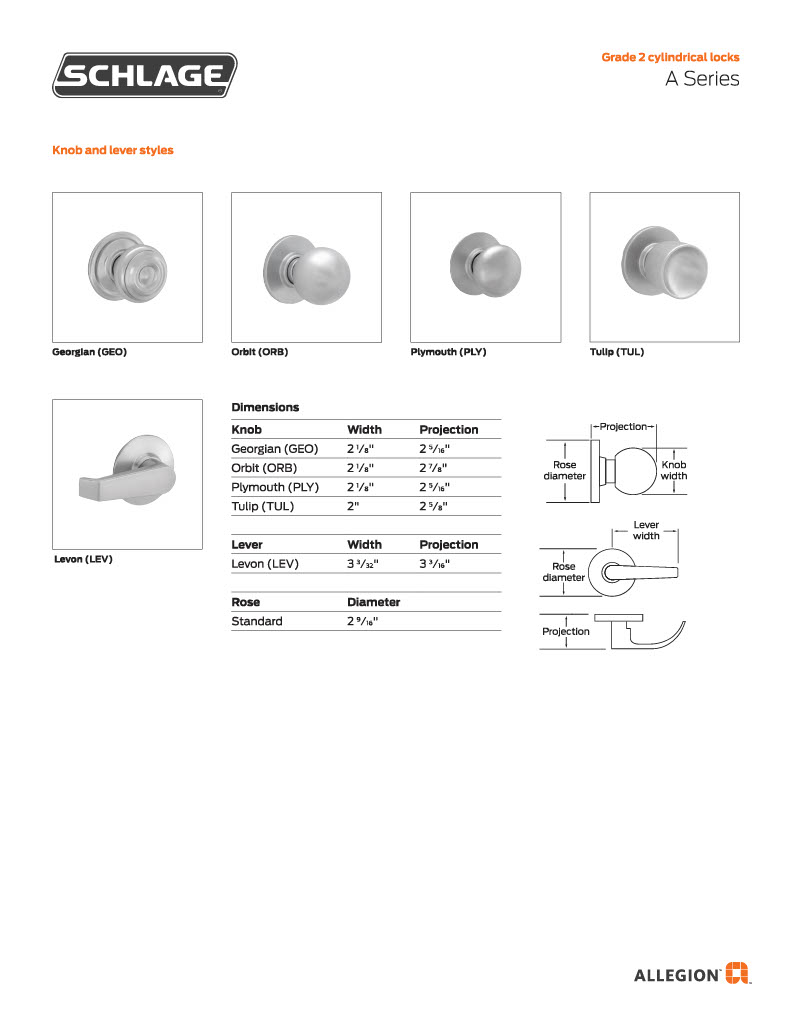

Schlage A40S Plymouth (PLY) Privacy Knob Set-ANSI F76

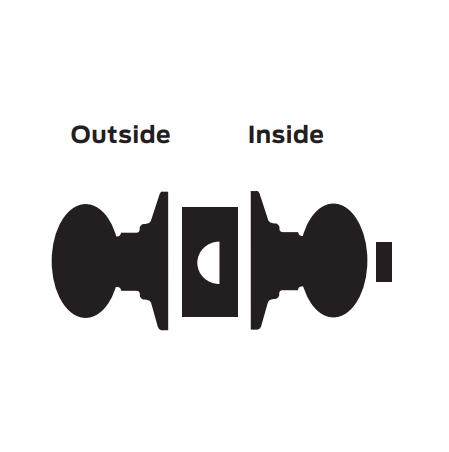

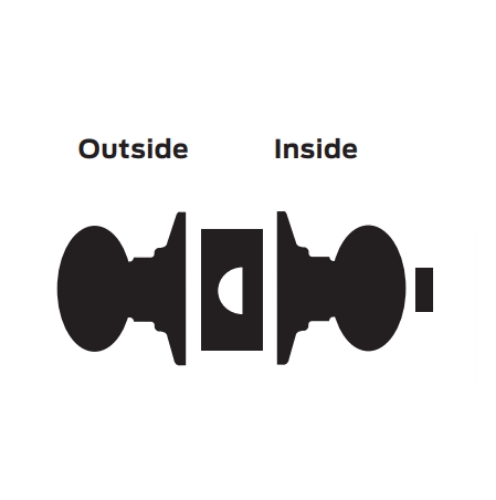

Push-button locking. Can be opened from outside with small screwdriver. Turning inside knob or closing door releases button. Inside knob is always free for immediate egress.

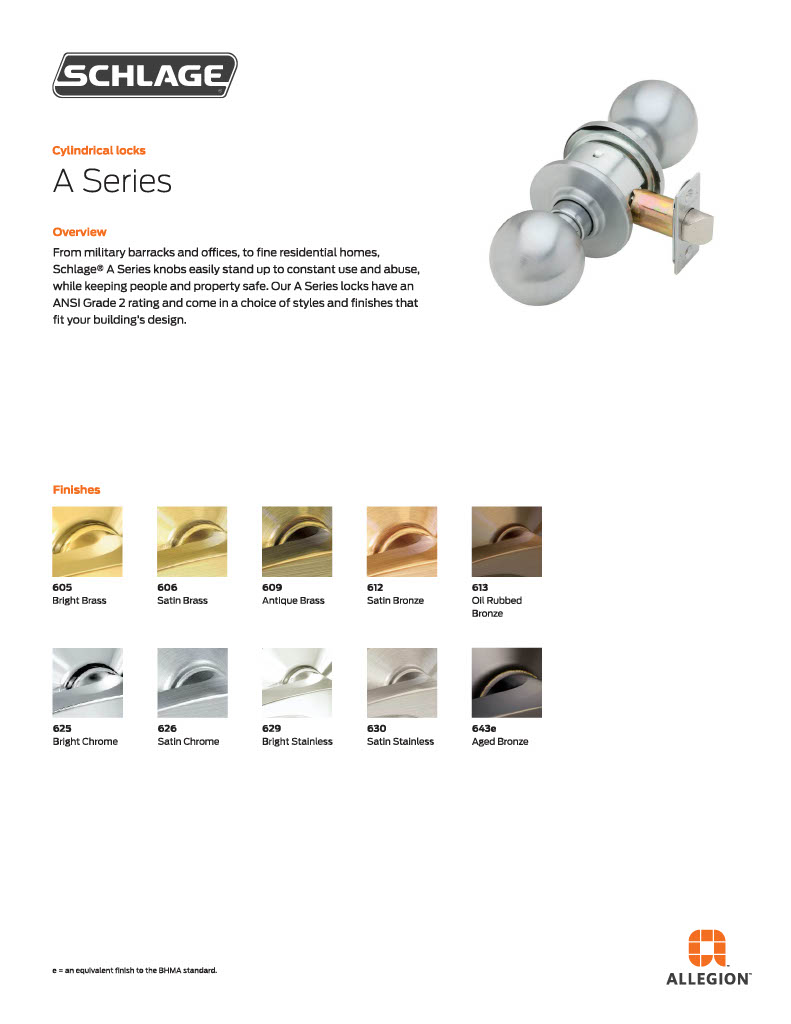

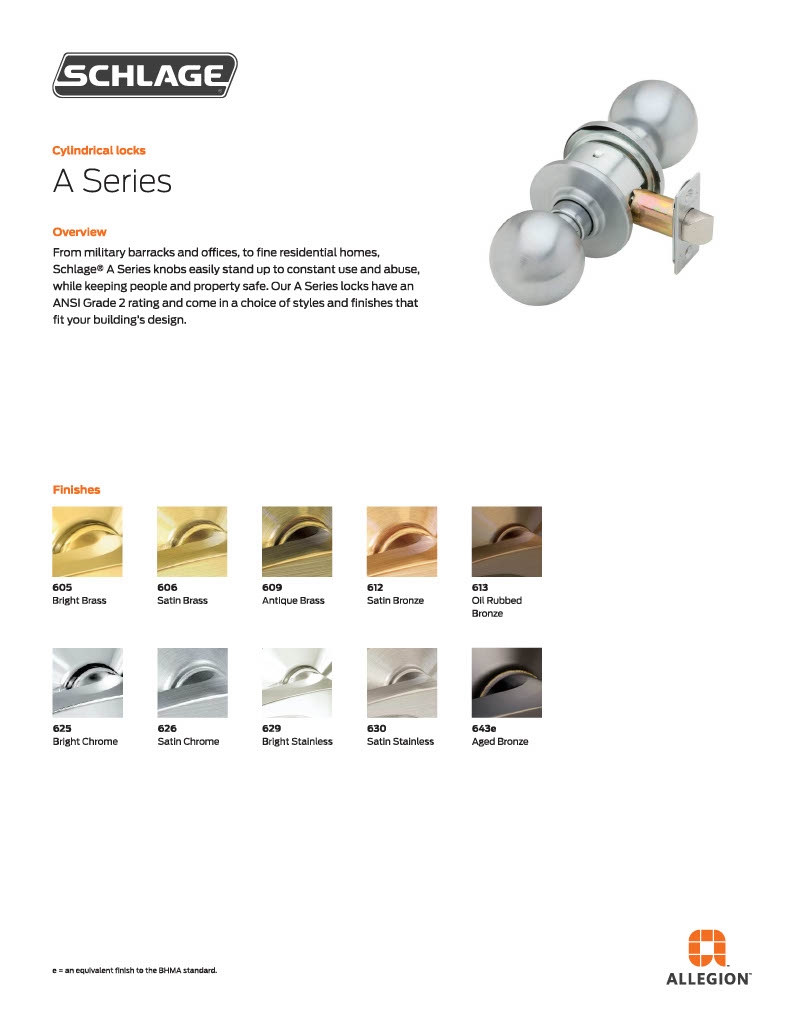

Finishes:626 - Satin Chrome, 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome, 609 - Antoque Brass

Applications:Heavy duty residential, light and medium duty commercial.

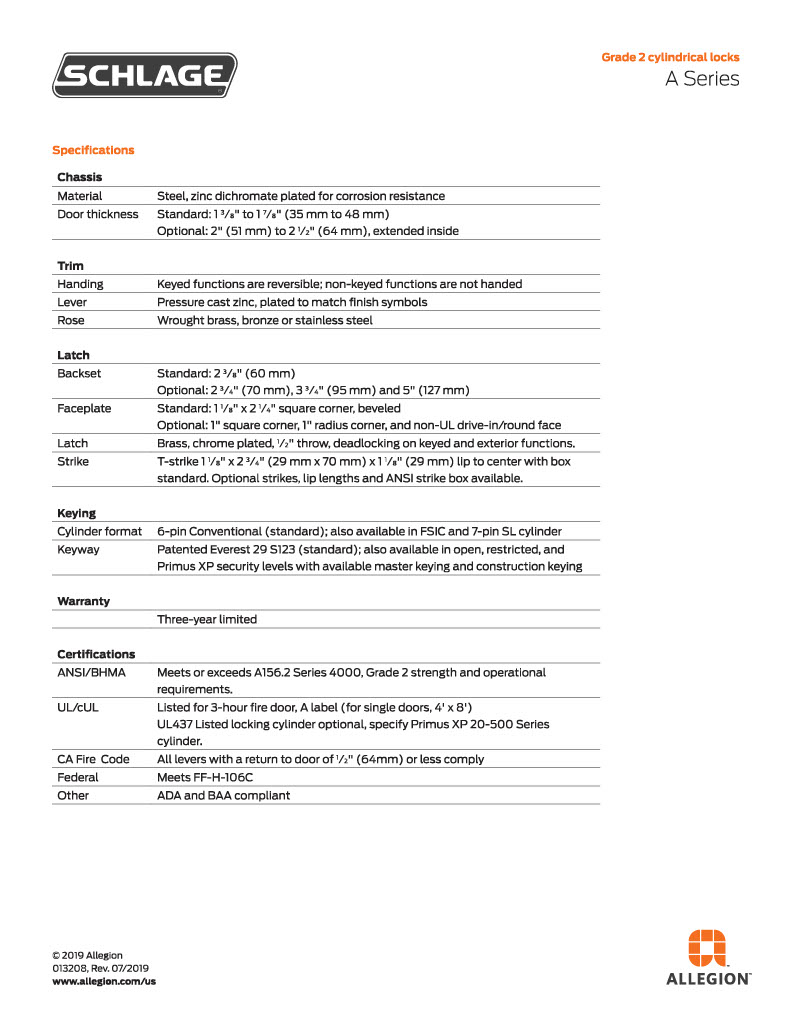

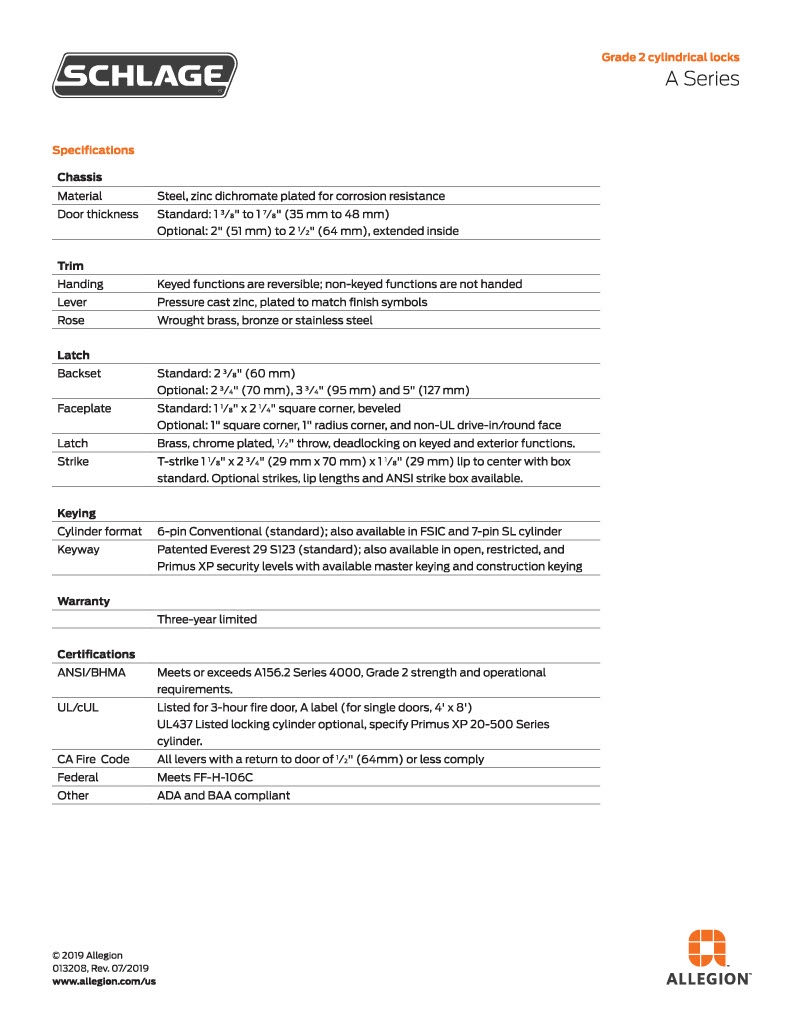

Certifications:ANSI 156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3 hours.

Door Range:1-3/8" -1-7/8" (35 mm-48 mm) standard.

Backset:2-3/8" (60 mm) or 2-3/4" (70 mm) standard.

Latches:1" x 2-1/4" (25 mm x 57 mm), 1/2" (13 mm) throw standard.

Strikes:Square corner. 1-1/8" x 2 3/4" with 1-1/8" lip T-strike, furnished with dust box, standard.

Warranty:Commercial: three-year limited.Residential: Full mechanical lifetime.

Model:Schlage A40, A40S, A40SPLY,  A40SPLY605, A40SPLY606, A40SPLY612, A40SPLY613, A40SPLY625, A40SPLY626

Exposed Trim:Wrought brass, bronze, or stainless steel. Lever is zinc based, plated to match BHMA symbols.

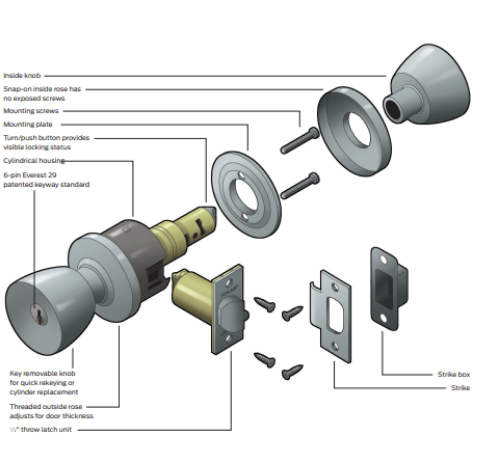

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Meets or exceeds 400,000 cycle ANSI Grade 2 requirements
