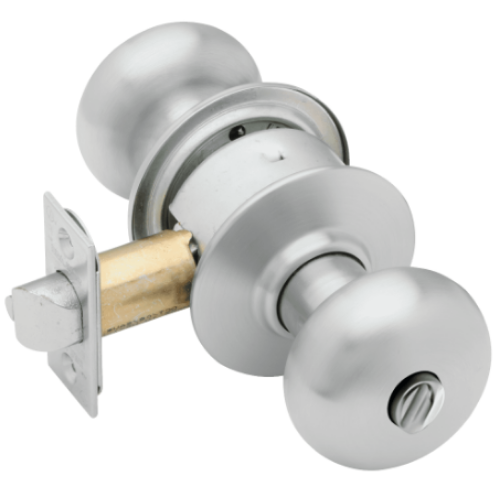

Schlage A43D Plymouth (PLY) Grade 2 Thumbturn Communicating Cylindrical Lock

Schlage A43D Plymouth (PLY) Communicating Lock - ANSI F79

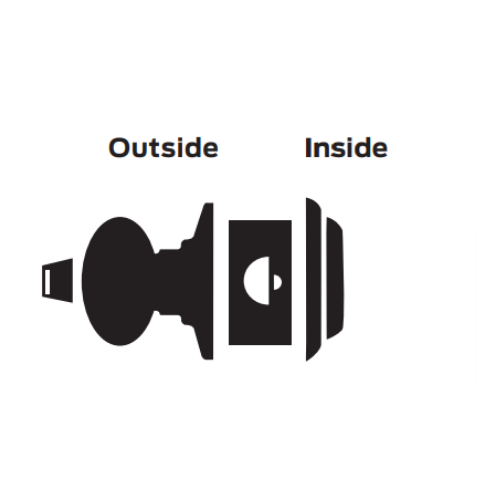

 Turn-button in outer knob locks and unlocks knob and inside thumbturn.

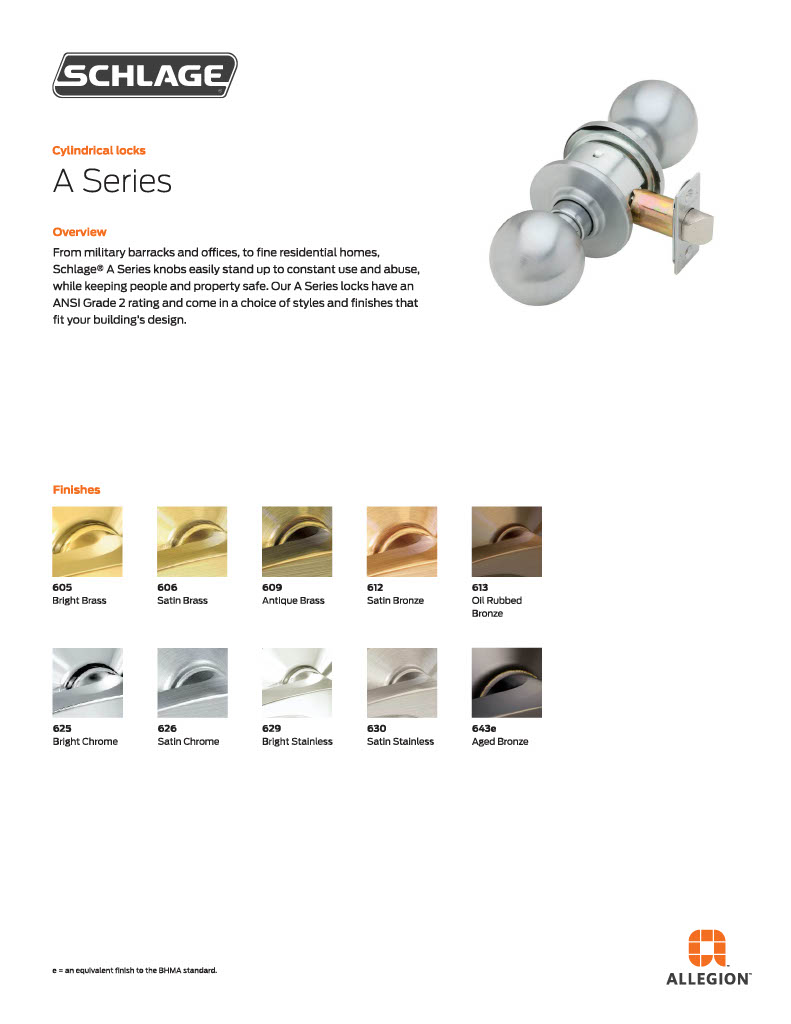

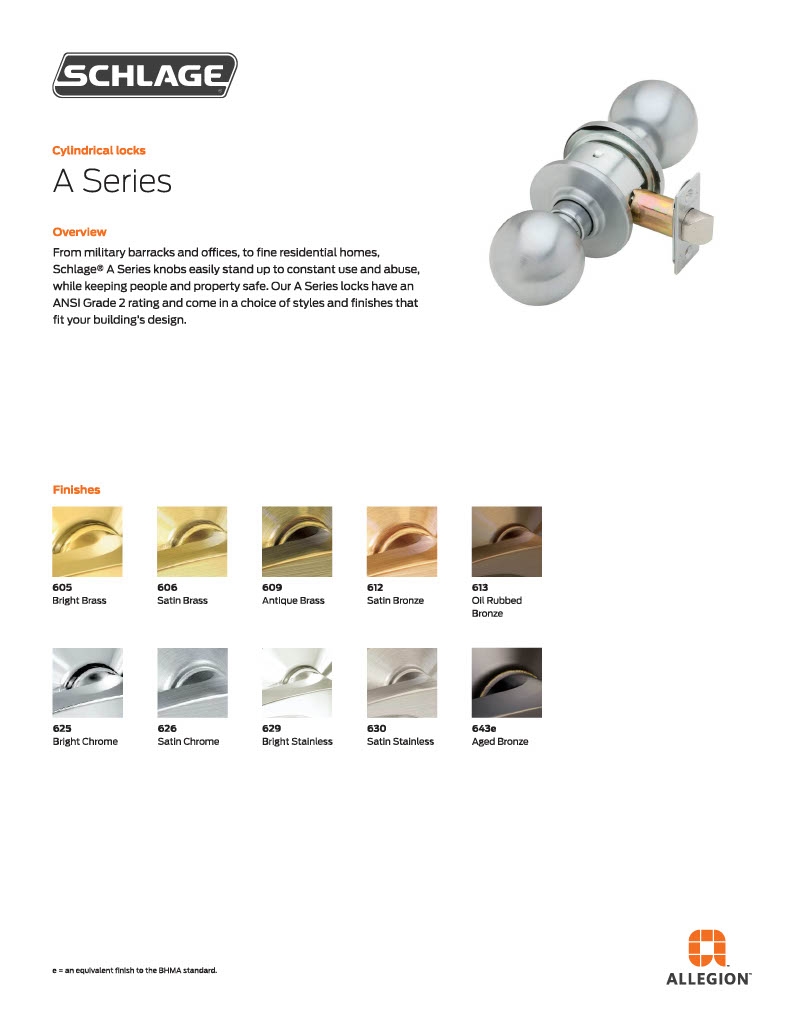

Finishes:626 - Satin Chrome, 612 - Satin Bronze

Applications:Heavy duty residential, light and medium duty commercial.

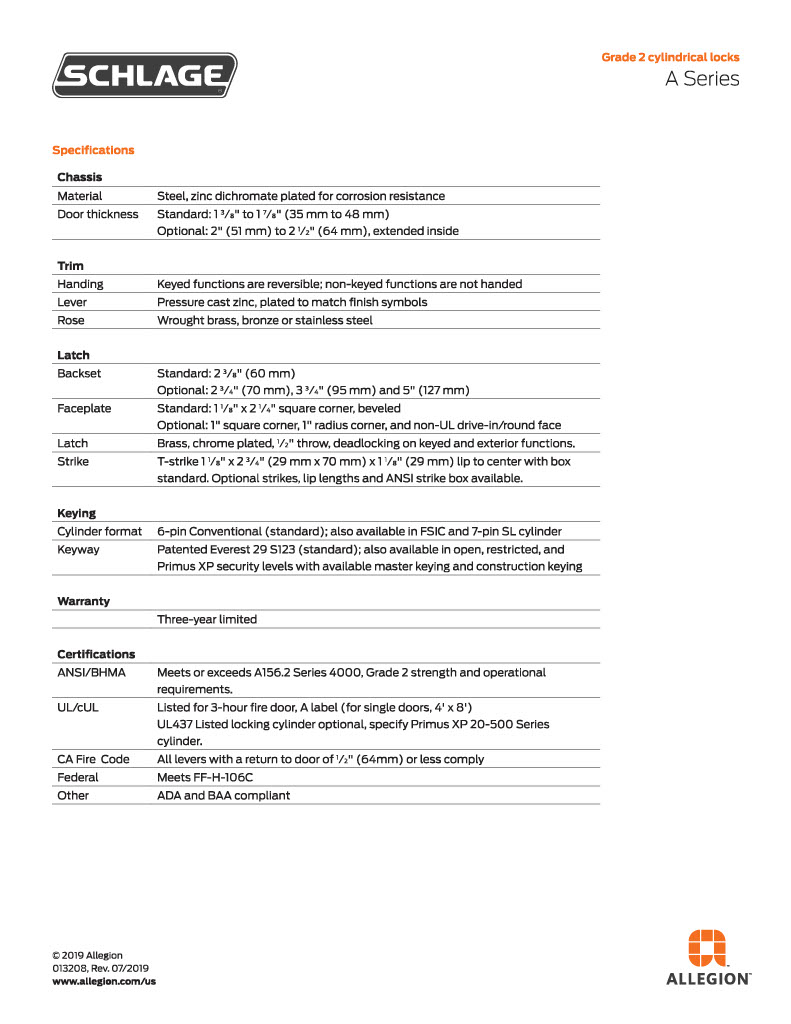

Certifications:ANSI 156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3 hours.

Door Range:1-3/8" -1-7/8" (35 mm-48 mm) standard.

Backset:2-3/8" (60 mm) or 2-3/4" (70 mm) standard.

Latches:1" x 2-1/4" (25 mm x 57 mm), 1/2" (13 mm) throw standard.

Strikes:Square corner. 1-1/8" x 2 3/4" with 1-1/8" lip T-strike, furnished with dust box, standard.

Warranty:Commercial: three-year limited.Residential: Full mechanical lifetime.

Model:Schlage A43, A43D, A43DPLY, A43DPLY612,, A43DPLY626

Exposed Trim:Wrought brass, bronze, or stainless steel. Lever is zinc based, plated to match BHMA symbols.

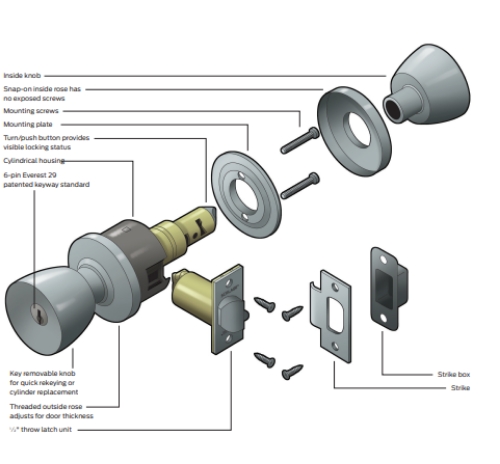

Key removable outside knobs for easy cylinder replacement

No exposed mounting screws

Meets or exceeds 400,000 cycle ANSI Grade 2 requirements
