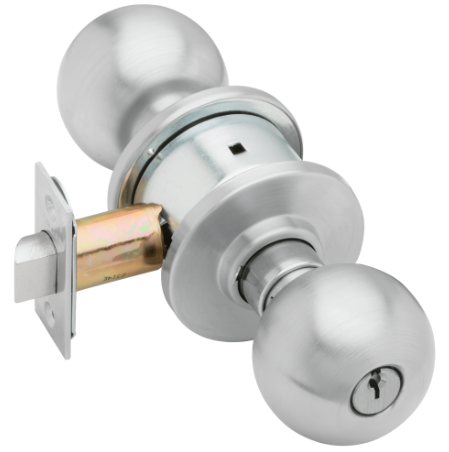

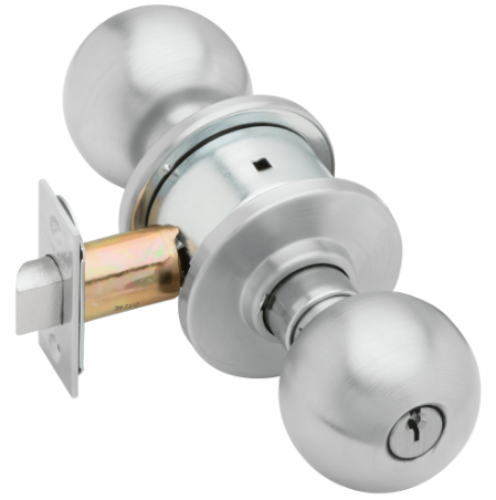

Schlage A79 Orbit (ORB) Grade 2 Backplate Communicating Cylindrical Lock

Schlage A79 Orbit (ORB) Communicating Lock

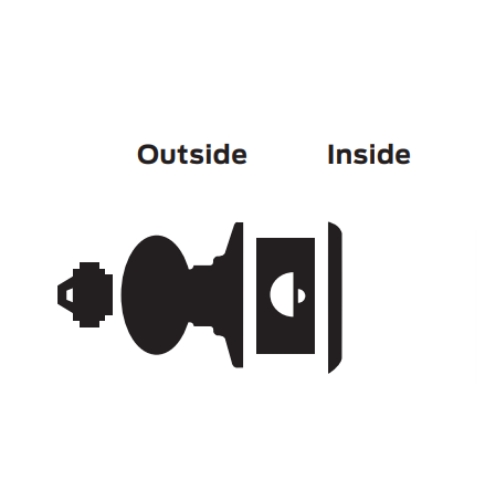

Locked or unlocked by key from outside.Blank plate inside.

Finishes:626 - Satin Chrome-

Applications:Heavy duty residential, light and medium duty commercial.

Certifications:ANSI 156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3 hours.

Door Range:1-3/8" -1-7/8" (35 mm-48 mm) standard.

Backset:2-3/8" (60 mm) or 2 3/4" (70 mm) standard.

Latches:1" x 2-1/4" (25 mm x 57 mm), 1/2" (13 mm) throw standard.

Strikes:Square corner. 1 1/8" x 2 3/4" with 1 1/8" lip T-strike, furnished with dust box, standard.

Keying:6-Pin/Keyed 5 tumbler with two nickel silver keys per lock. Other keying options include master keying, grand master keying, construction keying, and interchangeable core (IC) are also available.

Warranty:Commercial: three-year limited.Residential: Full mechanical lifetime.

Model:Schlage A79, A79PD, A79JD, A79PDORB, A53ORBJD, A79PDORB626

Exposed Trim:Wrought brass, bronze, or stainless steel. Lever is zinc based, plated to match BHMA symbols.

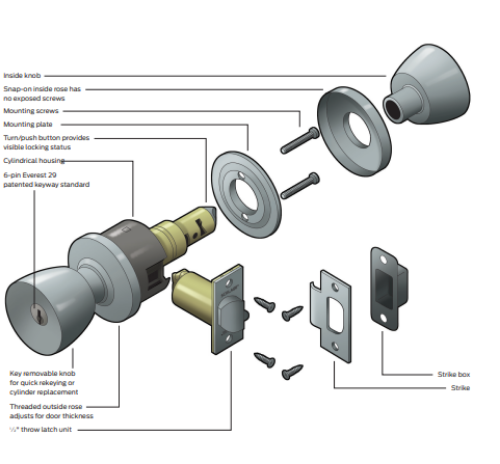

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Meets or exceeds 400,000 cycle ANSI Grade 2 requirements
