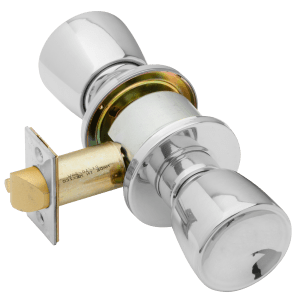

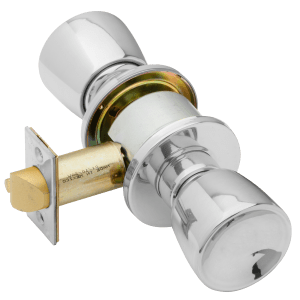

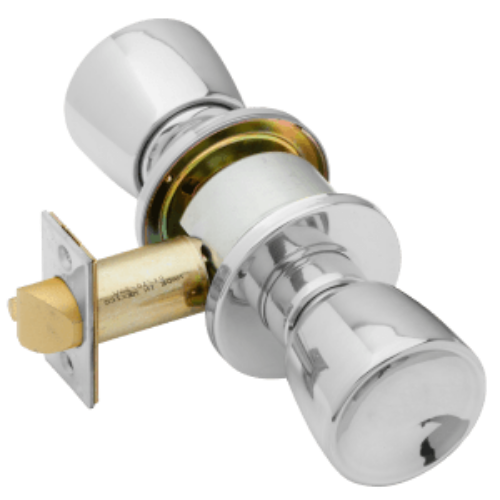

Schlage D10S TUL Passage Knob Set - Tulip Style

Product Details

Schlage D10S*TUL*Passage Knob Set - Tulip Style

Passage Latch- ANSI F75

Both knobs always unlocked.

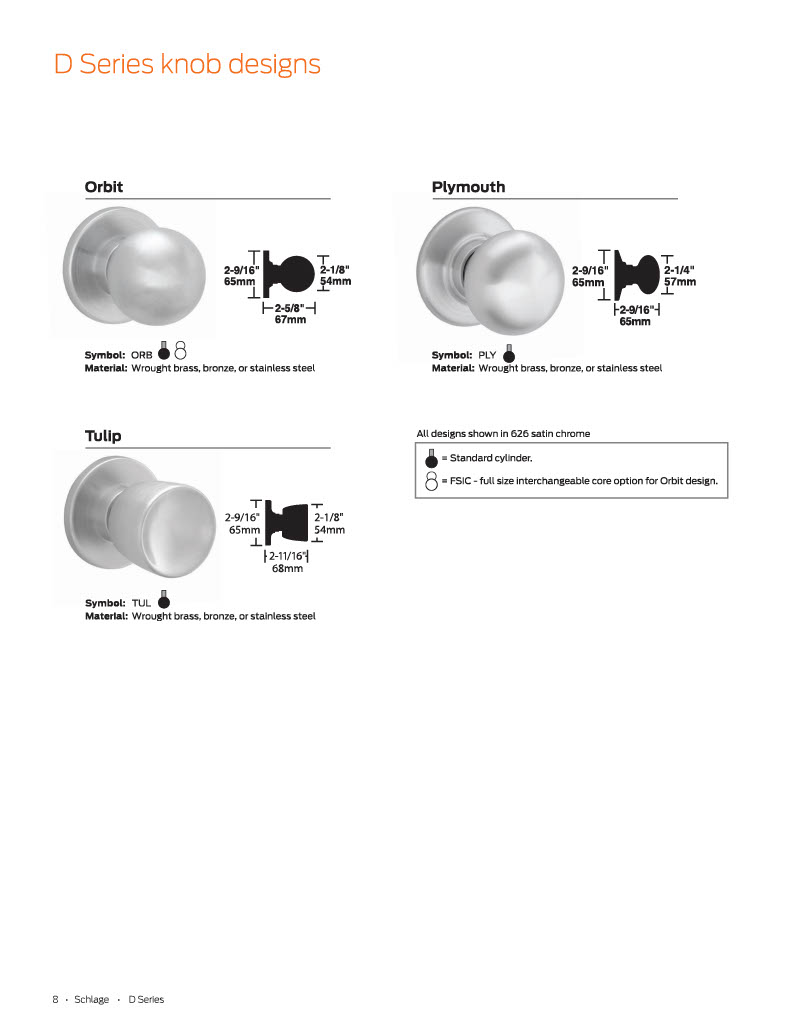

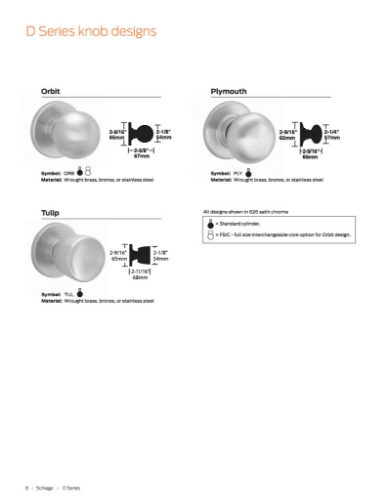

Knob Styles: Tulip (TUL)

Finishes:613 -Oil Rubbed Bronze, 626 - Satin Chrome, 605 - Bright Brass, 625 - Bright Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. (Formerly FF-H-106C Series 161.) UL Listed.

Door Range:Knob and decorative designs: 1 3/8" - 2" (35 mm - 51 mm) standard.

Handing:Keyed functions of knob designs are field reversible.

Backset:2" (70 mm) standard. 2 3/8" (60 mm) and 3" (95 mm) backset latches available. 5" (127 mm) backset link available.

Latches & Strikes Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Latches:1 1/8"x 2" (29 mm x 57 mm)," (13 mm) throw standard, a" (19mm) throw, fire door latch is available.

Strikes:ANSI 1" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) lip standard. Optional 1 3/8" (35 mm) lip available. Optional square corner T-strike 1 1/8" x 2" (30 mm x 70 mm) with 1 1/8" - 1" (29 mm - 34 mm) lip available.

*Warranty:*Three-year limited warranty.

Model:Schlage D10, D10S, TUL, D10STUL, D10STUL613, D10STUL605, D10STUL625, D10STUL626

Schlage D10S TUL Passage Knob Set - Tulip Style

Name: Schlage D10S TUL Passage Knob Set - Tulip Style
SKU: D10STUL
Price: 396.00 USD
Availability: InStock

SKU: D10STUL

In Stock

Chat

$396.00

$660.00

You saved $264.00

About this item

D Series Cylindrical Locks, Knob Designs, Extra Heavy Duty Commercial Cylindrical Locks. When the highest quality mechanisms are required, commercial quality D-Series locks are your best choice. Precision manufactured to exact tolerances, this top-of-the-line series is best suited for commercial, institutional and industrial use.

Resources

Schlage D10S*TUL*Passage Knob Set - Tulip Style

Passage Latch- ANSI F75

Both knobs always unlocked.

Knob Styles: Tulip (TUL)

Finishes:613 -Oil Rubbed Bronze, 626 - Satin Chrome, 605 - Bright Brass, 625 - Bright Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. (Formerly FF-H-106C Series 161.) UL Listed.

Door Range:Knob and decorative designs: 1 3/8" - 2" (35 mm - 51 mm) standard.

Handing:Keyed functions of knob designs are field reversible.

Backset:2" (70 mm) standard. 2 3/8" (60 mm) and 3" (95 mm) backset latches available. 5" (127 mm) backset link available.

Latches & Strikes Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Latches:1 1/8"x 2" (29 mm x 57 mm)," (13 mm) throw standard, a" (19mm) throw, fire door latch is available.

*Warranty:*Three-year limited warranty.

Model:Schlage D10, D10S, TUL, D10STUL, D10STUL613, D10STUL605, D10STUL625, D10STUL626

Schlage D10S TUL Passage Knob Set - Tulip Style

Product code: D10STUL

In Stock

$660.00

$396.00

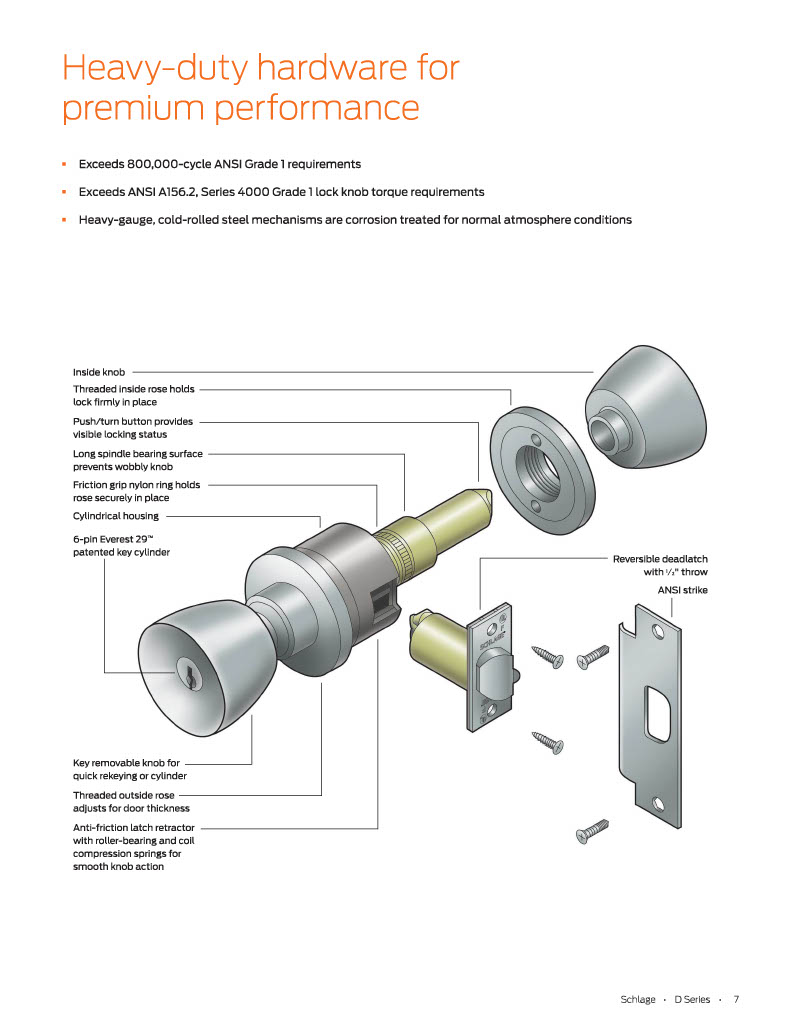

Exceeds 800,000 cycle ANSI Grade 1 requirements.

Exceeds ANSI A156.2 Series 4000 Grade 1 lock knob torque requirements.

Concealed mounting screws.

Cylindrical housing heavy gauge cold rolled steel mechanisms are corrosiontreated for normal atmosphere conditions.

Roller bearings and coil compression springs on latch retractors ensure long life and smooth action.

Threaded roses hold lock firmly in place.

Friction grip nylon ring holds rose securely in place.

Exposed Trim: Wrought brass, bronze, or stainless steel.

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Certifications

ANSIMeets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.

FederalMeets FF-H-106C Series 161.

*UL / cUL:*All locks listed for A label single doors, 4 x 8. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
