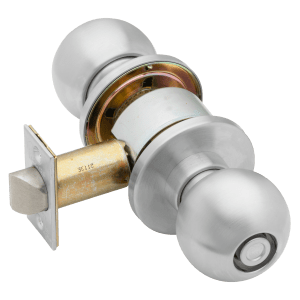

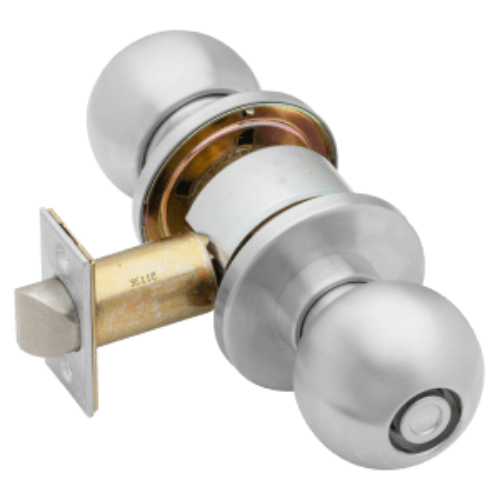

Schlage D44S ORB Hospital Privacy Lock - Orbit Style

Schlage D44S ORB Hospital Privacy Lock - Orbit Style

Push-button locking. Unlocked from outside by turning emergency turn-button. Turning inside knob or closing door releases button. Inside knob is always free for immediate egress.

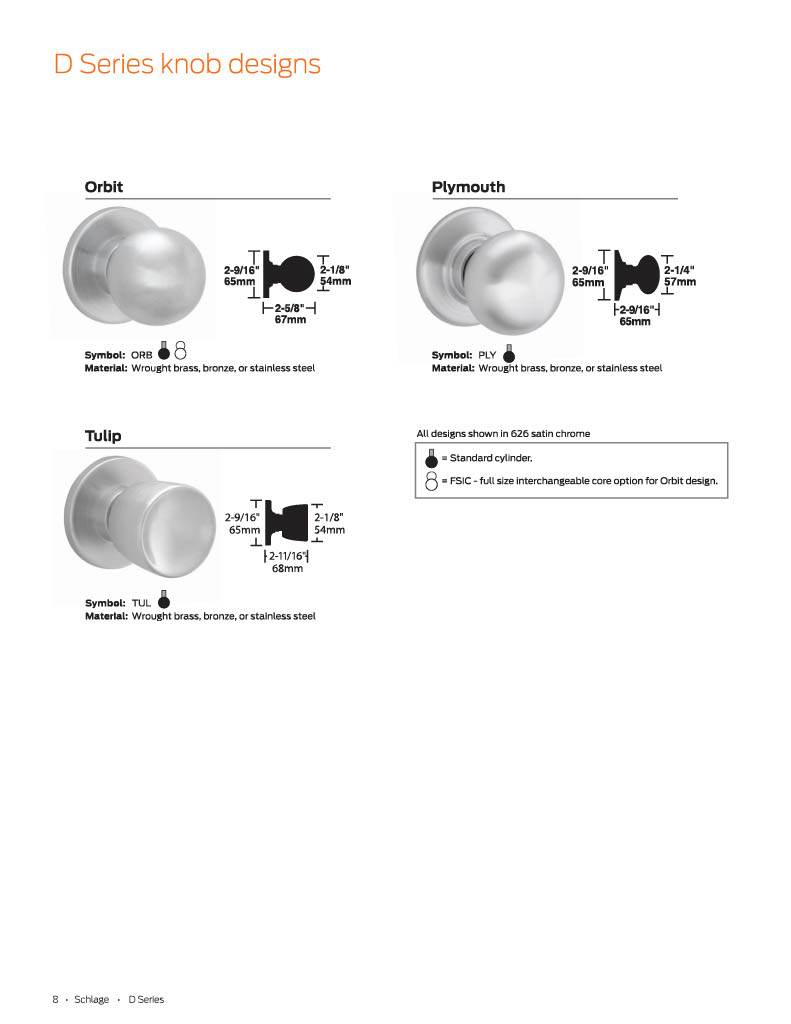

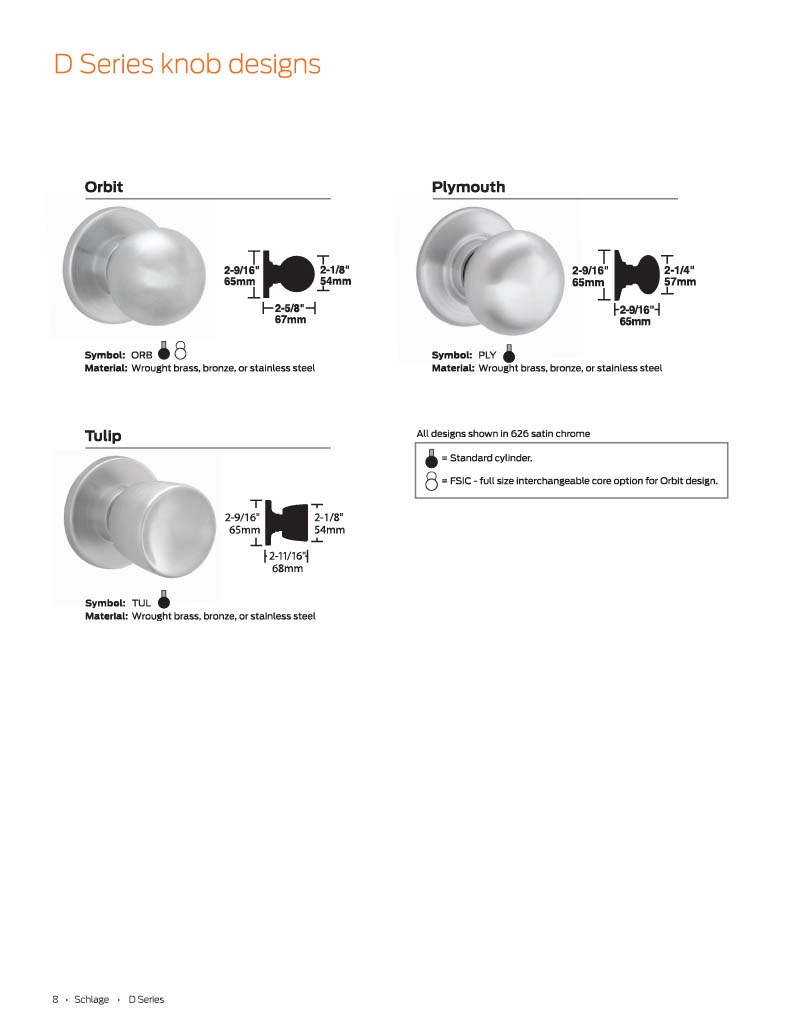

Knob Style: Orbit (ORB)

Finishes: 626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. (Formerly FF-H-106C Series 161.) UL Listed.

Door Range:Knob and decorative designs: 1 3/8" - 2" (35 mm - 51 mm) standard.

Handing:Keyed functions of knob designs are field reversible.

Backset:2" (70 mm) standard. 2 3/8" (60 mm) and 3" (95 mm) backset latches available. 5" (127 mm) backset link available.

Latches & Strikes Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Latches:1 1/8"x 2" (29 mm x 57 mm)," (13 mm) throw standard, a" (19mm) throw, fire door latch is available.

Strikes:ANSI 1" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) lip standard. Optional 1 3/8" (35 mm) lip available. Optional square corner T-strike 1 1/8" x 2" (30 mm x 70 mm) with 1 1/8" - 1" (29 mm - 34 mm) lip available.

*Warranty:*Three-year limited warranty.

Model:Schlage D44, D44S, ORB,  D44SORB, D44SORB626

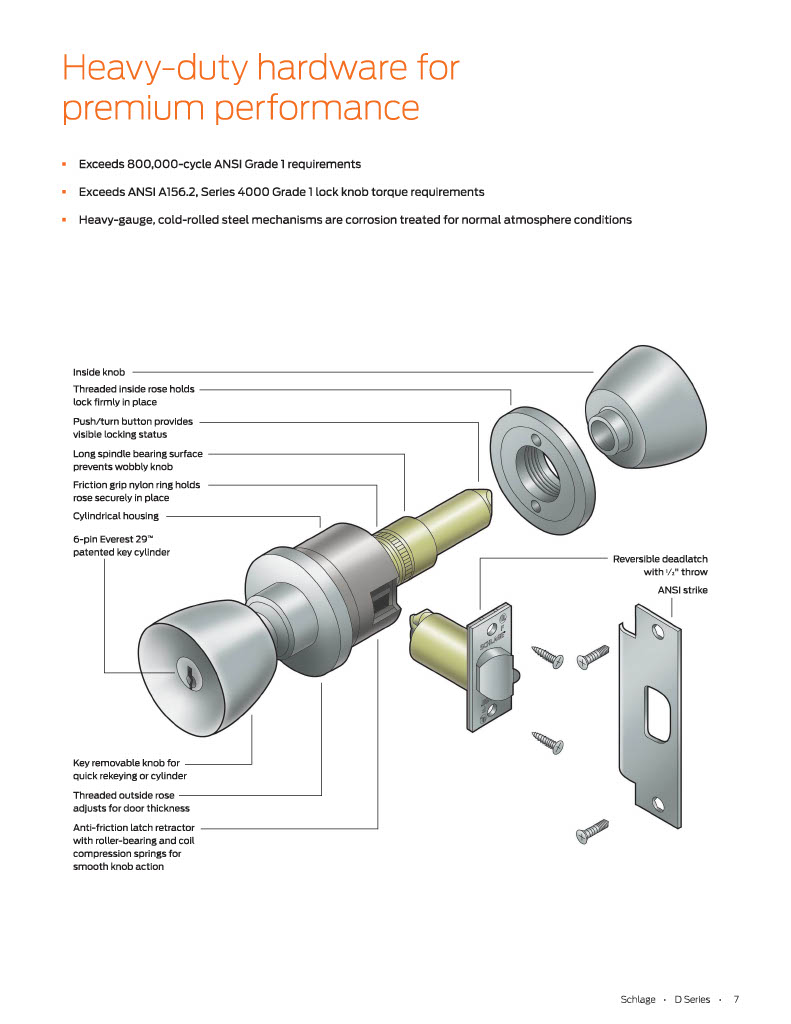

Exceeds 800,000 cycle ANSI Grade 1 requirements.

Exceeds ANSI A156.2 Series 4000 Grade 1 lock knob torque requirements.

Concealed mounting screws.

Cylindrical housing heavy gauge cold rolled steel mechanisms are corrosiontreated for normal atmospere conditions.

Roller bearings and coil compression springs on latch retractors ensure long life and smooth action.

Threaded roses hold lock firmly in place.

Friction grip nylon ring holds rose securely in place.

Exposed Trim: Wrought brass, bronze, or stainless steel.

Key removable outside knobs for easy cylinder replacement

No exposed mounting screws

Certifications

ANSIMeets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.

FederalMeets FF-H-106C Series 161.

*UL / cUL:*All locks listed for A label single doors, 4 x 8 . Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
