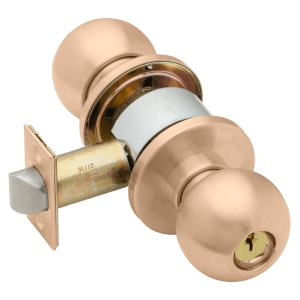

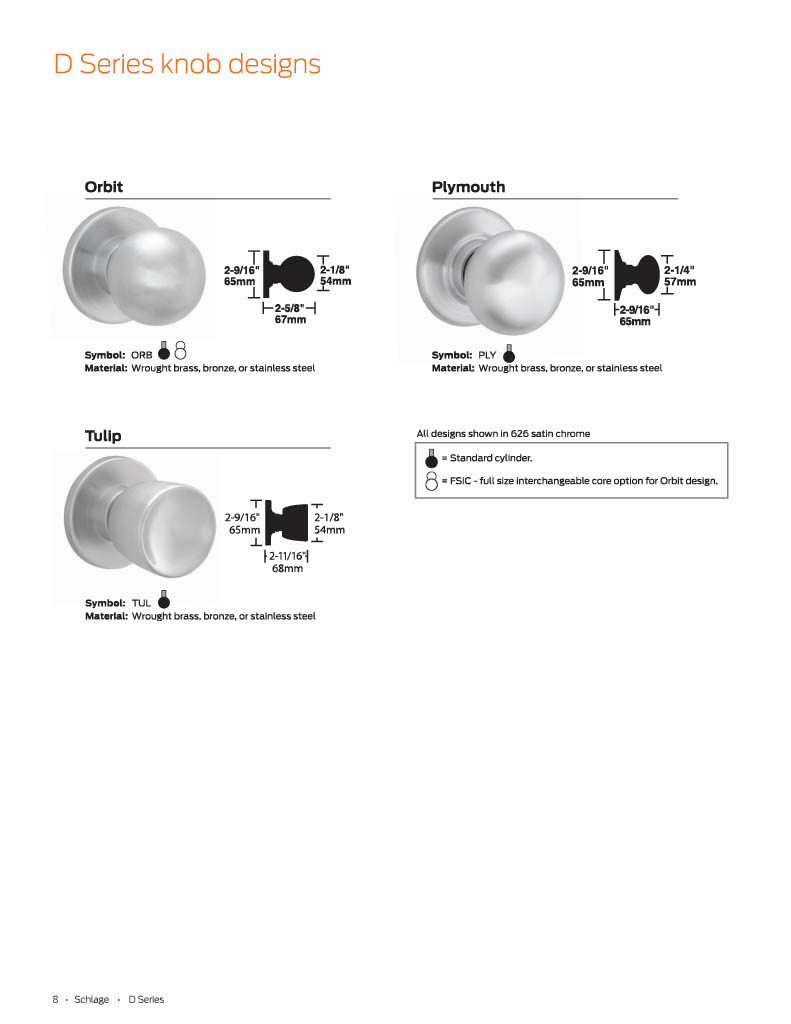

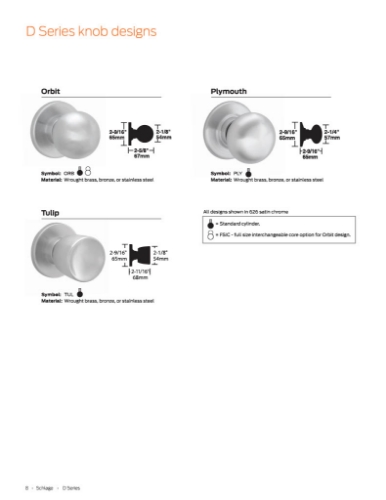

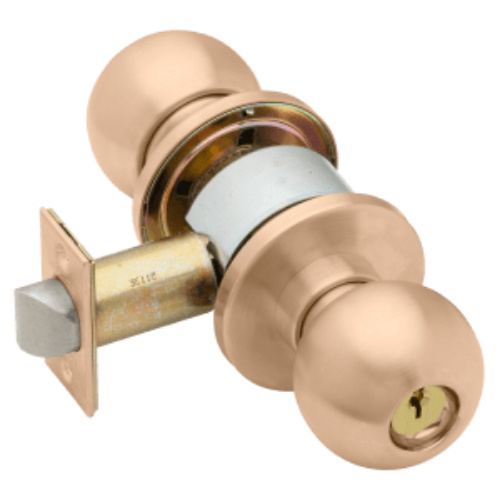

Schlage D66PD ORB 612 Store Door Lock - 6-Pin conventional - Orbit Style

Schlage D66PD ORB Store Door Lock - 6-Pin conventional  - Orbit Style

Store Door Lock -ANSI - F91

Key in either knob locks or unlocks both knobs.

Caution:Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. (Formerly FF-H-106C Series 161.) UL Listed.

Door Range:Knob and decorative designs: 1 3/8" - 2" (35 mm - 51 mm) standard.

Handing:Keyed functions of knob designs are field reversible.

Backset:2" (70 mm) standard. 2 3/8" (60 mm) and 3" (95 mm) backset latches available. 5" (127 mm) backset link available.

Latches & Strikes Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.

Latches:1 1/8"x 2" (29 mm x 57 mm)," (13 mm) throw standard, a" (19mm) throw, fire door latch is available.

Strikes:ANSI 1" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) lip standard. Optional 1 3/8" (35 mm) lip available. Optional square corner T-strike 1 1/8" x 2" (30 mm x 70 mm) with 1 1/8" - 1" (29 mm - 34 mm) lip available. Keying: 6-Pin tumbler with two nickel silver keys per lock. Other keying options available including master keying, grand master keying, construction keying, and interchangeable core.

*Warranty:*Three-year limited warranty.

Model:Schlage D66, D66PD, ORB, D66PDORB, D66PDORB626, D66PDORB605

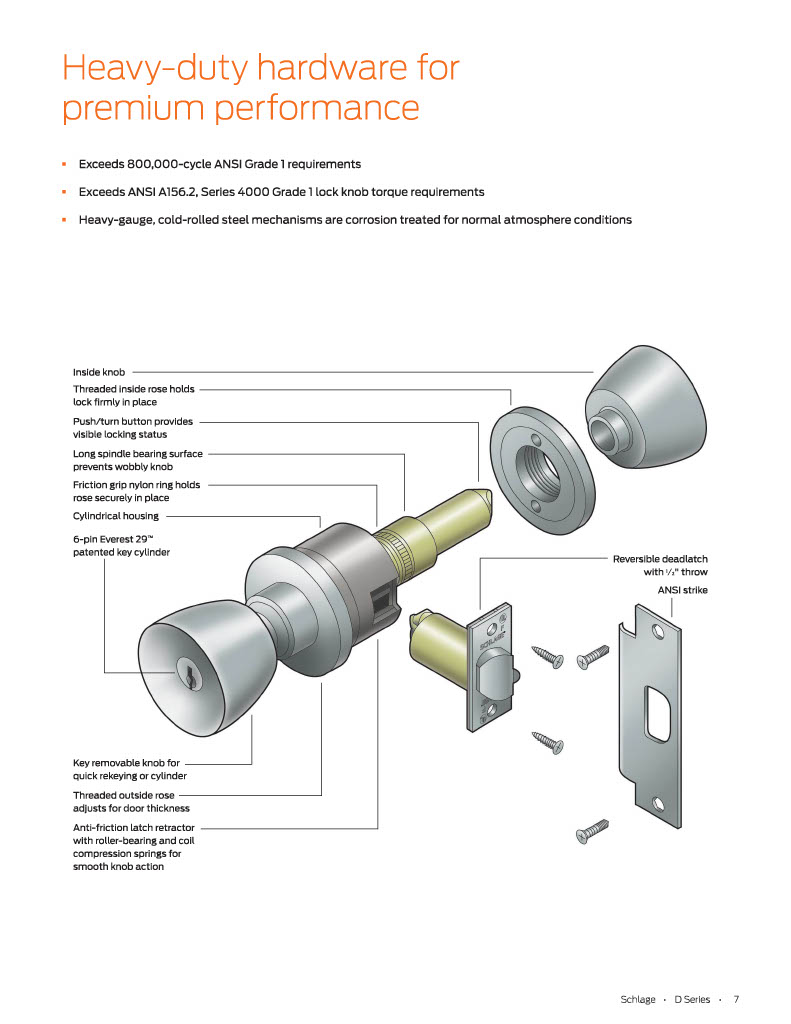

Exceeds 800,000 cycle ANSI Grade 1 requirements.

Exceeds ANSI A156.2 Series 4000 Grade 1 lock knob torque requirements.

Concealed mounting screws.

Cylindrical housing heavy gauge cold rolled steel mechanisms are corrosiontreated for normal atmosphere conditions.

Roller bearings and coil compression springs on latch retractors ensure long life and smooth action.

Threaded roses hold lock firmly in place.

Friction grip nylon ring holds rose securely in place.

Exposed Trim: Wrought brass, bronze, or stainless steel.

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Certifications

ANSIMeets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.

FederalMeets FF-H-106C Series 161.

*UL / cUL:*All locks listed for A label single doors, 4 x 8. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
