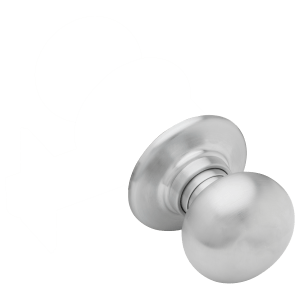

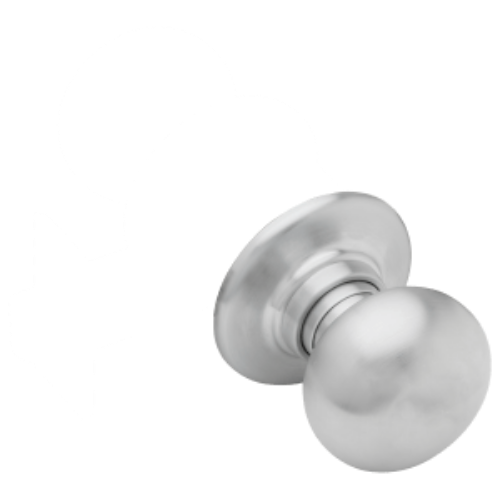

Schlage D170 PLY Single Dummy Trim - Plymouth Style

Schlage D170 PLY Single Dummy Trim - Plymouth Style

Dummy trim for one side of door. Used for door pull or as matching inactive trim.

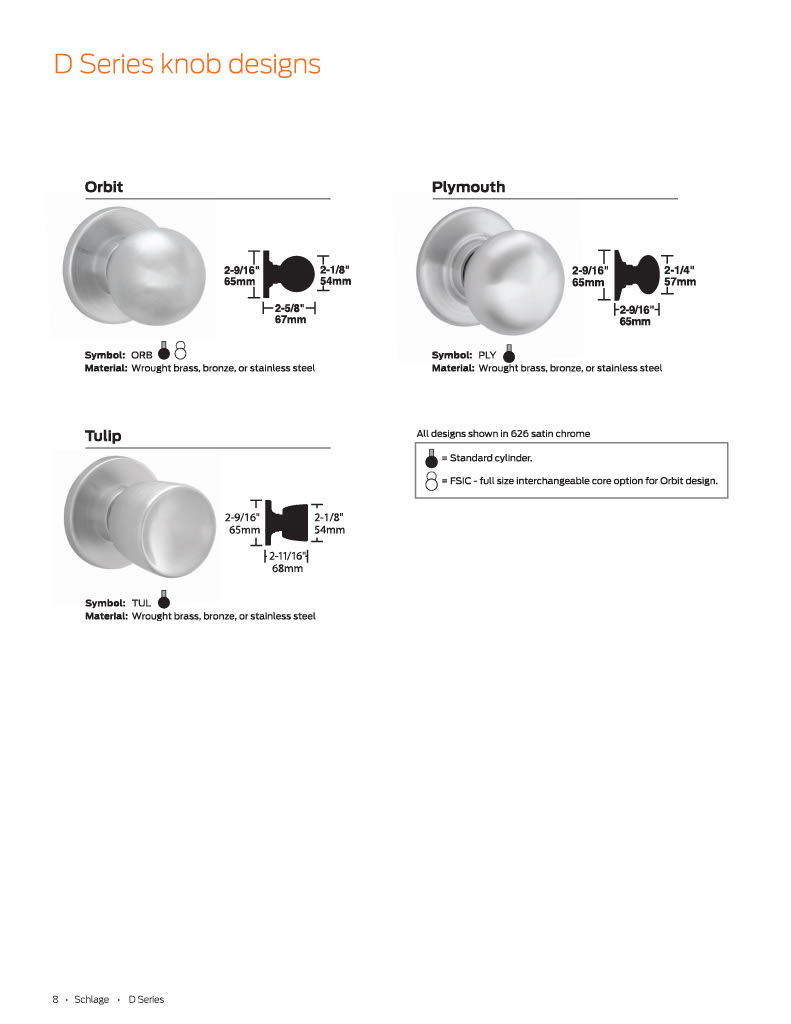

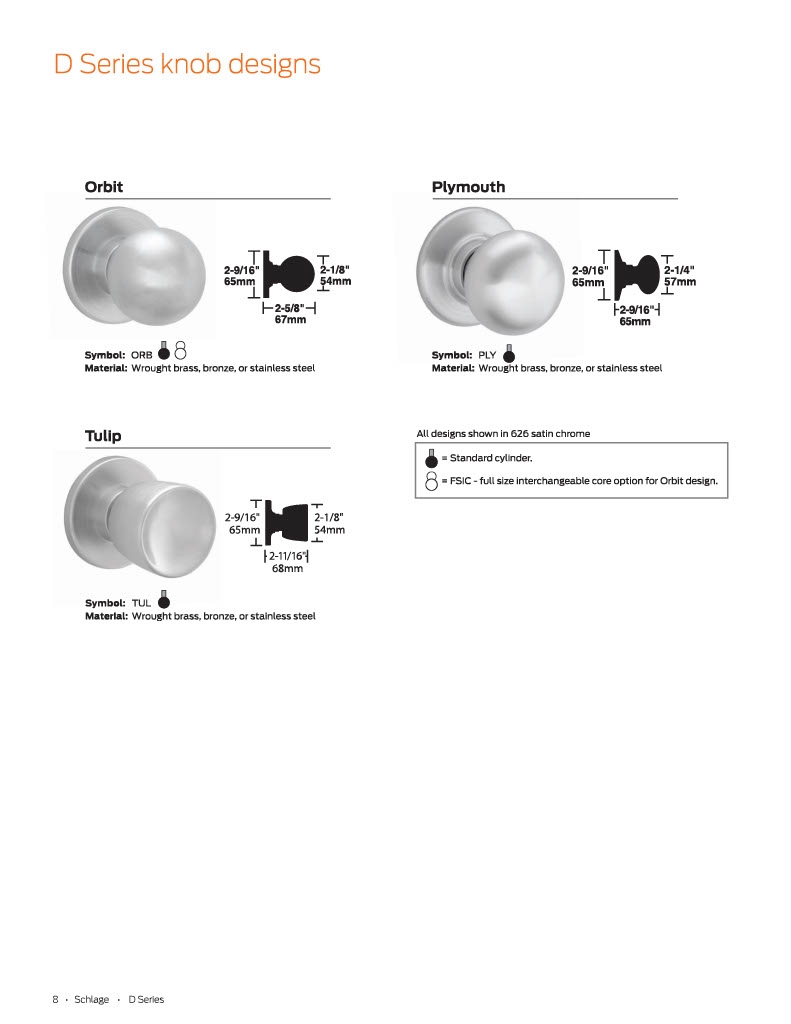

Knob Styles: Plymouth (PLY)

*Finishes: *605 - Bright Brass, 626 - Satin Chrome, 613 - Oil Rubbed Bronze, 625 - Bright Chrome, 606 - Satin Brass

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. (Formerly FF-H-106C Series 161.) UL Listed.

Door Range:Knob and decorative designs: 1 3/8" - 2" (35 mm - 51 mm) standard.

Handing:Keyed functions of knob designs are field reversible.

*Warranty:*Three-year limited warranty.

Model:Schlage, D170, PLY, D170PLY, D170PLY626, D170PLY605, D170PLY613, D170PLY625, D170PLY606

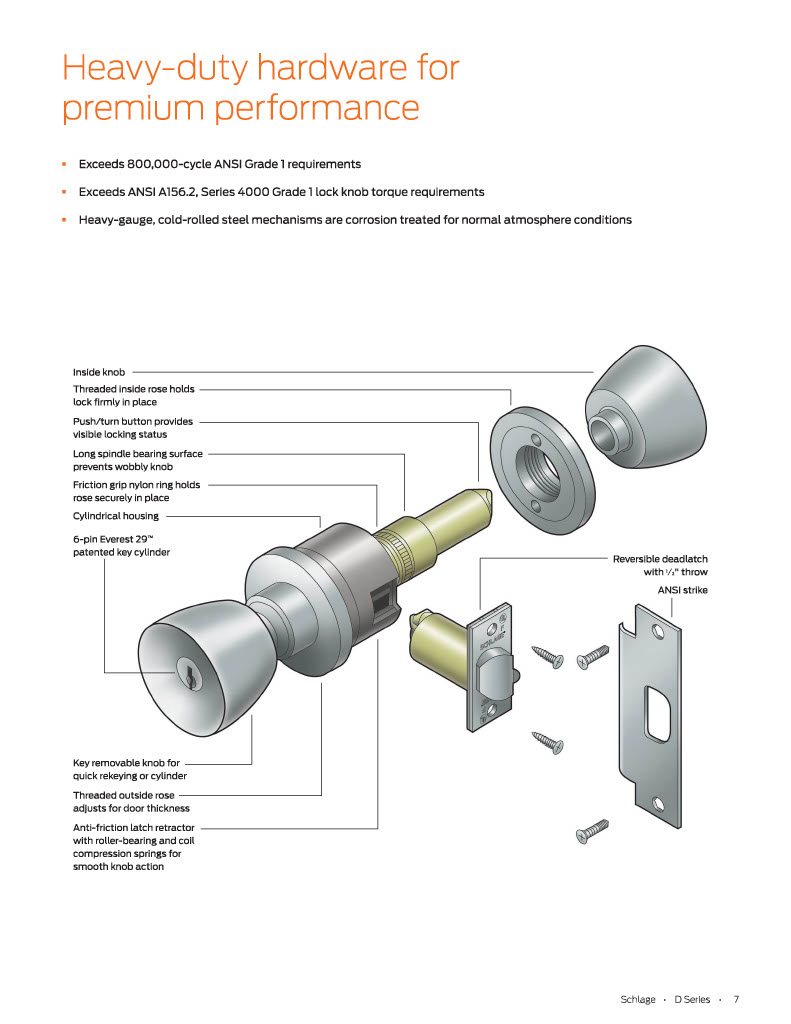

Exceeds 800,000 cycle ANSI Grade 1 requirements.

Exceeds ANSI A156.2 Series 4000 Grade 1 lock knob torque requirements.

Concealed mounting screws.

Cylindrical housing heavy gauge cold rolled steel mechanisms are corrosiontreated for normal atmosphere conditions.

Roller bearings and coil compression springs on latch retractors ensure long life and smooth action.

Threaded roses hold lock firmly in place.

Friction grip nylon ring holds rose securely in place.

Exposed Trim: Wrought brass, bronze, or stainless steel.

Key removable outside knobs for easy cylinder replacement

No exposed mounting screws

Certifications

ANSIMeets or exceeds A156.2 Series 4000, Grade 1 strength and operational requirements.

FederalMeets FF-H-106C Series 161.

*UL / cUL:*All locks listed for A label single doors, 4 x 8. Letter F and UL symbol on latch front indicate listing. Electrified functions are UL19X Listed for single point locking applications. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
