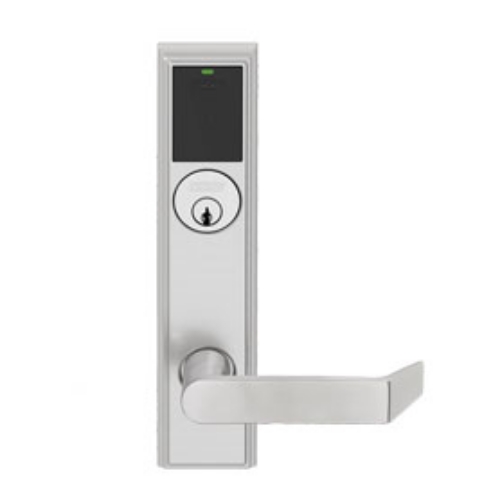

Schlage Electronics LEBMD-ADD Grade 1 Schlage ENGAGE Series Wireless Mortise Lock, Privacy/Apartment Function, Addison Trim

LEBMD-ADD Grade 2 Schlage ENGAGE Series Wireless Mortise Lock, 2.4 GHz Bluetooth Low Energy Reader, Mobile Enabled LED indicator, Privacy/Apartment*Function,AddisonTrim*

The Schlage LE mobile enabled wireless mortise lock is designed to affordably extend electronic access control deeper into the building beyond traditional perimeter and high security openings and offers users the security and convenience of using a smart device to gain access.   LE wireless locks simplify installation by combining the lock, credential reader, door position sensor and request-to-exit switch all in one unit. LE requires only minor modifications to existing mechanical mortise prep with no wires to run to the lock or additional components necessary.

The open architecture design of LE allows it to be managed by Allegion software or to be integrated into popular physical access control systems through our PACS  lliance program. This enables customers to choose the system that best fits their requirements now and move to a networked solution at any time.

LE suites with Schlage L Series levers, finishes and keyways to provide a wide selections of attractive options to meet the requirements of nearly any environment.

Features and benefits:

Available with indicator, interior push button, or deadbolt for storeroom, privacy, apartment, and office applicationsStandard multi-technology credential compatibility includes Schlage MIFARE, Bluetooth and NFC mobile, and proximity - Optional support for HID smart and NFC mobile credentialsWireless configuration from connected smartphones and tablets - no proprietary device neededBuilt-in Wi-Fi enables automated daily updates sent directly from host softwareNetworked real-time communication available with the ENGAGE Gateway and PACS provider solutionsInnovative integrated door position switch requires no additional door prepIdeal for office and suite entries, conference rooms, common area doors, resident units, and sensitive storage areasWeather-resistant designUp to 2 years of battery lifeEncryption key and credential interoperability:

Hardware configured with our default encryption key or custom key developed by Schlage Custom Encryption Key Service (SCEKS) including NXP, HID and NFCSchlage MIFARE  DESFire and MIFARE Classic credentialsApple Wallet and Google WalletTM student ID and employee badgeHID iCLASS, iCLASS SE and SEOS plastic and NFC mobile credentialsSchlage Mobile Bluetooth CredentialOther competitive credentialsSchlage Credential Services:

CardTrax credential format sequencing service offering industry standard formatsCustom format development

LE wireless lock specifications

Chassis/function:LEBMD and LEBSIMD - Mortise Deadbolt with LED

Privacy Lockset is normally secure. Valid normal credential or key momentarily unlocks door. Valid toggle credential may be used to change to a passage or secured state. Thumbturn on inside housing may be used to select a privacy status. The thumbturn will disable normal electronic access from the exterior and confirms state of the lock via LED indicator. Opening the door or retracting the deadbolt deactivates the privacy status. A mechanical key will always retract the latch. Inside lever always allows free egress. Door position sensor required for function. LEDApartment Lockset is normally secure. Valid normal or toggle credential is used to change to a passage or secured state. Thumbturn on inside housing may be used to select a passage or secured state and confirms state of the lock via LED indicator. Opening the door or retracting the deadbolt causes the lockset to toggle to passage. While in passage mode, the lockset can only be secured while the door is closed by rotating thumbturn or using a normal credential on the exterior. A mechanical key will retract the latch. Inside lever always allows free egress. Door position sensor required for function.Users:Up to 5,0001 Audits:Up to 2,0002 Credential verification time:Smart and proximity: ≤ 1 second - Mobile: mobile device dependent Visual communications:Exterior LED (red, amber, green); Interior LED (red, green) Audible communications:Audible indicator (field configurable) Communication standards: - 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) - WPA2, WPA, WEP, 802.1x - Bluetooth low energy (version 4.2) - Transport Layer Security (TLS) version 1.2 - Advanced Encryption Standard (AES), 256-bit Gateway communication range:Up to 30' in typical building environments. A detailed site survey is recommended using the ENGAGE Test Kit (TKE). Reference ENGAGE Gateway Data Sheet for additional detail. Wake-Up on Radio:Responds to command from host in less than 5 seconds when linked to ENGAGE Gateway (requires PACS provider system) Data rate:54 Mbps via Wi-Fi Connectivity options: - Bluetooth via mobile device (send updates at the lock) - Wi-Fi access point (automatic daily updates7) - No-Tour - ENGAGE Gateway (real-time communication) - RS-485 to ACP or IP to host Battery life:Uses 4 AA batteries Up to 2 years Operating temperature: Exterior: -31 to 151F (-35 to 66C) Exterior: -13 to 151F (-25 to 66C) (LEBSi) Interior: 32 to 120F (0 to 49C) (battery) Operating humidity:0 - 100% non-condensing Certifications: ANSI/BHMA A156.25 locked outdoor; ANSI/BHMA A156.13, Series 1000, Grade 1; UL 294; ULC 60839; UL 10C 3 hour; FCC Part 15; Industry Canada (IC); ADA compliant; FL1592, FL3905, FL4613, FL10356, FL12400, FL14482, FL10356, FL12400, FL14482

Available status signals: - Request-to-exit - Door position - Interior cover tamper5 - Battery status - Lock/unlock status6 - Communication status5 - Deadbolt position status (MD only) - Interior pushbutton status (MB only)

Flexible solutions: LE wireless locks offer connectivity options to fit any size budget or business. 1 Mobile 2 Wi-Fi 3 Real-time with ENGAGE Gateway 4 No-Tour

Mechanical specifications:

Chassis:MS mortise with LED indicator; MB mortise with push button and LED; MD mortise with deadbolt and LED Handing:Handed to order, field reversible ANSI standard (Meets or exceeds): ANSI/BHMA A156.25-2013 (Indoor/Outdoor) ANSI/BHMA A156.13-2012, Series 1000, Grade 1 With interchangeable core cylinders: Grade 2 Security Door thickness:Standard: 1 3⁄4" (44 mm) Optional: 1 3⁄4" (44 mm) to 2 1 ⁄4" (57 mm) optional (SFIC limited to 2" max) Backset:Standard: 2 3⁄4" (70mm) Latch bolt:Standard: 3⁄4" (19 mm) throw stainless steel latch bolt with anti-friction tongue Deadbolt:Standard: 1" (25 mm) throw stainless steel deadbolt Levers:Forged brass or bronze Strike:Standard: ANSI 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16" (30 mm) curved lip strike with dust box, Optional: Additional strike lip lengths and ANSI strike box available Cylinder and keys:Standard: Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys. Additional keying options available: Conventional and interchangeable cores, master keying, and grand master keying. Compatible with competitor cylinders and cams that support the L9000 Series. Armored front:1 1⁄4" x 8" x 7⁄32" (32mm x 203 mm x 6 mm) only

Standard multi-technology reader specifications:

Credential technologies:Proximity (125 kHz), Smart (13.56 MHz), Bluetooth Low Energy (BLE) (2.4 GHz), and Near Field Communication (NFC) Standards:ISO standard 15693 and ISO 14443 Maximum read range: Proximity: up to 1.25" Smart: up to .75" Bluetooth Low Energy: up to 15' NFC: mobile device dependent Proximity credential compatibility: Compatibility: Schlage, ISONAS, HID5, GE/CASI ProxLite, AWID and LenelProx Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, PVC adhesive disc Smart credential compatibility: Secure sector compatibility: Schlage MIFARE Classic, Schlage MIFARE Plus, Schlage MIFARE DESFire CSN only compatibility: HID iCLASS, HID iCLASS SE, Inside Contactless Pico Tag, MIFARE Classic/Plus/DESFire2, ST Microelectronics, Texas Instruments Tag-It, Phillips I-Code Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, wearable wristband, PVC adhesive patch Mobile credential compatibility: Schlage Mobile Bluetooth Credential4, integrated PACS/Proptech mobile credential with Bluetooth, Apple wallet NFC student ID and employee badge mobile credentials, Google wallet NFC student ID and employee badge mobile credentials

Schlage LEB SERIES, SCHLAGE LEBMS ADD
