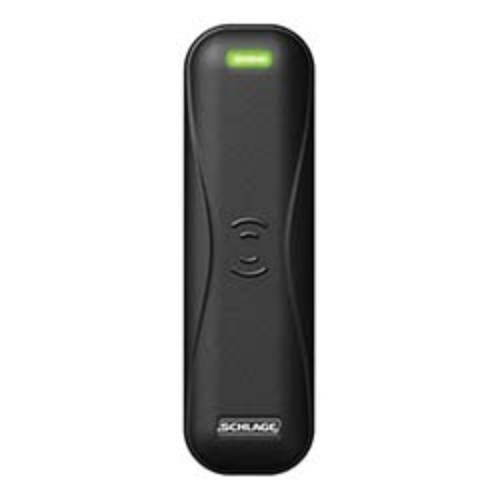

Schlage Electronics MT11 Multi-Technology Mullion Reader

*MT11 Multi-Tech Networked Reader, Mullion Mounting, 125 Khz Proximity, 13.56 Mhz Contactless Smart Card, Fips 201-1 Compliant, Black * Schlage multi-technology readers are designed to simplify access control solutions. The MT11 mullion recognizes proximity, Schlage smart cards and NFC-enabled smart devices, ensuring a seamless transition to high-security smart technology in the future. The readers use an open architecture platform designed to work with industry standards and common access control system interfaces. The modern design in a variety of finishes can easily complement any facility and its hardware.

The multi-technology readers accept Schlage MIFARE Classic and MIFARE DESFire smart credentials as well as most proximity and smart cards from other manufacturers.

Features & Benefits:

Technology:

Reads 125 kHz proximity and 13.56 MHz smart credentials - MIFARE Classic and MIFARE DESFire EV1, EV2 and EV3 as well as card serial number (CSN) of other manufacturer's smart credentialsWiegand and RS-485 output available for simple interface with most access control panelsCompatible with NFC-open smart phones using Schlage mobile credentialsSimplicity:

*****There are 5 available models to fit any need (keypad, magnetic stripe)Compatible with Schlage and other industry manufacturers credentialsLimited Lifetime WarrantyInstallation:*

Accommodates interior, exterior, metal and non-metal installation environmentsQuick-connect cable allows for easy installationEasy-to-install mounting bracket                                                                                                                                                                         Specifications:Physical dimensions (HxWxD):

   5.91″ x 1.72″ x 0.81″ Frequency:  13.56 MHz and 125 kHz System interface:Wiegand / Clock & Data / OSDP / Optional RS-485 capability Standard default PIV output:  75 bit Standards:  ISO 14443A, 14443B, 15693 Power:  5-16 VDC Wiring:  18 AWG, 5 conductor stranded/shielded Operating temperatures:  -40 to 158F (-40  to 70 C) LED:(red, green, or amber) visual indicator and audio feedback Material:  PBT Polymer   Certification:FCC certificationIC certificationUL 294 listedRED Directive (15 EU countries)CE MarkIP65-ratedCompatibility:

The MT11 mullion mount reader recognizes proximity, Schlage smart card and NFC-enabled smart devices, ensuring a seamless transition to high-security smart technology in the future. Open architecture allows readers to integrate with existing access control systems.

Credential types:

Schlage NFC MobileSmart:

Schlage DESFire EV1, EV2, EV3Schlage MIFARE ClassicSchlage Smart cards using CSNHID iClass CSNAdditional Smart cards using CSNProximity

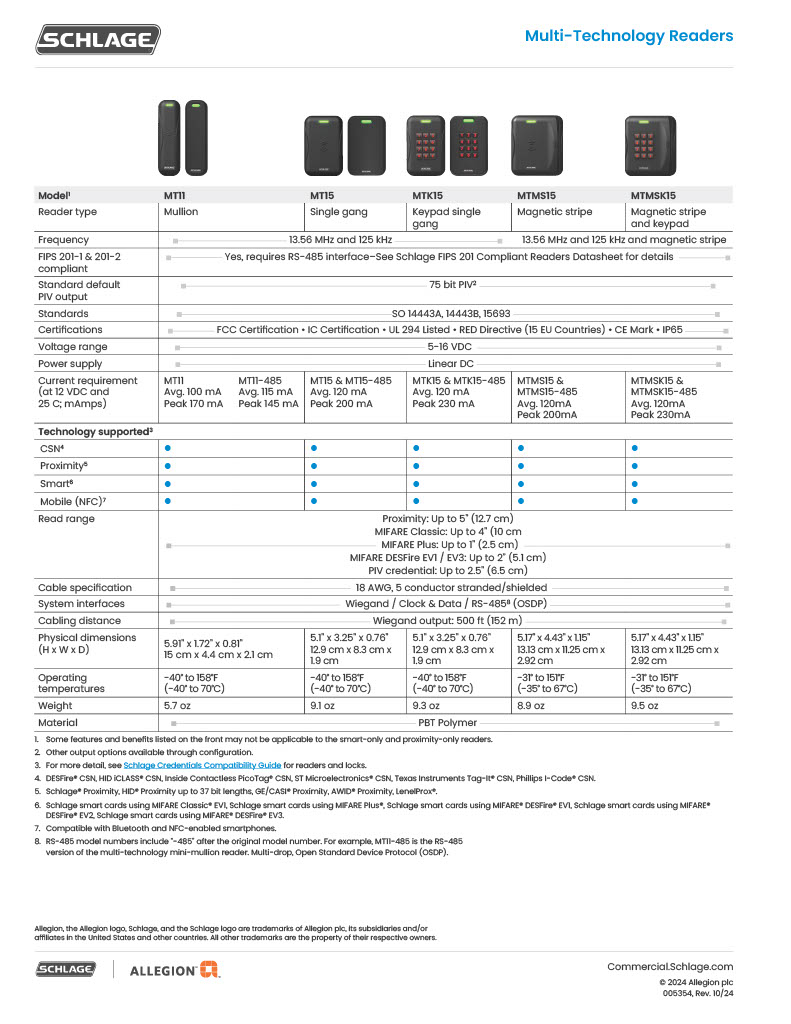

Schlage proximity HID  proximity GE/CASI ProxLite AWID  proximity LenelProx For full credential system compatibility list, see the data sheet.

Styles:

ClamshellISO glossy whiteKeyfobsPVC adhesive discsWearable wristbandsCustom artwork optionsProximity:

Schlage proximityHID proximityGE/CASI ProxLiteAWID proximityLenelProxFor full credential system compatibility list, see the data sheet. Schlage MT11, MT11 Schlage, Schlage electronics MT11
