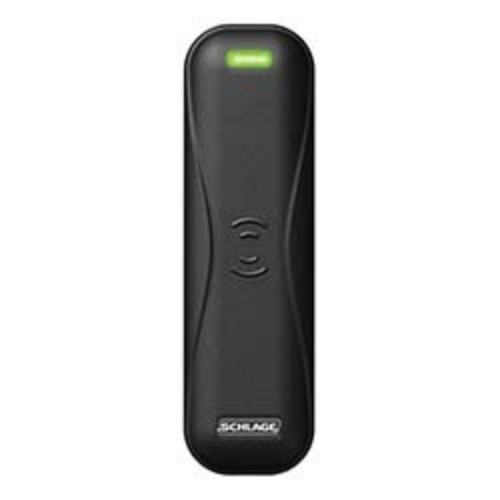

Schlage Electronics MTB11 Mullion Mount, Mobile-Enabled, Multi-Technology Reader, Black

**Schlage Electronics MTB11 Mullion Mount, Mobile-Enabled, Multi-Technology Reader, Black

The Schlage mobile enabled multi-technology readers are designed to simplify your access control solutions and eases the transition from an existing proximity system to a secure encrypted card technology or mobile solution at your own pace-without having to change readers.

Schlage mobile enabled multi-technology readers are designed to provide flexible options for making the move to secure mobile credentials at your own pace. Our contactless readers provide both a modern look and an advanced feature set. Designed with technology to support Bluetooth, NFC (Near Field Communication), smart credentials (13.56 MHz) and standard proximity credentials (125 kHz) end users have the ability to define their migration path to secure credentials.

Features & Benefits:

Technology:

****Support for the widest range of credential technologies, including the latest in mobile:   Schlage Mobile Bluetooth Credentials (BLE)   NFC including Apple's Enhanced Contactless Polling (ECP) to support credentials in the Apple WalletAll readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communicationOSDP VerifiedSimplicity:

****Commission via ENGAGE mobile app for reader updates and easy configuration Improved voltage range of 5V to 28V for simplified power managementAccommodates interior, exterior, metal and non-metal installation environmentsLimited Lifetime WarrantyInstallation:

Improved quick-connect cable allows for easy installationEasy-to-install mounting bracketReads 125 kHz proximity, 13.56 MHz smart, 2.4 GHz Bluetooth and NFC technologies, with the ability to process multiple formatsWiegand, Clock & Data and RS-485 outputs come standard for simpl  interface with most access control panel                                                                                                                 Specifications:Physical dimensions (HxWxD):

   5.91″ x 1.72″ x 0.81″ Frequency:  2.4GHz, 13.56 MHz and 125 kHz System interface:Wiegand / Clock & Data / OSDP / Optional RS-485 capability Standard default PIV output:  75 bit Standards:  ISO 14443A, ISO 15693 Power:  5-28 VDC Wiring:  22 AWG, 12 conductor, 12" length Operating temperatures:  -31 to 151F (-35  to 67 C) LED:(red, green, or amber) visual indicator and audio feedback Material:  PBT Polymer   Certification:

FCC certificationIC certificationUL 294/cUL listedRED DirectiveCE MarkIP65REACHBluetooth SIGRoHS 3Compatibility:

The MTB mobile enabled multi-technology reader will read Schlage Mobile Bluetooth Credentials, industry-leading smart credentials as well as proximity credentials. When installed as part of a proximity credential based system, the multi-technology reader will enable you to step up over time to more secure and versatile smart or mobile technology.

Credential types:

2.4 GHz Mobile Bluetooth Low Energy (BLE)Mobile Near Field Communication (NFC)13.56 MHz smart, including MIFARE Classic and MIFARE DESFire EV1, EV2 and EV3125 kHz proximity Schlage Mobile Access Credentials via 2.4 GHz BluetoothStyles:

Mobile (Bluetooth, NFC)CardsKeyfobsPVC adhesive discsWearable wristbandsCustom artwork options
