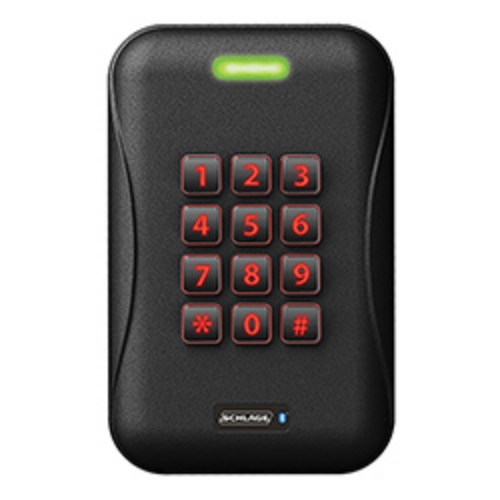

Schlage Electronics MTKB15 Single-Gang Mount, Mobile-Enabled, Multi-Technology Reader with Keypad, Black
Product Details
Schlage Electronics MTKB15 Mobile Enabled Multi-Technology Wall Reader with Keypad
Mobile ready Schlage MTB readers deliver maximum capabilities and compatibility in one single unit for simplified access control. TheMTKB15wall mount is designed to support a wide variety of technologies including Bluetooth (BLE), NFC, keypad, proximity and smart, allowing a seamless transition to more secure credentials at customers' own pace. The ability to pair keypad use for multi-factor authentication provides even higher security in any facility.
Schlage mobile enabled multi-technology readers are designed to provide flexible options for making the move to secure mobile credentials at customers' own pace. The MTKB15 provides both a modern look and an advanced feature set including multi-factor authentication for higher security. Beyond proximity and smart, offering support for Schlage Mobile Bluetooth Credentials (BLE) and Near Field Communication (NFC), including Apple's Enhanced Contactless Polling (ECP) to support credentials in the Apple Wallet and Google Pay.
The contactless readers use an open architecture design and feature out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bi-directional communication.
The multi-technology readers accept Schlage MIFARE Classic and MIFARE DESFire EV1, EV2 and EV3 smart credentials as well as most proximity and card serial numbers (CSN) of other manufacturer's smart credentials.
Features & Benefits:
Technology:
****Support for the widest range of credential technologies, including the latest in mobile:
Schlage Mobile Access via 2.4 GHz Bluetooth
NFC including Apple's Enhanced Contactless Polling (ECP) to support credentials in the Apple WalletAll readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communicationOSDP VerifiedPair keypad use such as card + PIN (multi-factor authentication) for even higher security Simplicity:
****Commission via ENGAGE mobile app for reader updates and easy configuration Improved voltage range of 5V to 28V for simplified power managementAccommodates interior, exterior, metal and non-metal installation environmentsLimited Lifetime WarrantyInstallation:
Improved quick-connect cable allows for easy installationEasy-to-install mounting bracketReads 125 kHz proximity, 13.56 MHz smart, 2.4 GHz Bluetooth and NFC technologies, with the ability to process multiple formatsWiegand, Clock & Data and RS-485 outputs come standard for simpl interface with most access control panels
Specifications:Physical dimensions (HxWxD):
5.1″ x 3.25″ x 0.76″
Frequency: 2.4GHz, 13.56 MHz and 125 kHz
System interface:Wiegand / Clock & Data / OSDP / Optional RS-485 capability
Standard default PIV output: 75 bit
Standards: ISO 14443A, ISO 15693
Power: 5-28 VDC
Wiring: 22 AWG, 12 conductor, 12" length
Operating temperatures: -31 to 151 F (-35 to 67 C)
LED:(red, green, or amber) visual indicator and audio feedback
Material: PBT Polymer
Certification:FCC certificationIC certificationUL 294/cUL listedRED DirectiveCE MarkIP65REACHBluetooth SIGRoHS 3Compatibility:
The MTB mobile enabled multi-technology reader will read Schlage Mobile Bluetooth Credentials, industry-leading smart credentials as well as proximity credentials. When installed as part of a proximity credential based system, the multi-technology reader will enable you to step up over time to more secure and versatile smart or mobile technology.
Credential types:
2.4 GHz Mobile Bluetooth Low Energy (BLE)Mobile Near Field Communication (NFC)13.56 MHz smart, including MIFARE Classic and MIFARE DESFire EV1, EV2 and EV3125 kHz proximity Schlage Mobile Access Credentials via 2.4 GHz BluetoothStyles:
Mobile (Bluetooth, NFC)CardsKeyfobsPVC adhesive discsWearable wristbandsCustom artwork options
