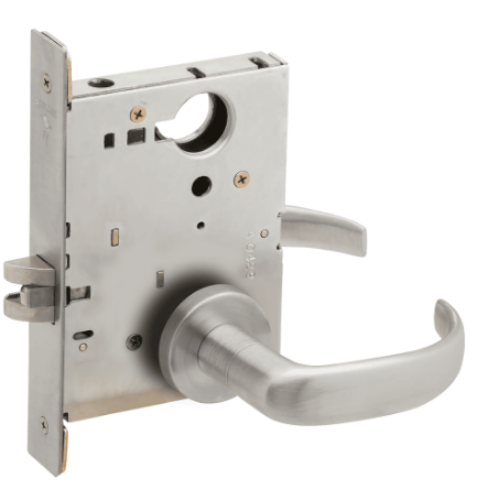

Schlage L9010 17 Mortise Passage Set, Field Reversible

The Schlage L Series is where commercial mortise lock specifications go when Grade 1 cylindrical hardware isn't enough and the door schedule demands extra heavy duty construction across every opening, including the passage doors. The L9010 is the passage function in the L9000 Series: ANSI F01, both levers always free, both sides at all times, no cylinder, no locking mechanism. It's specified on corridors, hallways, conference rooms, and any interior door that needs to latch shut without any access control, but where the rest of the building runs L Series mortise hardware and uniform door prep, trim style, and finish matter to the specifier.

What makes the L9010 worth its specification over a Grade 2 cylindrical passage lever is the construction. The lockcase carries both a 1" stainless steel deadbolt and a 3/4" stainless steel latch with anti-friction tongue in the same mortise body. The armored front is 1-1/4" wide and 8" tall. The trim is forged brass, bronze, or cast stainless. The entire lock body is field reversible without disassembly. For the complete Schlage L9000 Series function lineup, view our full commercial mortise locks catalog.

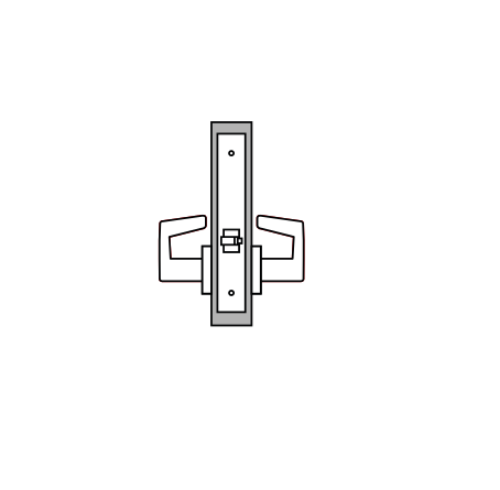

ANSI F01 Passage Function

ANSI F01 means both levers are always free. Neither side can be locked, toggled, or restricted. The latchbolt retracts when either lever is turned from either side at all times. Inside lever is always free for egress. There's no push button, no cylinder, and no key operation because the passage function has no security mechanism of any kind. If the opening ever needs to be converted to an entrance, storeroom, or classroom function in the future, the L9000 lockcase accepts those function changes without replacing the mortise body in the door.

Schlage L9010 17 Technical Specifications

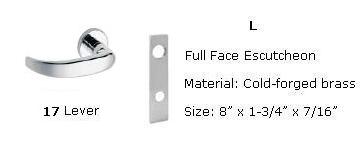

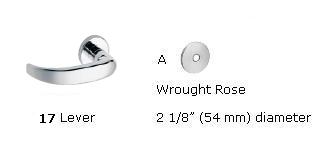

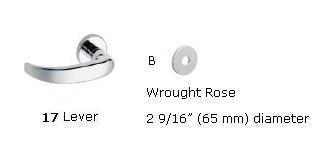

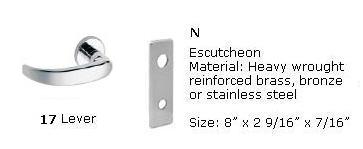

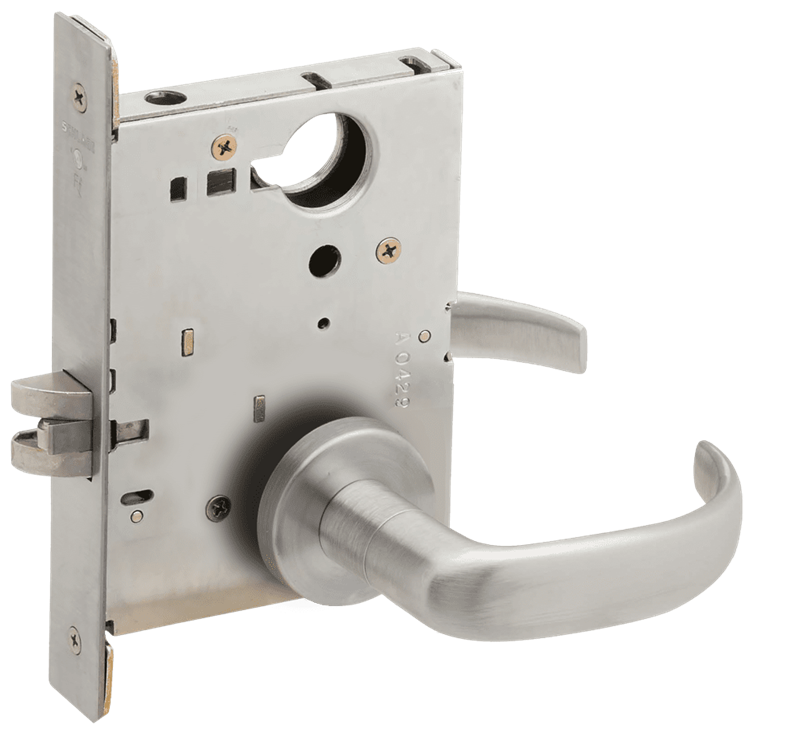

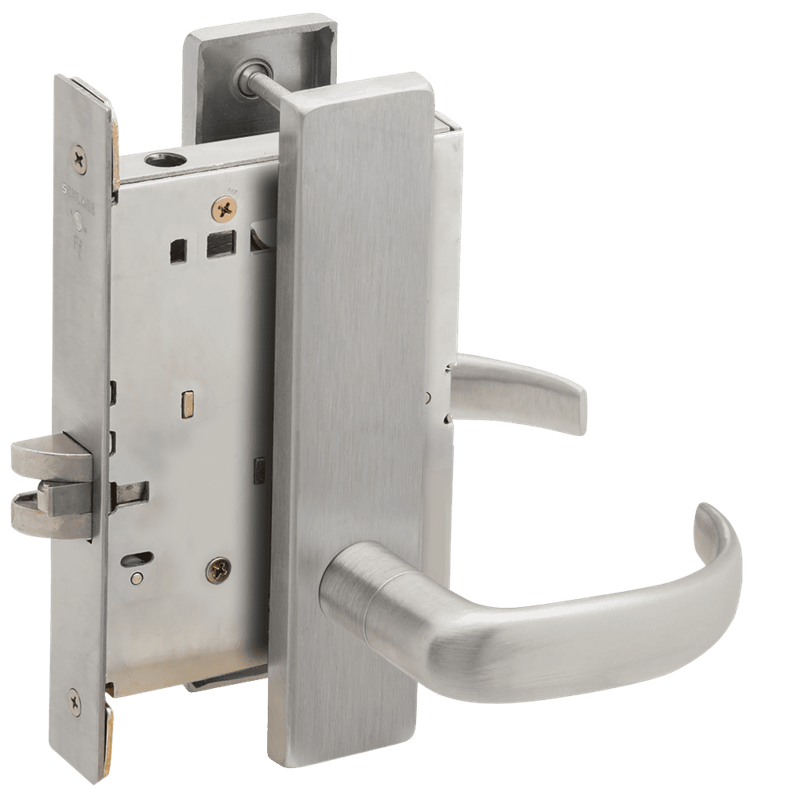

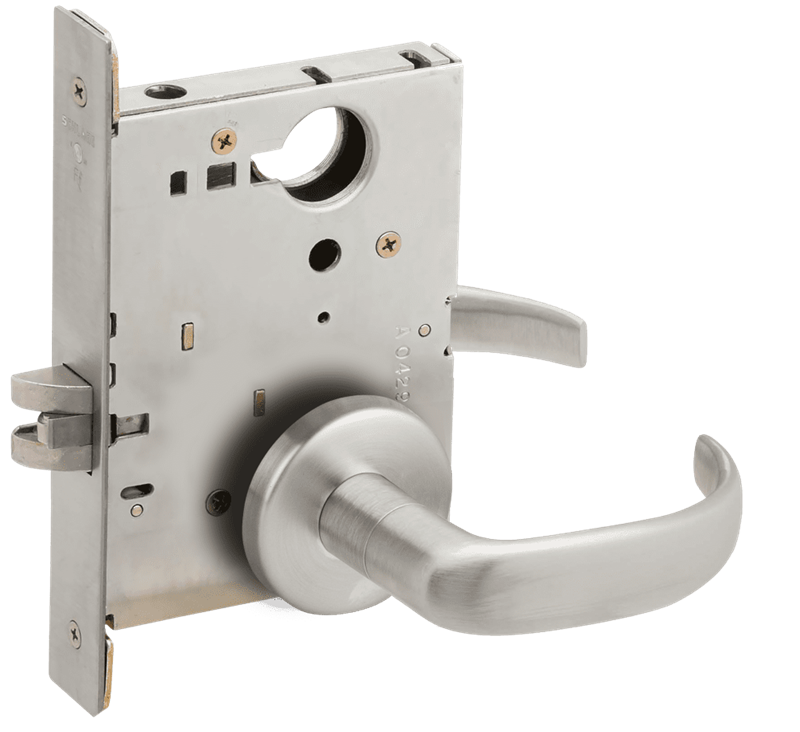

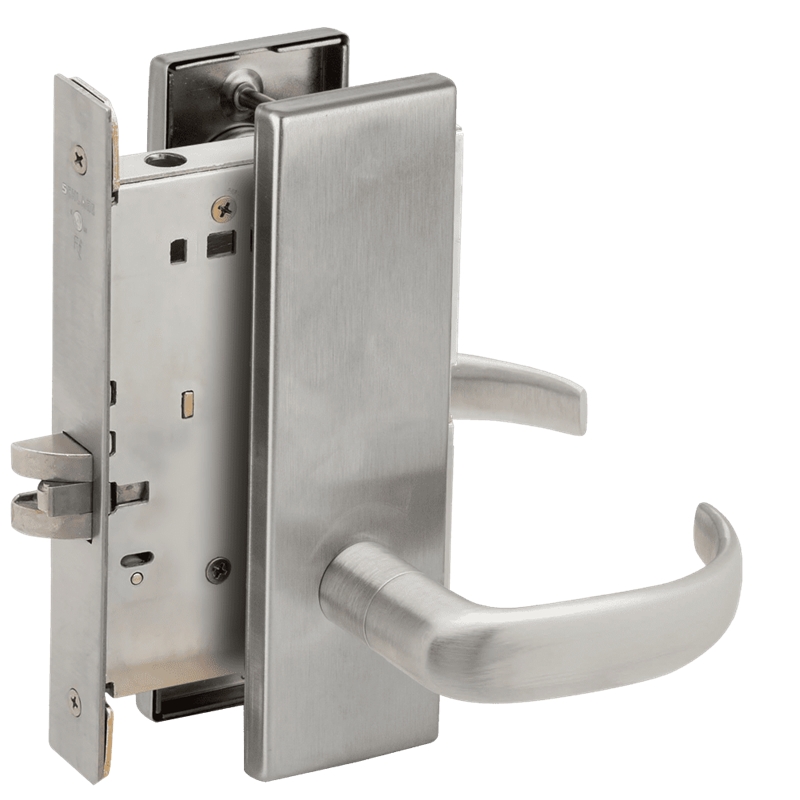

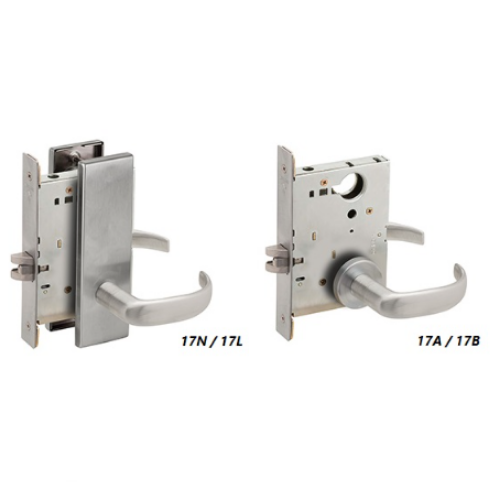

Series: Schlage L9000, Extra Heavy Duty Mortise Lock. ANSI function: F01, Passage. Grade: Extra Heavy Duty, Grade 1. UL Listed: yes. Handing: field reversible without disassembly. Lever style: 17. Rose and escutcheon options: 17A (A rose), 17B (B rose), 17N (N escutcheon), 17L (L escutcheon). Levers: forged brass or bronze and cast stainless steel; designs available to match ND-Series levers. Escutcheons: L escutcheons, cold-forged brass or bronze and stainless steel; N escutcheons, heavy wrought reinforced brass, bronze, and stainless steel. Finishes: 626 Satin Chrome, 613 Oil Rubbed Bronze, 622 Matte Black, 630 Satin Stainless Steel. Door thickness: standard 1-3/4" (44mm); optional 1-3/8" to 2-1/2" (call for availability). Backset: 2-3/4" (70mm) only. Case size: 4-7/16" x 6-1/16" x 1" (113mm x 154mm x 25mm). Armored front: 1-1/4" x 8" x 7/32" (32mm x 203mm x 6mm). Deadbolt: 1" (25mm) throw, stainless steel. Latch: 3/4" (19mm) throw, stainless steel with anti-friction tongue. Spacing: lever to cylinder 3-7/8" (98mm); lever to thumbturn hub 2-11/16" (68mm). Strike: ANSI curved lip 1-1/4" x 4-7/8" x 13/16" lip to center, with dust box standard.

17 Lever: Matching ND-Series Across a Building

The Schlage 17 lever is specifically designed to match the visual profile of ND-Series lever designs, which is one of the most practical specification advantages of the L9000 Series over competing mortise lock lines. Buildings that run Schlage ND-Series cylindrical locks on lower-security or lighter-use openings and Schlage L-Series mortise locks on primary access and high-traffic doors can maintain consistent lever aesthetics across the entire door schedule without mixing brands or compromising visual continuity. The 17A configuration (17 lever with A round rose) is the most commonly specified starting point in the standard trim package.

Field Reversibility

The L9000 lockcase reverses handling without disassembling the lock from the door. A locksmith or facility manager can change the door swing on an existing installation by reversing the case, which avoids the cost and labor of door prep modification when a door is prehung during a renovation or tenant buildout.
