Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible

Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible

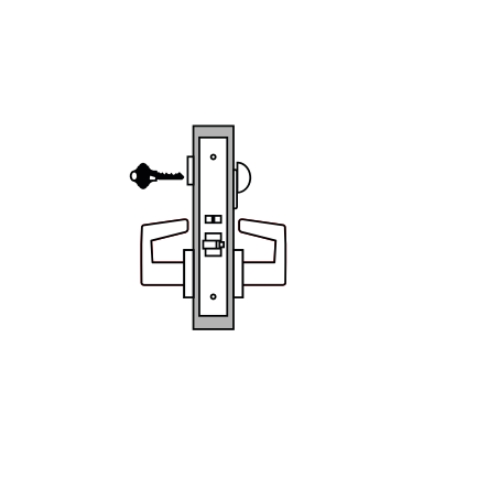

L9050
L0-Finisheschart
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
L9050
L0-Finisheschart
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
naxt
prev

Product Details

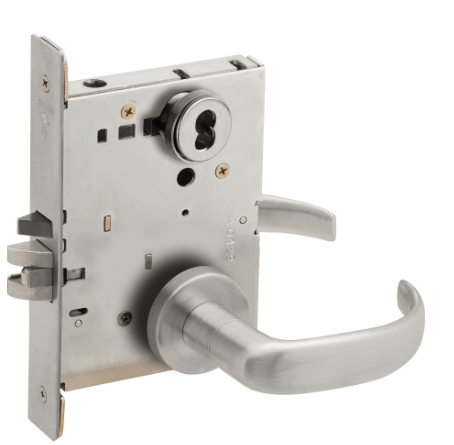

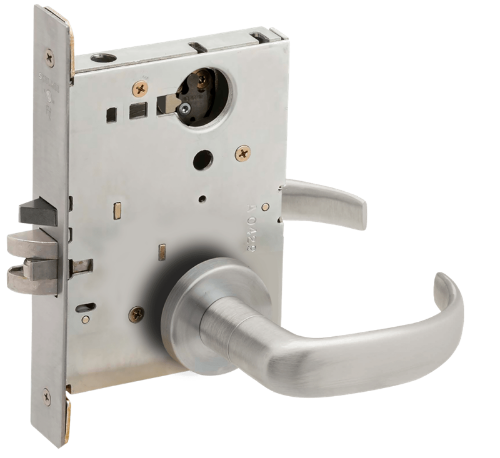

Schlage L9050 17 Mortise Office and Inner Entry Lock

ANSI F04

Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.

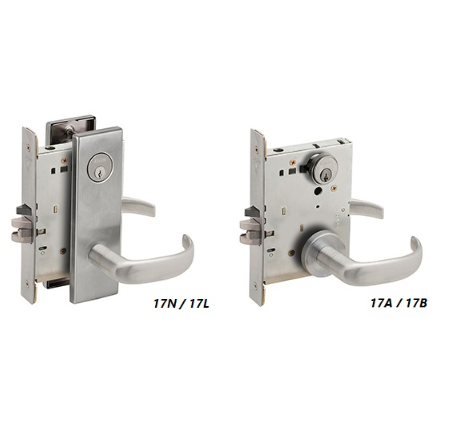

Lever Styles: 17A, 17B, 17N, 17L

Finishes: 626 - Satin Chrome,  613 - Oil Rubbed Bronze, 622 - Matte Black, 630 - Satin Stainless Steel

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Model: Schlage L9050, L9050P, L9050J, L9050BD, L9050L, L9050P17A, L9050P17B, L9050P17L  L9050P17N, L9050P17L626, L9050P17N626, L9050P17A626, L9050P17B626, L9050P17L605, L9050P17N605, L9050P17A605, L9050P17B605, L9050P17L606, L9050P17N606, L9050P17A606, L9050P17B606, L9050P17L612, L9050P17N612, L9050P17A612, L9050P17B612, L9050P17L613, L9050P17N613, L9050P17A613, L9050P17B613, L9050P17L625, L9050P17N625, L9050P17A625, L9050P17B625, L9050P17L630, L9050P17N630, L9050P17A630, L9050P17B630, 626, 613, 622, 630

Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible

SKU: L9050-17

In Stock
Picture for manufacturer Schlage
icon Chat

$927.50

Cylinder *

P - 6 Pin Mortise Cylinder (standard)
P - 6 Pin Mortise Cylinder (standard)

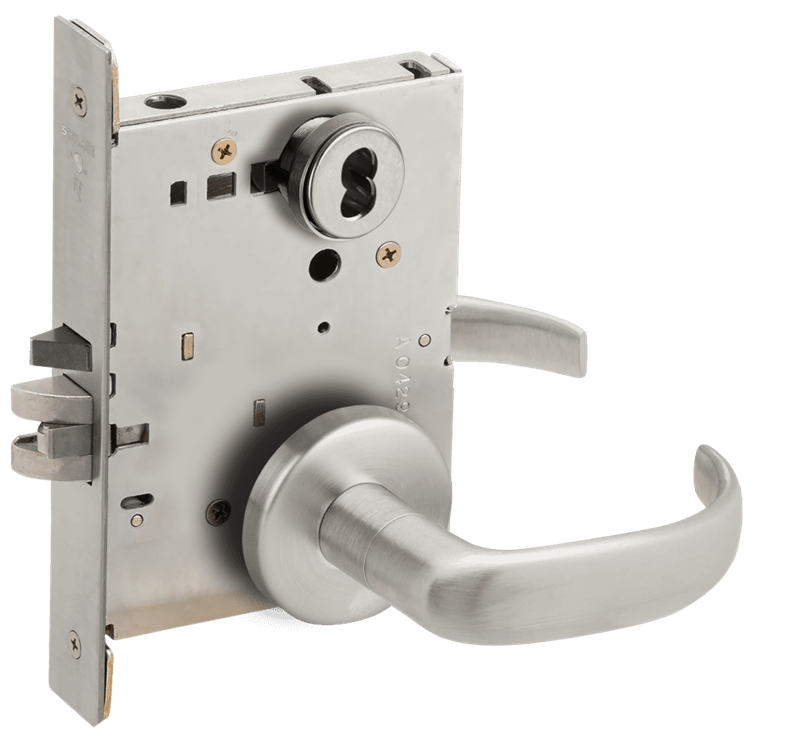

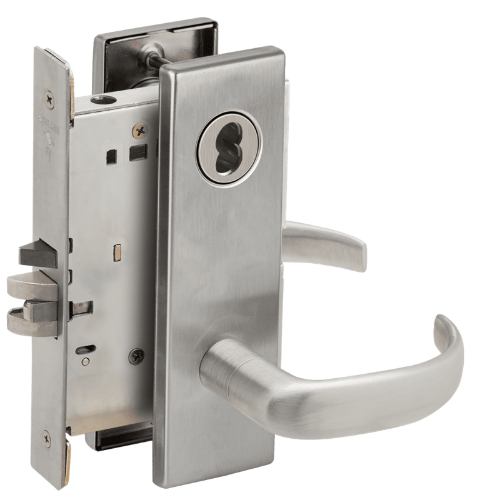

B - Small format IC core Cylinder
B - Small format IC core Cylinder
J - Large format IC core Cylinder
J - Large format IC core Cylinder

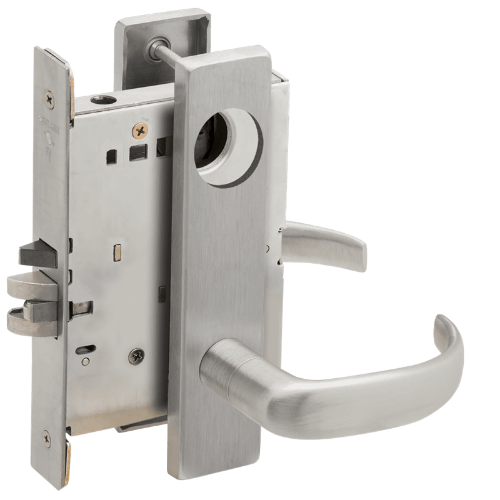

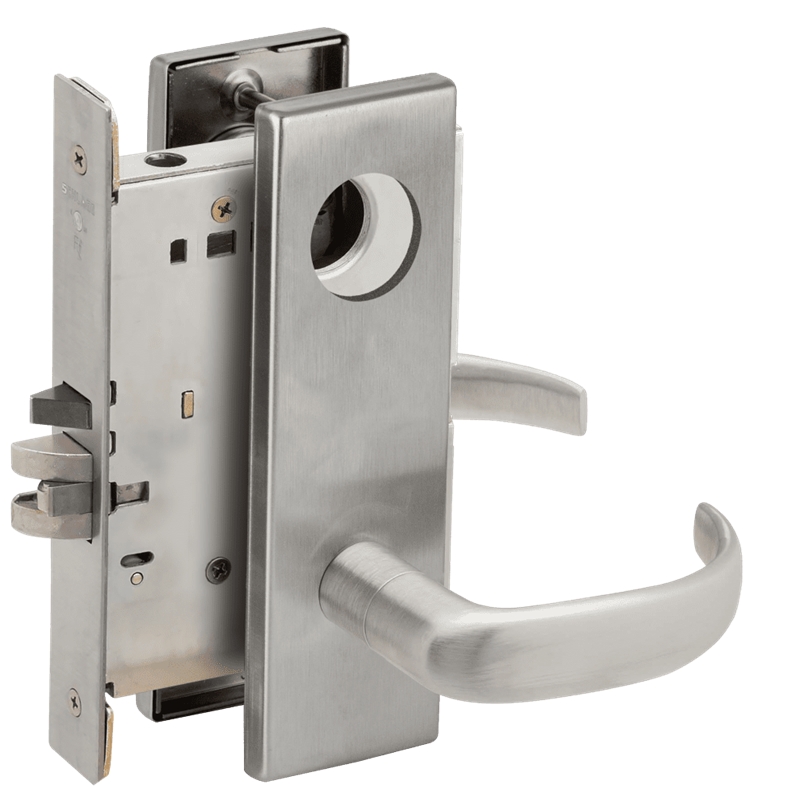

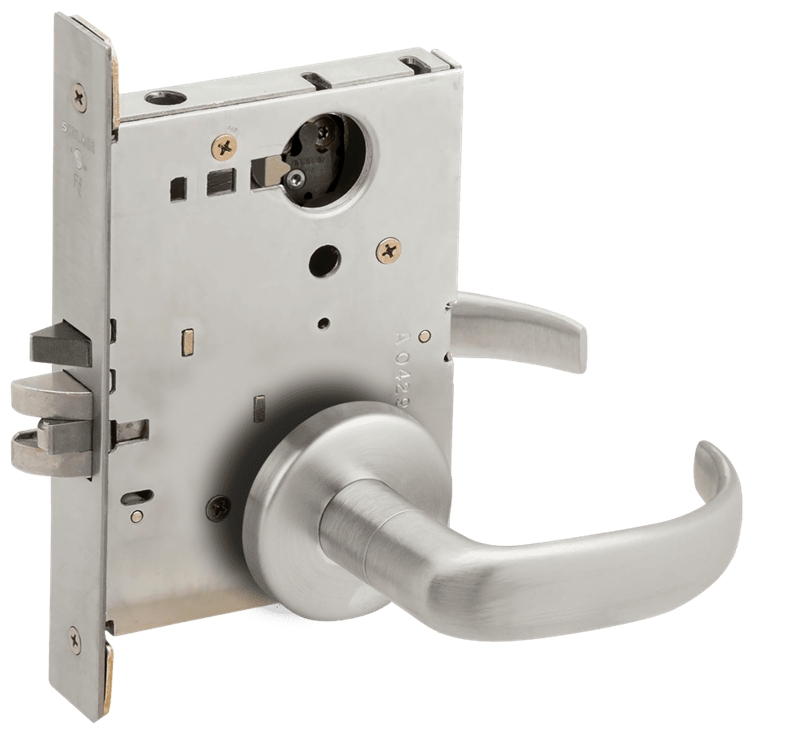

L - Less Cylinder
L - Less Cylinder

Lever *

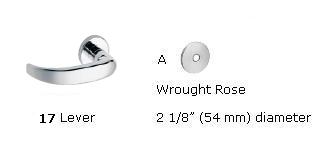

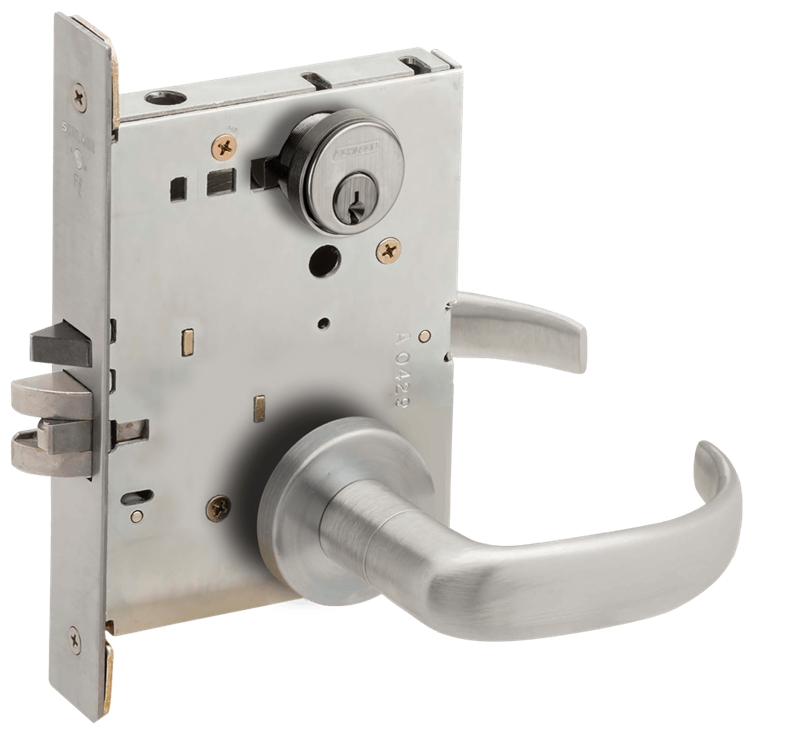

17A - 17 Lever with A Rose
17A - 17 Lever with A Rose

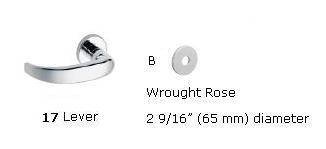

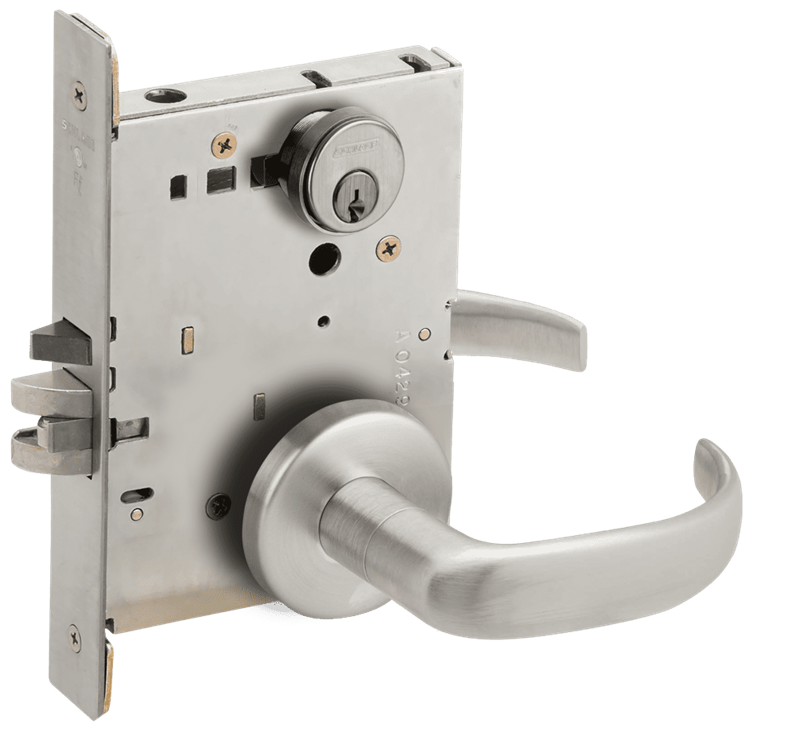

17B - 17 Lever with B Rose
17B - 17 Lever with B Rose

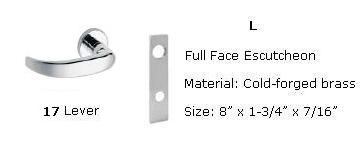

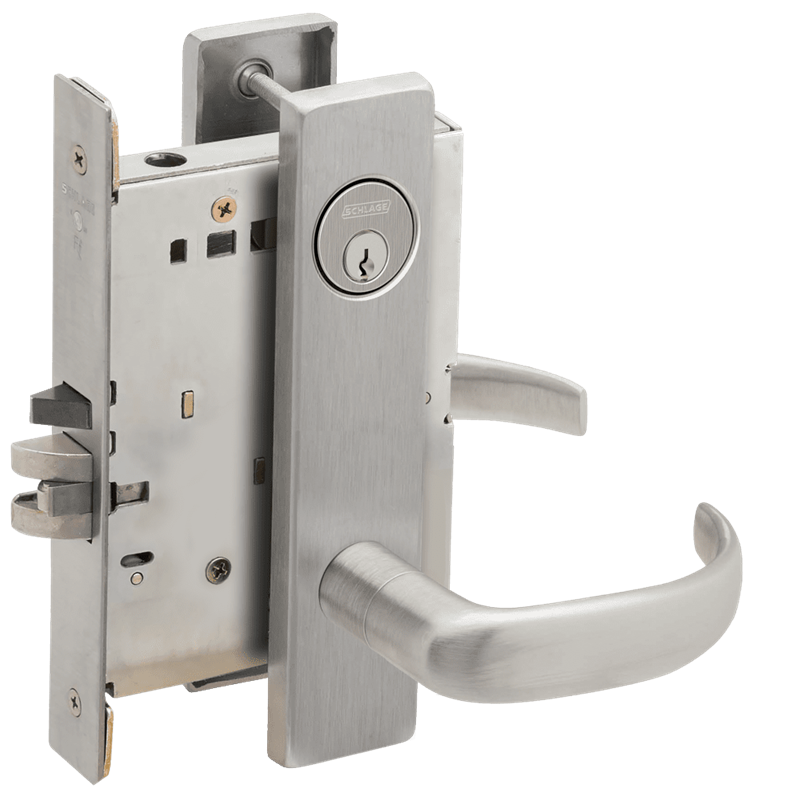

17L - 17 Lever with L Escutcheon
17L - 17 Lever with L Escutcheon

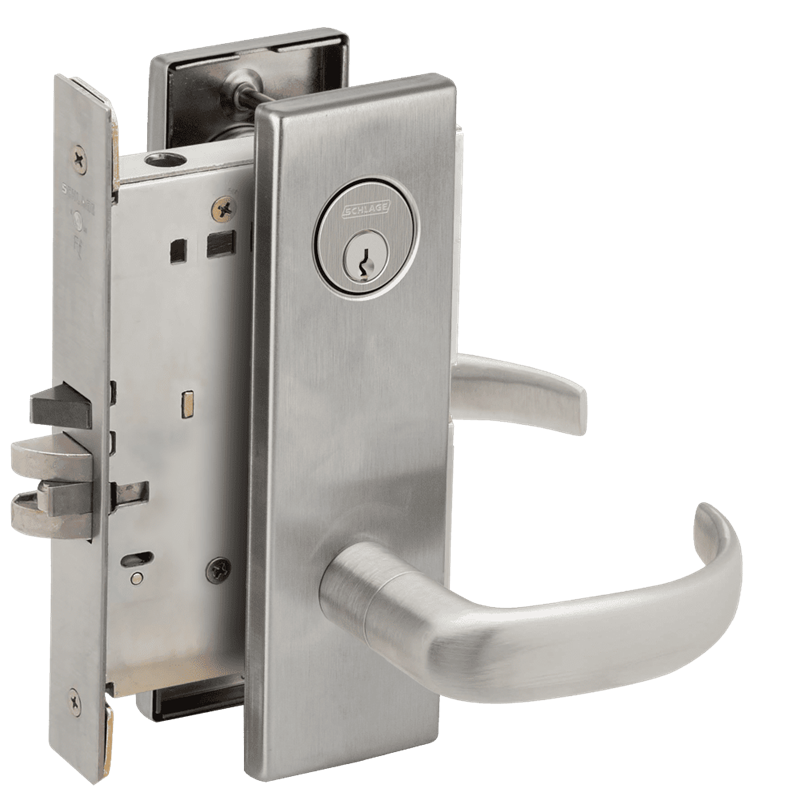

17N - 17 Lever with N Escutcheon
17N - 17 Lever with N Escutcheon

Finish *

626 - Satin Chrome
626 - Satin Chrome
613 - Oil Rubbed Bronze
613 - Oil Rubbed Bronze
622 - Matte Black
622 - Matte Black
630 - Satin Stainless Steel
630 - Satin Stainless Steel

Keyway *

Keying *

About this item

The Schlage L9050 is the office/inner entry function in Schlage's L-Series heavy-duty mortise lock family. It carries ANSI function F04 and it's the go-to specification for private offices, inner corridors, and any door where the occupant inside needs to be able to lock out visitors without leaving the room.



The "17" in the model number refers to the lever style- the 17A, 17B, 17N, and 17L are all available on this listing and they're designed to match Schlage's ND-Series lever shapes if you're running both cylindrical and mortise locks on the same project. American Locksets is an authorized Schlage dealer. Same-day shipping, free on orders over $300, and you can reach us at 877-471-4870.



What ANSI F04 Actually Does



F04 is one of the most specified mortise functions for offices because it gives the occupant inside real control without requiring a key. Here's how the full operation breaks down:



When the outside lever is unlocked, the latchbolt retracts freely from either side by lever. That's standard entry mode- anyone with access can push through.



The occupant inside can lock the outside lever two ways: by turning the thumbturn on the inside rose, or someone outside can lock it with a key. Once the outside is locked, the outside lever doesn't move. Entry from outside requires a key. The person inside can still leave freely at any time- the inside lever is always free for immediate egress.



To unlock from inside without a key, the thumbturn rotates back to vertical. The outside lever is immediately operational again.



The auxiliary latch deadlocks the latchbolt automatically when the door closes, so the latch can't be pushed back by hand. That's standard across the L-Series.



L9050 vs L9053 vs L9080: Picking the Right Function



The L9050 (F04) is office/inner entry- both inside and outside can operate the lever, outside can be locked by thumbturn or key from outside.



The L9053 (F05) is entrance/office- outside is normally locked, key required for entry, inside always free. That's the storeroom/office variant people reach for when outside entry should be controlled at all times.



The L9080 (F07) adds a deadbolt to the latchbolt- for applications that need two-point securing.



If your hardware schedule calls for F04, the L9050 is it.



Physical Specifications



Door thickness: 1-3/4" (44mm) standard. Optional 1-3/8" to 2-1/2" (35mm to 64mm)- call us for non-standard thickness pricing.



Backset: 2-3/4" (70mm) only.



Case size: 4-7/16" x 6-1/16" x 1" (113mm x 154mm x 25mm).



Armored front: 1-1/4" x 8" x 7/32" standard.



Deadbolt: 1" (25mm) throw stainless steel. Latchbolt: 3/4" (19mm) throw stainless steel with anti-friction tongue.



Spacing: Lever to cylinder 3-7/8" (98mm). Lever to thumbturn hub 2-11/16" (68mm).



Strike: ANSI curved lip 1-1/4" x 4-7/8" with 13/16" lip to center, dust box included standard.



Handing: Field reversible without disassembly.



Cylinder, Levers, and Finishes



Cylinder: 6-pin C keyway or Everest C123 keyway, two keys included standard. IC (interchangeable core) prep available. Master keying, grand master keying, and construction keying all supported.



Lever styles on this listing: 17A, 17B, 17N, 17L- forged brass, bronze, or cast stainless steel.



Available finishes: 626 Satin Chrome, 613 Oil Rubbed Bronze, 622 Matte Black, 630 Satin Stainless Steel.



UL/cUL listed for A-label single doors 4' x 10' and pairs 8' x 10'. California Referenced Standards Code compliant (levers return within 1/2" of door face).

Resources

Schlage L9050 17 Mortise Office and Inner Entry Lock

ANSI F04

Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.

Lever Styles: 17A, 17B, 17N, 17L

Finishes: 626 - Satin Chrome,  613 - Oil Rubbed Bronze, 622 - Matte Black, 630 - Satin Stainless Steel

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Model: Schlage L9050, L9050P, L9050J, L9050BD, L9050L, L9050P17A, L9050P17B, L9050P17L  L9050P17N, L9050P17L626, L9050P17N626, L9050P17A626, L9050P17B626, L9050P17L605, L9050P17N605, L9050P17A605, L9050P17B605, L9050P17L606, L9050P17N606, L9050P17A606, L9050P17B606, L9050P17L612, L9050P17N612, L9050P17A612, L9050P17B612, L9050P17L613, L9050P17N613, L9050P17A613, L9050P17B613, L9050P17L625, L9050P17N625, L9050P17A625, L9050P17B625, L9050P17L630, L9050P17N630, L9050P17A630, L9050P17B630, 626, 613, 622, 630

Picture of Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible
Schlage L9050 17 Mortise Office and Inner Entry Lock, Field Reversible

Product code: L9050-17

In Stock

$927.50

$927.50

Specifications

Applications: For commercial and institutional buildings where the finest in mortise locks are required.

Certifications: L9000: ANSI A156.13 Series 1000,Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9077). With interchangeable core cylinders: Grade 2 Security.

The Right Lock for Every Application

Schlage L9000 Series

Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

Strength and Durability

  1. Fully wrapped heavy-gauge steel case protects against door edge attacks
  2. All-metal zinc dichromate-plated working parts
  3. Inside lock case protects electronic components
  4. Two-piece anti-friction tongue reduces wear and tear
  5. Outside and inside trim thru-bolted together and through the door

Security Built In

  1. Break-away spindle prevents unsecured failures and provides easy spindle replacement
  2. Hub blocking plate protects lock against spindle manipulation
  3. Spring-loaded fusible link provides fail secure mode in case of fire
  4. Inside lever applied by screwless shank mounting -  no exposed trim mount screws

Adaptable To Your Application

  1. Universal lock case ten functions in one case
  2. Floating mounting tabs automatically adjust to fit a beveled door edge
  3. Field-reversible handing without opening lock case
  4. External spring cages allow for simple trim retrofit
  5. Locking thumbturn on the inside of door visually shows when the door is locked and unlocked
  6. Lever rotation in both directions (up and down)  or ease of use
  7. Independent lever rotation
