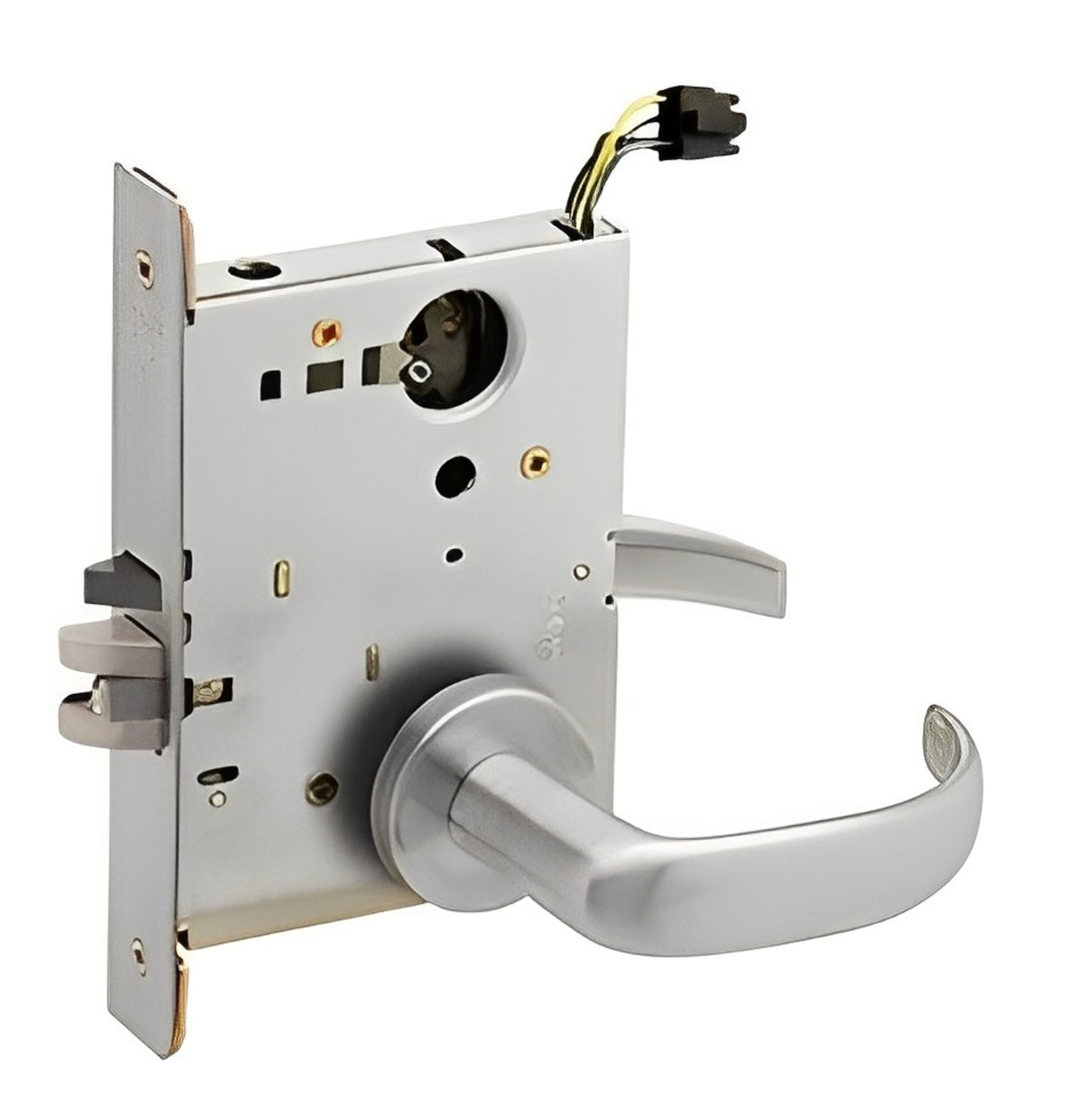

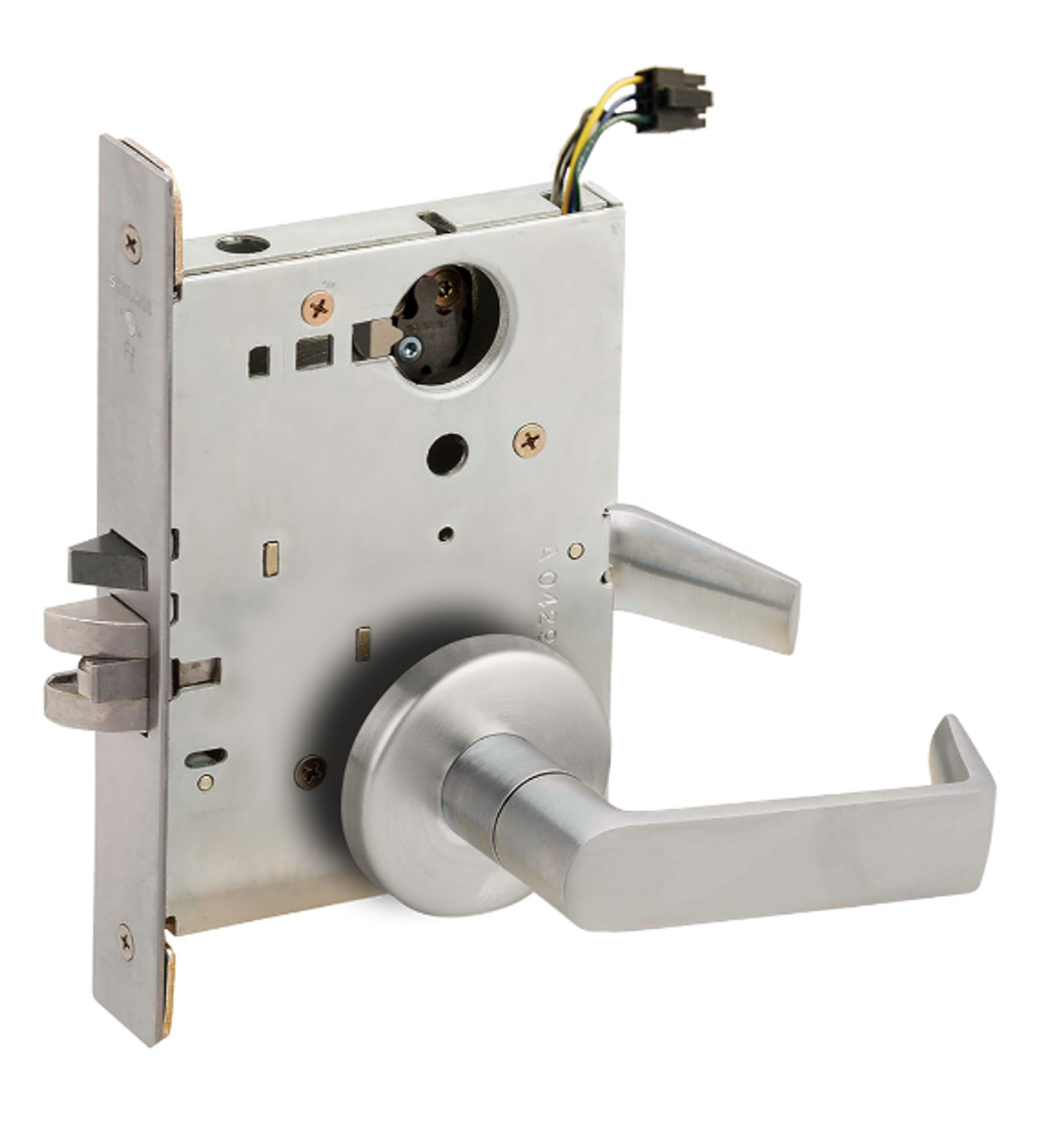

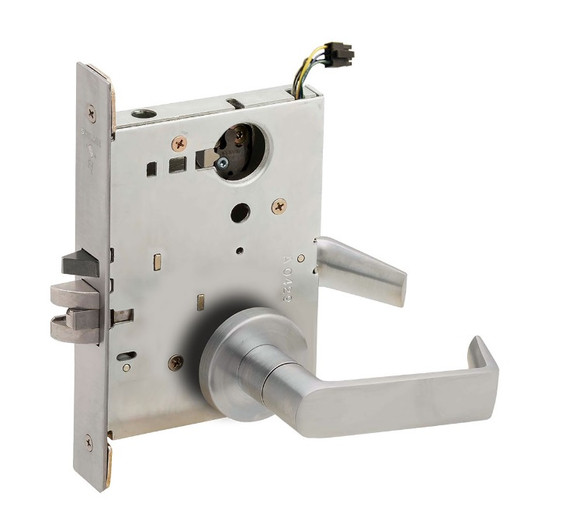

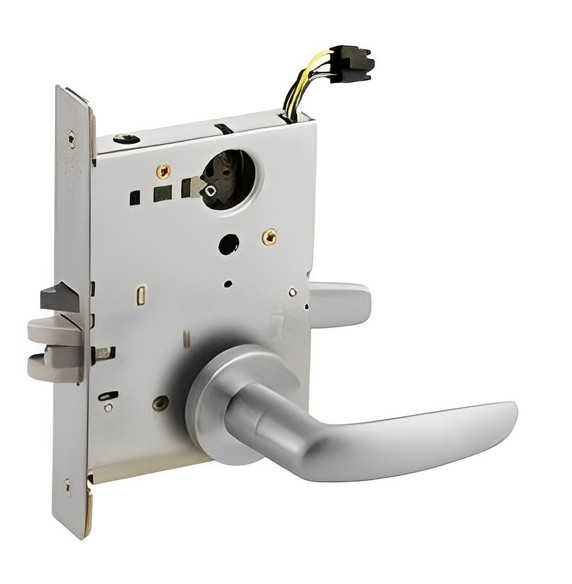

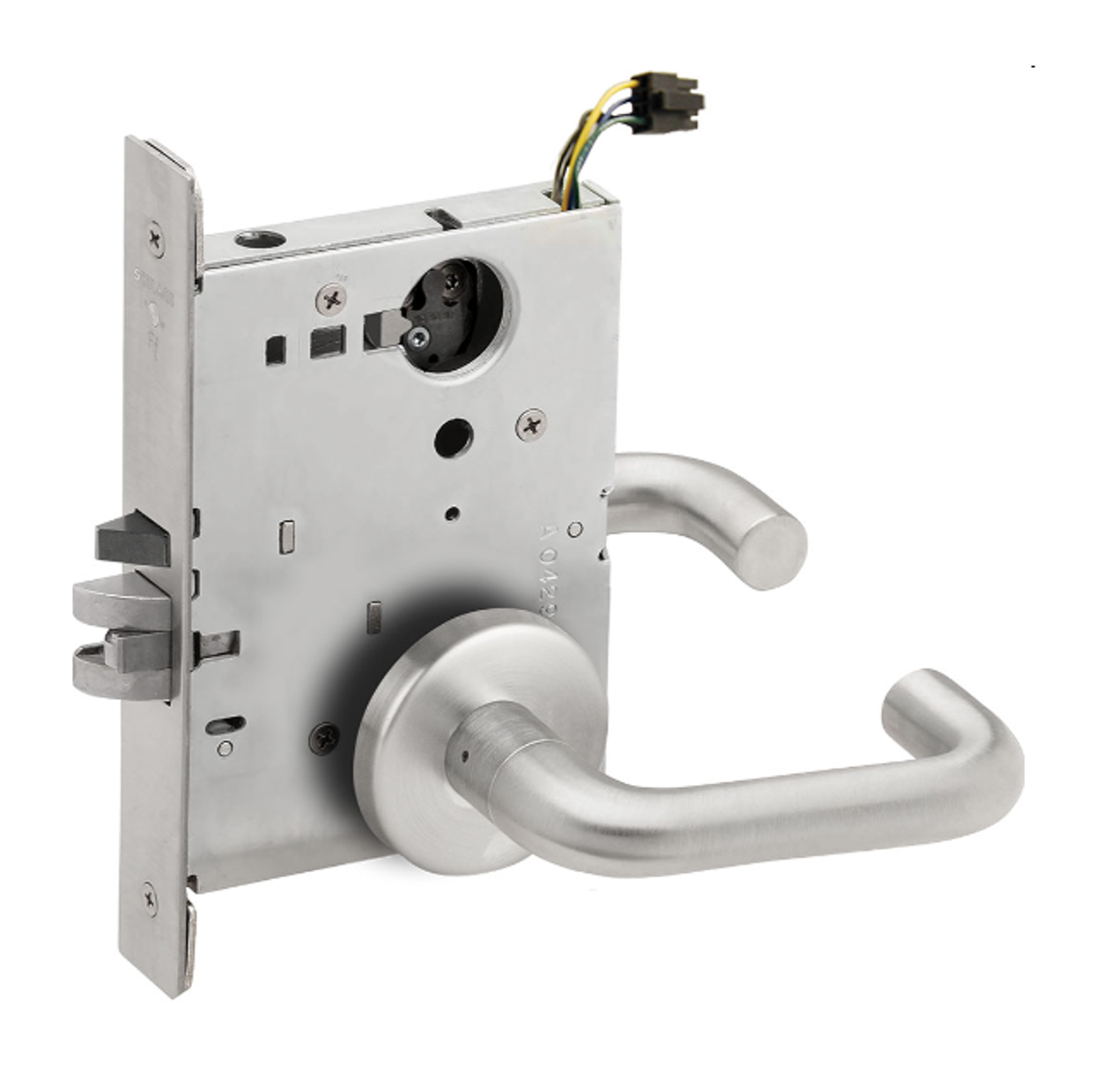

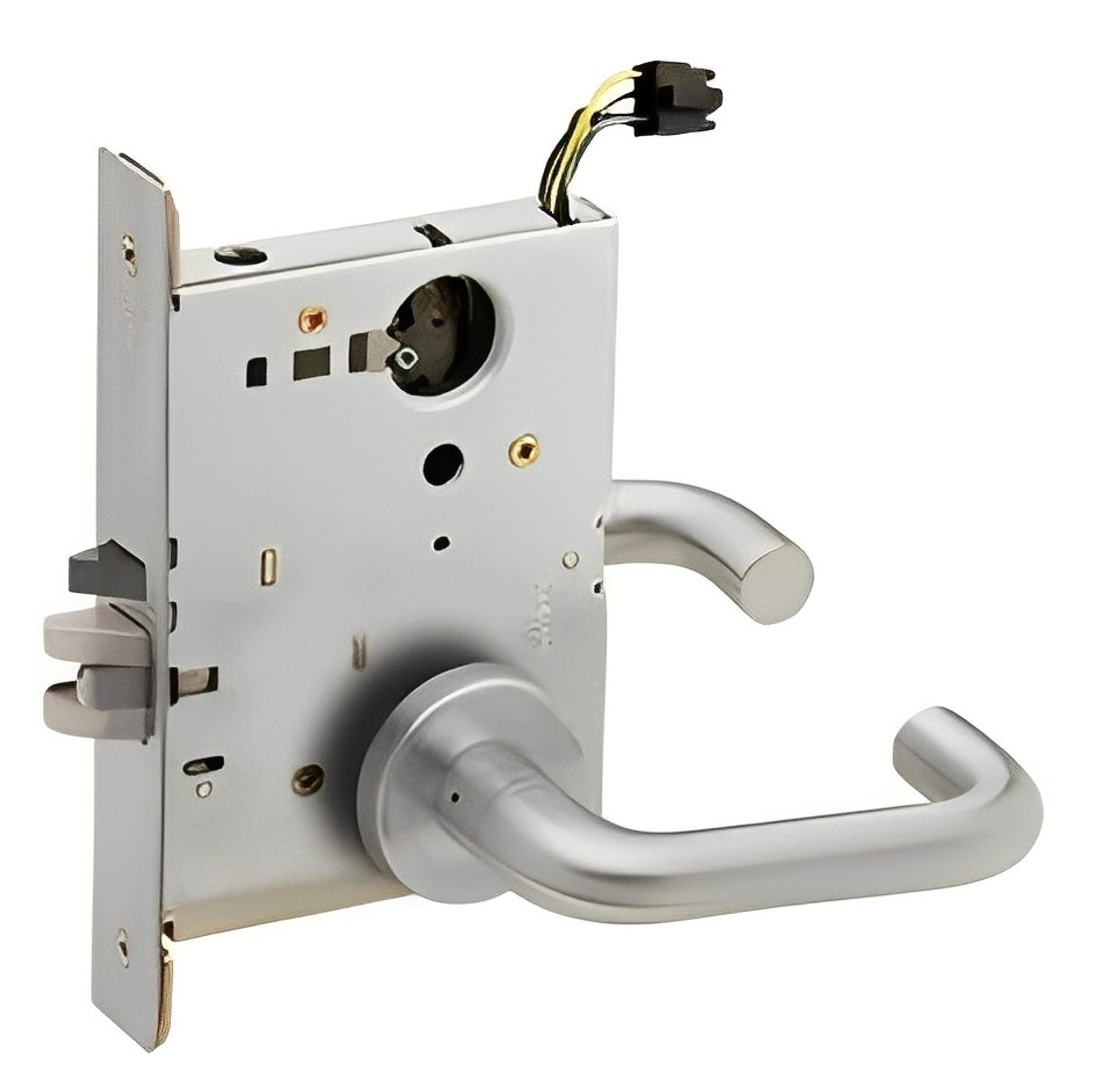

Schlage L9090EU Mortise Lock, Electrically lock outside lever, No Cylinder -  Fail Safe

Electrically Schlage L9090EL Electrified Mortise Lock - Fail Safe

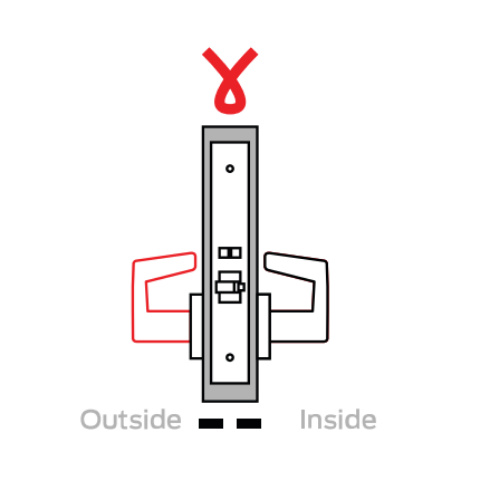

Electrically locking outside lever

Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC.

Latchbolt retracted by key outside or knob/lever inside.

EL is fail safe (power failure allows outside knob/lever to retract latchbolt)

EU is fail secure (power failure locks outside knob/lever).

Aux latch deadlocks latchbolt when door is locked.

Inside lever always free for immediate egress.

Universal input voltage – accepts 12 or 24V DC for installation flexibility

User selectable fail safe/fail secure – changing mode between EL and EU is as simple as flipping a switch on the lock case

Low maximum current draw – 0.4amps - allows multiple locks on a single power supply

Low holding current – 0.01 amps – produces minimal heat, eliminating “hot levers" in electrically locking applications and allowing reliable operation even in poorly ventilated wood doors

Standard Allegion Connect quick-connect Molex system (can be cut off if traditional wiring splicing preferred)

Available options

RX switch: monitors the inside lever with enhanced detection level that balances security with lever sensitivity. New modular RX design – RX can be added on at a later time without opening the lock case

UL listed for 3 hour fire door

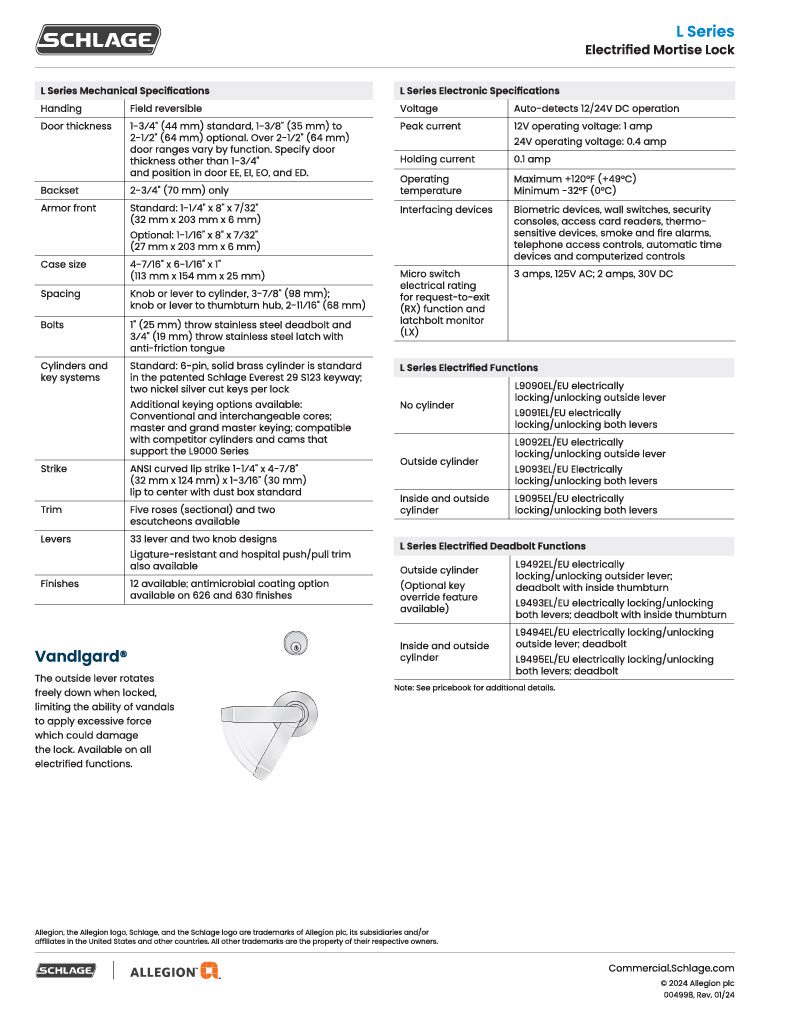

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

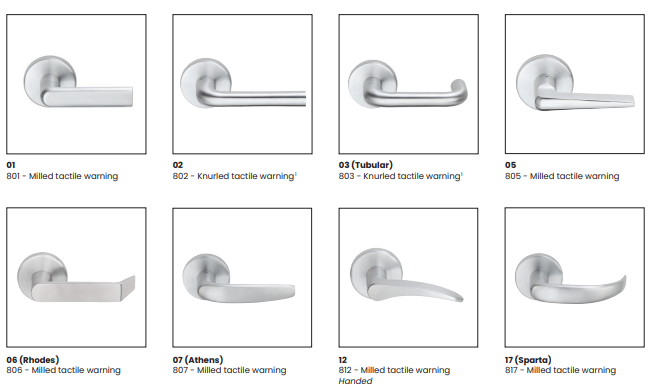

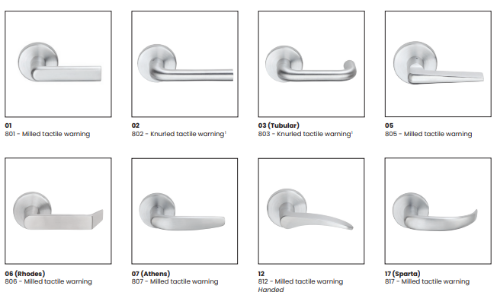

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 47/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard
