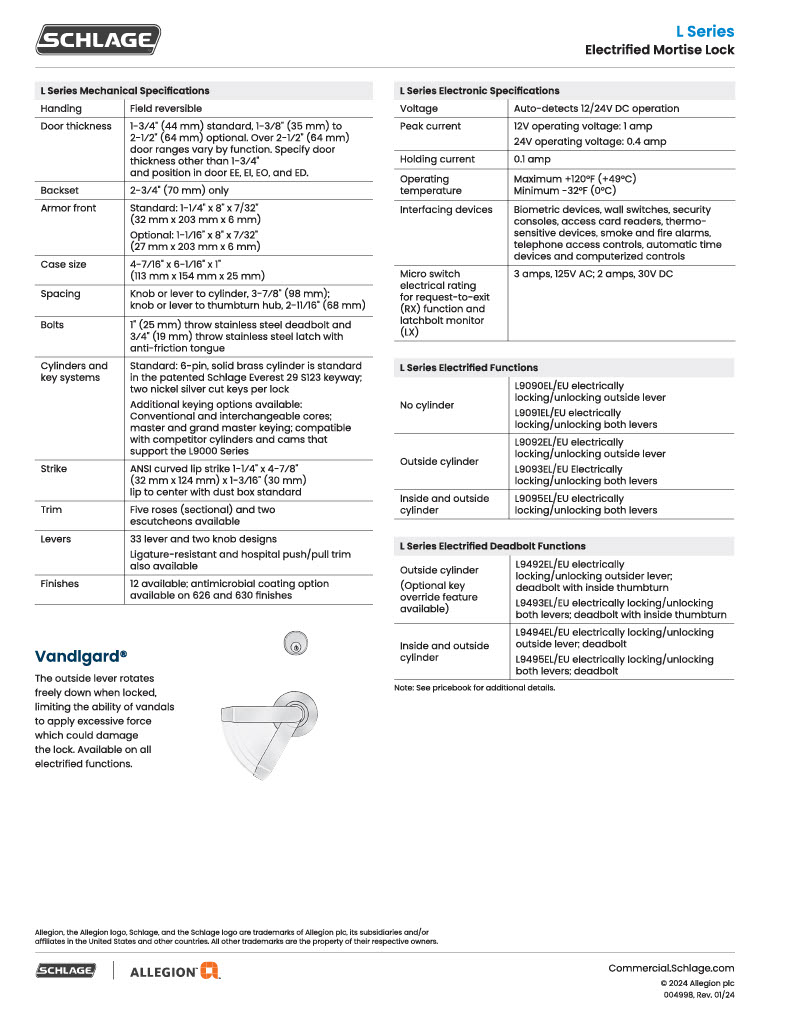

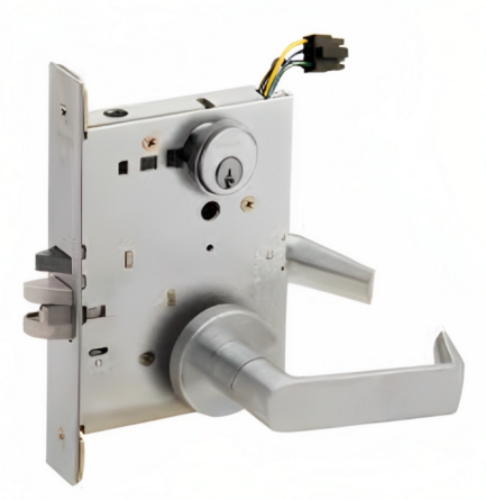

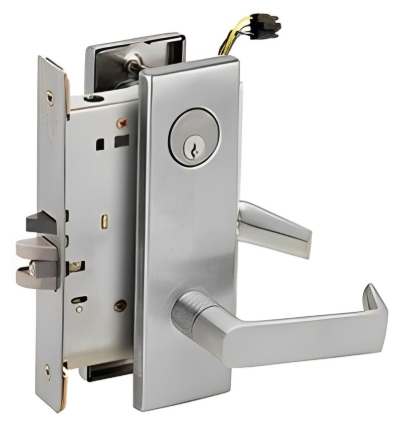

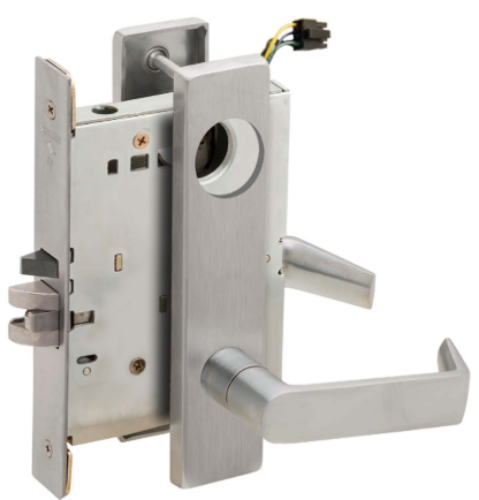

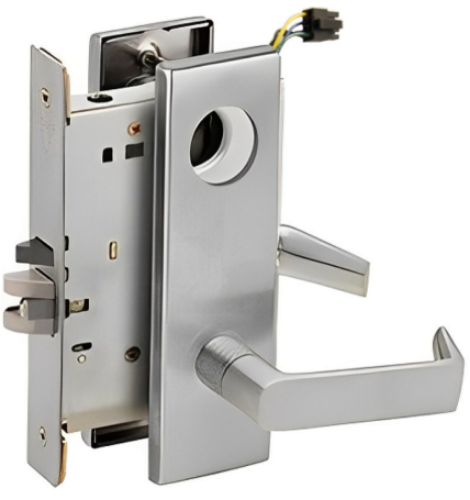

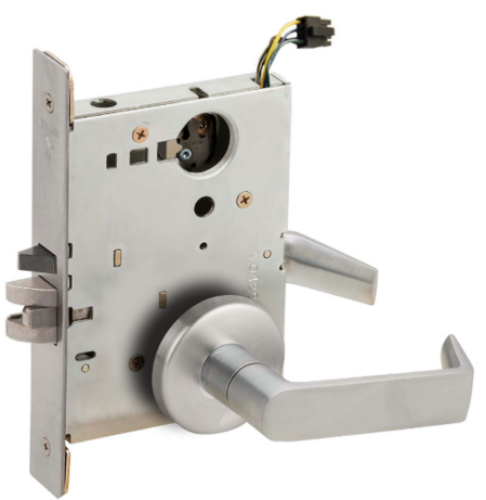

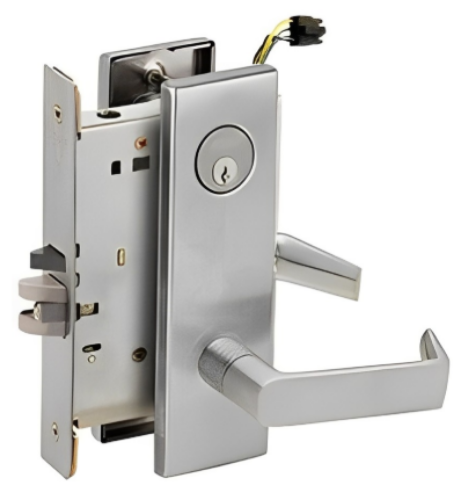

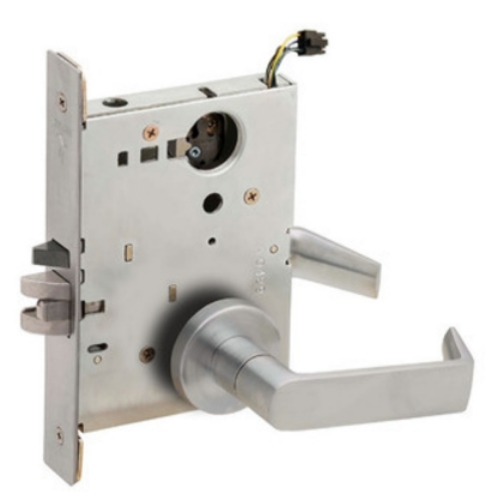

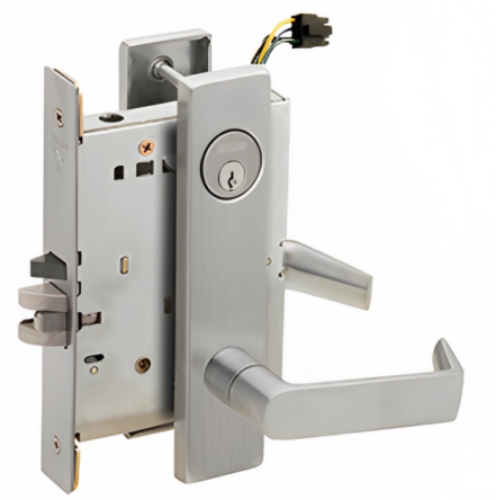

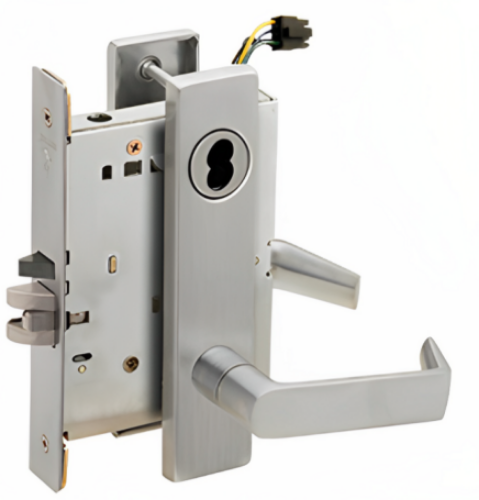

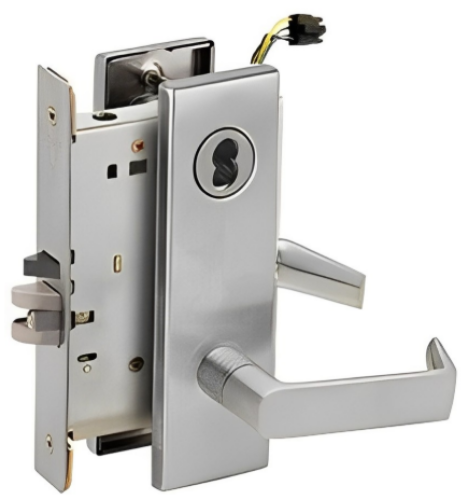

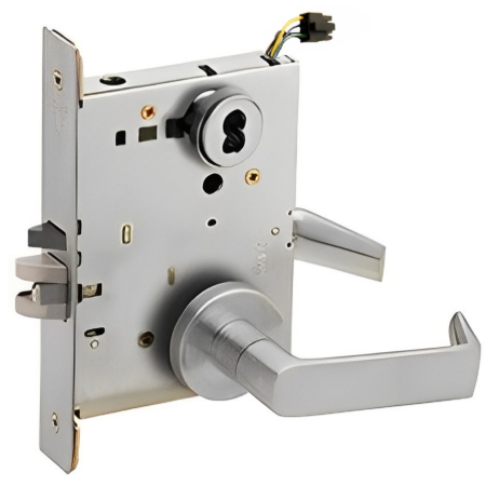

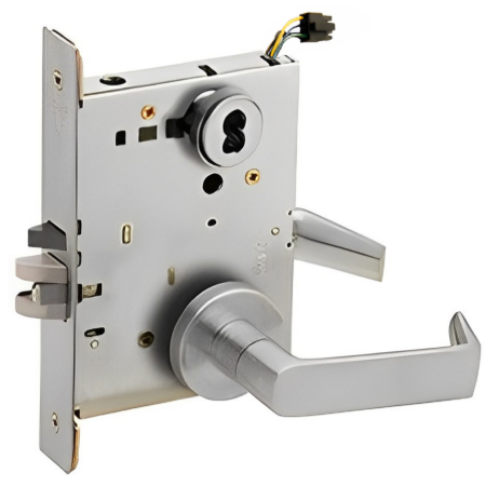

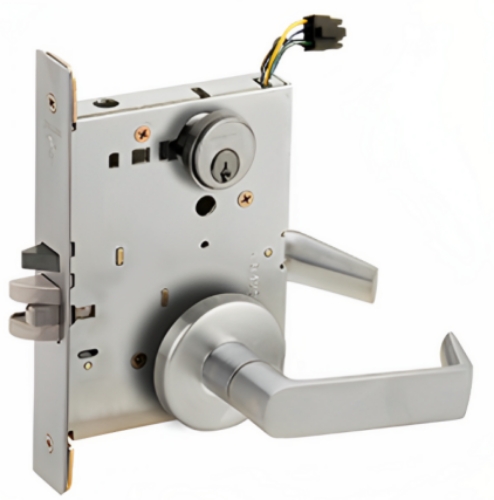

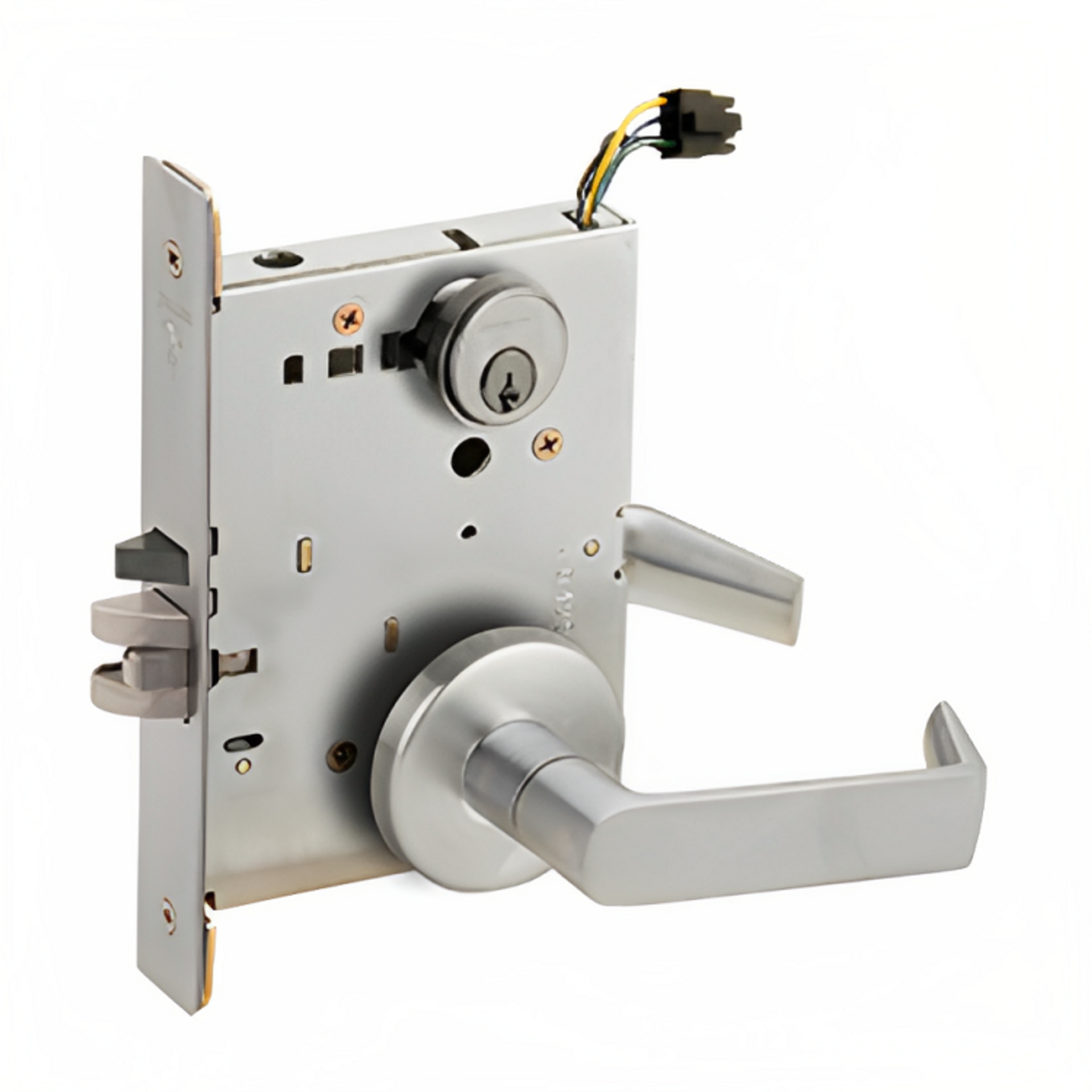

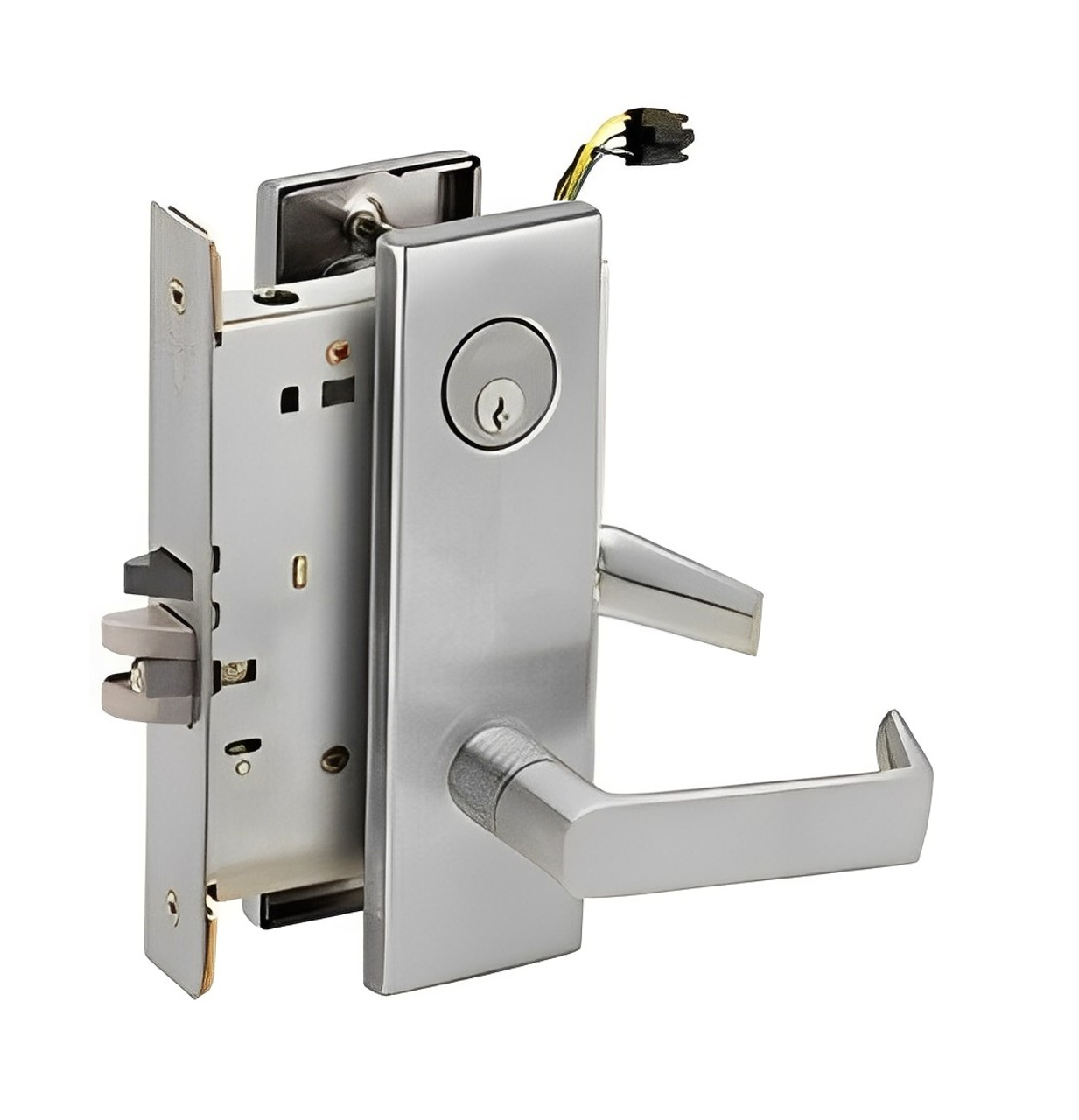

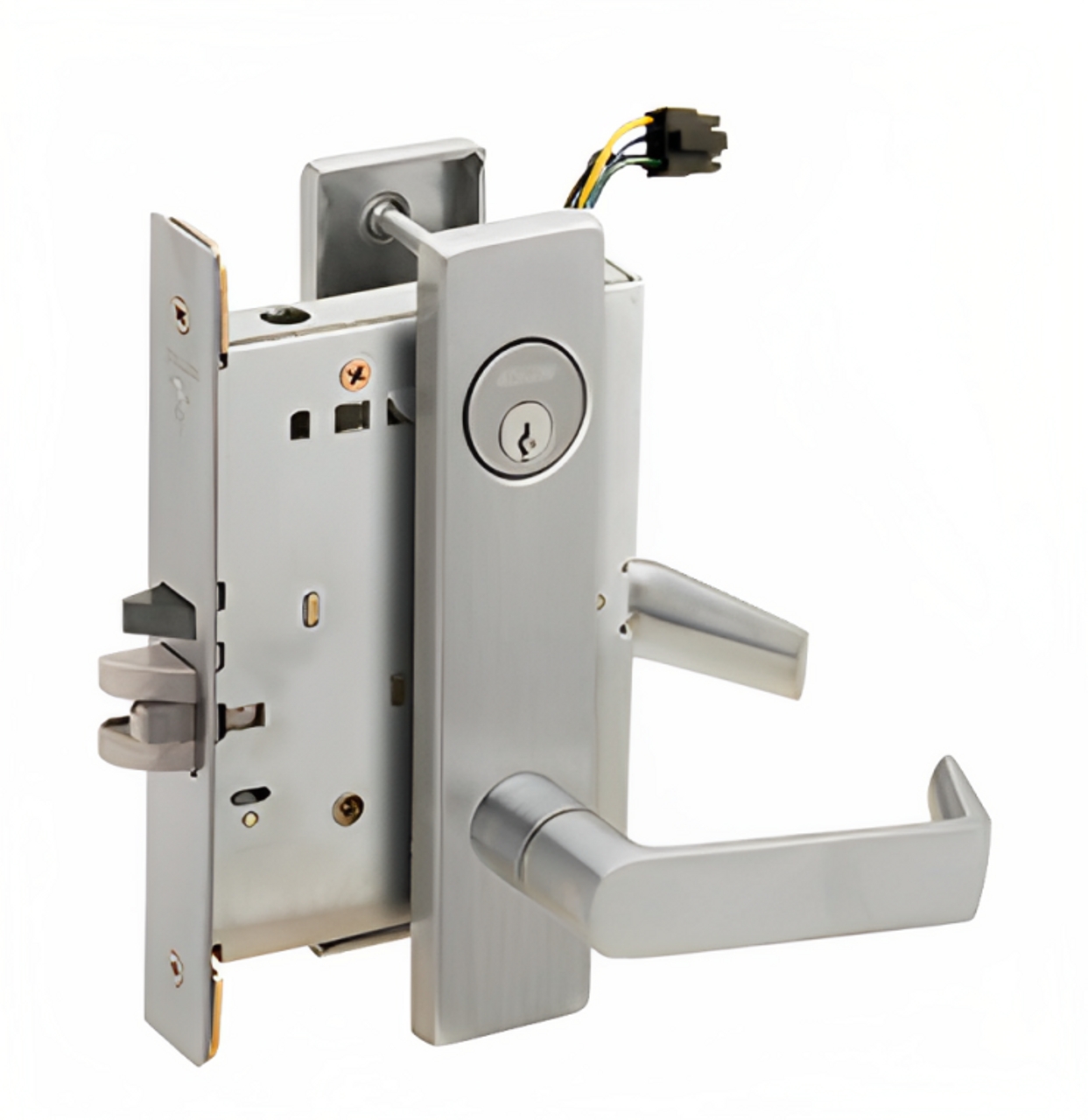

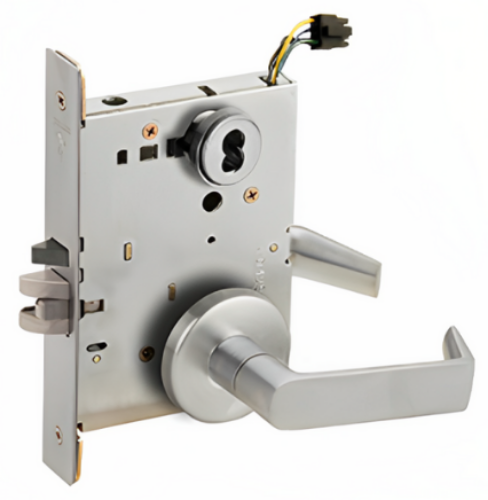

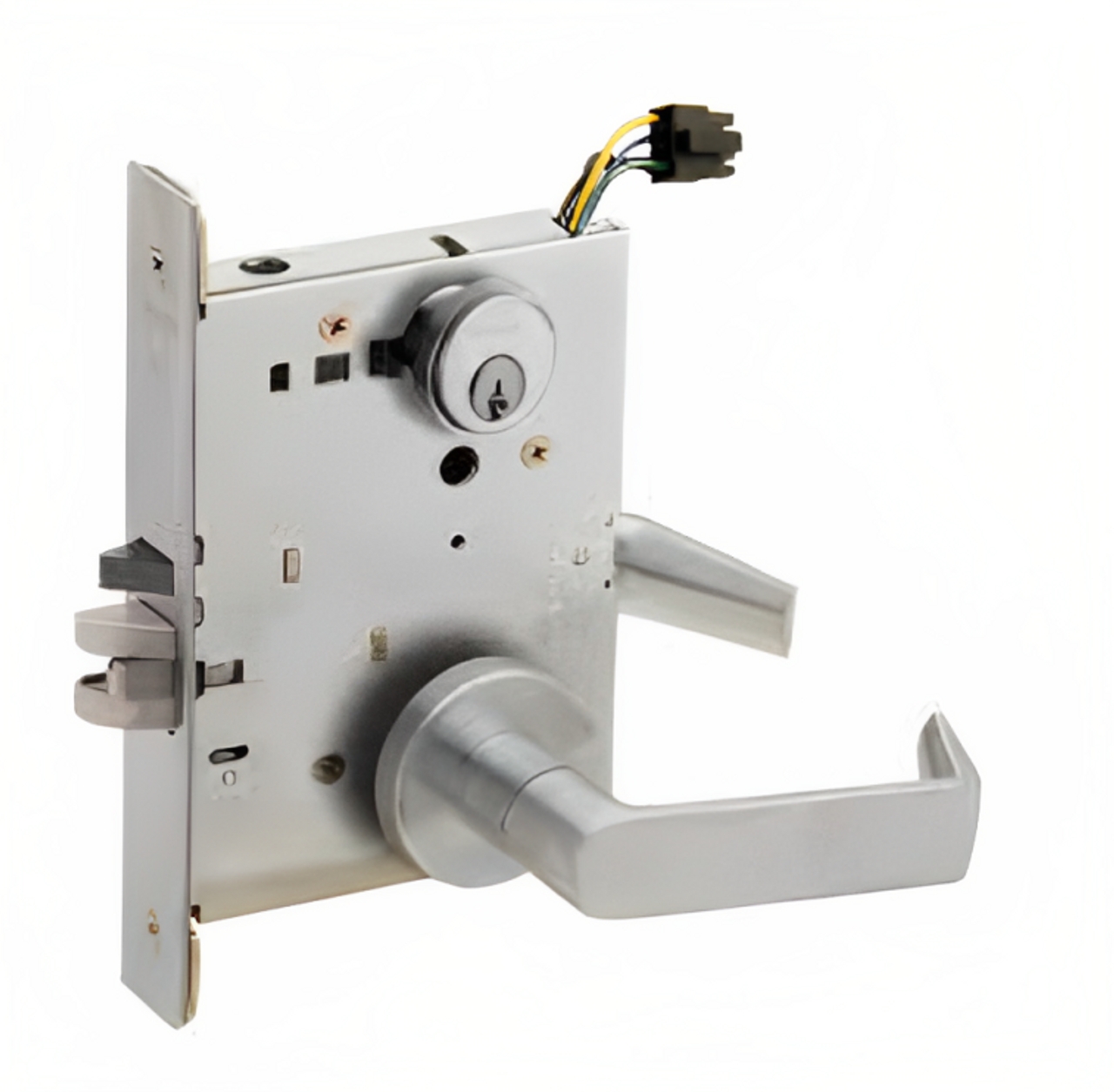

Schlage L9092EU-06 Mortise Lock, Electrically lock/unlock outside lever W/Cylinder outside - Fail Secure

Schlage L9092 EU 06 Electrified Mortise Storeroom Lever Lock

Electrically locking/unlocking outside lever, Outside cylinder (replaces L9080EL/EU)

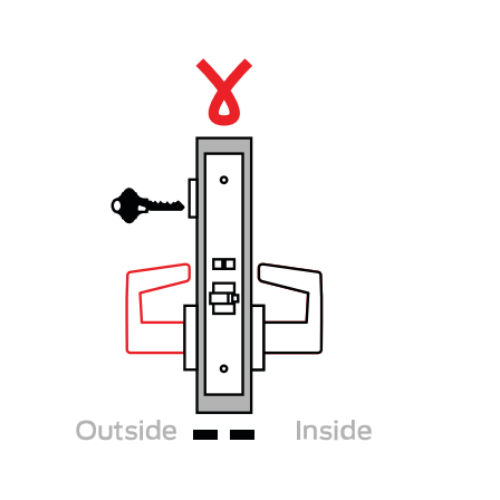

Outside knob/lever continuously locked (EL) by 12 or 24V DC.

Latchbolt retracted by key outside or knob/lever inside.

EL is fail safe (power failure allows outside knob/lever to retract latchbolt)

EU is fail secure (power failure locks outside knob/lever).

Aux latch deadlocks latchbolt when door is locked.

Inside lever always free for immediate egress.

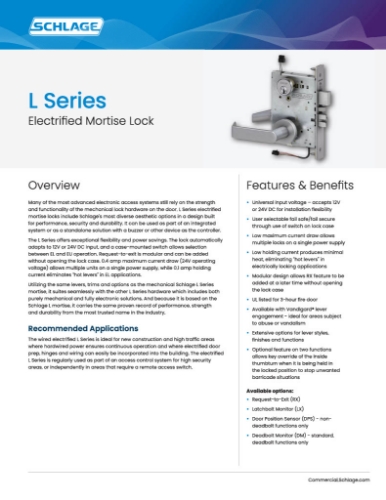

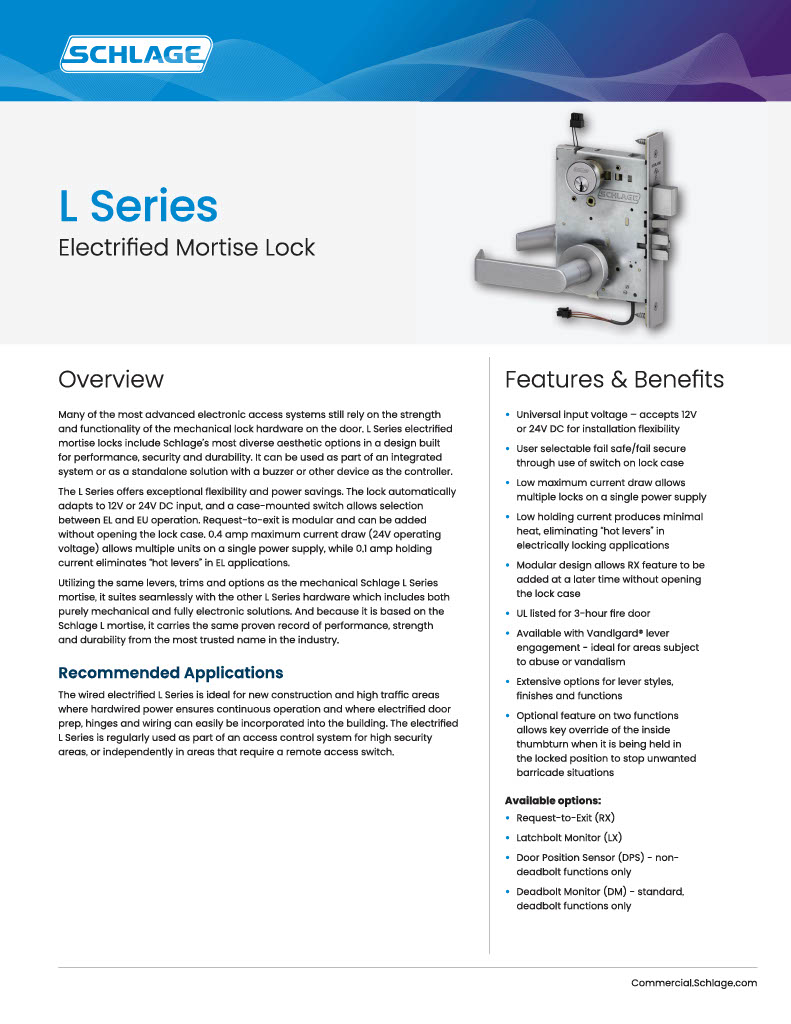

Universal input voltage – accepts 12 or 24V DC for installation flexibility

User selectable fail safe/fail secure – changing mode between EL and EU is as simple as flipping a switch on the lock case

Low maximum current draw – 0.4amps - allows multiple locks on a single power supply

Low holding current – 0.01 amps – produces minimal heat, eliminating “hot levers" in electrically locking applications and allowing reliable operation even in poorly ventilated wood doors

Standard Allegion Connect quick-connect Molex system (can be cut off if traditional wiring splicing preferred)

Available options

RX switch: monitors the inside lever with enhanced detection level that balances security with lever sensitivity. New modular RX design – RX can be added on at a later time without opening the lock case

UL listed for 3 hour fire door

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 47/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Applications:

Security control centers, cashier rooms, fire safety exits, stairwell doors, telephone equipment rooms, computer rooms, hospital equipment and narcotics storage areas.

**Regulating Devices:

**Recognition Systems, Inc., Hand Readers, wall switches, security consoles, access card readers, thermo-sensitive devices, smoke and fire alarms, telephone access controls, automatic time devices and computerized controls. All installations should be in accordance with local electrical codes and National Electrical Code, NFPA 70.
