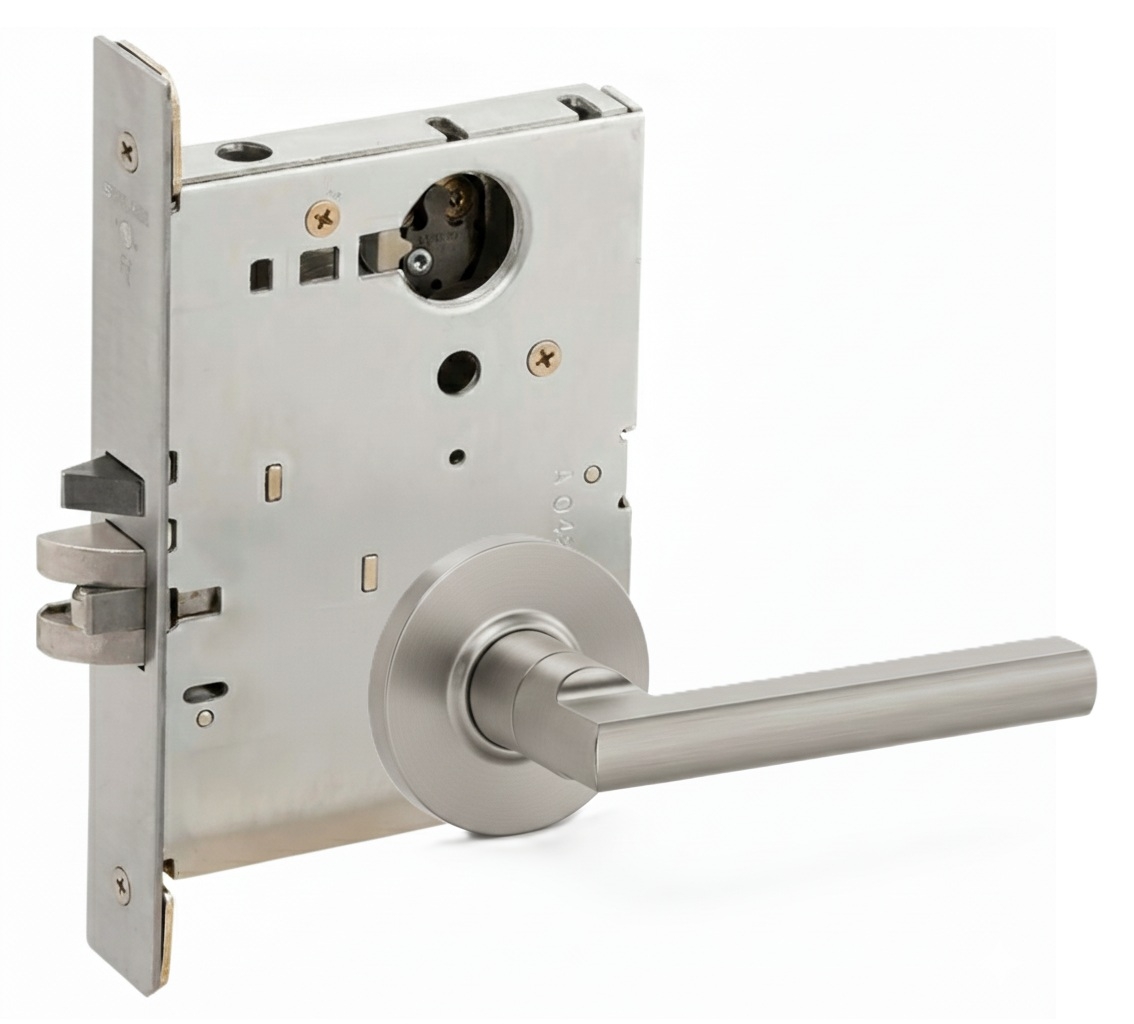

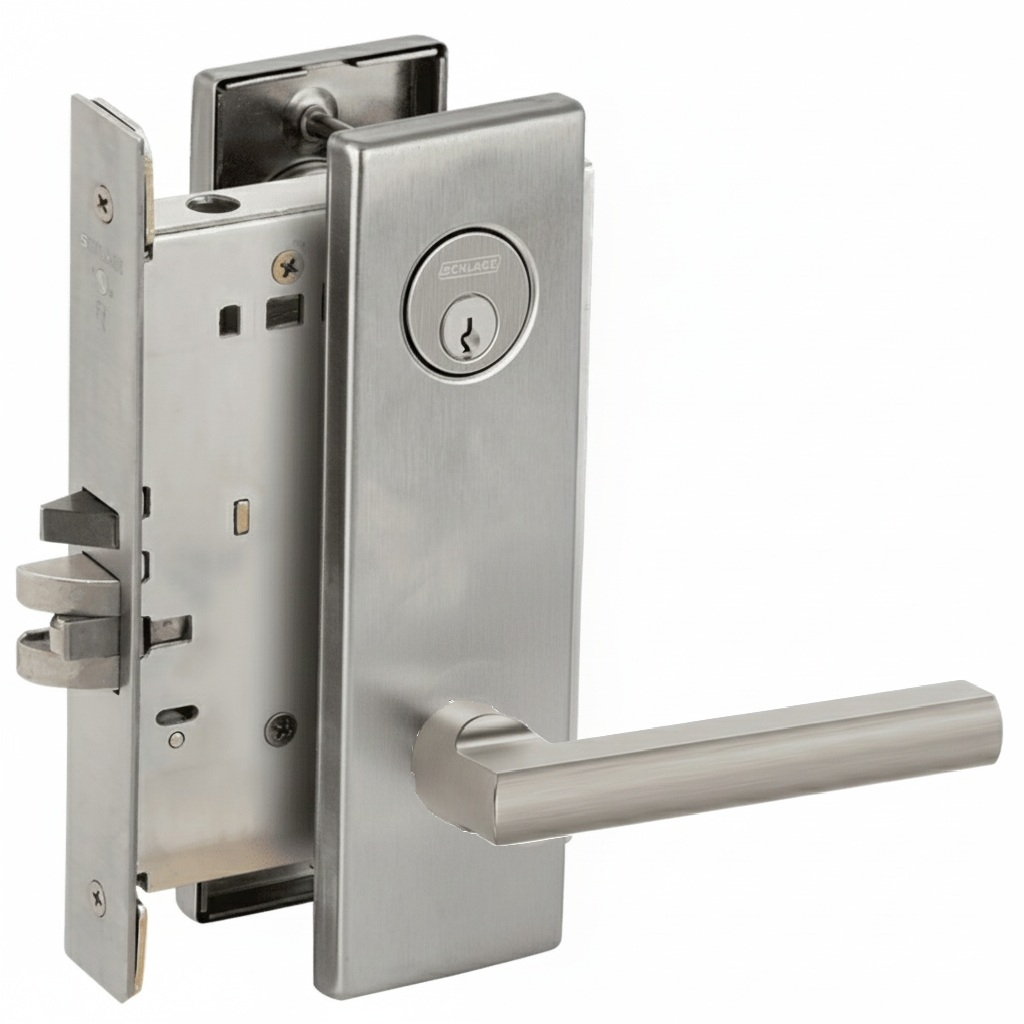

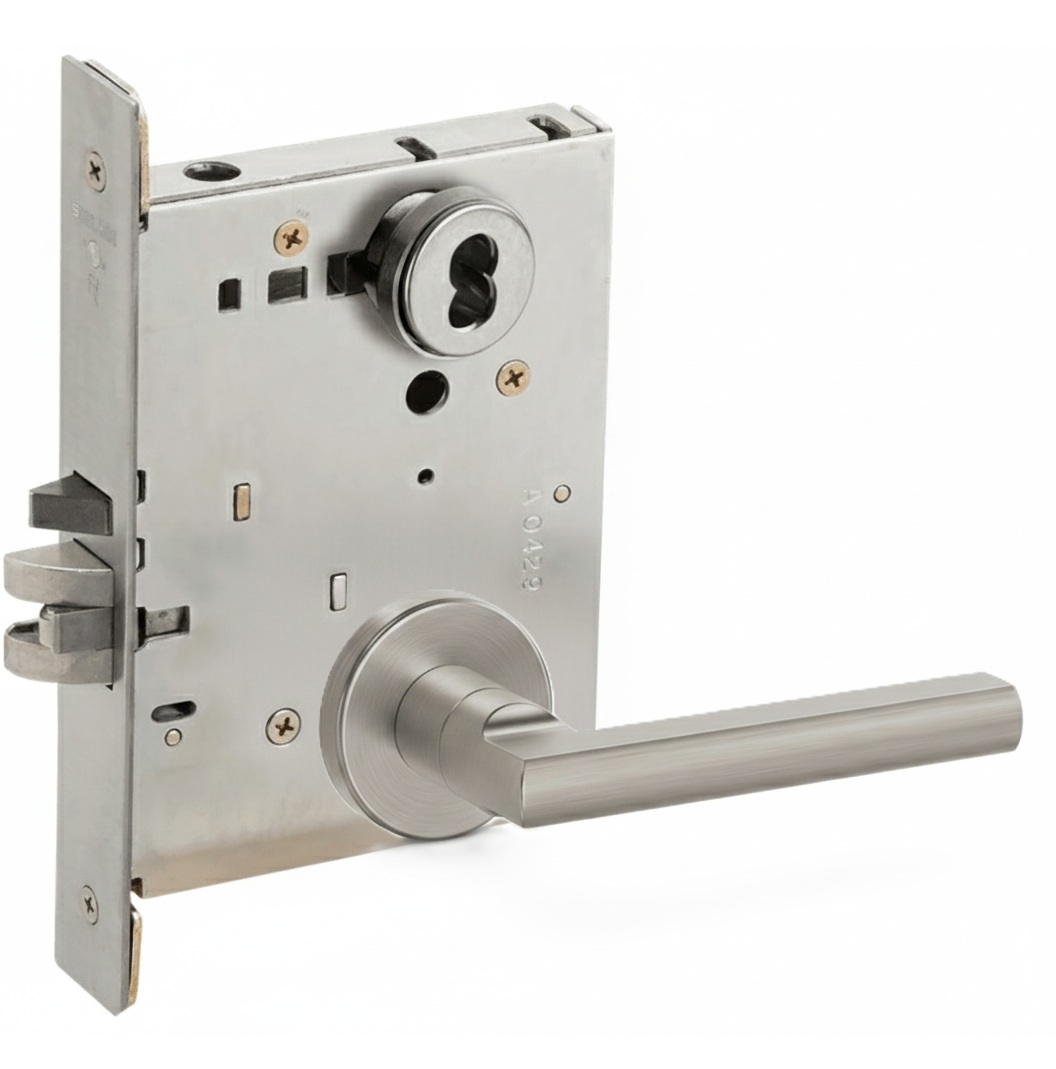

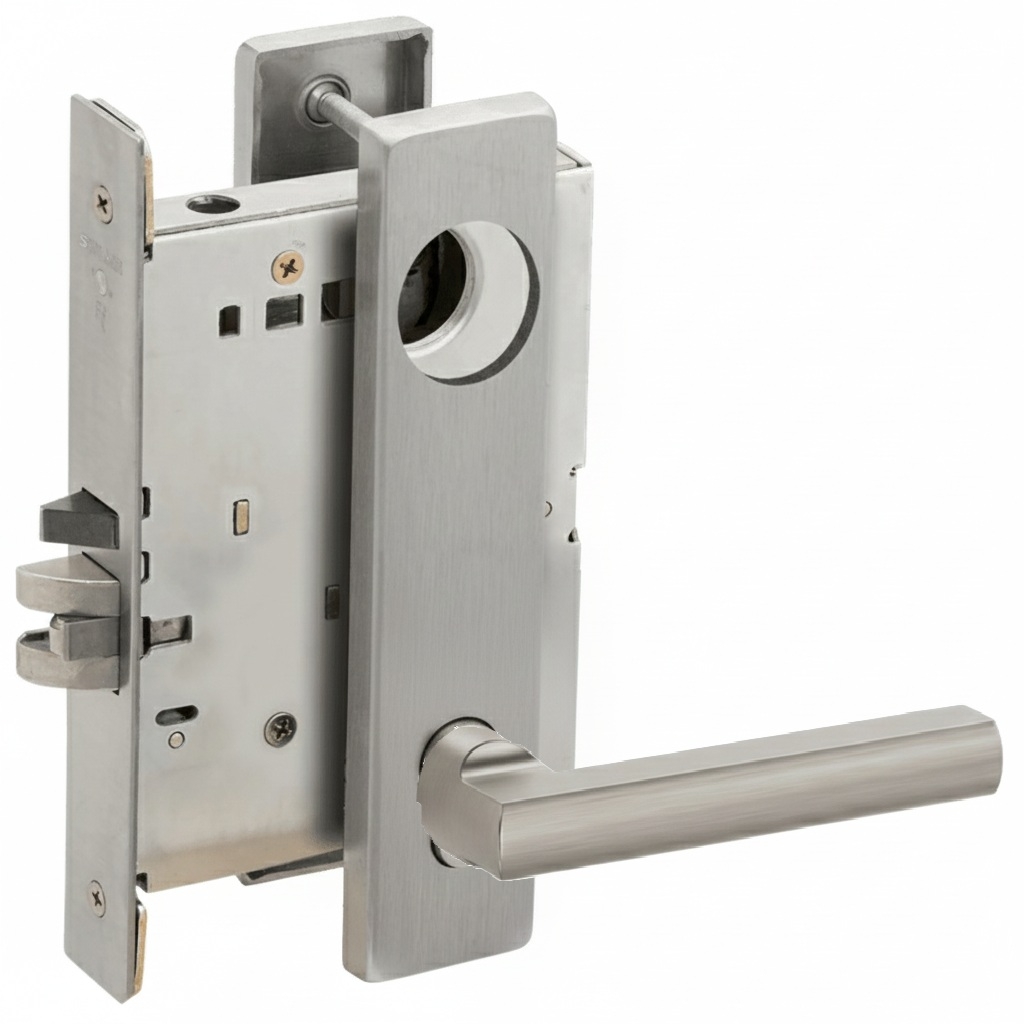

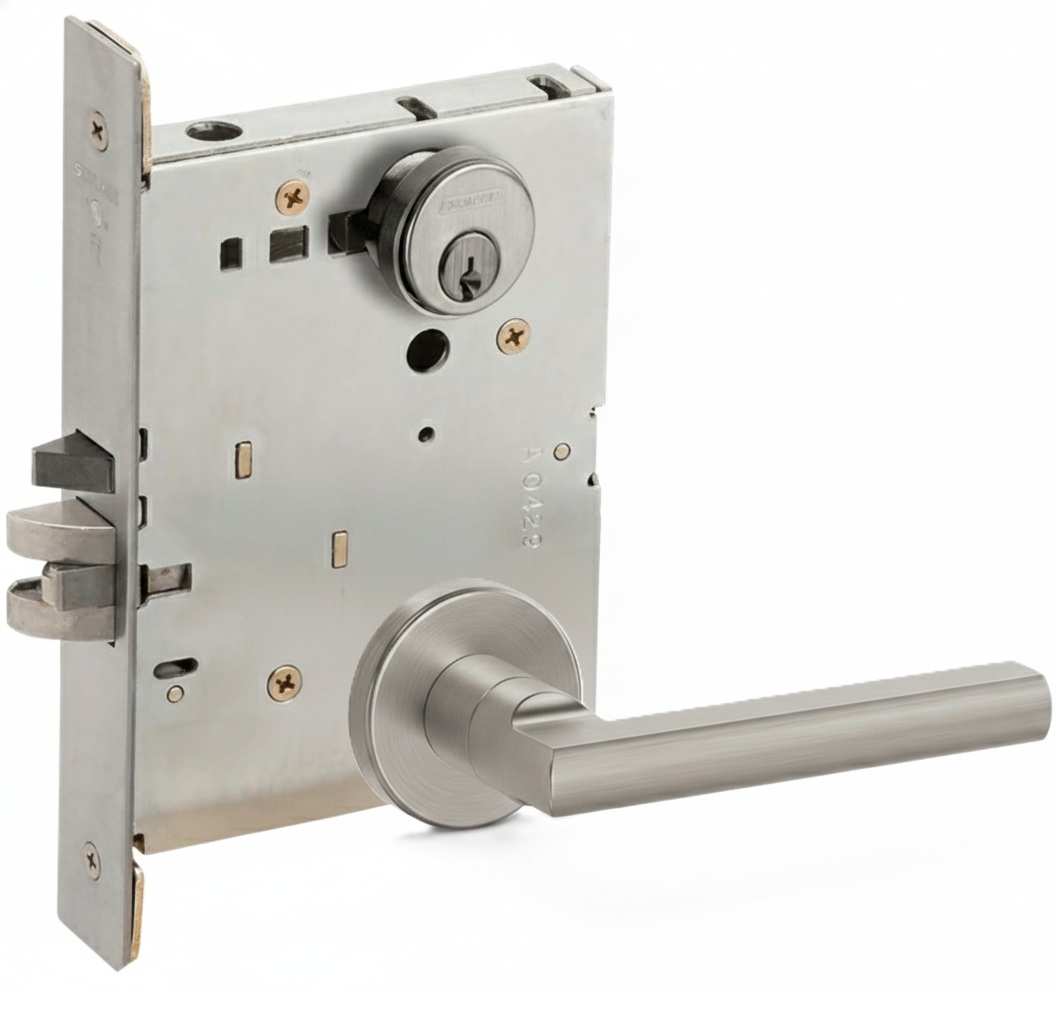

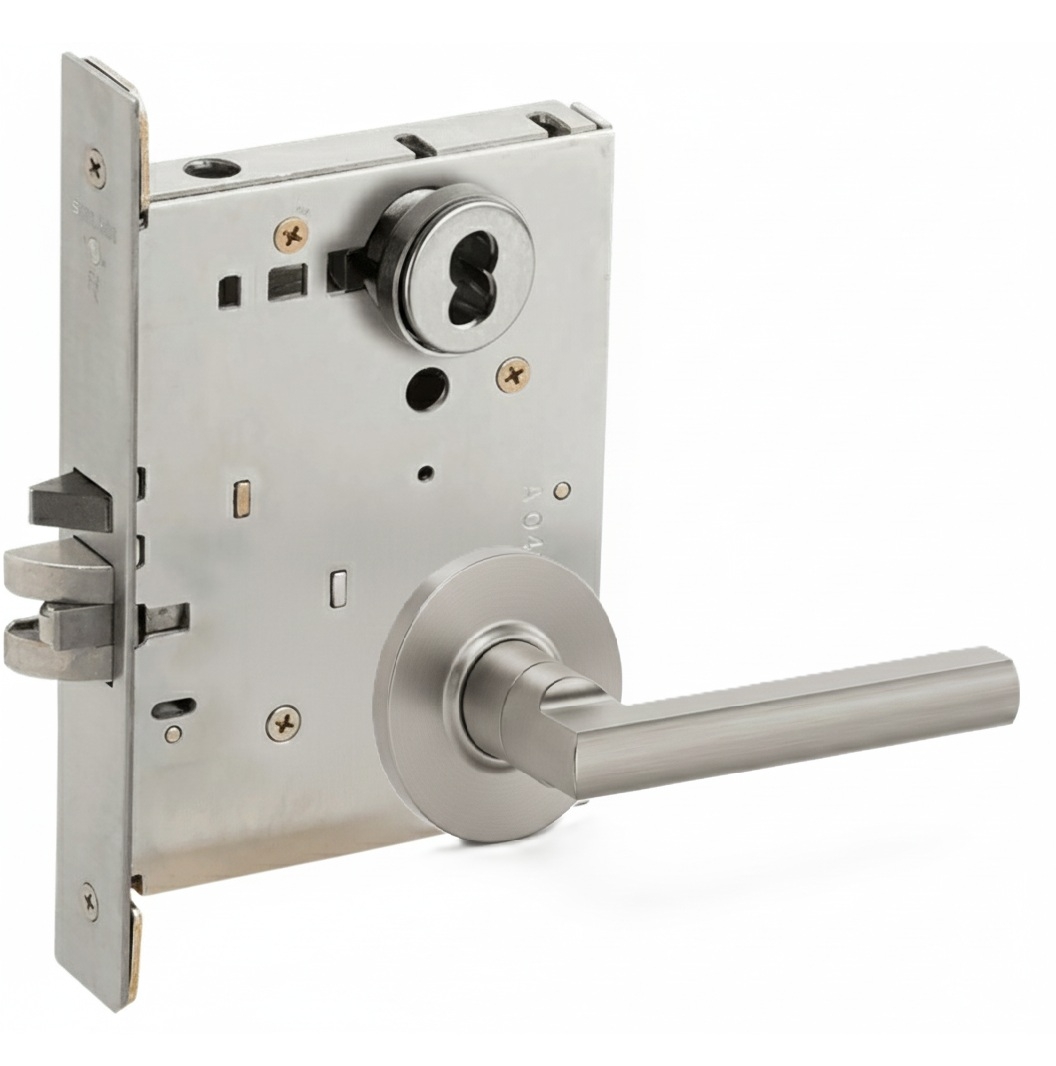

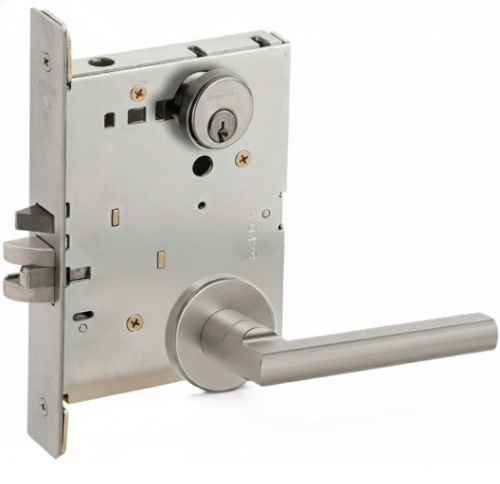

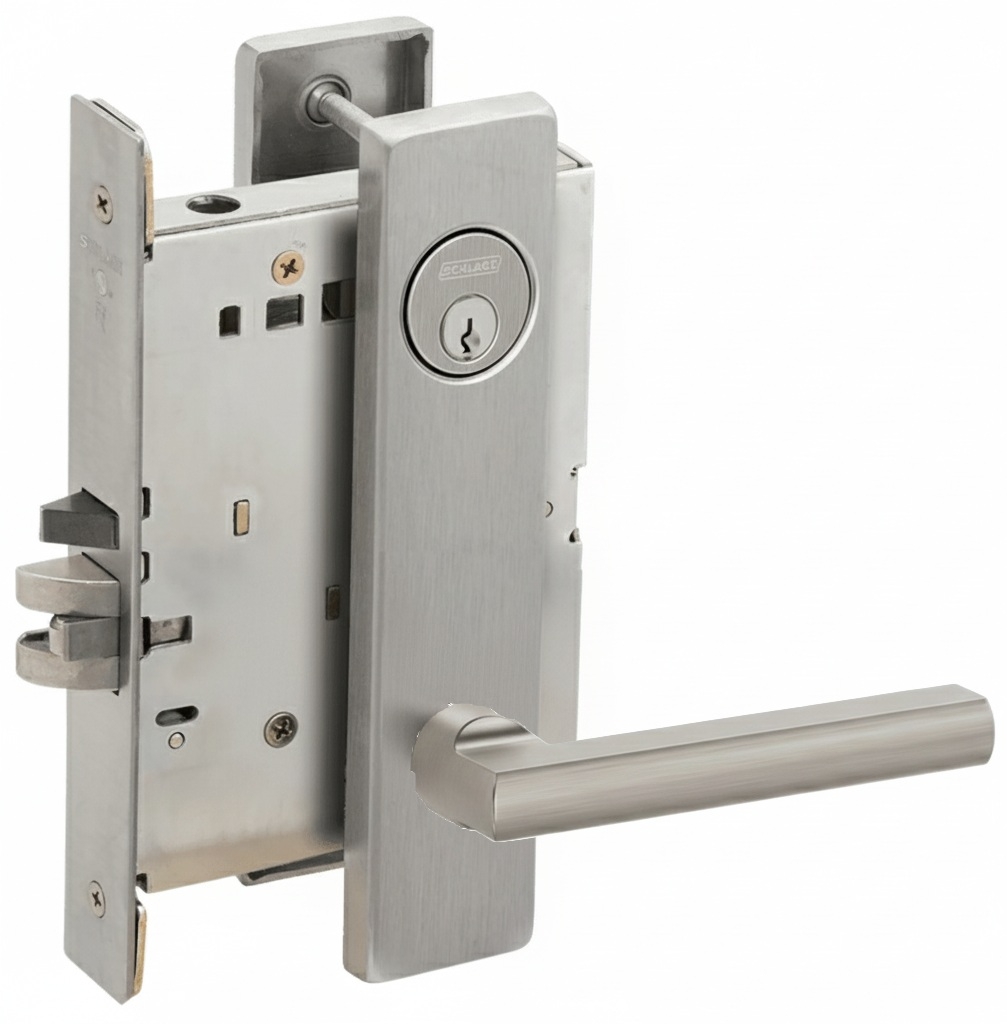

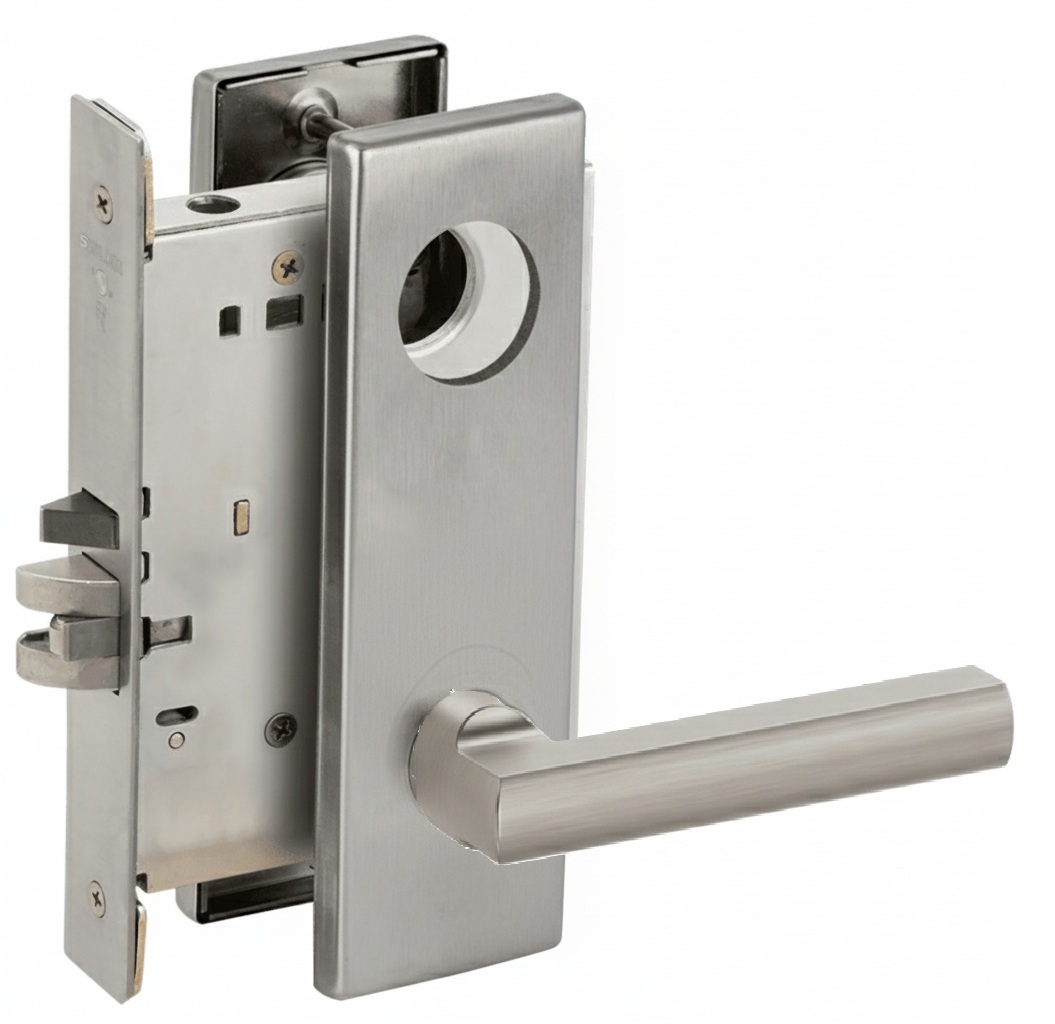

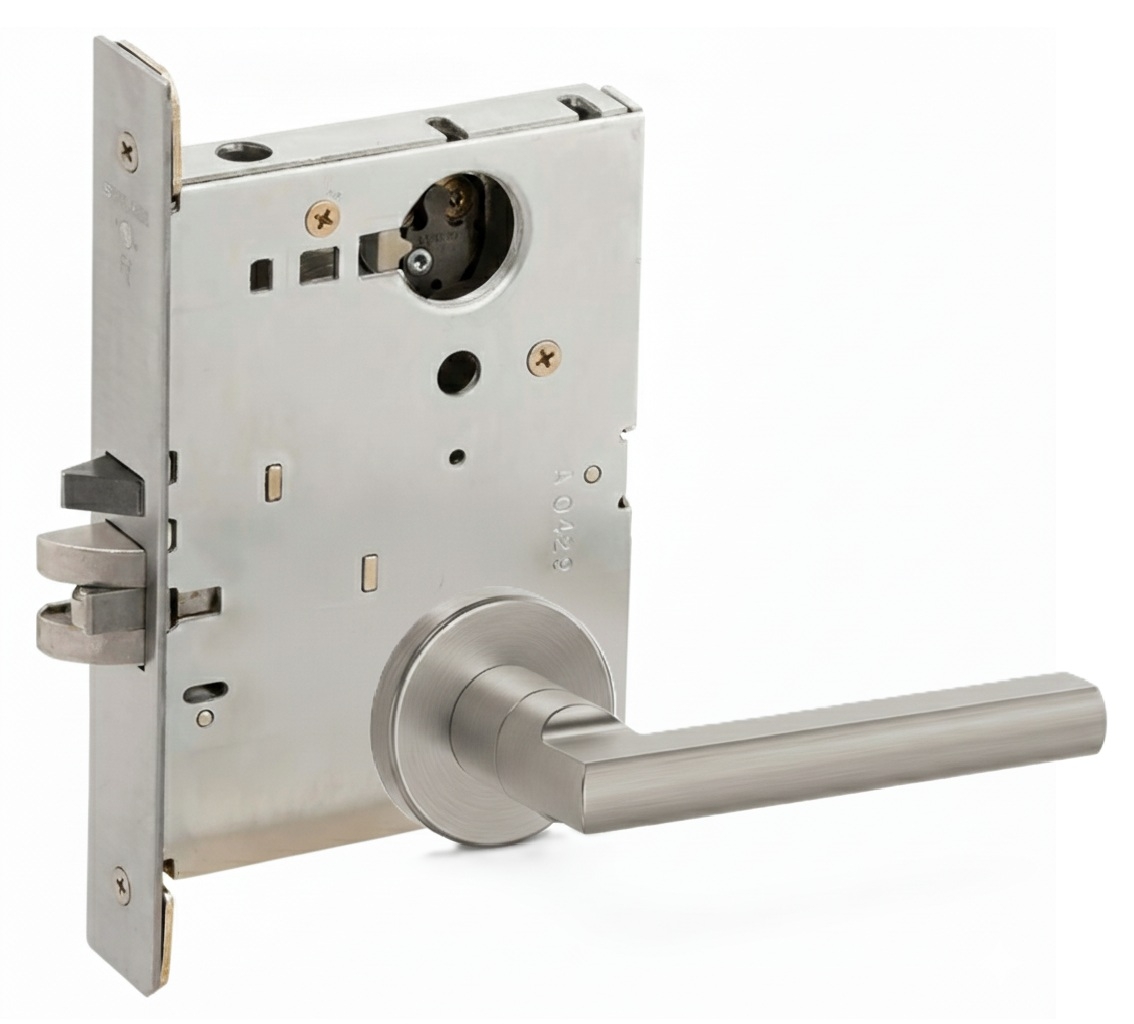

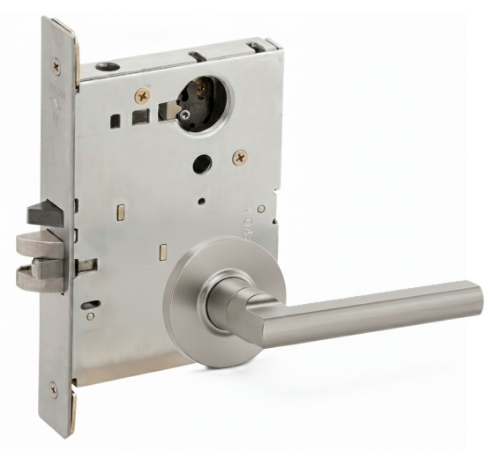

Schlage L9465 LAT Mortise Closet/Storeroom Lock, Field Reversible

Schlage L9465 LAT Mortise Closet/Storeroom Lock

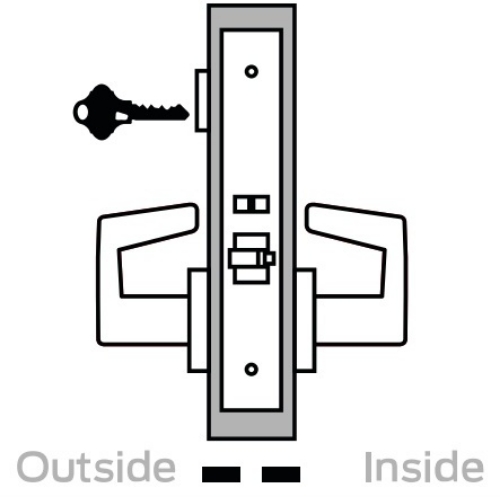

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key outside

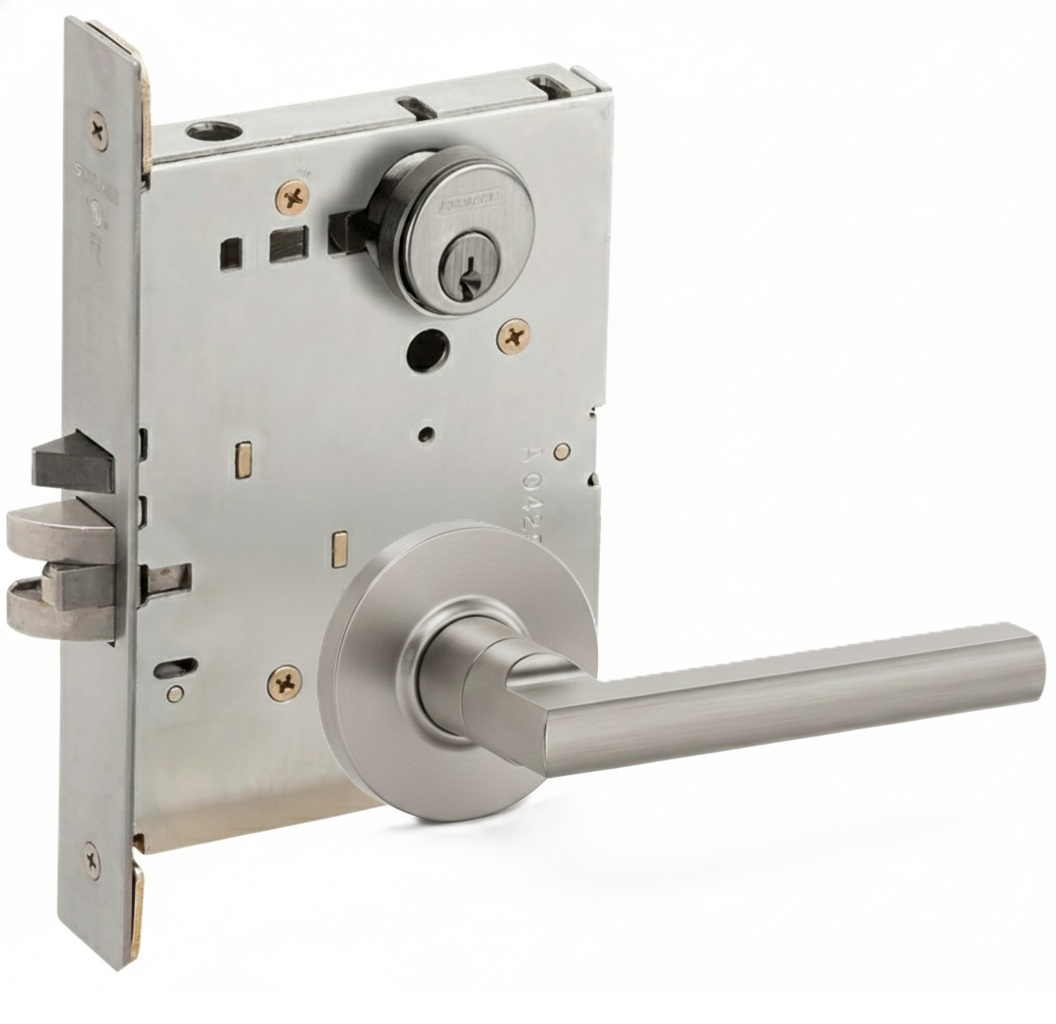

Lever Styles: LATA, LATB, LATL, LATN

Finishes: 606 - Satin Brass, 626 - Satin Chrome, 622 - Matte Black, 630 - Satin Stainless Steel

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

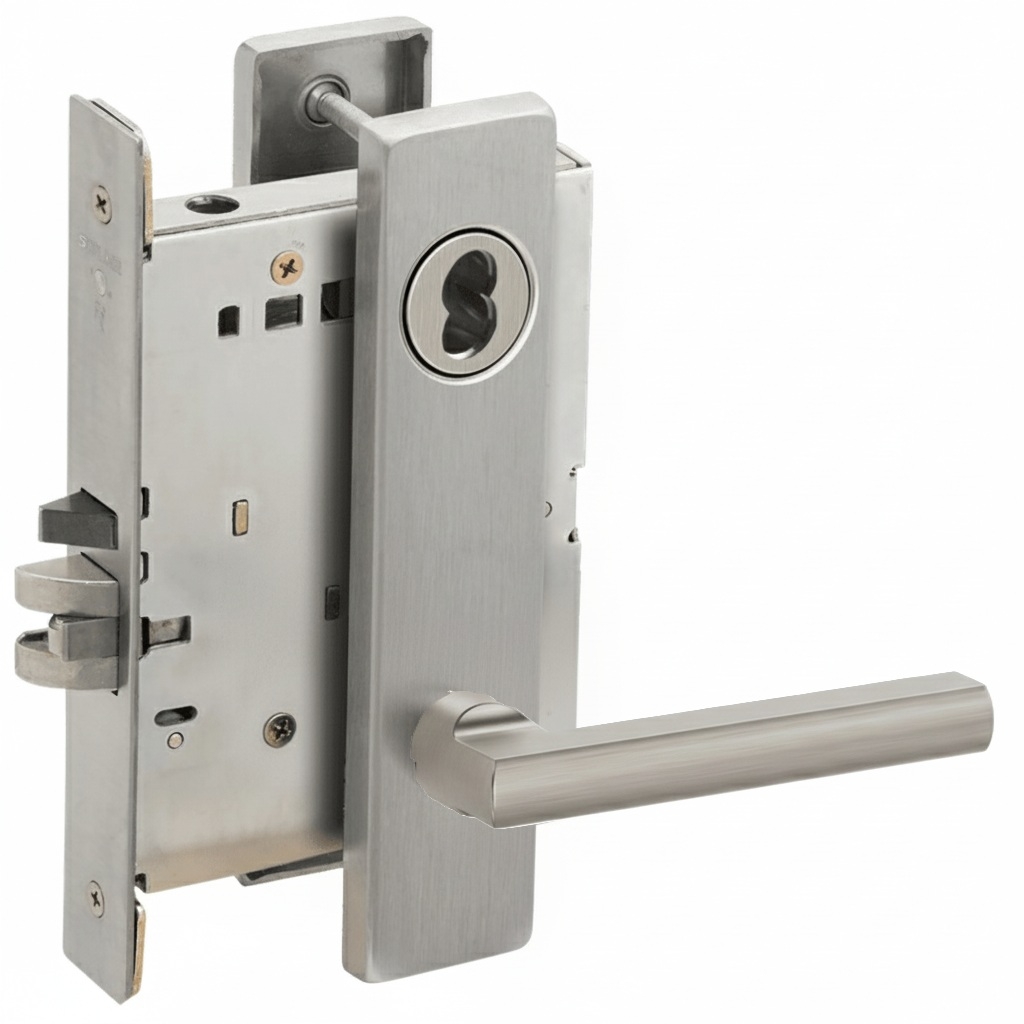

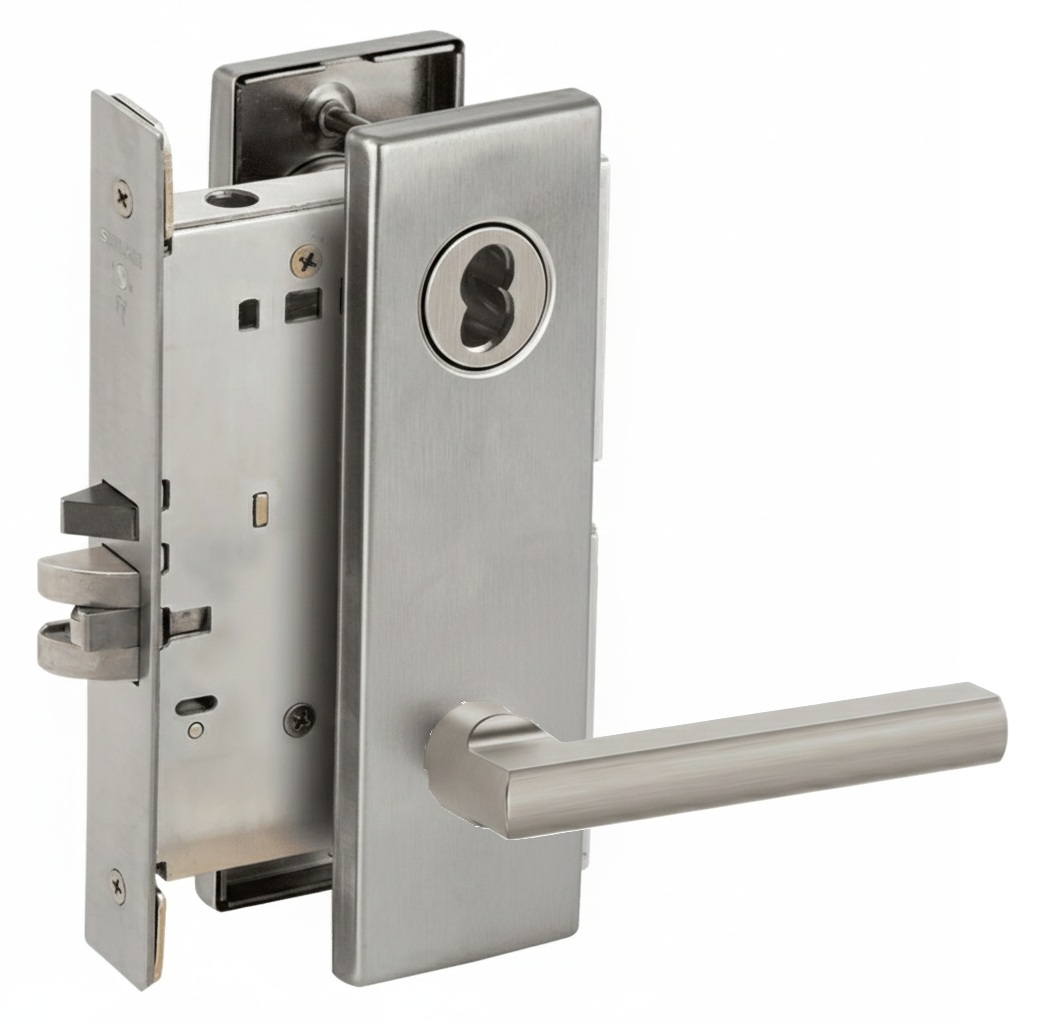

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Specifications

Applications: For commercial and institutional buildings where the finest in mortise locks are required.

Certifications: L9000: ANSI A156.13 Series 1000,Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9077). With interchangeable core cylinders: Grade 2 Security.

The Right Lock for Every Application

Schlage L9000 Series

Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

Strength and Durability

1. Fully wrapped heavy-gauge steel case protects against door edge attacks
2. All-metal zinc dichromate-plated working parts
3. Inside lock case protects electronic components
4. Two-piece anti-friction tongue reduces wear and tear
5. Outside and inside trim thru-bolted together and through the door

Security Built In

6. Break-away spindle prevents unsecured failures and provides easy spindle replacement
7. Hub blocking plate protects lock against spindle manipulation
8. Spring-loaded fusible link provides fail secure mode in case of fire
9. Inside lever applied by screwless shank mounting - no exposed trim mount screws

Adaptable To Your Application

10. Universal lock case ten functions in one case
11. Floating mounting tabs automatically adjust to fit a beveled door edge
12. Field-reversible handing without opening lock case
13. External spring cages allow for simple trim retrofit
14. Locking thumbturn on the inside of door visually shows when the door is locked and unlocked
15. Lever rotation in both directions (up and down) or ease of use
16. Independent lever rotation
