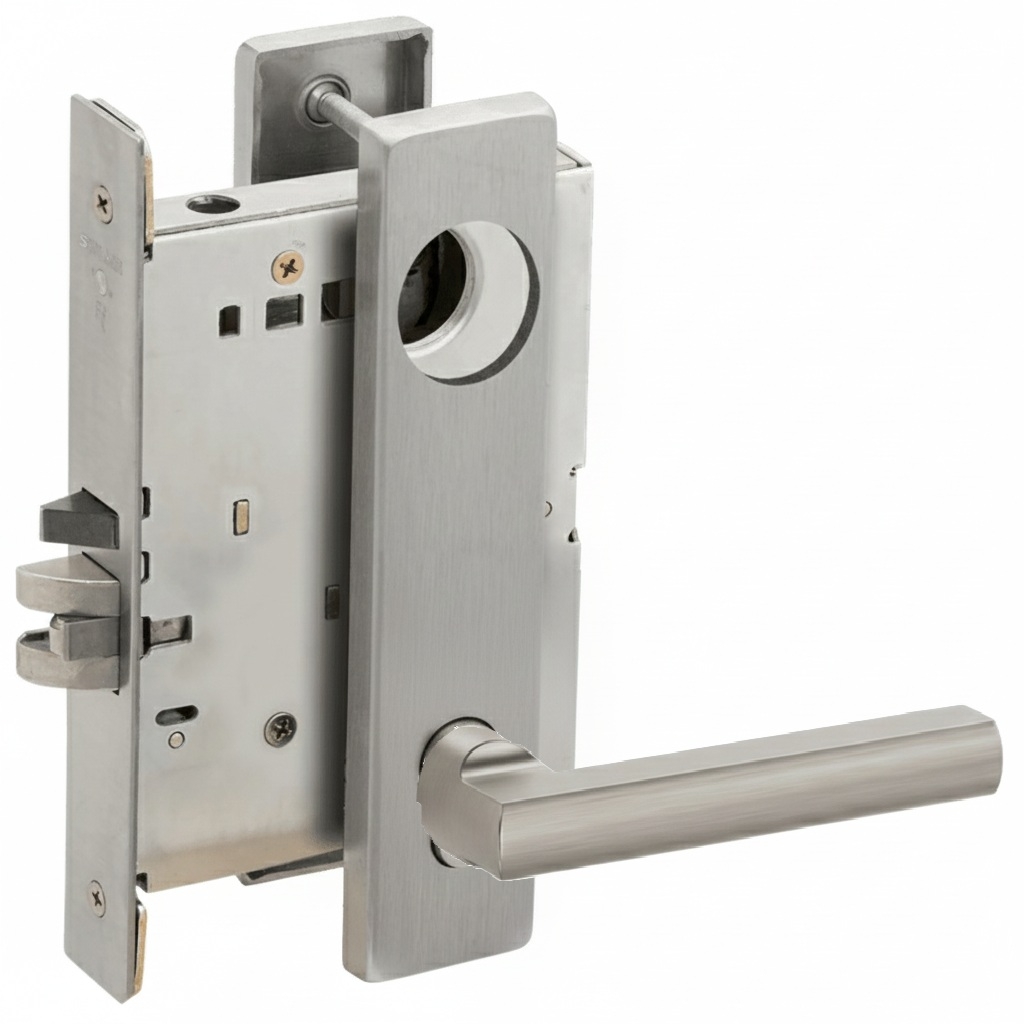

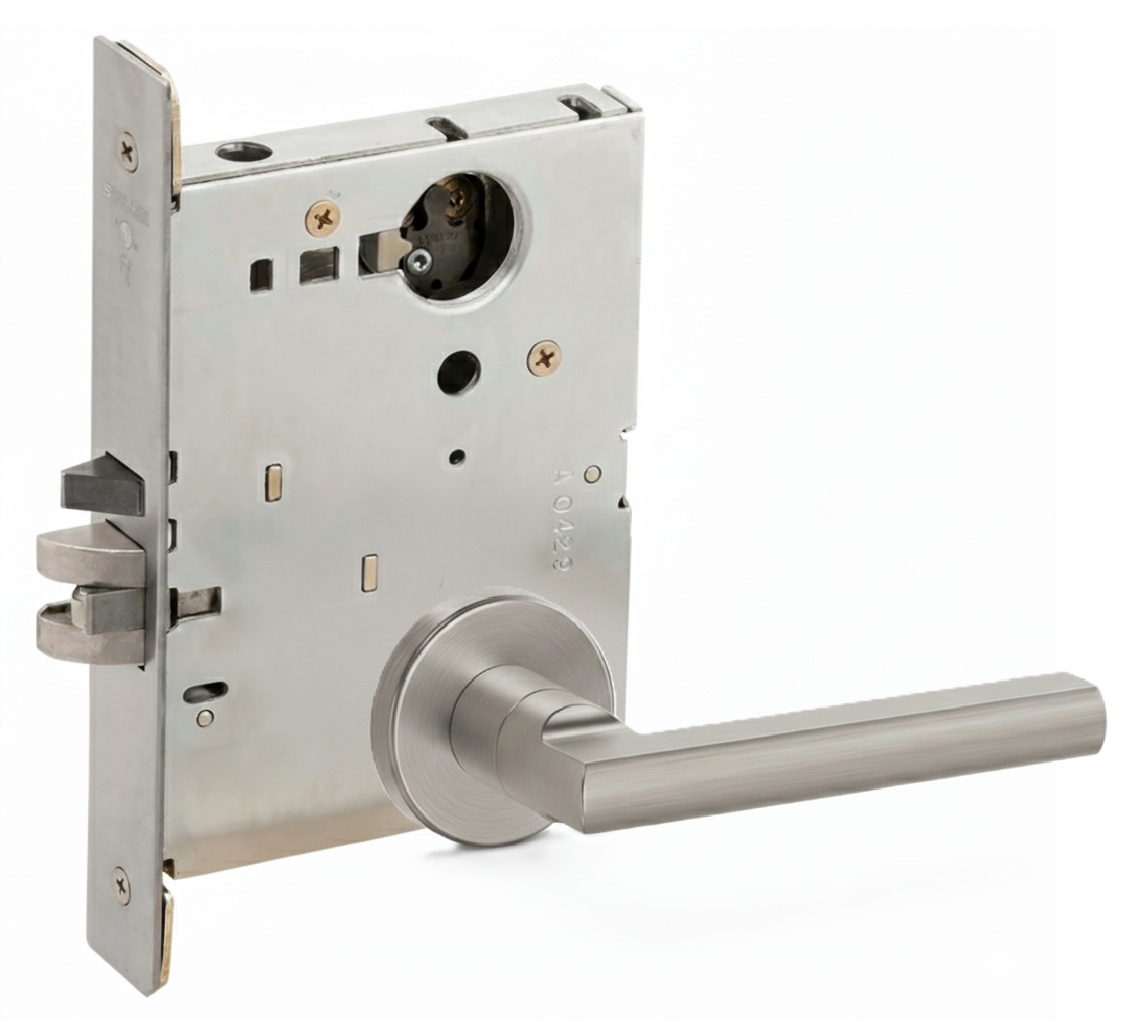

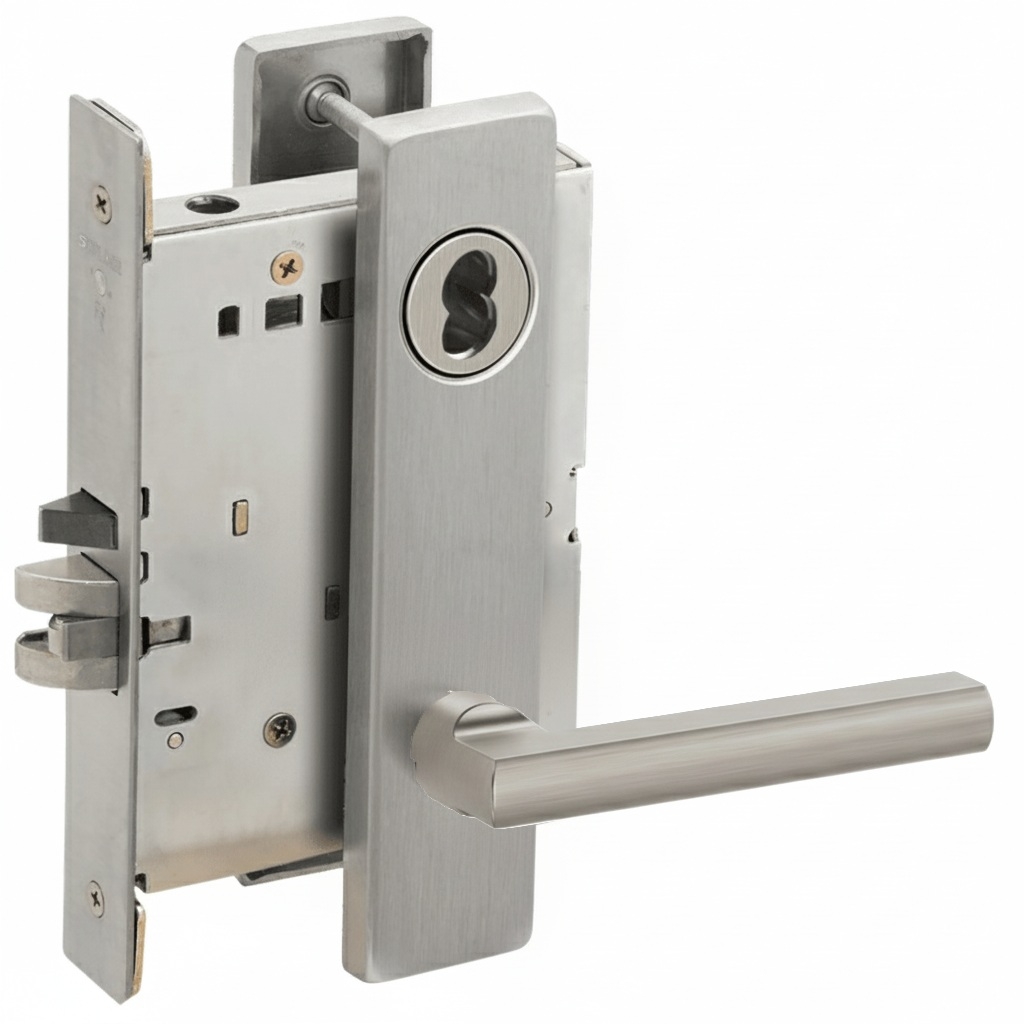

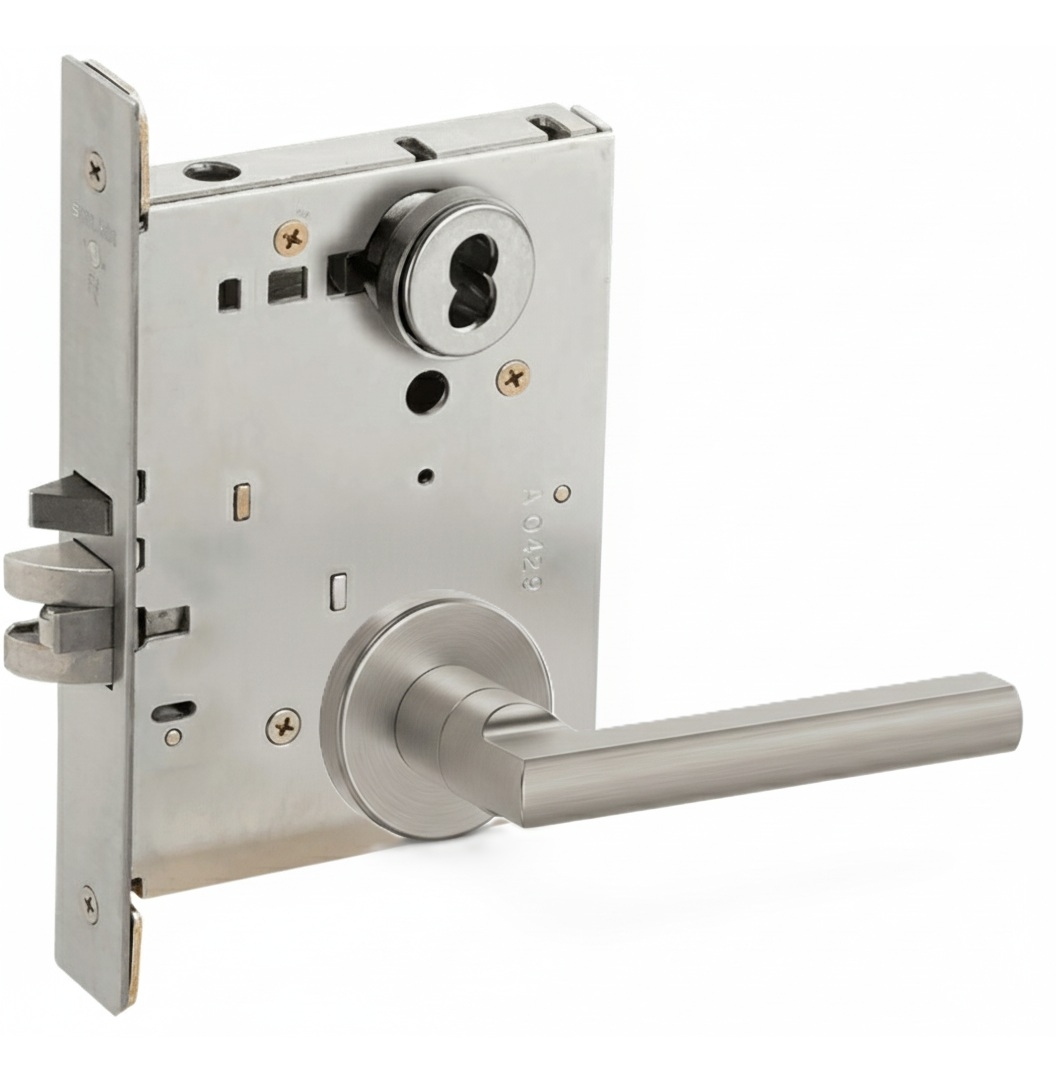

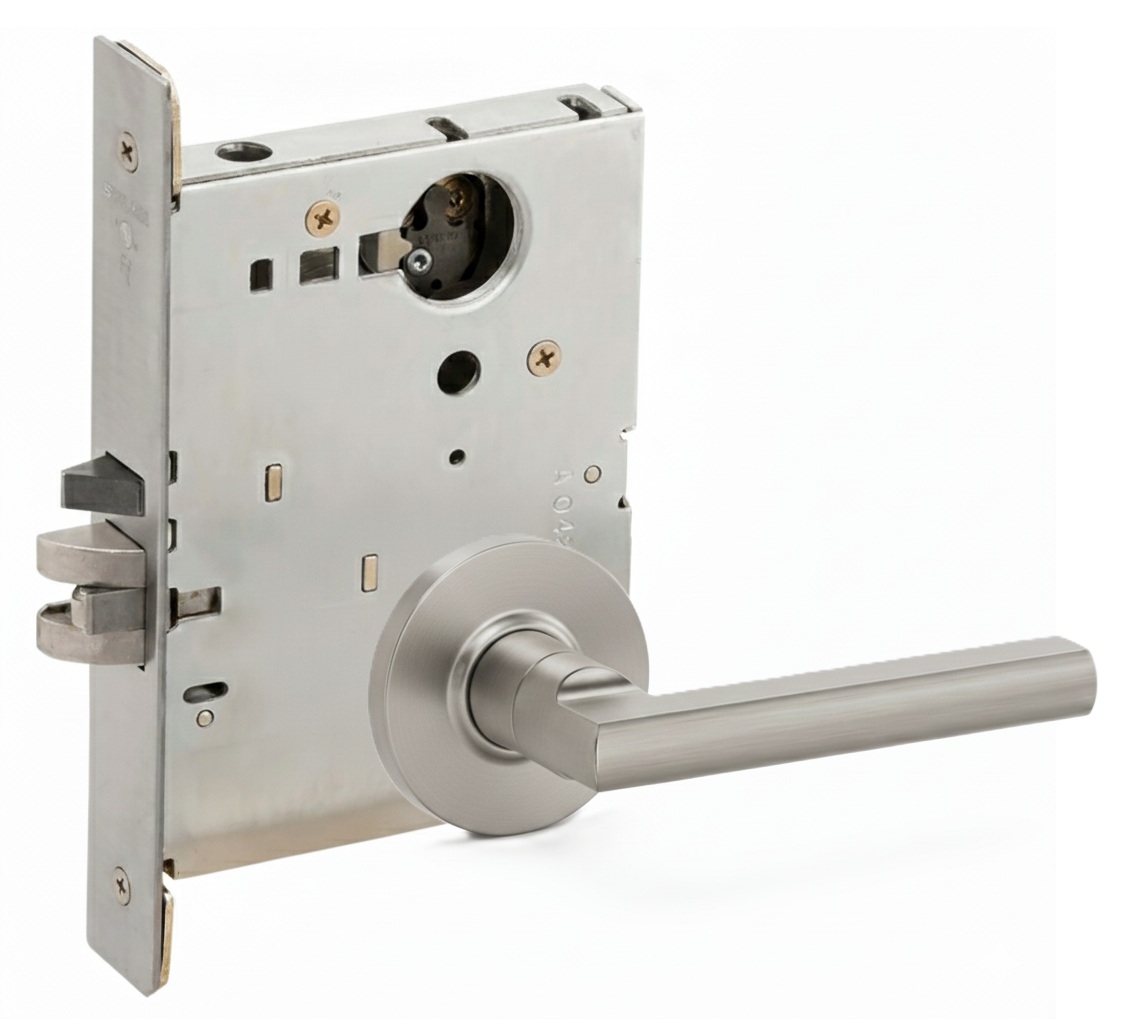

Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible

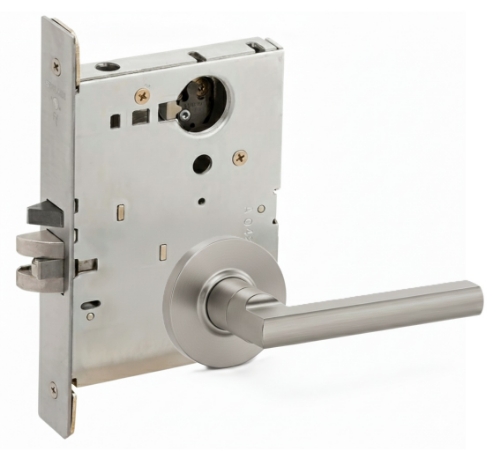

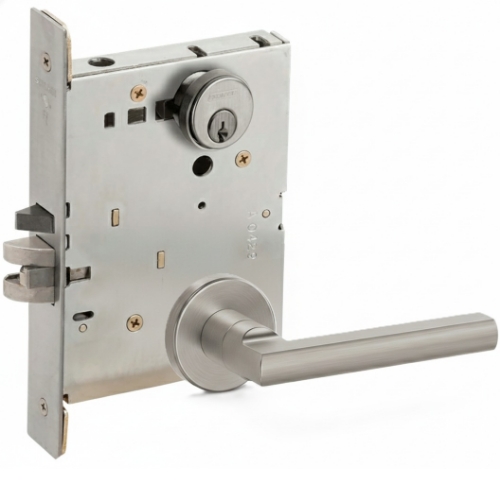

Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
naxt
prev

Product Details

Schlage L9466 LAT Mortise Store/Utility Room Lock

ANSI F14

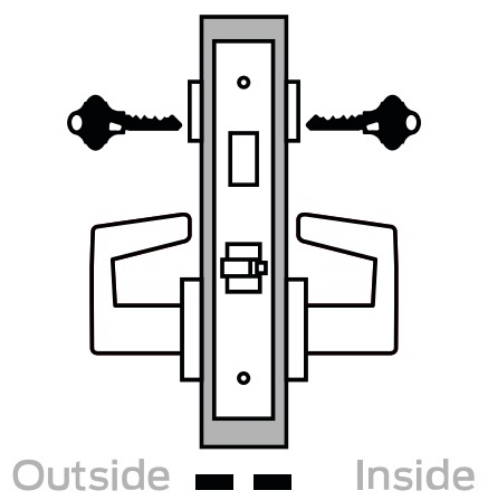

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key from either side.

Lever Styles: LATA, LATB, LATL, LATN

Finishes: 606 - Satin Brass, 626 - Satin Chrome, 622 - Matte Black, 630 - Satin Stainless Steel

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible

SKU: L9466 LAT

In Stock
Picture for manufacturer Schlage
icon Chat

$942.90

Lever *

LATA - Latitude Lever with A Rose
LATA - Latitude Lever with A Rose

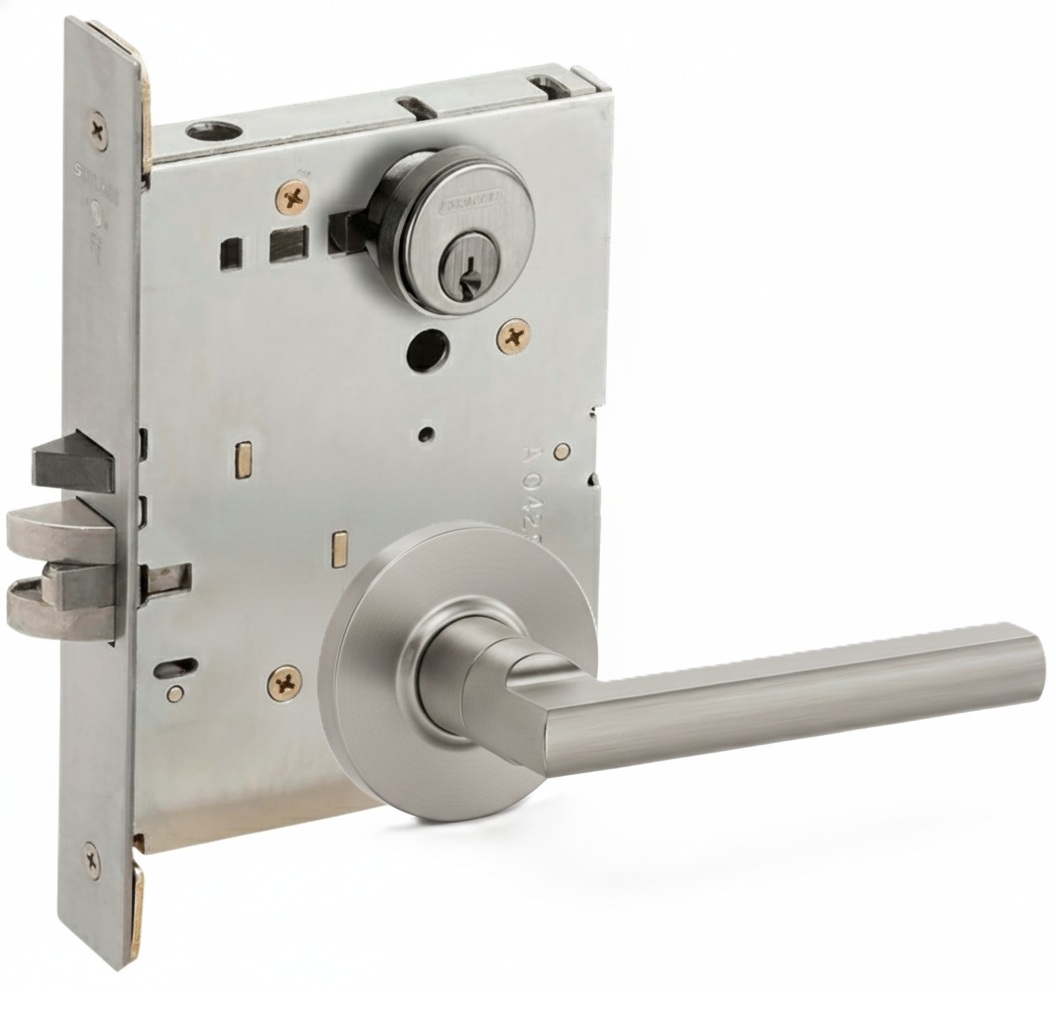

LATB - Latitude Lever with B Rose
LATB - Latitude Lever with B Rose

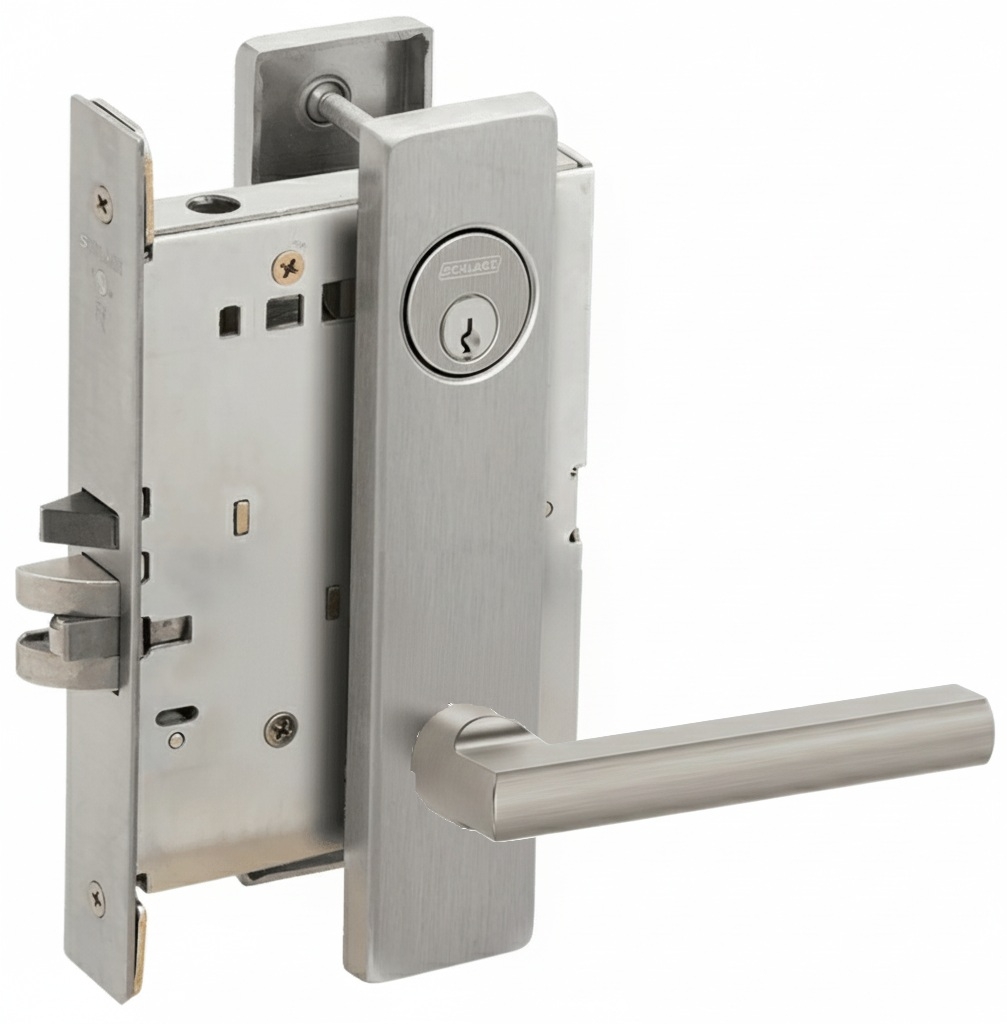

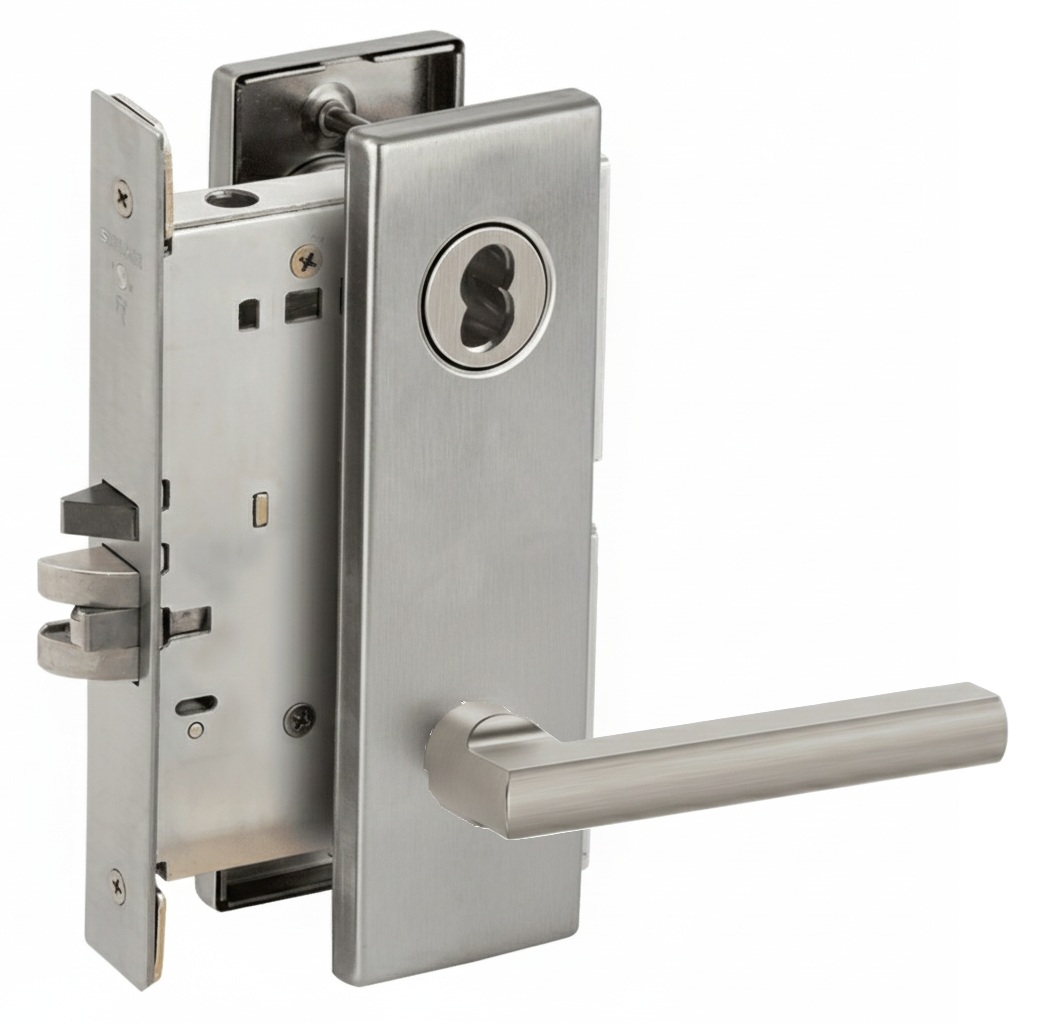

LATL - Latitude Lever with L Escutcheon
LATL - Latitude Lever with L Escutcheon

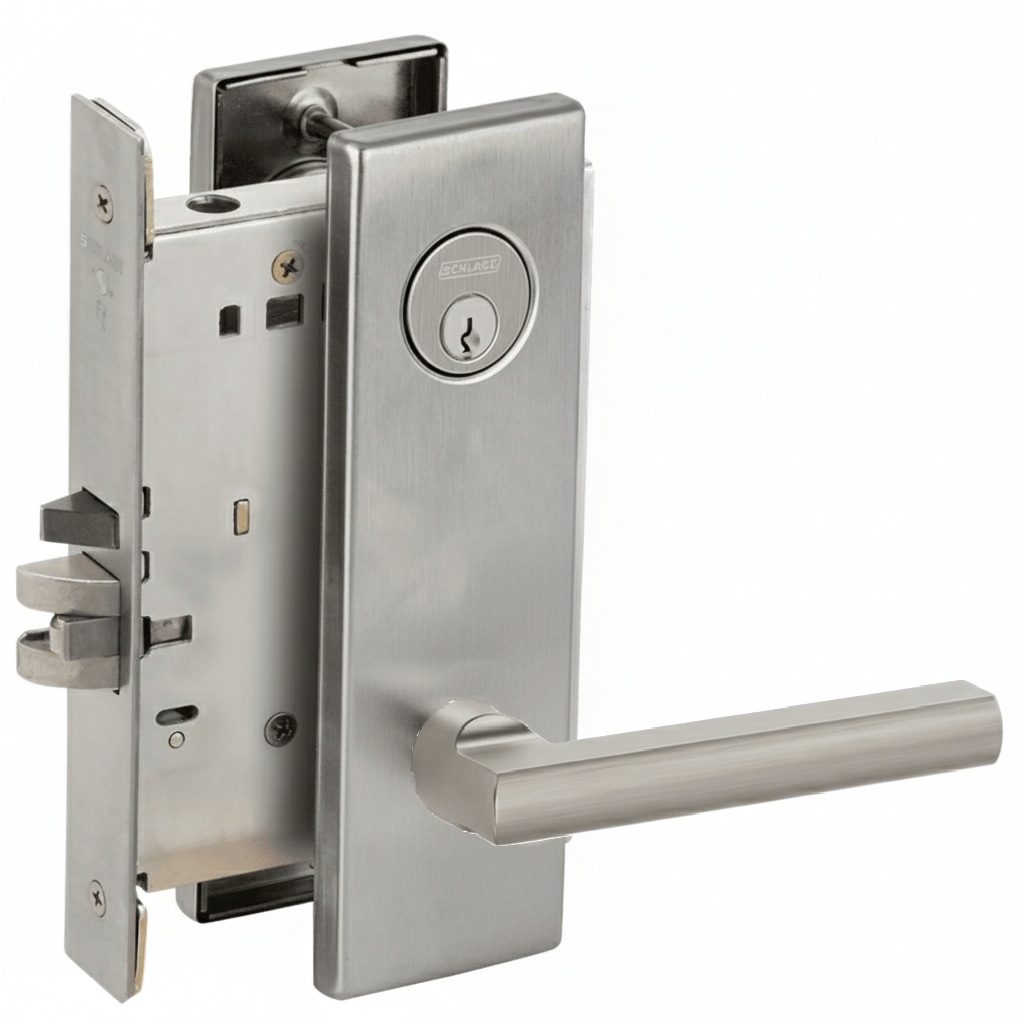

LATN - Latitude Lever with N Escutcheon
LATN - Latitude Lever with N Escutcheon

Cylinder *

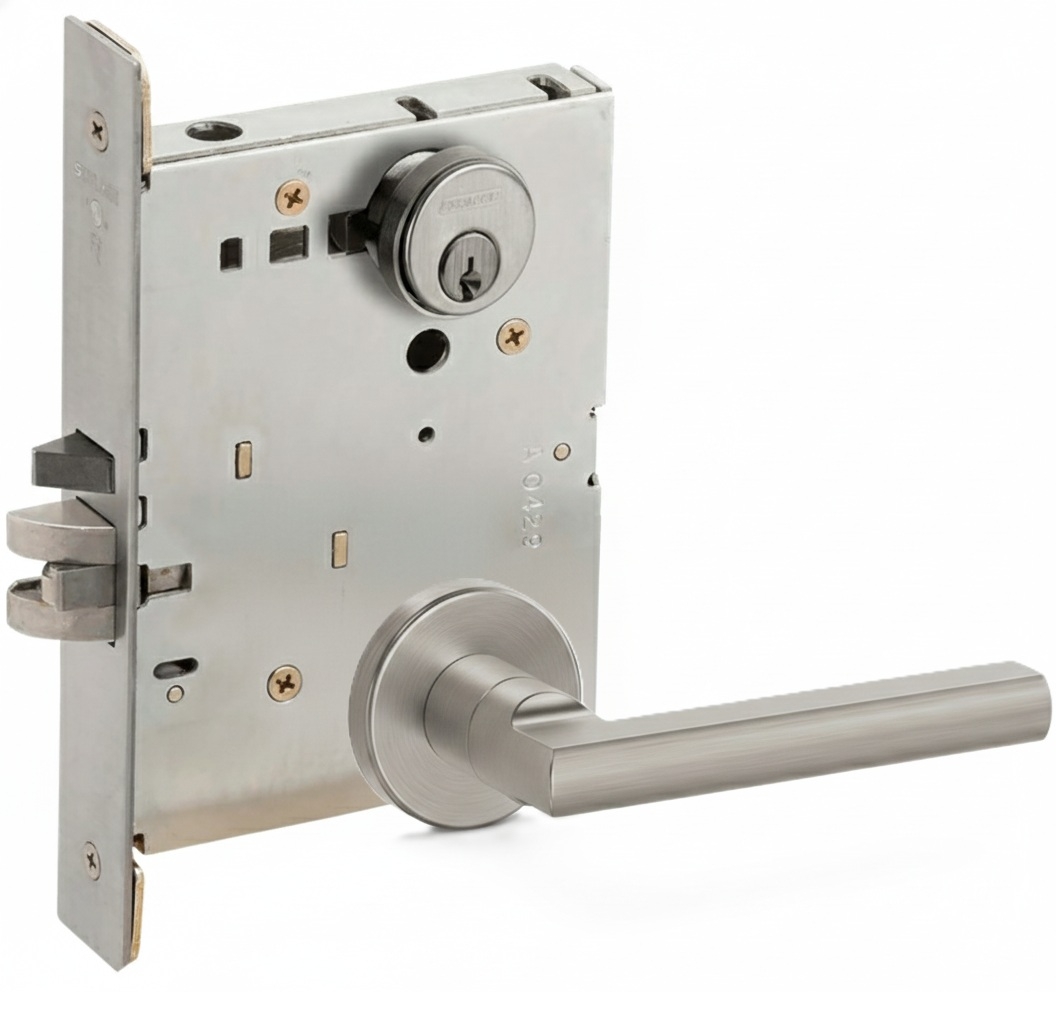

P - 6 Pin Mortise Cylinder (Standard)
P - 6 Pin Mortise Cylinder (Standard)
J - Large format IC Core Cylinder - Less Core
J - Large format IC Core Cylinder - Less Core

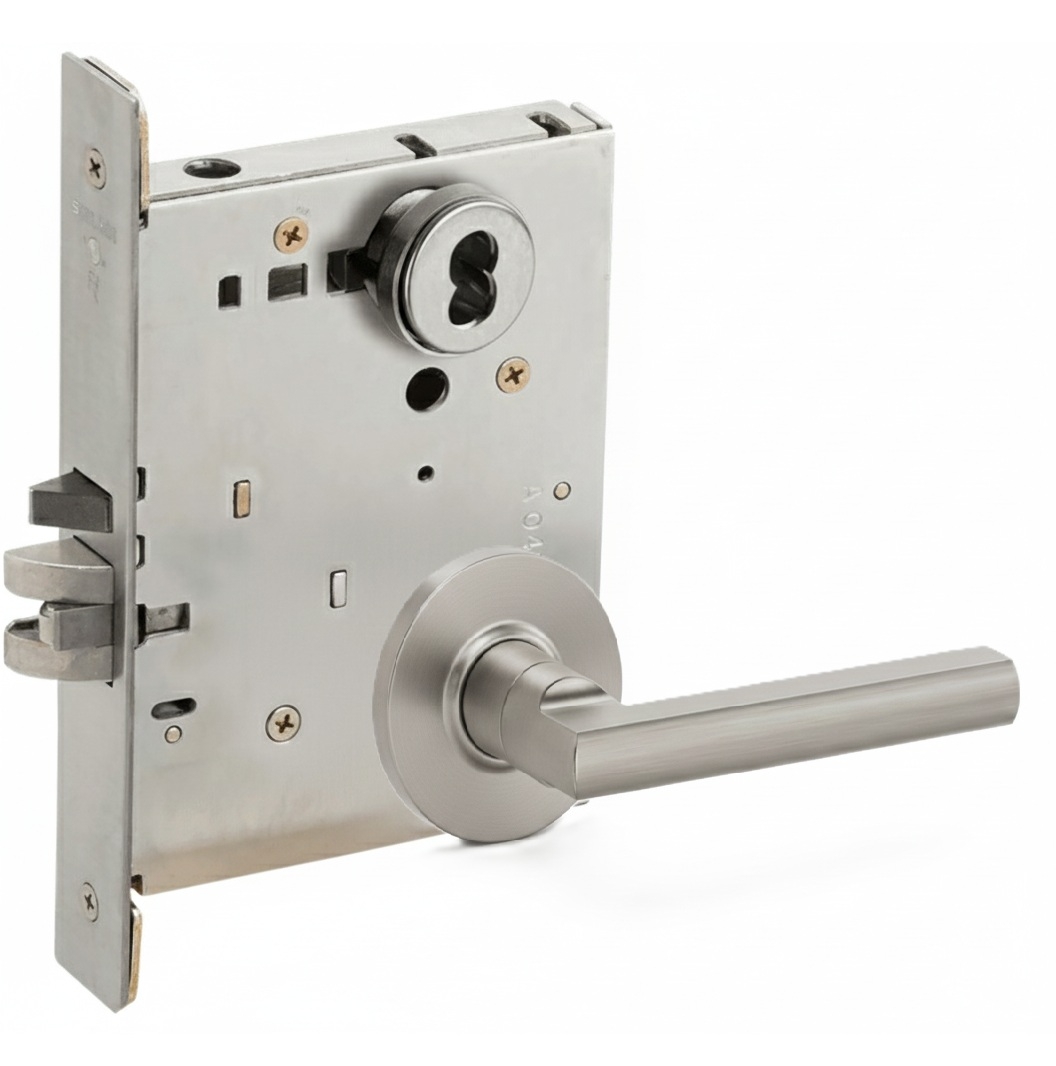

B - Small Format IC Core Cylinder - Less Core
B - Small Format IC Core Cylinder - Less Core

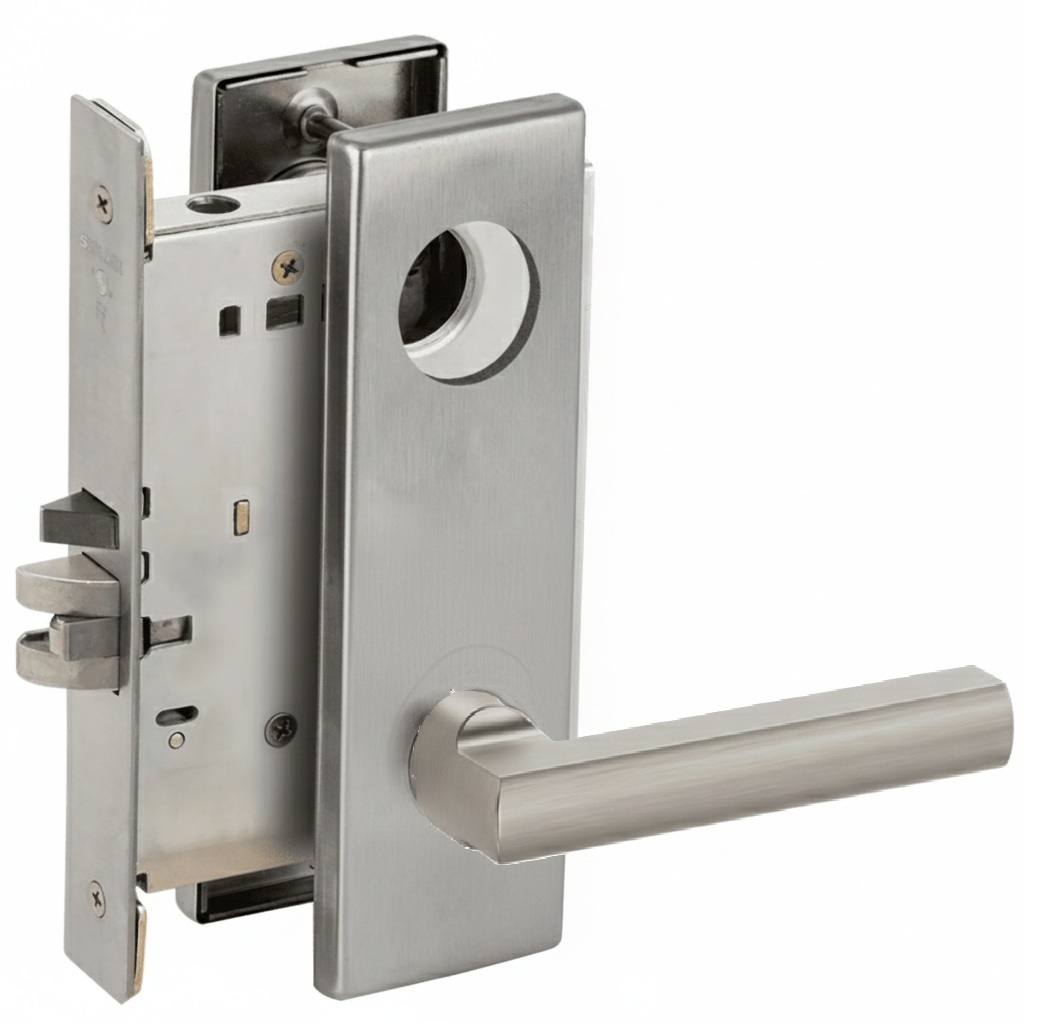

L - Less Cylinder
L - Less Cylinder

Finish *

626 - Satin Chrome
626 - Satin Chrome
606 - Satin Brass
606 - Satin Brass
630 - Satin Stainless Steel
630 - Satin Stainless Steel
622 - Matte Black
622 - Matte Black

Keyway *

Keying *

About this item

At Schlage we know that every product you specify has to stand up to constant use and abuse. Your building's locking systems face an additional challenge keeping people and other assets safe while delivering constant, reliable performance. Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail.

Resources

Schlage L9466 LAT Mortise Store/Utility Room Lock

ANSI F14

Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by key from either side.

Lever Styles: LATA, LATB, LATL, LATN

Finishes: 606 - Satin Brass, 626 - Satin Chrome, 622 - Matte Black, 630 - Satin Stainless Steel

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Picture of Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible
Schlage L9466 LAT Mortise Store/Utility Room Lock, Field Reversible

Product code: L9466 LAT

In Stock

$942.90

$942.90

Specifications

Applications: For commercial and institutional buildings where the finest in mortise locks are required.

Certifications: L9000: ANSI A156.13 Series 1000,Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9077). With interchangeable core cylinders: Grade 2 Security.

The Right Lock for Every Application

Schlage L9000 Series

Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

Strength and Durability

  1. Fully wrapped heavy-gauge steel case protects against door edge attacks
  2. All-metal zinc dichromate-plated working parts
  3. Inside lock case protects electronic components
  4. Two-piece anti-friction tongue reduces wear and tear
  5. Outside and inside trim thru-bolted together and through the door

Security Built In

  1. Break-away spindle prevents unsecured failures and provides easy spindle replacement
  2. Hub blocking plate protects lock against spindle manipulation
  3. Spring-loaded fusible link provides fail secure mode in case of fire
  4. Inside lever applied by screwless shank mounting - no exposed trim mount screws

Adaptable To Your Application

  1. Universal lock case ten functions in one case
  2. Floating mounting tabs automatically adjust to fit a beveled door edge
  3. Field-reversible handing without opening lock case
  4. External spring cages allow for simple trim retrofit
  5. Locking thumbturn on the inside of door visually shows when the door is locked and unlocked
  6. Lever rotation in both directions (up and down) or ease of use
  7. Independent lever rotation
