Schlage L9496-17 Mortise Privacy with "Occupied" Indicator, Field Reversible

1L9050-17-626

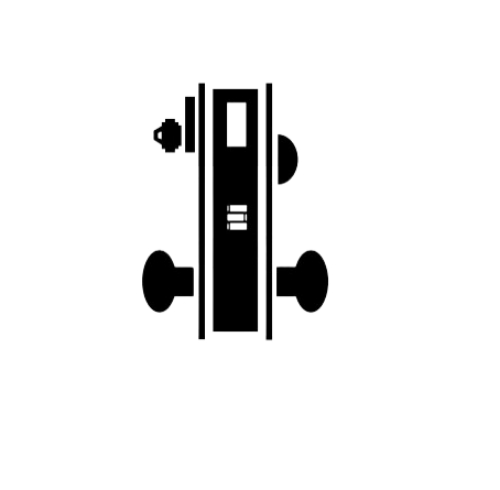

L9496
L9050-17-Levers
L0-Finisheschart

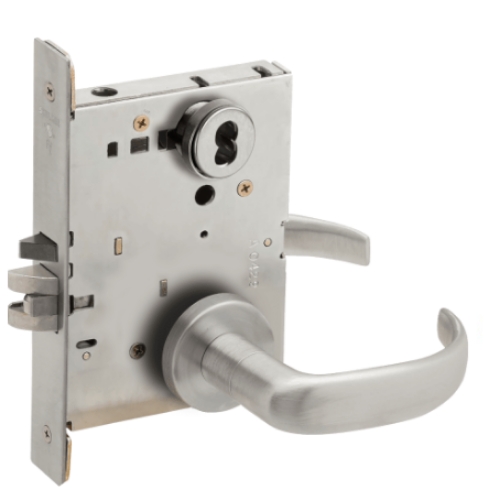

1L9050-17-626
L9496
L9050-17-Levers
L0-Finisheschart
naxt
prev

Product Details

*******Schlage L9496-17 Mortise Privacy with "Occupied" Indicator *

Knob/lever retracts latchbolt from either side. Deadbolt thrown or retracted by key outside (retraction by key required in the event of an emergency) or inside thumbturn. Throwing deadbolt locks outside knob/lever and displaysOCCUPIEDplate. Rotating inside knob/lever simultaneously retracts both deadbolt and latchbolt and unlocks outside knob/lever. Inside lever is always free for immediate egress.

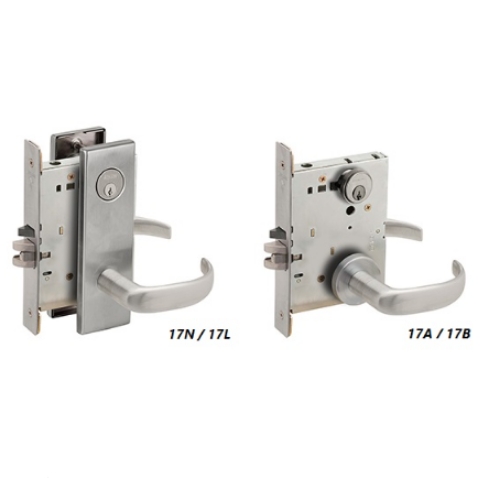

Lever Styles: 17A, 17B, 17N, 17L

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome, 626 - Satin Chrome, 630 - Satin Stainless Steel

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Model: Schlage L9496, L9496P, L9496J, L9496BD, L9496L, L9496P17A, L9496P17B, L9496P17A626, L9496P17B626, L9496P17A605, L9496P17B605, L9496P17A606, L9496P17B606, L9496P17A612, L9496P17B612, L9496P17A613, L9496P17B613, L9496P17A625, L9496P17B625, L9496P17A630, L9496P17B630

Schlage L9496-17 Mortise Privacy with "Occupied" Indicator, Field Reversible

SKU: L9496-17

In Stock
Picture for manufacturer Schlage
icon Chat

$1,049.30

Lever *

17A
17A
17B
17B

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$8.40]
605 - Bright Brass [+$8.40]
606 - Satin Brass [+$8.40]
606 - Satin Brass [+$8.40]
612 - Satin Bronze [+$8.40]
612 - Satin Bronze [+$8.40]
613 - Oil Rubbed Bronze [+$21.00]
613 - Oil Rubbed Bronze [+$21.00]
625 - Bright Chrome [+$8.40]
625 - Bright Chrome [+$8.40]
630 - Satin Stainless Steel [+$21.00]
630 - Satin Stainless Steel [+$21.00]

Cylinder *

Keyway *

Keying *

About this item

The Schlage L9496-17 is a Grade 1 L Series mortise lock with a privacy function and built-in occupied indicator. If you've been searching "l9496", "schlage l9496", "schlage privacy lock with indicator", or "schlage privacy lock with occupancy indicator" - you've found the right product. The L9496 is Schlage's mortise-based occupancy indicator lock: the thumbturn inside throws a deadbolt, that deadbolt locks the outside lever, and simultaneously changes the indicator plate on the outside trim from vacant to occupied. One action does three things at once.



How the Occupied Indicator Actually Works



Most privacy locks just lock a lever. The L9496 goes further. When the person inside turns the thumbturn to throw the deadbolt, three things happen at the same moment: the deadbolt extends and engages the strike, the outside lever locks rigid so it can't be turned from outside, and the "OCCUPIED" plate becomes visible on the outside trim. When the person inside is ready to leave, rotating the inside lever once retracts both the deadbolt and the latchbolt simultaneously and unlocks the outside lever. A single motion clears everything.



Emergency access from outside is by key - the outside cylinder retracts the deadbolt even when the thumbturn is holding it thrown. This is the correct function for single-occupancy restrooms, nursing rooms, lactation rooms, exam rooms, meditation spaces, prayer rooms, and any space where staff or management needs emergency override capability but routine entry should always be controlled from inside.



The 17 Lever and What It Tells You

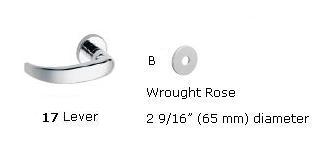

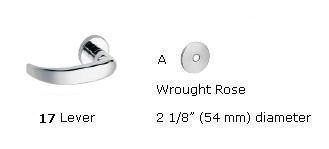

The suffix on the L9496-17 identifies the lever design. Lever 17 is a Schlage L Series lever style paired with a 2-9/16-inch diameter rose. The B-size rose (2-9/16") is the larger of the two standard L Series rose options - larger than the A rose (2-1/8") and sized for openings where the rose needs to cover more of the door face around the bore. If your project uses A-size roses, you'd specify a different lever suffix - 03A, 06A, or 07A. The L9496-17 specifically means lever design 17 on a 2-9/16-inch rose.



180-Degree Indicator Visibility



Schlage's indicator trim uses a patented 180-degree viewing window that wraps three sides of the outside trim assembly. The window is large enough to read the occupancy status from across a corridor - not just when standing directly in front of the door. In healthcare and educational facilities where staff need to check room status from a distance without walking to the door, this visibility matters. The window is polycarbonate, not glass, so it withstands the same abuse as the rest of the trim.



L9496 vs Basic Privacy: The Deadbolt Difference



A standard L Series privacy function (like the L9460) uses a thumbturn that locks the outside lever without throwing a deadbolt. The L9496 throws an actual deadbolt. That deadbolt provides a stronger mechanical resistance against forced entry compared to a lever-only lockout, and it's what drives the indicator mechanism. If your specification requires visible occupancy indication, the L9496 is the correct function - the L9460 won't give you the indicator.



Specifications



Model: Schlage L9496-17

Series: L Series Grade 1 Mortise Lock

Function: Privacy with Occupied Indicator

Lever: Style 17

Rose Diameter: 2-9/16" (B rose)

Latchbolt: Retracted by lever from either side

Deadbolt: Thrown or retracted by inside thumbturn or outside key

Indicator: Displays "OCCUPIED" when deadbolt thrown, visible 180 degrees

Emergency Override: Outside key retracts deadbolt

Inside Egress: Always free - inside lever retracts both deadbolt and latch simultaneously

Handing: Field reversible

Grade: ANSI/BHMA Grade 1

UL: UL listed for 3-hour fire door

Suites With: Schlage L Series, exit devices, tubular and multi-point locks



American Locksets has stocked Schlage L Series mortise locks since 2001.



Resources

*******Schlage L9496-17 Mortise Privacy with "Occupied" Indicator *

Knob/lever retracts latchbolt from either side. Deadbolt thrown or retracted by key outside (retraction by key required in the event of an emergency) or inside thumbturn. Throwing deadbolt locks outside knob/lever and displaysOCCUPIEDplate. Rotating inside knob/lever simultaneously retracts both deadbolt and latchbolt and unlocks outside knob/lever. Inside lever is always free for immediate egress.

Lever Styles: 17A, 17B, 17N, 17L

Finishes: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 625 - Bright Chrome, 626 - Satin Chrome, 630 - Satin Stainless Steel

Handing: L9000-Series lock bodies are field-reversible without disassembly.

Door Thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional (please call).

Backset: 2-3/4" (70 mm) only.

Armored Front: L9000-Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard.

Case Size: L9000-Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)

Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).

Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.

Exposed Trim:

Levers: Forged brass or bronze and cast stainless steel. Designs available to match ND-Series levers.

Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.

Strike: L9000-Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard.

Cylinder & Keys: 6-pin C keyway or Everest C123 keyway cylinder with two keys standard.

Keying Options: Interchangeable core. Master keying, grand master keying and construction keying.

Model: Schlage L9496, L9496P, L9496J, L9496BD, L9496L, L9496P17A, L9496P17B, L9496P17A626, L9496P17B626, L9496P17A605, L9496P17B605, L9496P17A606, L9496P17B606, L9496P17A612, L9496P17B612, L9496P17A613, L9496P17B613, L9496P17A625, L9496P17B625, L9496P17A630, L9496P17B630

1L9050-17-626
Schlage L9496-17 Mortise Privacy with "Occupied" Indicator, Field Reversible

Product code: L9496-17

In Stock

$1,049.30

$1,049.30

Specifications

Applications: For commercial and institutional buildings where the finest in mortise locks are required.

Certifications: L9000: ANSI A156.13 Series 1000,Grade 1 Operational and Security, UL Listed for 3-hour fire door (except L9076 and L9077). With interchangeable core cylinders: Grade 2 Security.

The Right Lock for Every Application

Schlage L9000 Series

Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

Strength and Durability

  1. Fully wrapped heavy-gauge steel case protects against door edge attacks
  2. All-metal zinc dichromate-plated working parts
  3. Inside lock case protects electronic components
  4. Two-piece anti-friction tongue reduces wear and tear
  5. Outside and inside trim thru-bolted together and through the door

Security Built In

  1. Break-away spindle prevents unsecured failures and provides easy spindle replacement
  2. Hub blocking plate protects lock against spindle manipulation
  3. Spring-loaded fusible link provides fail secure mode in case of fire
  4. Inside lever applied by screwless shank mounting -  no exposed trim mount screws

Adaptable To Your Application

  1. Universal lock case ten functions in one case
  2. Floating mounting tabs automatically adjust to fit a beveled door edge
  3. Field-reversible handing without opening lock case
  4. External spring cages allow for simple trim retrofit
  5. Locking thumbturn on the inside of door visually shows when the door is locked and unlocked
  6. Lever rotation in both directions (up and down)  or ease of use
  7. Independent lever rotation
