Schlage L9496-18 Mortise Privacy with "Occupied" Indicator

About this item

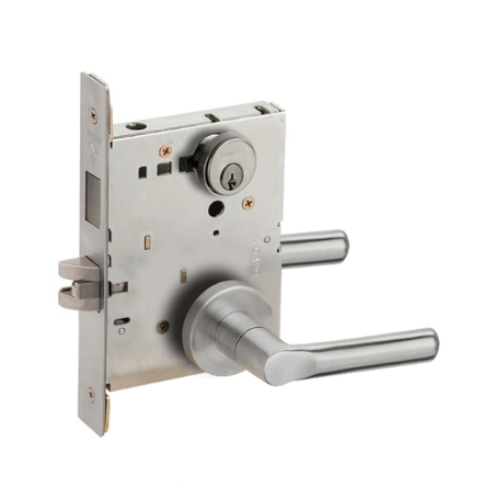

The Schlage L9496-18 is the privacy function mortise lock with occupied indicator from the Schlage L Series, Grade 1. It's the standard commercial specification for single-occupancy restrooms, medical exam rooms, consultation rooms, and any space where occupants need visual privacy confirmation outside the door. If you've been searching for "l9496," "schlage l9496," "schlage occupancy indicator," or "privacy lockset with occupancy indicator," this is the product. The L9496 was previously cataloged as the XL11-885 in Schlage's older trim system.

How the Occupied Indicator Works

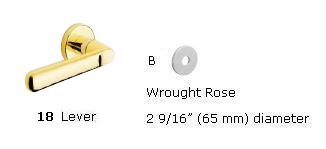

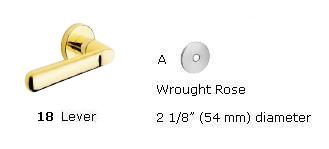

The "18" suffix designates the lever style on this trim package. The occupied indicator is integrated into the rose on the outside trim. When the inside thumbturn is turned to throw the deadbolt, two things happen simultaneously: the outside lever locks (cannot be operated by hand), and the indicator plate on the outside trim changes from its neutral position to display "OCCUPIED." Anyone approaching the door sees immediately that the space is in use without needing to knock or check a manual sign.

When the inside lever or knob is rotated to exit, both the deadbolt and the latchbolt retract at the same moment and the outside lever unlocks. The indicator returns to its vacant state. This single-motion exit is a requirement for accessible design and also makes exiting fast and natural in emergency situations.

Full Function Breakdown

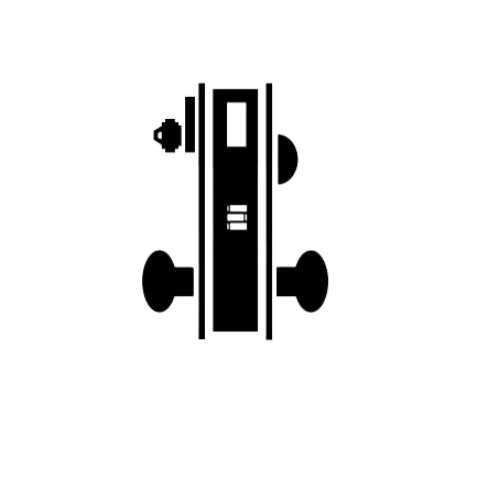

From outside: the lever retracts the latchbolt only when the deadbolt is not thrown and the outside lever is unlocked. Key in the outside cylinder can retract the deadbolt (this is the emergency key override described below). From inside: the lever always retracts both the latchbolt and the deadbolt simultaneously and is never locked from egress. Inside thumbturn throws and retracts the deadbolt and controls the indicator and outside lever lock state.

Why Emergency Key Override Is Critical

The L9496 is specified with an outside key cylinder that can retract the deadbolt from outside even when the inside thumbturn is holding it in the locked position. This is not optional in most jurisdictions. Building codes, fire codes, and ADA guidelines require that single-occupancy restroom and exam room doors be openable from outside by building staff in an emergency. If someone becomes incapacitated inside, emergency responders need to be able to enter without forcing the door. The L9496 key override provides that access path.

L9496 vs L9486: Understanding the Difference

The Schlage L9486 is the faculty/hotel restroom function with a chevron indicator, also with optional key override. The L9486 uses a different indicator design and different function logic. The L9496 is the corridor privacy function with the chevron indicator and is the wider-application choice for office restrooms, medical suites, and institutional facilities. Confirm the correct model with your hardware schedule before ordering.

Where the L9496 Is Specified

The L9496 is the correct specification for single-occupancy public restrooms in commercial office buildings, medical offices, outpatient clinics, and similar occupancies. It's also used in consultation rooms, interview rooms, and any space where a visual status indicator prevents interruptions. The deadbolt provides real security against entry, not just a visual deterrent, which matters for exam rooms and spaces handling sensitive conversations.

Standard L Series Physical Specs

Backset is 2-3/4" standard. For use on 1-3/4" thick doors with standard ANSI mortise prep. Grade 1 per ANSI/BHMA A156.13. The trim style "18" specifies the lever profile and rose diameter configuration on the outside and inside escutcheon. Specify finish when ordering. Compatible with the full Schlage L Series trim suite.
