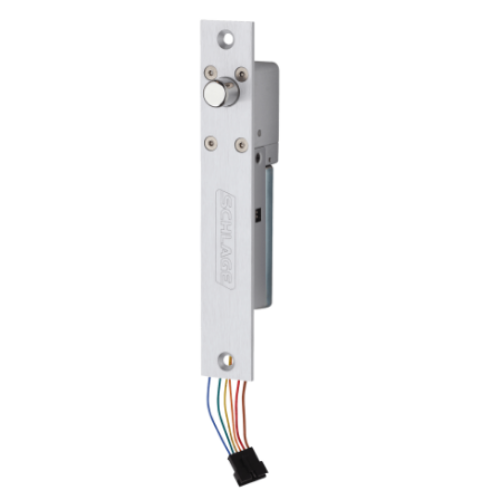

Schlage PB405 Electrified Dead Bolt Lock, 12/24 VDC

Schlage PB405 Electrified Dead Bolt Lock, 12/24 VDC, Fail Safe

Features and benefits:

- 12/24V DC - Magnetic door position switch. - Built in relocking time delay, field selectable for 0, 3, 6 or 9 seconds. - Fail-safe or fail-secure. - Mortise mount PowerBolts furnished in satin aluminum finish.

Specifications:

• Door position switch.
• 12/24 VDC dual voltage, field selectable. -Current draw:0.9A @ 12 VDC, 0.45A @ 24 VDC.
• Fail-safe type (power to lock).
• Built-in relocking option. -Relocking time delay time:0 sec., 3 sec., 5 sec., 9 sec. field selectable utilizing two simple dip switches. - Bolt diameter: 0.61 in. -Bolt throw:0.67 in. -Weight: 1.9 lbs. -Dimension(L x W x D): 7.87 in x 1.26 in x 1.57 in.

Schlage PB405, PB405 Schlage, SchlagePB405, PB405Schlage, PB405

Note: Electromechanical powerbolts not recommended where life safety may be compromised or where panic bar hardware is the only means of egress.
