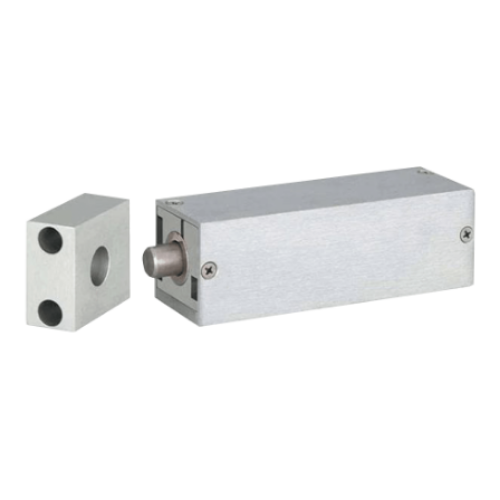

SDC 180AIV-D Surface mount Electric Bolt Lock w/ auto relock, failsafe, Door Contact Switch - Aluminum
Product Details
SDC 180AIV-D Surface mount Electric Bolt Lock w/ auto relock, failsafe, Door Contact Switch - Aluminum
D - Door Contact Switch MC-4 (mounted separate from lock)
SPECIFICATIONS:
Bolt: Solid Stainless Steel, 1/2" dia. x 1/2" throw
Dual Voltage Coil: 0.9 Amp @ 12VDC Continuous 0.45 Amp @ 24VDC Continuous
Lock Dimensions: 6"L x 2"W x 2"H
Auto Relock: standard
Power Regulator: standard
Application:
The SDC 180 series locks provide the ability to electronically secure several door configurations.
Closet doors Pharmaceutical cabinets
Gun cabinets Utility cabinets
Museum display cases Retail display cases
Swinging or sliding doors Outswing or inswing doors
