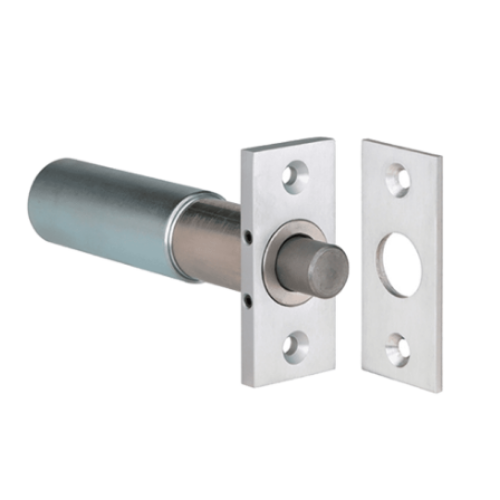

SDC 210HV Conventional Mortise Electric Bolt Lock, Failsecure - Aluminum

SDC 210HV Conventional Mortise Electric Bolt Lock, Failsecure -  Aluminum

Failsecure2-3/4" H x 1-1/4" W faceplate less auto relock swich

The failsafe 210 is the most basic bolt lock available. The bolt assembly is adjustable forward up to 1" past the face plate to accommodate wide door gaps or special applications. Not for use in wood frames.

Electrical Specifications:

Voltage: Dual 900/450 mA @ 12/24 VDC

Mechanical Specifications:

Finish: 628 Anodized Aluminum

Faceplate:  2-3/4" H x 1-1/4" W x 0.25" D

Strike: Mortise strike standard. Not for wood frames.

Bolt: 1/2" dia. x 1/2" throw

Depth: 5"

Application:

 Pharmacy Cabinets   Gun Cabinets

 Utility Cabinets        Display Cabinets

 OEM Applications     Swing and Sliding Doors
