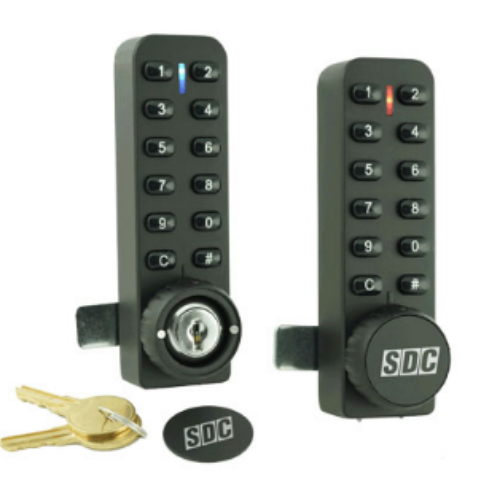

SDC 295 Programmable Cabinet lock

SDC 295 Programmable Cabinet lock

FEATURES:

• Battery Powered 2xAAA, No Wires

• Retrofits Existing Cam Locks

• Quickly Add/Delete Individual Users

• Multiple User or 1-Time Use Modes

• For new installations or retrofit of existing manual cam lock prep

• Vertical or horizontal keypad mounting

• Multiple locking cam positions, Left/Right, Bottom

• Programmable Multiple User Mode or 1-Time Use Mode

• 1 Master Code: Full programming and control capabilities

• 1 Sub-Master: Limited programming for user codes, maintained unlock, unlock time only.

• 30 User, 4-6 Digit PIN Codes, Must be Same Length as Master Code. Field Optional User Changeable PIN

• Unlock Time Programmable From 1 to 9 sec. Factory Default 3 Sec.

• Red/Blue Bi-Color LED

• Keypad Tamper Lockout: Inoperable for 10 Seconds After 3 Incorrect Code Entries

• Concealed Manual Key Cylinder (Replaceable), 2 Keys

• Battery Failure Override, Apply 9V Battery to External Contacts, Enter Master Code

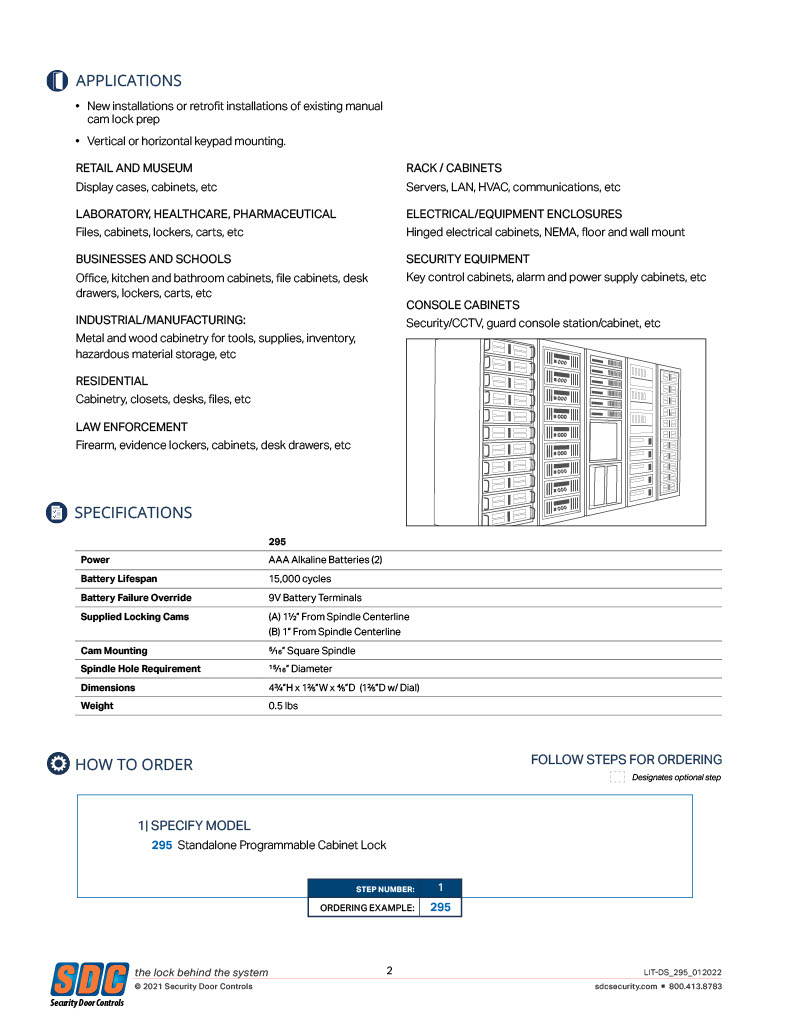

Specifications:

Supplied Locking Cams: (A) 1-1/2" From Spindle Centerline, (B) 1" From Spindle Centerline

Door Thickness: Up to 3/4"

Cam Mounting: 5/16" Square Spindle

Hole Required for Spindle: 15/16" Diameter

Dimensions 4.75"H x 1.4"W x 0.8"D - 1.4"D w/Dial
