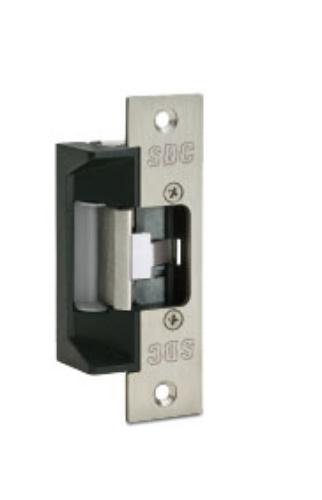

SDC 45-4SU Electric Strike - 4-7/8" Square Corner Faceplate

SDC 45-4SU Electric Strike - 4-7/8" Square Corner Faceplate

FEATURES:

 Centerline Electric Strike  Keeper Open Status Optional Reversible Failsafe/Failsecure, no disassembly  1/4" Horizontal Alignment Adjustment For 5/8" latch or 3/4" latch with 1/8" door gap Latch position status standard Full Monitoring is Standard, Including: Latched and Unlatched Status, Keeper Closed and Deadlocked, or Unlocked Keeper closed & deadlocked/ unlocked status standard Field selectable failsecure - failsafe Field selectable voltage ¼" Horizontal alignment adjustment Low profile, 1-3/16" deep Plug-in wire connectors Mounting tabs Non-handed All stainless steel parts with durable die cast body for corrosion resistance Fewer moving parts for maximum life ANSI/ BHMA A156.31, Grade 2SPECIFICATIONS:

Dual Voltage Coil: 200/100mA @ 12/24V DC, 140/70mA @ 12/24V AC

Latch Position Status(std): SPDT, Dry 3Amp @ 30V

Keeper Closed & Locked Status (std): SPDT, Dry 3Amp @ 30V

Keeper Open/ClosedStatus (optional): SPDT, Dry 3Amp @ 30V

Dimensions: 1-1/4" W x 4-7/8" H x 1-3/16" D
