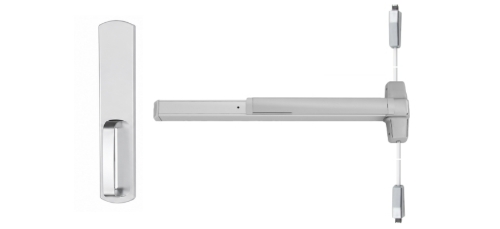

Von Duprin 9827DT / 9927DT Surface Mounted Vertical Rod Device, Dummy Function, Escutcheon Pull
Product Details
Von Duprin 9827DT / 9927DT Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Dummy Function, Escutcheon Pull, Hex Key Dogging, Field Reversible

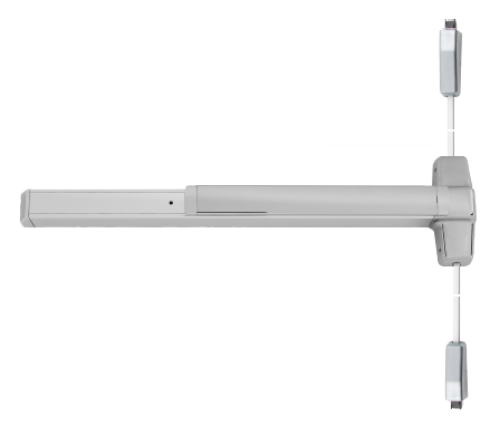

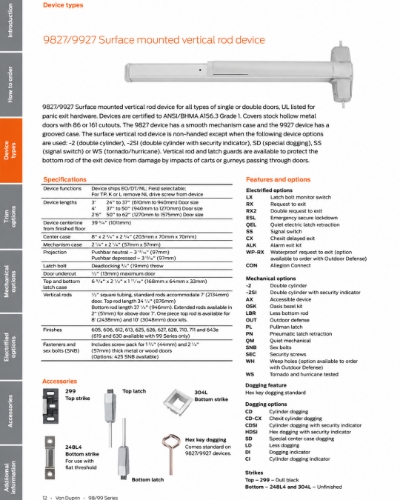

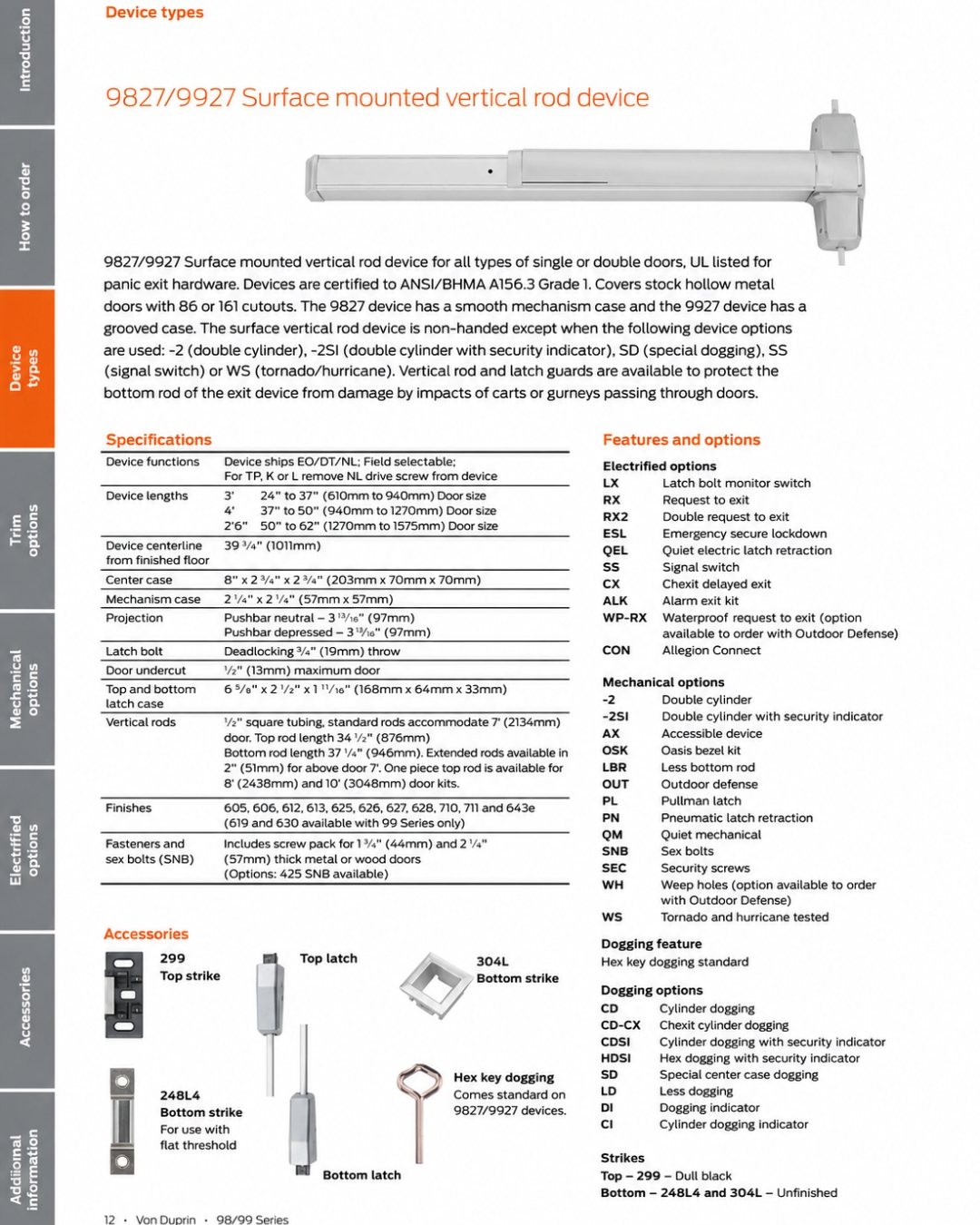

9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware.
Devices are ANSI A156.3 2001 Grade 1.

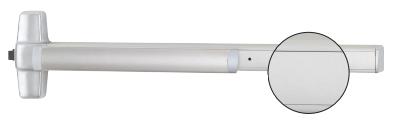

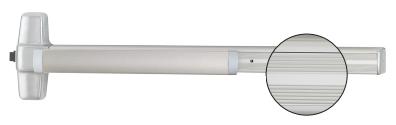

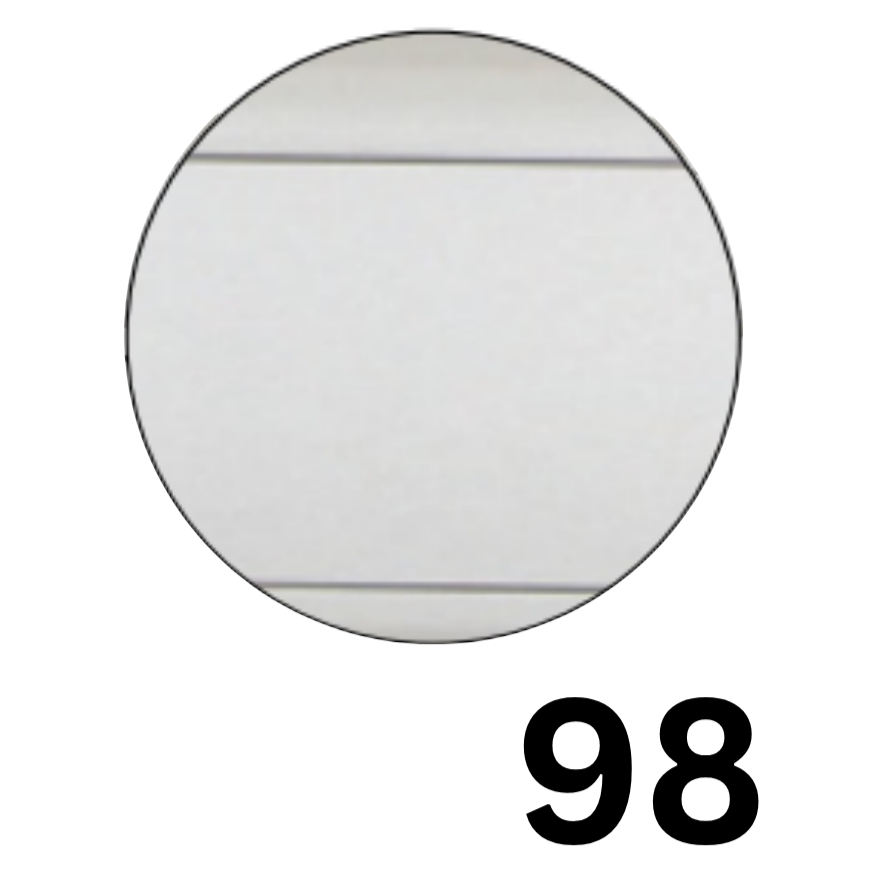

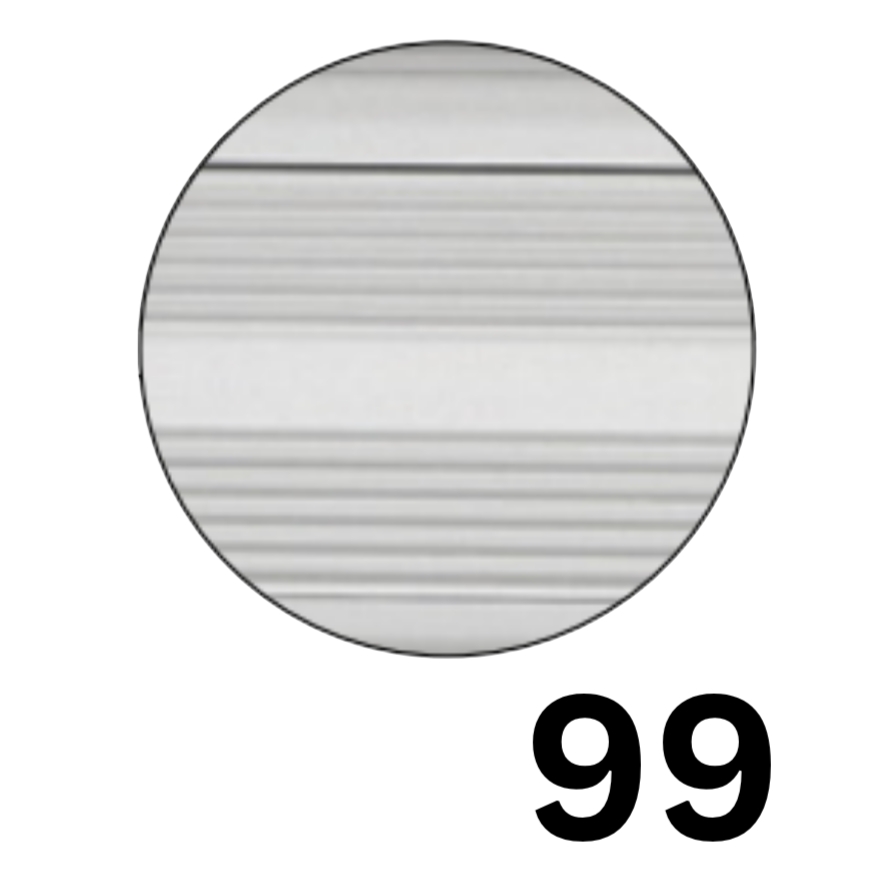

The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
Device Handing:Non-Handed.
Device Lengths:'3' (914mm), 4' (1219mm).
Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.
Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
Dogging Feature:Hex key dogging standard.
Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.
Strike:Top - 299 Dull Black, Bottom 248L4 & 304L - Unfinished.
Fasteners:Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or
wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel-available with 98 Series only
Dimensions:
Device lengths:
3' 2'4" to 3' (711mm to 914 mm) Door Size.
4' 2'10" to 4' (864 mm to 1219 mm) Door Size.
Device Centerline from Finished Floor:39-5/8" (1006 mm).
Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).
Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).
Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).
Projection:
Pushbar Neutral 3-13/16" (97 mm).
Pushbar Depressed 3-1/16" (78 mm).
All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.
Model:Von Duprin 9827, 9927, 9827DT, 9927DT, RX9827DT, RX9927DT, US3, US4, US10, US10B, US26, US26D, US28, US32D
