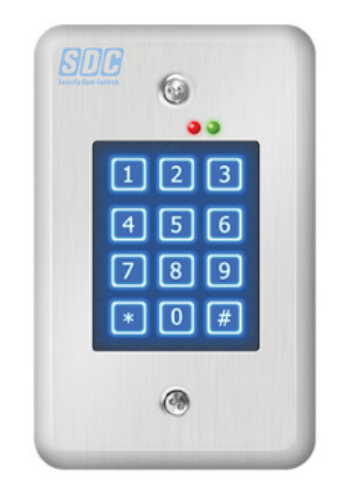

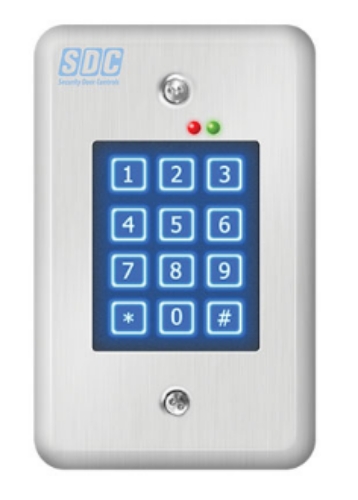

SDC 918U Indoor Digital Keypad, 500 Users, 12/24 VAC/DC - Satin Stainless Steel

SDC EntryCheck 918U Indoor Digital Keypad, 500 Users, 12/24 VAC/DC - Satin Stainless Steel

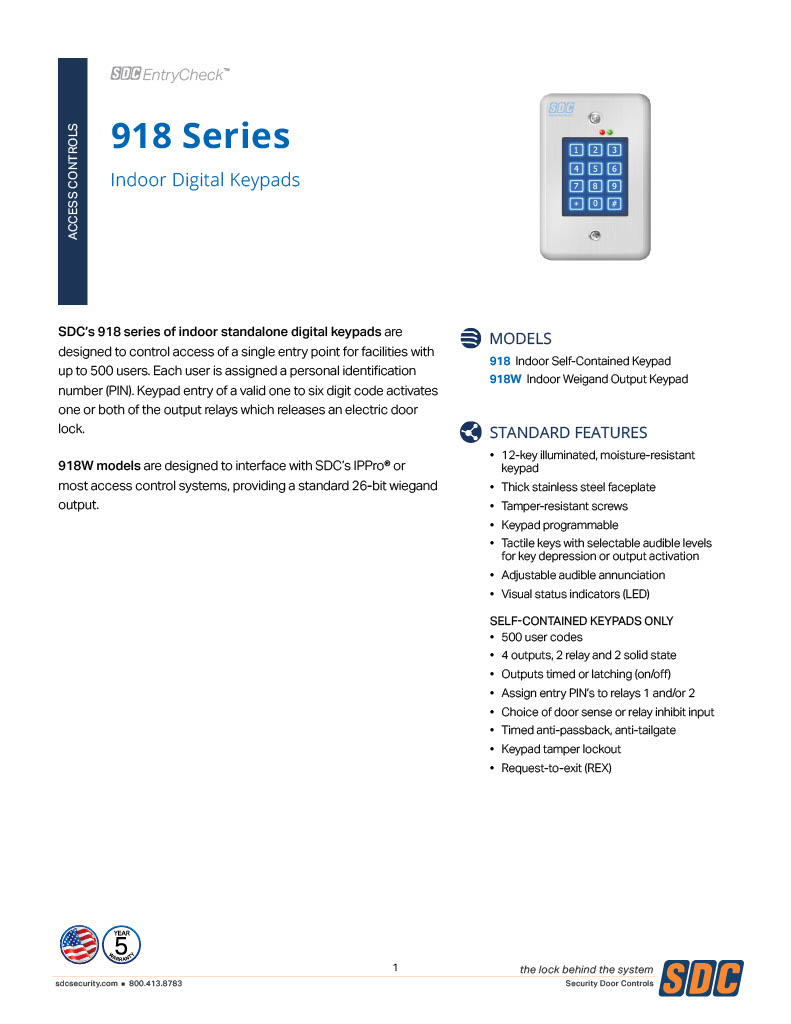

The SDC EntryCheck™ 918W is designed to interface with most access control systems and provides a standard 26-bit Wiegand output.

FEATURES:

• 500 Users, 1-6 digit PIN codes

• 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)

• Assign entry PIN’s to relays 1 and/or 2

• LED Status: Access, lockout

• Tactile keys with selectable audible volume for key depression or output activation

• Timed anti-passback

• Keypad tamper lockout

• Request-to-Exit/Enter input

• 12-Key Illuminated, Moisture-Resistant 3 x4 Keypad

• Tamper-Resistant Screws

• Single-Gang Mount

• Dual LED Status Indicators

• Configurable Illumination: On, Off, Timed

• Thick Stainless Steel Faceplate 3/32"

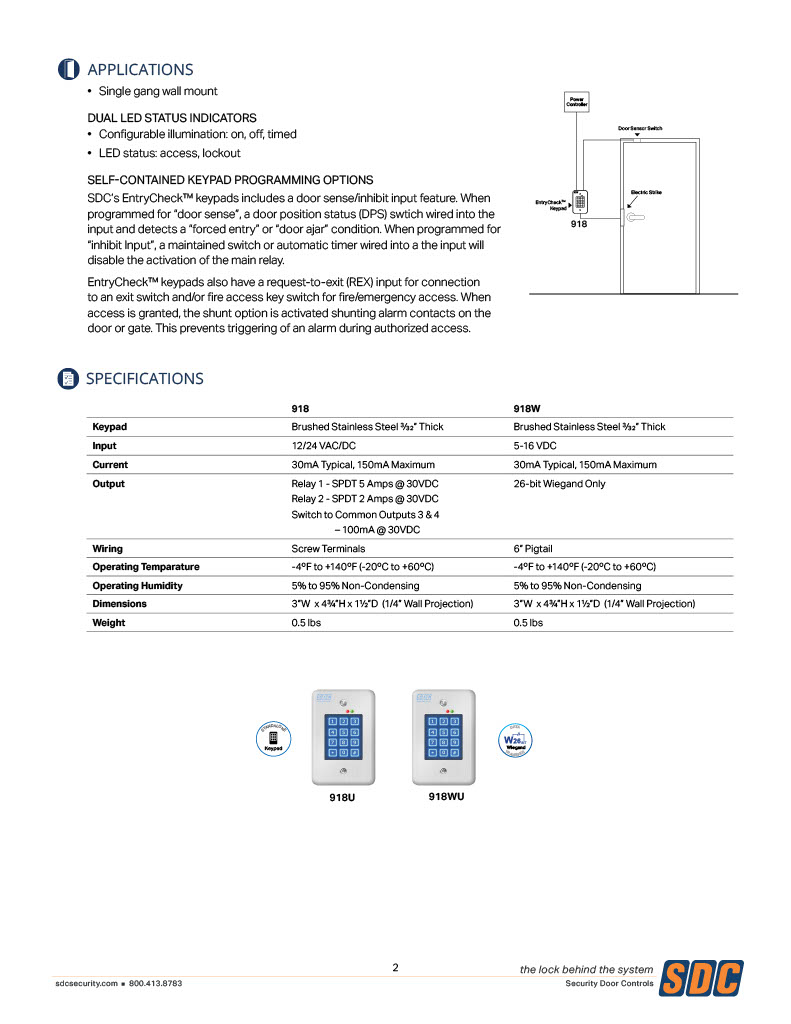

Specifications:

Voltage 12/24 VAC/DC

Current 30mA Typical, 150mA Maximum

Outputs Relay 1 - SPDT 5 Amps @ 30VDC

Relay 2 - SPDT 2 Amps @ 30VDC

Switch to Common Outputs 3 & 4 – 100mA @ 30VDC

Dimensions 3"W x 4-3/4"H x 1-1/2"D
