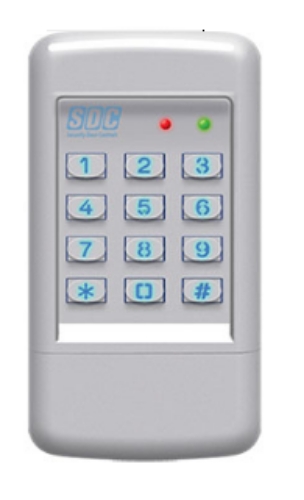

SDC EnryCheck 920 Digital Keypad - 500 Users - 12/24 VAC/DC

SDC EnryCheck 920 Digital Keypad - 500 Users - 12/24 VAC/DC

FEATURES:

• Weather Resistant

• Heavy Cast Vandal Resistant Housing, Heavy Cast Metal Blue Backlit Keys

• Keypad programmable

• 500 Users, 4-6 digit PIN codes

• 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)

• Assign entry PIN’s to relays 1 and/or 2

• LED Status: Access, lockout

• Tactile keys with loudness selectable audible volume for key depression or output activation

• Timed anti-passback, anti-tailgate

• Keypad tamper lockout

• Request-to-Exit/Enter input

• Choice of door sense/relay inhibit input functions

• Forced entry

• Door ajar

• Inhibit relay 1 or 2

• Auto relock when door closes

• Keypad active

• 12-Key Illuminated, 3" x 4" Keypad

• Surface or Single-Gang Mount

• Dual LED Status Indicators

• Configurable Illumination: On, Off, Timed

Specifications:

Voltage 12/24 VAC/DC

Current 30mA Typical, 150mA Maximum

Outputs Relay 1 - SPDT 5 Amps @ 30VDC

Relay 2 - SPDT 2 Amps @ 30VDC

Switch to Common Outputs 3 & 4 – 100mA @ 30VDC

Finish Powder Coat Painted Cast Metal

Dimensions 3"W x 5-3/4"H x 1-7/16"D
