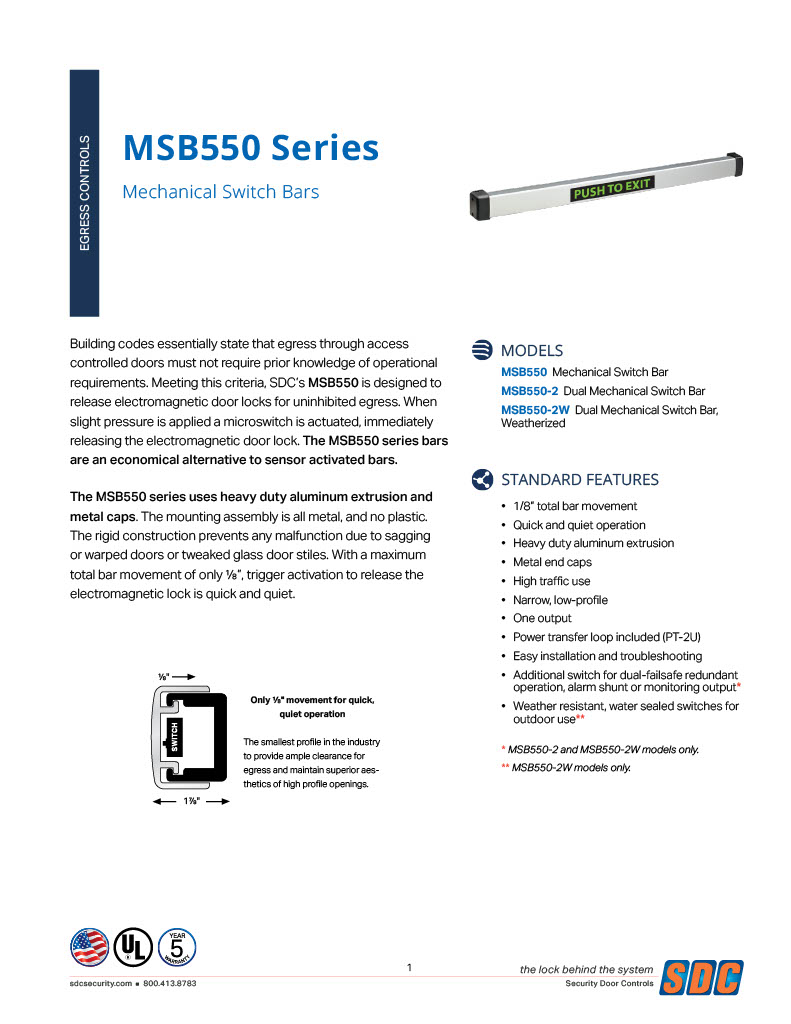

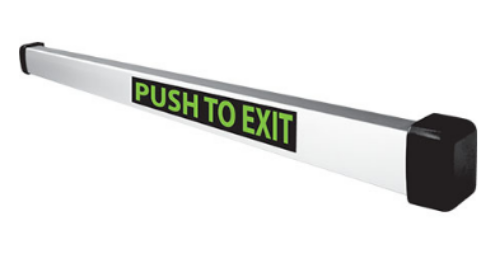

SDC MSB550-2V Request-To-Exit Switch Bar With 2-SPDT Contacts - Aluminum Anodized

SDC MSB550-2V Request-To-Exit Switch Bar With 2-SPDT Contacts, Non-Latching -  Aluminum Anodized

2 SPDT Contacts for 2nd mechanical switch for dual-failsafe redundant operation; alarm shunt; or monitoring output

FEATURES:

 Only 1/8" Total Bar Movement. The MSB550 has a maximum movement of only .125". Trigger activation to release the electromagnetic lock is quick and quiet.

 Heavy Duty Construction. The MSB550 utilizes heavy-duty aluminum extrusion and rugged end caps. The mounting assembly is all metal. The rigid construction prevents any malfunction due to sagging or warped doors or tweaked-glass door stiles.

 Narrow Low Profile. The MSB550 has a narrow profile with minimum projection from the door of only 1.875". The unobtrusive design is ideally suited for aesthetically superior glass openings.

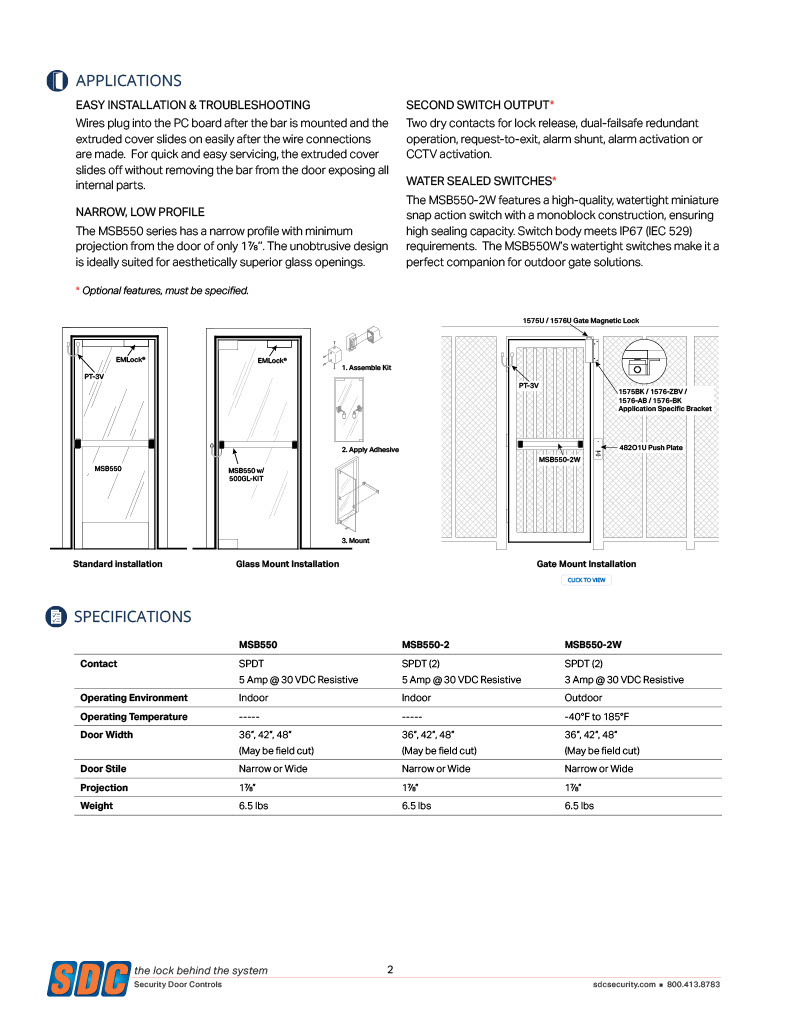

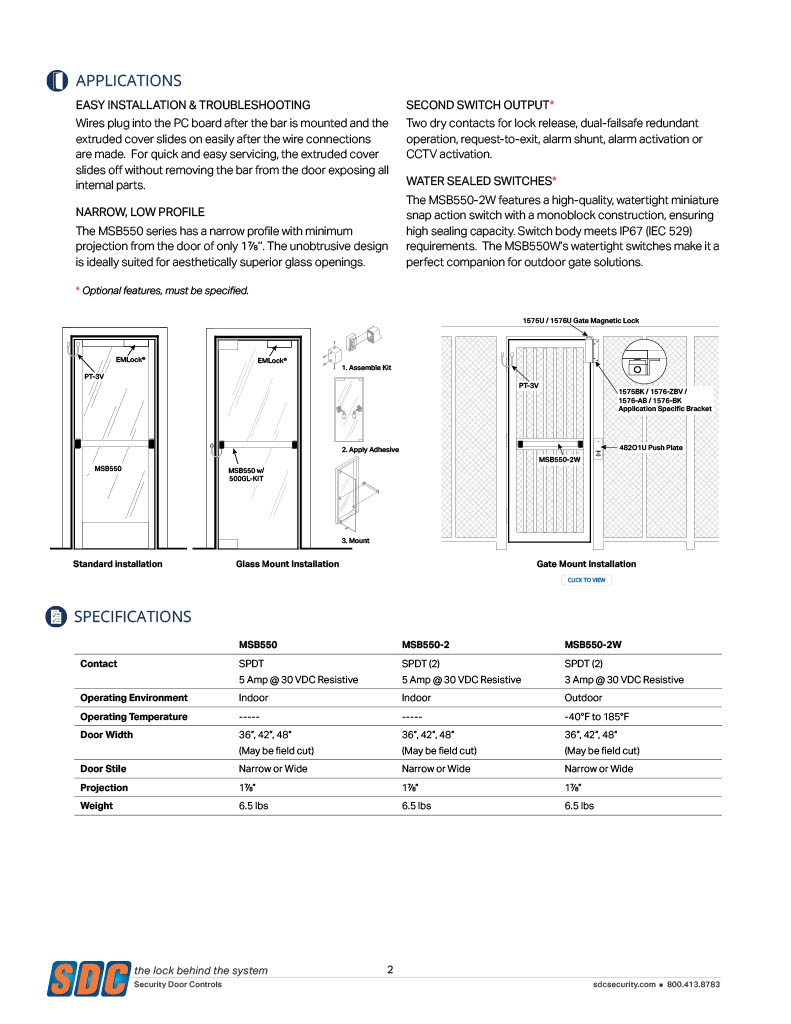

SPECIFICATIONS:

Actuation: 1/8" Total Bar Movement for Mechanical Switch Actuation

Contact: 2 SPDT, 5 Amp @ 30VDC

Height: 2.375"

Projection: (Depth) 1.875"

Door Width 36" (Standard)

Accessories: Include PT-2U Power Transfer Loop
