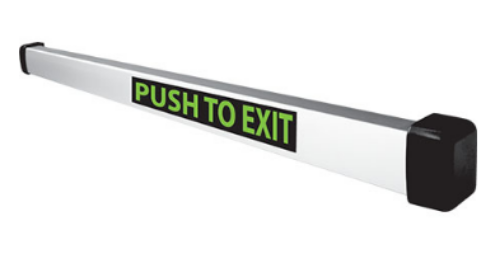

SDC MSB550-2Y Request-To-Exit Switch Bar With 2-SPDT Contacts - Black Anodized

SDC MSB550-2Y Request-To-Exit Switch Bar With 2-SPDT Contacts - Black Anodized

Product Details

SDC MSB550-2Y Request-To-Exit Switch Bar With 2-SPDT Contacts, Non-Latching - *Black Anodized*

2 SPDT Contacts for 2nd mechanical switch for dual-failsafe redundant operation; alarm shunt; or monitoring output

FEATURES:

Only 1/8" Total Bar Movement. The MSB550 has a maximum movement of only .125". Trigger activation to release the electromagnetic lock is quick and quiet. Heavy Duty Construction. The MSB550 utilizes heavy-duty aluminum extrusion and rugged end caps. The mounting assembly is all metal. The rigid construction prevents any malfunction due to sagging or warped doors or tweaked-glass door stiles. Narrow Low Profile. The MSB550 has a narrow profile with minimum projection from the door of only 1.875". The unobtrusive design is ideally suited for aesthetically superior glass openings.SPECIFICATIONS:

Actuation: 1/8" Total Bar Movement for Mechanical Switch Actuation

Contact: 2 SPDT, 5 Amp @ 30VDC

Height: 2.375"

Projection: (Depth) 1.875"

Door Width 36" (Standard)

Accessories: Include PT-2U Power Transfer Loop

SDC MSB550-2Y Request-To-Exit Switch Bar With 2-SPDT Contacts - Black Anodized

Name: SDC MSB550-2Y Request-To-Exit Switch Bar With 2-SPDT Contacts - Black Anodized
SKU: MSB550-2Y
Price: 207.90 USD
Availability: InStock

SKU: MSB550-2Y

In Stock

Chat

$207.90

$288.00

You saved $80.10

About this item

Building codes essentially state that egress through access controlled doors must not require prior knowledge of operational requirements. Meeting this criteria, SDC’s MSB550 is designed to release electromagnetic door locks for uninhibited egress. When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock. The MSB550 is an economical alternative to sensor activated bars
