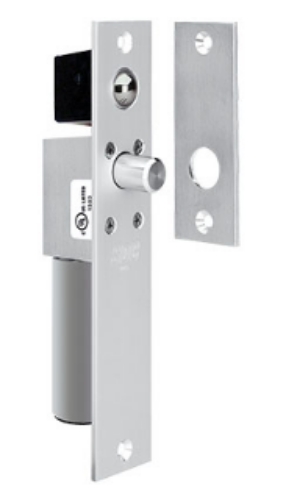

SDC Spacesaver 1091AI-V Electric Bolt Lock, Failsafe for 1-3/4" Frame - Aluminum

SDC Spacesaver 1091AI-V Electric Bolt Lock, Narrow Mortise, Failsafe for 1-3/4" Frame -  Clear Anodized Aluminum

Lock Function: FAIL SAFE- The 1091A is locked when energized. Recommended for safety applications, it is intended that the door unlock automatically when power is interrupted by the access control, power failure or signal from a fire life safety system.

• Bolt Throw 0.75"

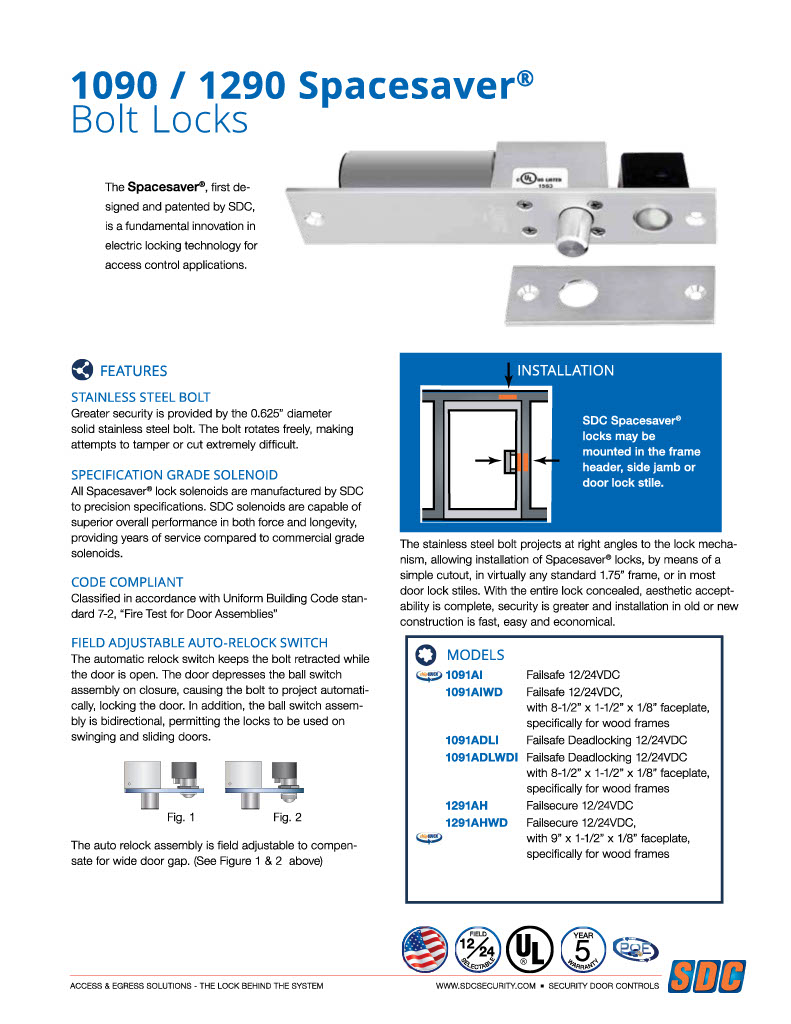

FEATURES:

STAINLESS STEEL BOLT: Greater security is provided by the 0.625" diameter solid stainless steel bolt. The bolt rotates freely, making attempts to tamper or cut extremely difficult.

SPECIFICATION GRADE SOLENOID: All Spacesaver® lock solenoids are manufactured by SDC to precision specifications. SDC solenoids are capable of superior overall performance in both force and longevity, providing years of service compared to commercial grade solenoids.

CODE COMPLIANT:**Classified in accordance with Uniform Building Code standard 7-2, “Fire Test for Door Assemblies"

FIELD ADJUSTABLE AUTO-RELOCK SWITCH:**The automatic relock switch keeps the bolt retracted while the door is open. The door depresses the ball switch assembly on closure, causing the bolt to project automatically, locking the door. In addition, the ball switch assembly is bidirectional, permitting the locks to be used on swinging and sliding doors.

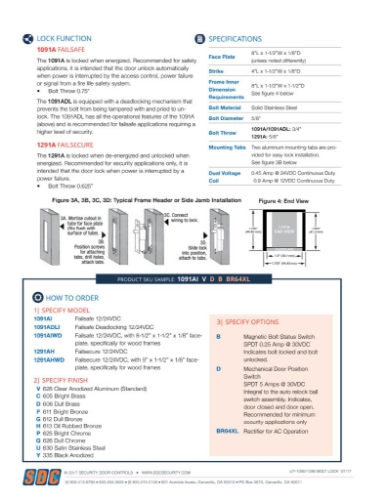

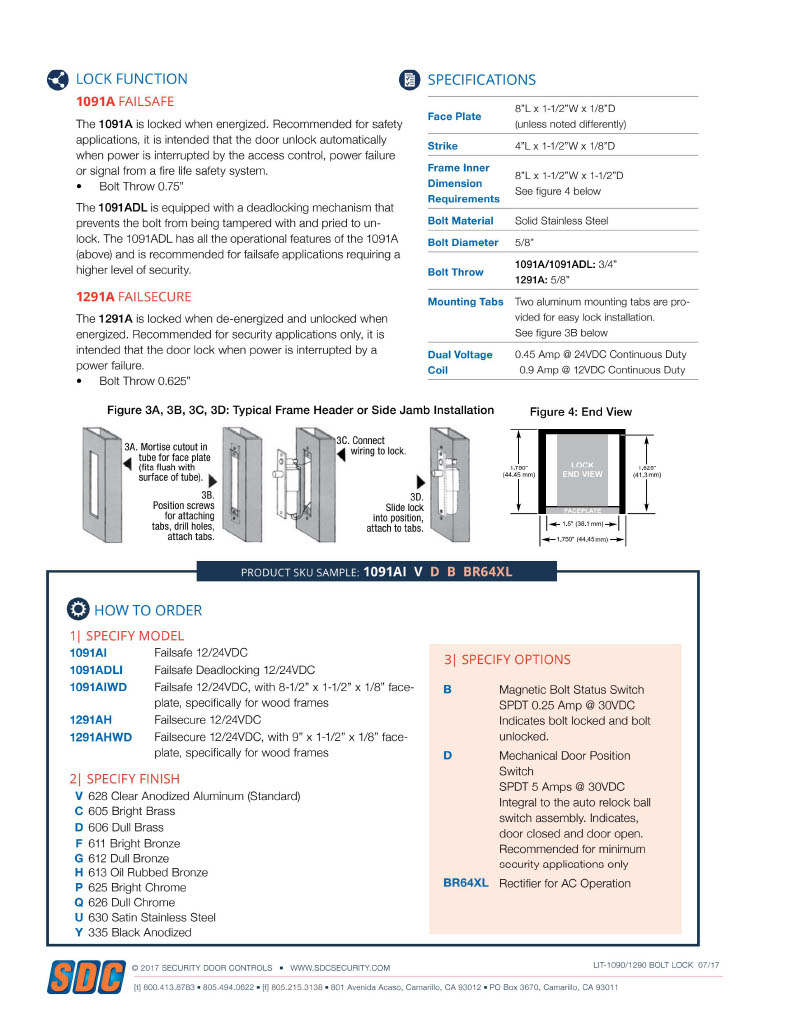

SPECIFICATIONS:

Face Plate: 8"L x 1-1/2"W x 1/8"D

Strike: 4"L x 1-1/2"W x 1/8"D

Frame Inner Dimension Requirements: 8"L x 1-1/2"W x 1-1/2"D

Bolt Material: Solid Stainless Steel

Bolt Diameter: 5/8"

Bolt Throw: 3/4"

Mounting Tabs: Two aluminum mounting tabs are provided for easy lock installation.

Dual Voltage Coil: 0.45 Amp @ 24VDC Continuous Duty, 0.9 Amp @ 12VDC Continuous Duty
