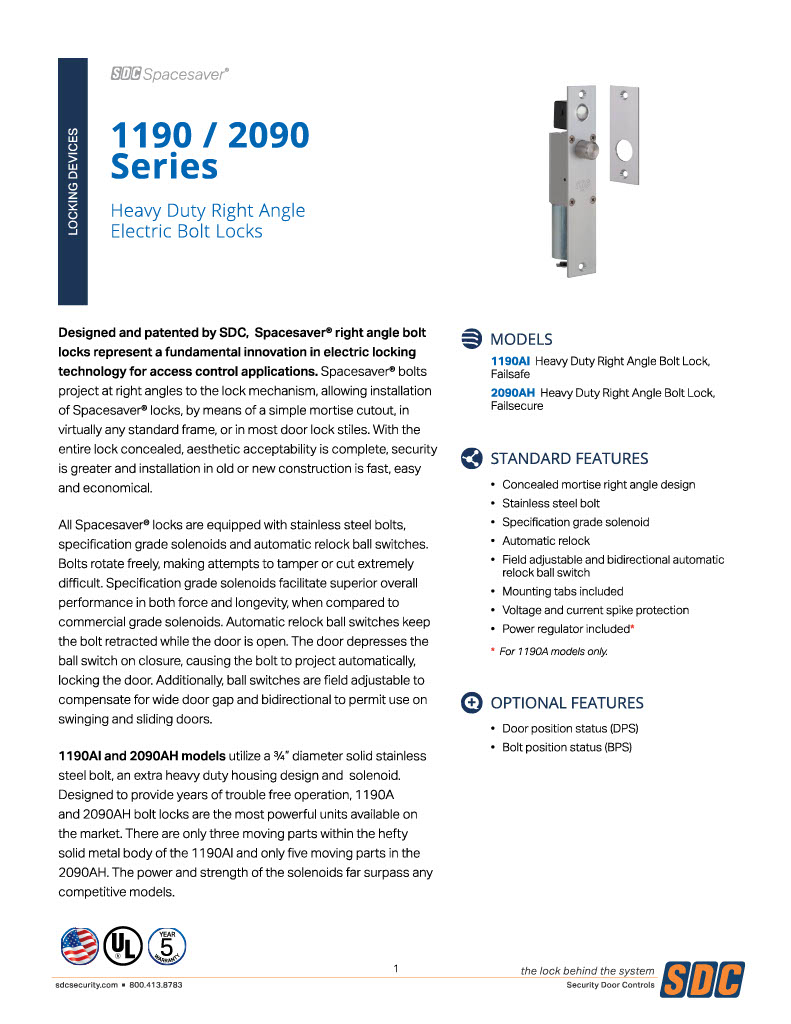

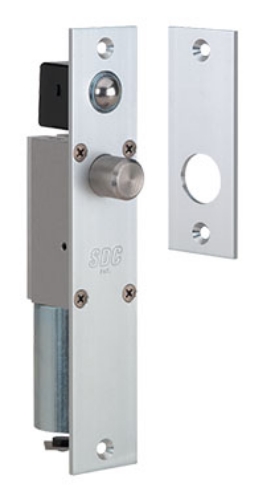

SDC Spacesaver 1190AU Heavy Duty Electric Bolt Lock, Failsafe, for 1-3/4" Frame - Stainless Steel

SDC Spacesaver 1190AU Heavy Duty Electric Bolt Lock, Narrow Mortise, Failsafe, for 1-3/4" Frame - Stainless Steel

Features:

POWERFUL EXTRA HEAVY DUTY DESIGN: The 1190 Spacesaver® bolt locks are the most powerful commercial grade units available on the market. They are designed to provide years of trouble free operation. There are only three moving parts within the hefty solid metal body.

POWERFUL EXTRA HEAVY DUTY SOLENOID: The solenoids are the strongest found in the industry for commercial or industrial grade applications. The power and strength of the solenoids far surpasses any competitive models. All Spacesaver® lock solenoids are manufactured by SDC to precision specifications. SDC solenoids are capable of superior overall performance in both force and longevity, providing years of service

CODE COMPLIANCE: Classified in accordance with Uniform Building Code standard 7-2, “Fire Test for Door Assemblies"

SOLID STAINLESS STEEL BOLT: Greater security is provided by the 0.75" (19 mm) diameter solid stainless steel bolt. The bolt rotates freely, making attempts to tamper or cut extremely difficult

FIELD ADJUSTABLE AUTO-RELOCK SWITCH: The automatic relock switch keeps the bolt retracted while the door is open. The door depresses the ball switch assembly on closure, causing the bolt to project automatically, locking the door. In addition, the ball switch assembly is bidirectional, permitting the locks to be used on swinging and sliding doors. The auto relock assembly is field adjustable to compensate for wide door gap.

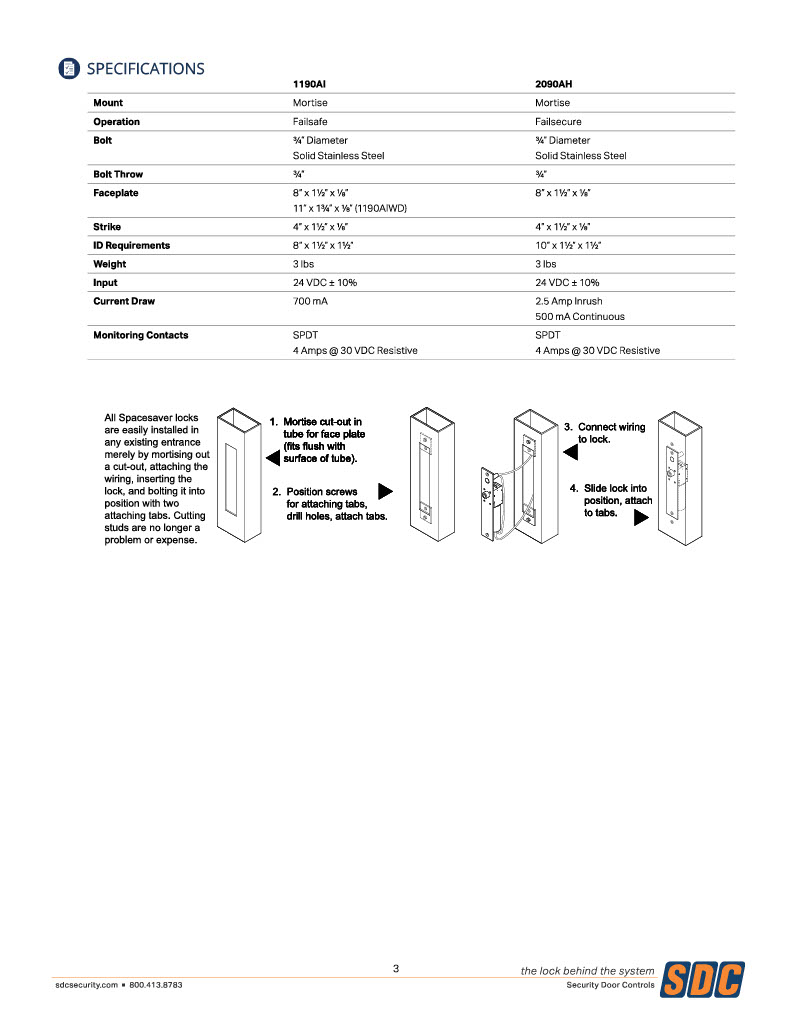

Specifications:

Face Plate: 8"H x 1-1/2"W x 1/8"D

Strike: 4"H x 1-1/2"W x 1/8"D

Frame Inner Dimension Requirements: 1190A: 8"H x 1-1/2"W x 1-1/2"D

Bolt Material: Solid Stainless Steel

Bolt Diameter: 3/4"

Bolt Throw: 3/4"

Mounting Tabs: Two aluminum mounting tabs are provided for easy lock installation.

1190A: 0.7 Amp @ 24VDC
