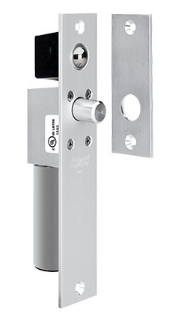

SDC Spacesaver 1291AHDMRV Electric Bolt Lock, Fail secure for 1-3/4" Frame

Product Details

SDC Spacesaver 1291AHDMRV Electric Bolt Lock,  Fail secure for 1-3/4" Frame

FAIL SECURE- Bolt retracts when energized. Bolt thrown when de-energized or during a power failure. Recommended for high security applications only. 1291AH models are failsecure.

Type:  Right Angle

Application: Standard 13/4"

Mount: Mortise

Operation: Failsecure

Bolt:  5/8" Diameter Solid Stainless Steel

Bolt Throw:  3/4"

Faceplate:   101/2" x 11/2" x 1/8" (1291AHDMR)

Strike:   4" x 11/2" x 1/8"

Backset:  0.865"

ID Requirements:  101/2" x 11/2" x 13/4"

Weight:  2 lbs

Input:  450 mA @ 24 VDC   900 mA @ 12 VDC

Monitoring:Contacts  SPDT

4 Amps @ 30 VDC Resistive

SDC Spacesaver 1291AHDMRV Electric Bolt Lock, Fail secure for 1-3/4" Frame

SKU: 1291AHDMRV

In Stock

$588.00

$840.00

You saved $252.00

About this item

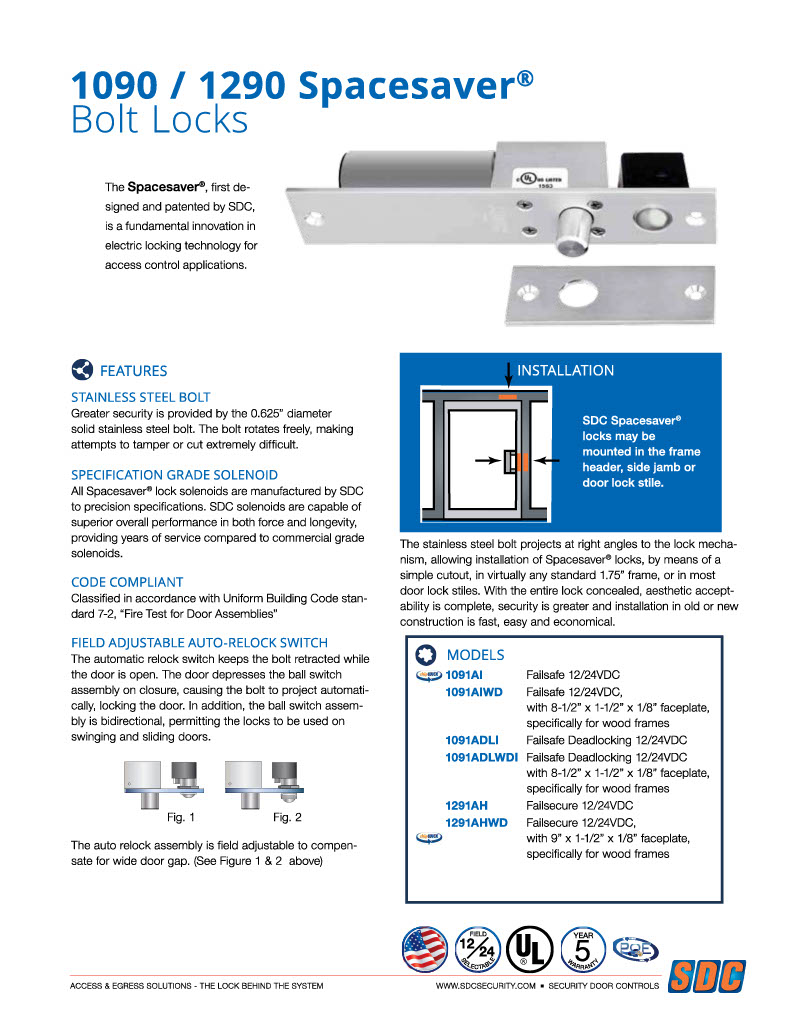

The Spacesaver®, first designed and patented by SDC, is a fundamental innovation in electric locking technology for access control applications. The stainless steel bolt projects at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple cutout, in virtually any standard 1.75" frame, or in most door lock stiles. With the entire lock concealed, esthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical.

SDC Spacesaver 1291AHDMRV Electric Bolt Lock,  Fail secure for 1-3/4" Frame

FAIL SECURE- Bolt retracts when energized. Bolt thrown when de-energized or during a power failure. Recommended for high security applications only. 1291AH models are failsecure.

Type:  Right Angle

Application: Standard 13/4"

Mount: Mortise

Operation: Failsecure

Bolt:  5/8" Diameter Solid Stainless Steel

Bolt Throw:  3/4"

Faceplate:   101/2" x 11/2" x 1/8" (1291AHDMR)

Strike:   4" x 11/2" x 1/8"

Backset:  0.865"

ID Requirements:  101/2" x 11/2" x 13/4"

Weight:  2 lbs

Input:  450 mA @ 24 VDC   900 mA @ 12 VDC

Monitoring:Contacts  SPDT

4 Amps @ 30 VDC Resistive

1091,1291
SDC Spacesaver 1291AHDMRV Electric Bolt Lock, Fail secure for 1-3/4" Frame

Product code: 1291AHDMRV

In Stock

$840.00

$588.00

1091,1291
SDC Spacesaver 1291AHDMRV Electric Bolt Lock, Fail secure for 1-3/4" Frame

Product code: 1291AHDMRV

In Stock

$840.00

$588.00
