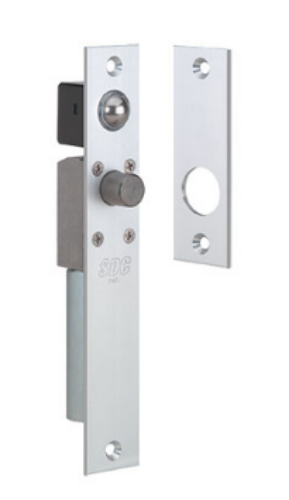

SDC Spacesaver 1490AIV Electric Bolt Lock, Extra Narrow Mortise, Failsafe for 1-1/2" Frame - Aluminum

SDC Spacesaver 1490AIV Electric Bolt Lock, Extra Narrow Mortise, Failsafe for 1-1/2" Frame - Clear Anodized Aluminum (Non-UL)

FAILSAFE - The 1490A is locked when energized. Recommended for safety applications, it is intended that the door unlock automatically when power is interrupted by the access control, power failure or signal from a fire life safety system.  Bolt Throw 1/2" (12.7mm)

Features:

SOLID STAINLESS STEEL BOLT:

Greater security is provided by the .625" diameter Stainless steel bolt. The bolt rotates freely, making attempts to tamper or cut extremely difficult.

SPECIFICATION GRADE SOLENOIDS:

All Spacesaver® lock solenoids are manufactured by SDC to precision specifications. SDC solenoids are capable of superior overall performance in both force and longevity, providing years of service.

FIELD ADJUSTABLE AUTO-RELOCK SWITCH:

The automatic relock switch keeps the bolt retracted while the door is open. The door depresses the ball switch assembly on closure, causing the bolt to project automatically locking the door. In addition, the ball switch assembly is bi-directional, permitting the locks to be used on swinging and sliding doors. The auto relock assembly is field adjustable to compensate for wide door gap.

SPECIFICATIONS:

Face Plate: 8"L x 1-1/4"W x 1/8"D

Strike: 4"L x 1-1/2"W x 1/8"D

Frame Inner Dimension Requirements: 8"L x 1-1/4"W x 1-3/8"D

Bolt Material: Stainless Steel

Bolt Diameter: 5/8"

Bolt Throw: 1/2"

Mounting Tabs: Two aluminum mounting tabs are provided for easy lock installation.

1490 Failsafe: 0.45 Amp @ 24VDC Continuous Duty 0.9 Amp @ 12VDC Continuous Duty
