Securitron IEXDA - Magnalock - Integrated Delay Egress External Initiate - 1200 lbs

Securitron IEXDA - Magnalock - Integrated Delay Egress External Initiate - 1200 lbs

Product Details

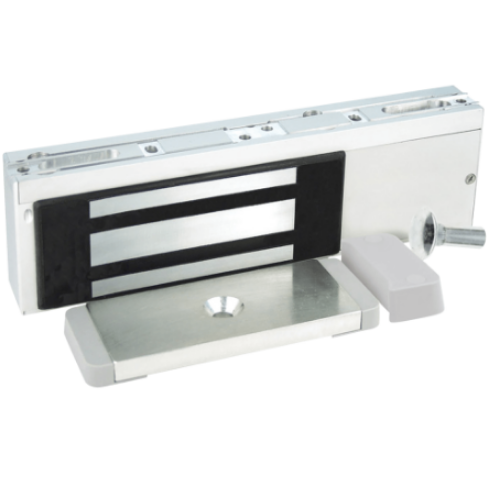

Securitron IEXDA - Magnalock - Integrated Delay Egress External Initiate - 1200 lbs

Features: Fully integrated delay and detection features for fast installation of delayed egress system Easily adjustable door movement detection from 1/8" [3.2mm] to 1" [25mm] New shorter 12.5" overall length will fit most any door with a closer installed Automatic dual voltage - no field adjustment required New bracket-mounted design improves strength and installation time Permits free egress in emergency situations Tamper switch for access chamber cover removal/placement monitoring Microprocessor monitored BondSTAT magnetic bond sensor (MBS) and integrated door position switch (DPS) standard Efficient, low power usage Compact 12-1/2" length can be used with most door closer Bright LEDs indicate unit status from the secure side of the door Configurable setting includes: - Nuisance alarm times - 0 to 3 seconds - Irrevocable delay times - 15 or 30 seconds - user selectable - External bypass delay times - 0, 5, 10 or 15 seconds - Post alarm reminder - user selectable - Bypass expiration alarm - user selectable - Manual relock or delayed automatic relock (BOCA) - user selectable External alarm relay isolated dry contact (1A at 24VDC) External reset All ferrous metal surfaces plated for durability Indoor use only UL Listed

Holding Force: 1200 lbs. [544 kg]

Dimensions: Magnalock: 12-1/2"L x 2"D x 3-5/8"H Strike: 8-15/16"L x 5/16"D x 2-3/4"H

Current Draw and Voltage: 370mA max at 12VDC; 270mA max at 24VDC

Operating Temperature: +32 to +104F [0 to +40C]

Shipping Weight: 15 lbs.

Finishes: US32D/630 - Satin Stainless Steel

Model:IEXDA

Securitron IEXDA - Magnalock - Integrated Delay Egress External Initiate - 1200 lbs

Name: Securitron IEXDA - Magnalock - Integrated Delay Egress External Initiate - 1200 lbs
SKU: IEXDA
Price: 1020.24 USD
Availability: InStock

SKU: IEXDA

In Stock

Chat

$1,020.24

About this item

IEXDA helps prevent losses at emergency exits. An attempted exit initiates an alarm and a brief delay before the lock releases, giving personnel time to respond before an exit occurs. Protect memory care wards, hospitals, dormitories, airports, child care facilities and retail or warehouse environments. Used on outswing doors, installation requires no alteration or replacement of existing fire-rated or non-fire-rated latching hardware.
