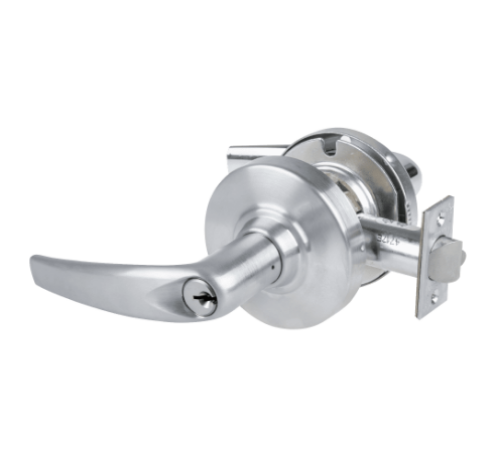

Schlage ND82 - Grade 1 Institutional Lock, Non-Handed

Schlage ND82 - Heavy Duty Institution Lever Lock

Institution Lock -ANSI-F87

Both levers are fixed. Entrance by key in either lever.

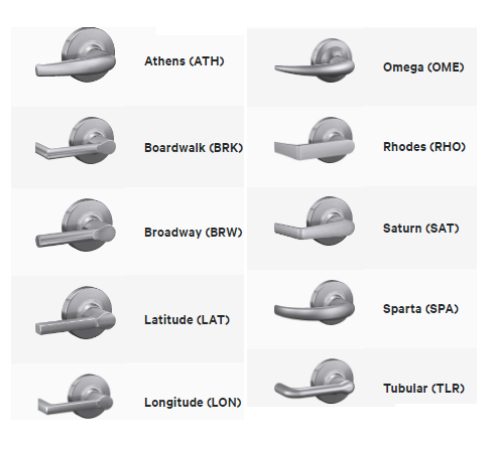

Lever Styles:Athens (ATH), Rhodes (RHO), Tubular (TLR), Sparta (SPA), Omega (OME).

Finishes:605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 613 - Oil Rubbed Bronze, 619 - Satin Nickel, 625 - Bright Chrome, 626 - Satin Chrome

Certifications:ANSI A156.2, 1996, Series 4000 Grade 1. UL Listed.   Keying:6-Pin Solid brass Cylinder, C or Everest C123 keyway with two nickel silver keys per lock. Other keying options available include master keying, grand master keying, construction keying, and interchangeable core.    The door range is 1 5/8" - 2 1/8" standard. The 1 3/8" door thickness requires 2 spacers in order to fit and must be specified or ordered separately(please call).

Backset:2 3/4" (70 mm) standard. 2 3/8" (60 mm) available. 3-3/4" Backset and 5" (127 mm) backset link also available(please call).

Latch Bolt:Steel, 1/2" (12 mm) throw. 3/4" (19 mm) throw anti-friction latch available for pairs of fire doors(please call).   Strikes:ANSI curved lip strike 1 1/4" x 4 7/8" (32 mm x 124 mm), 1 3/16" (30 mm) to center standard. Optional strikes, lip lengths and ANSI strike box available.

ND82PD- 6-Pin conventional (standard)

ND82LD- Conventional - Less Cylinder

ND82BD- Small format IC core - less core (accepts "Best" Interchangable cores, core not included)

ND82JD- Large format IC core - less core (accepts Schlage Interchangable cores, core not included)

Model:Schlage, ND82, ND82PDATH, ND82PDRHO ND82PDTLR, ND82PDSPA, ND82PDOME, ND82PDATH626, ND82PDRHO626, ND82PDTLR626, ND82PDSPA626, ND82PDOME626,

ND82BDATH, ND82BDRHO ND82BDTLR, ND82BDSPA, ND82BDOME, ND82BDATH626, ND82BDRHO626, ND82BDTLR626, ND82BDSPA626, ND82BDOME626,

ND82JDATH, ND82JDRHO ND82JDTLR, ND82JDSPA, ND82JDOME, ND82JDATH626, ND82JDRHO626, ND82JDTLR626, ND82JDSPA626, ND82JDOME626,

ND82LDATH, ND82LDRHO ND82LDTLR, ND82LDSPA, ND82LDOME, ND82LDATH626, ND82LDRHO626, ND82LDTLR626, ND82LDSPA626, ND82LDOME626

ATH, RHO, TLR, SPA, OME, 605, 606, 612, 613, 619, 625, 626.

Standard Features

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Exceeds 800,000 cycle ANSI Grade 1 requirements by nearly 4 times (3,000,000 cycles)

Warranty:Seven-year limited warranty for all functions including Vandlgard.

Exposed Trim:Levers are pressure cast zinc, plated to match finishes. Roses are solid brass plated to match finishes.

Adjustable brass or bronze latch faceplates and strikes, furnished in compatible lock trim finishes.
