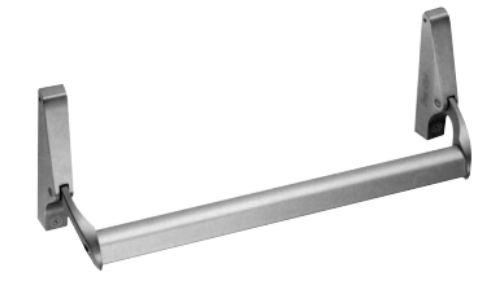

S.Parker 540V Narrow Stile Concealed Vertical Rod Exit Device - 48"

S.Parker 540V Narrow Stile Concealed Vertical Rod Exit Device - 48"

Description And Features:

• Ideal for reliable, maintenance-free service in high abuse areas, the #540V iS anodized (not painted). It exceeds all life safety code requirements and is always available in aluminum (clear) or dark bronze (duranodic) for immediate shipment from inventory.

• Non-handed

• This device is operated by a standard 1-1/8" mortise cylinder with MS type cam and requires a cylinder mounting pad when using the cylinder.(See Below)

• Cylinder mounting pad (CMP) is thru-bolted to the device and prevents the cylinder from being forcibly removed.

• The crossbar mounting height is 36-1/2" from the bottom of the door and is designed for application to 7' high doors.

• For doors that are taller than the standard 7' height, EXTENSION ROD kits are available in 12" and 24" lengths.

• Ideal for aluminum storefront doors   • Dual dogging via pins (below housing), or by the outside cylinder key

• Our vertical rods are fabricated of quality steel for extended strength and durability

• Available with optional cylinder mounting pad with cylinder nut

• If you choose to install this device with the outside cylinder mounting pad, use a 1-1/8" mortise cylinder with an Adams-Rite® MS cam.

Model:540VAL, 540VDUR, 540V-AL, 540V-DUR
