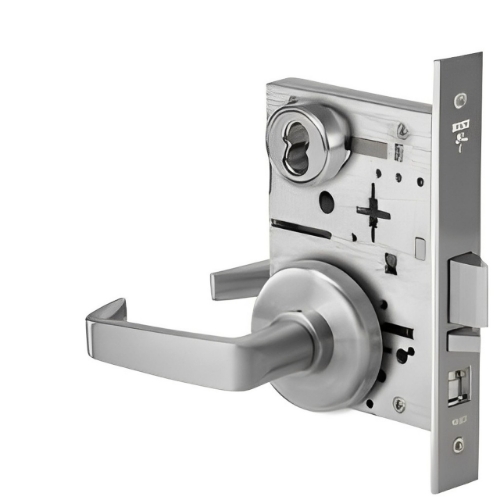

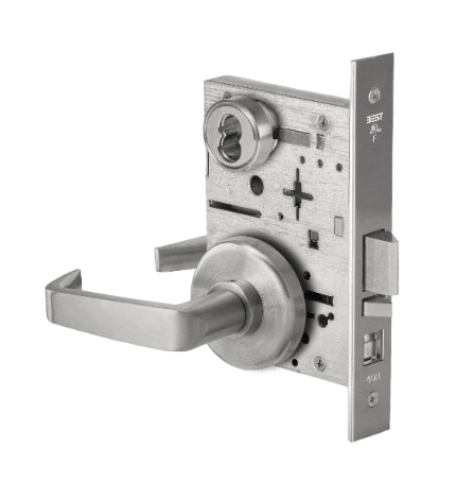

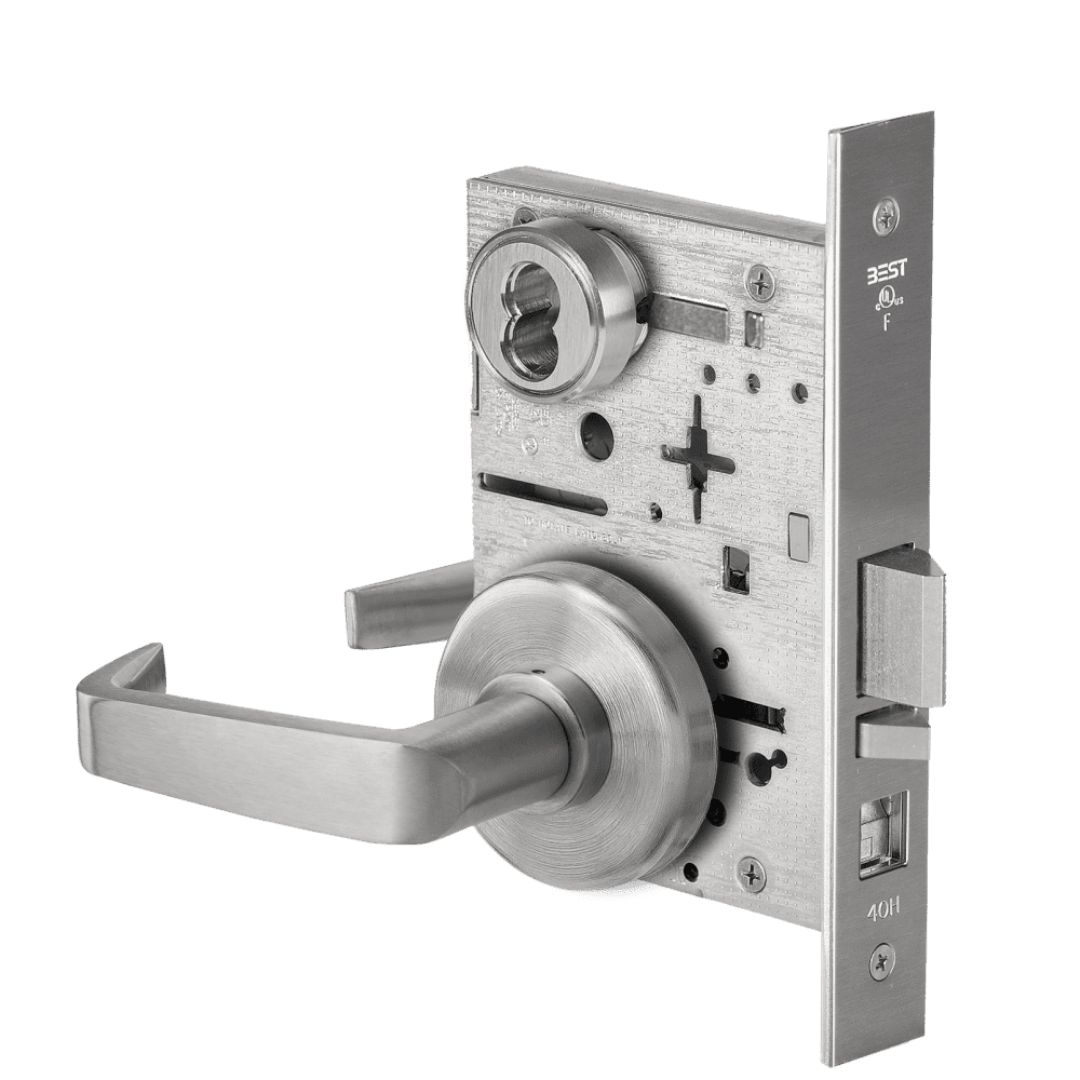

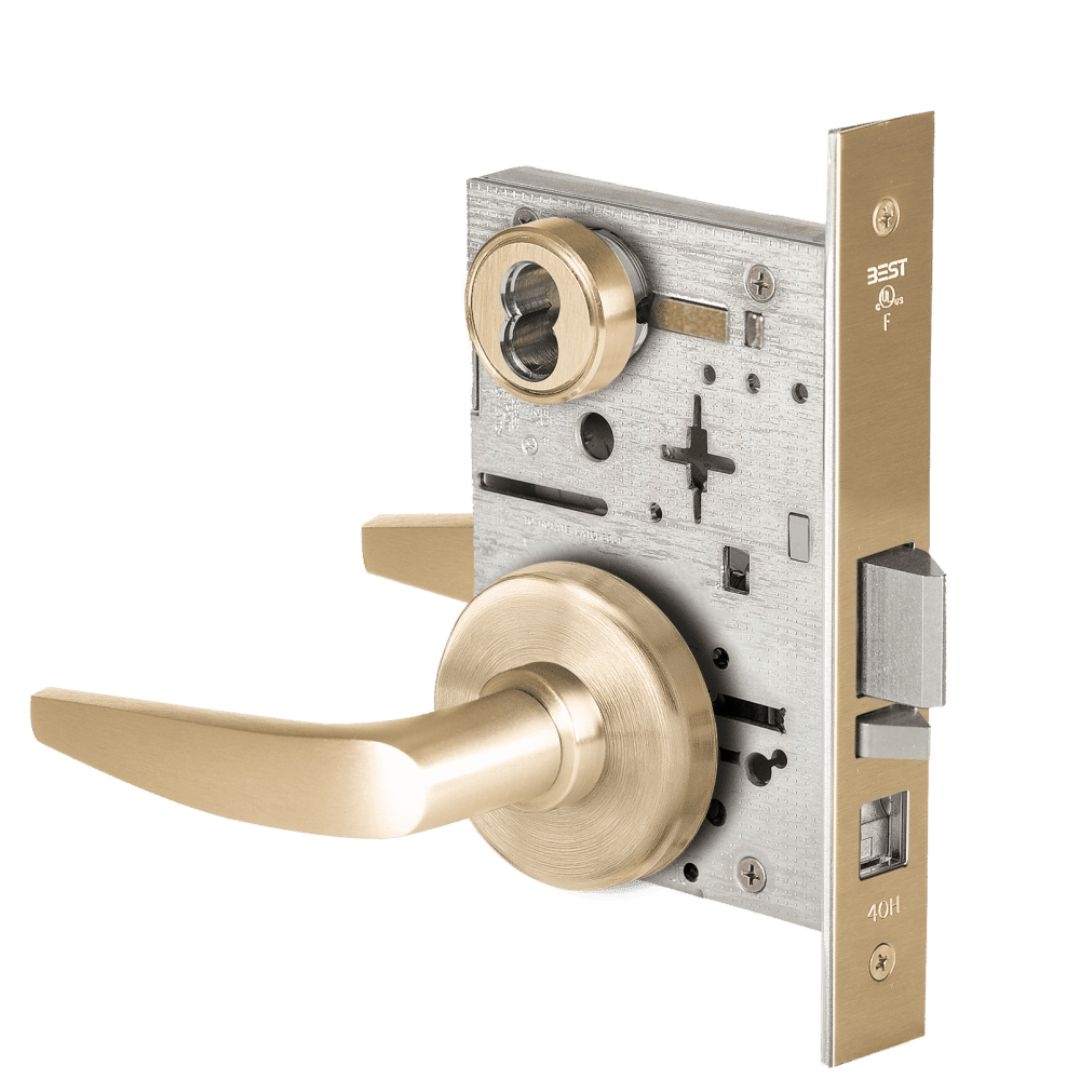

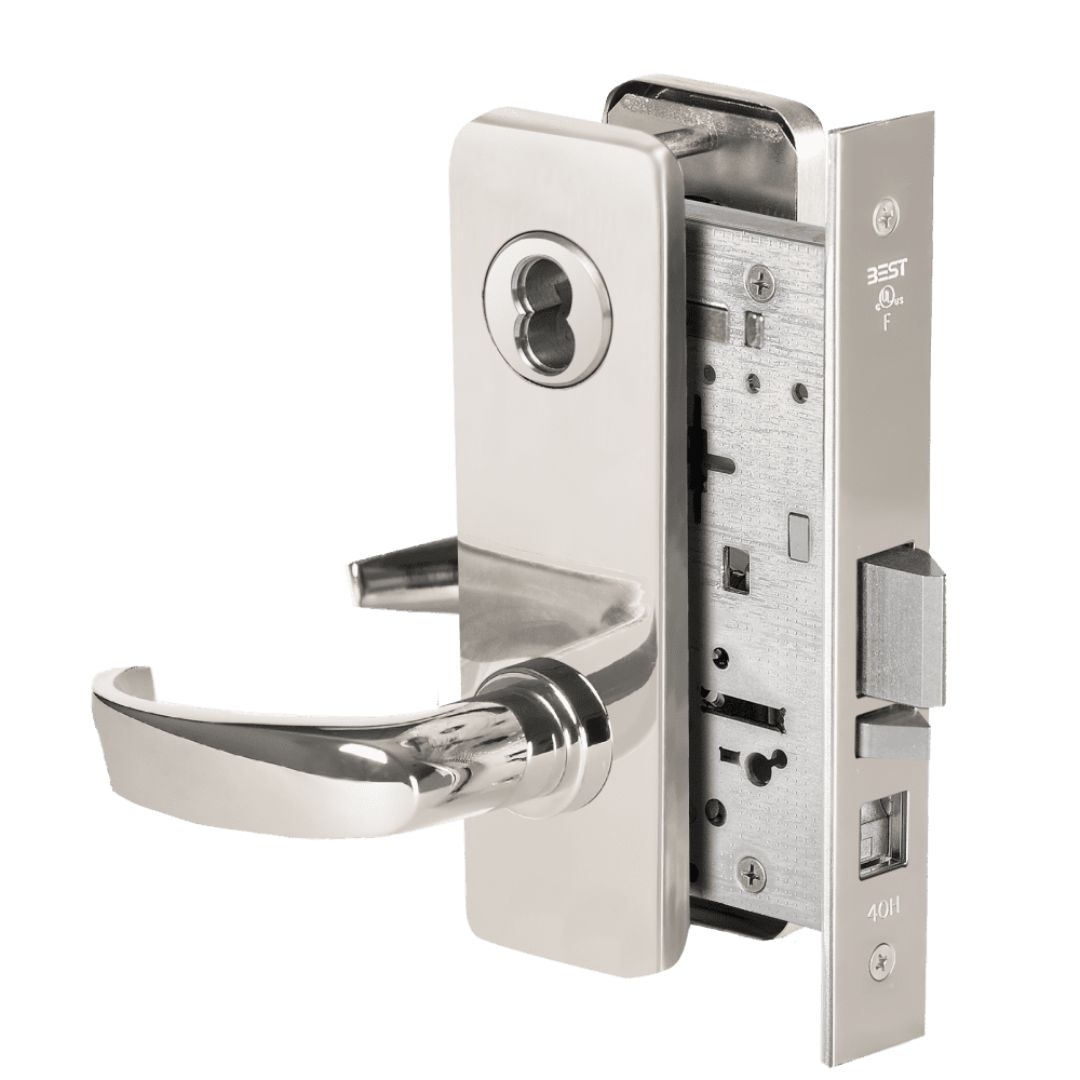

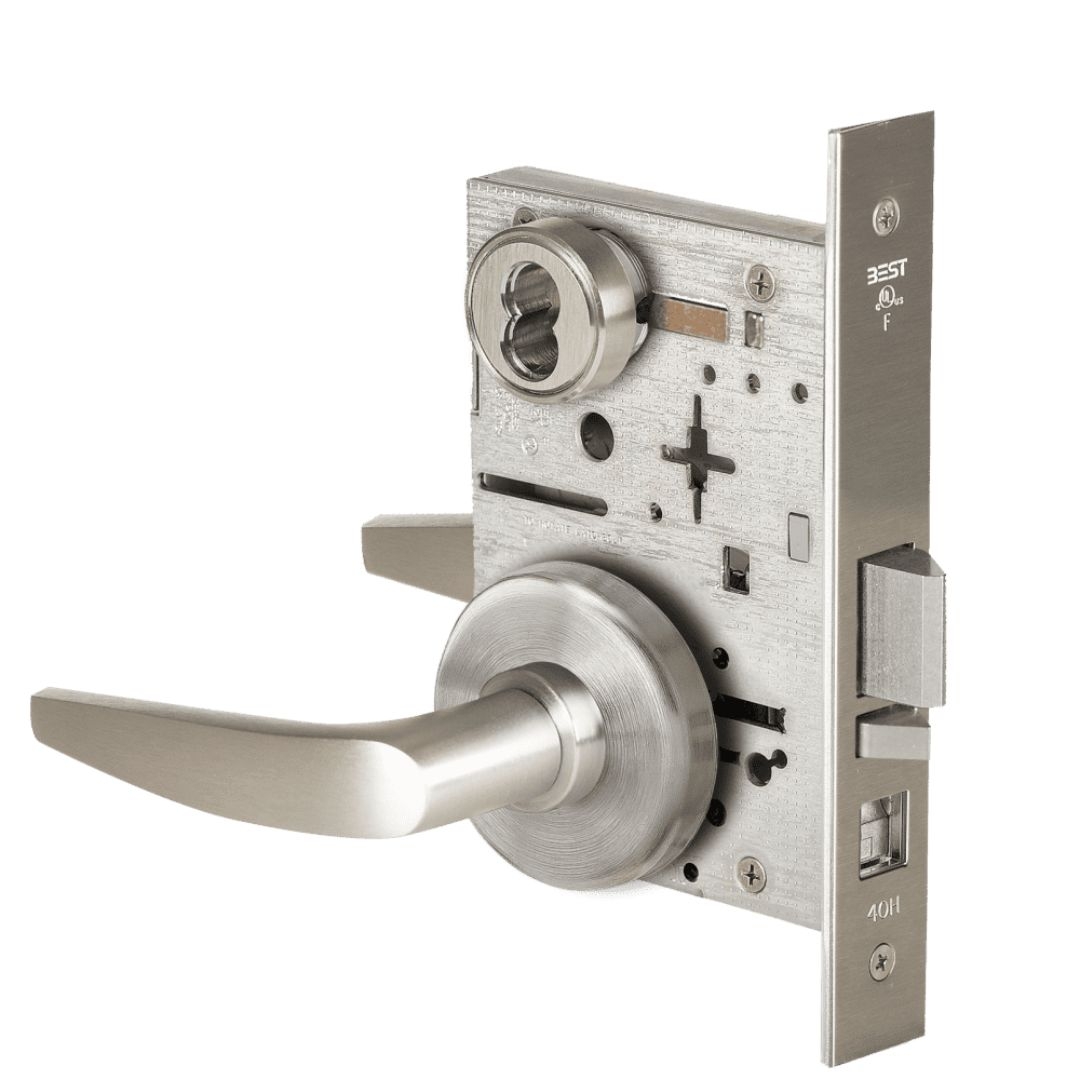

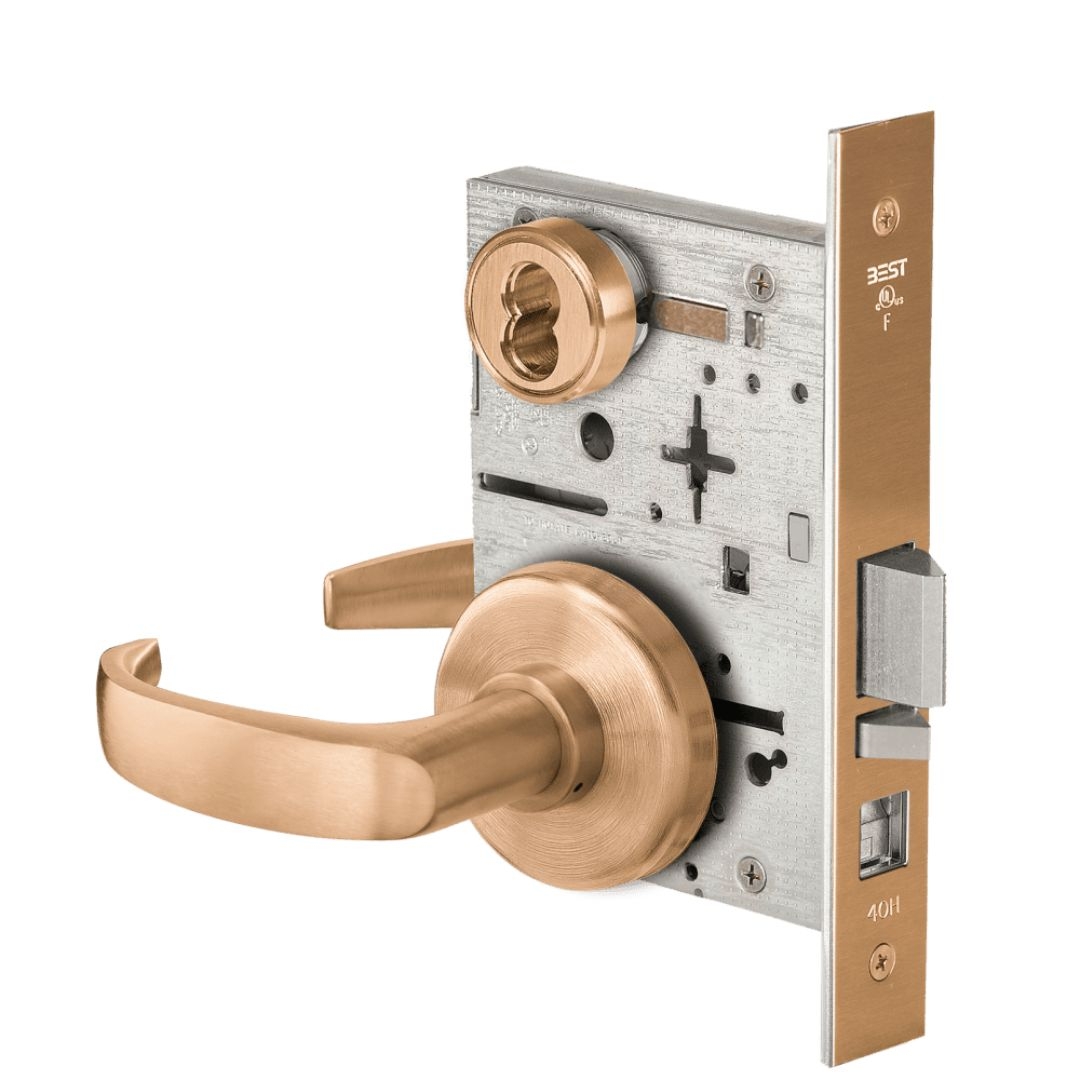

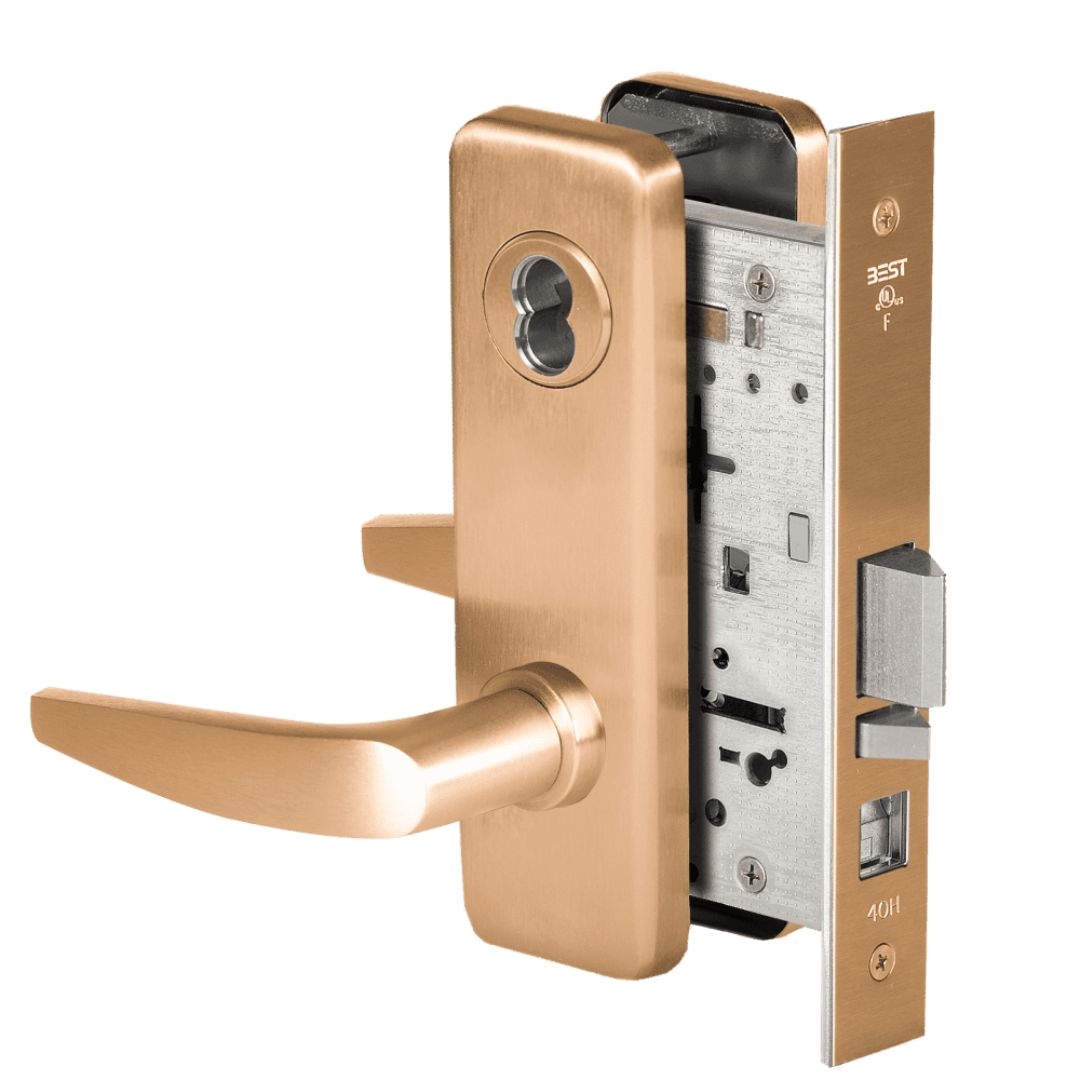

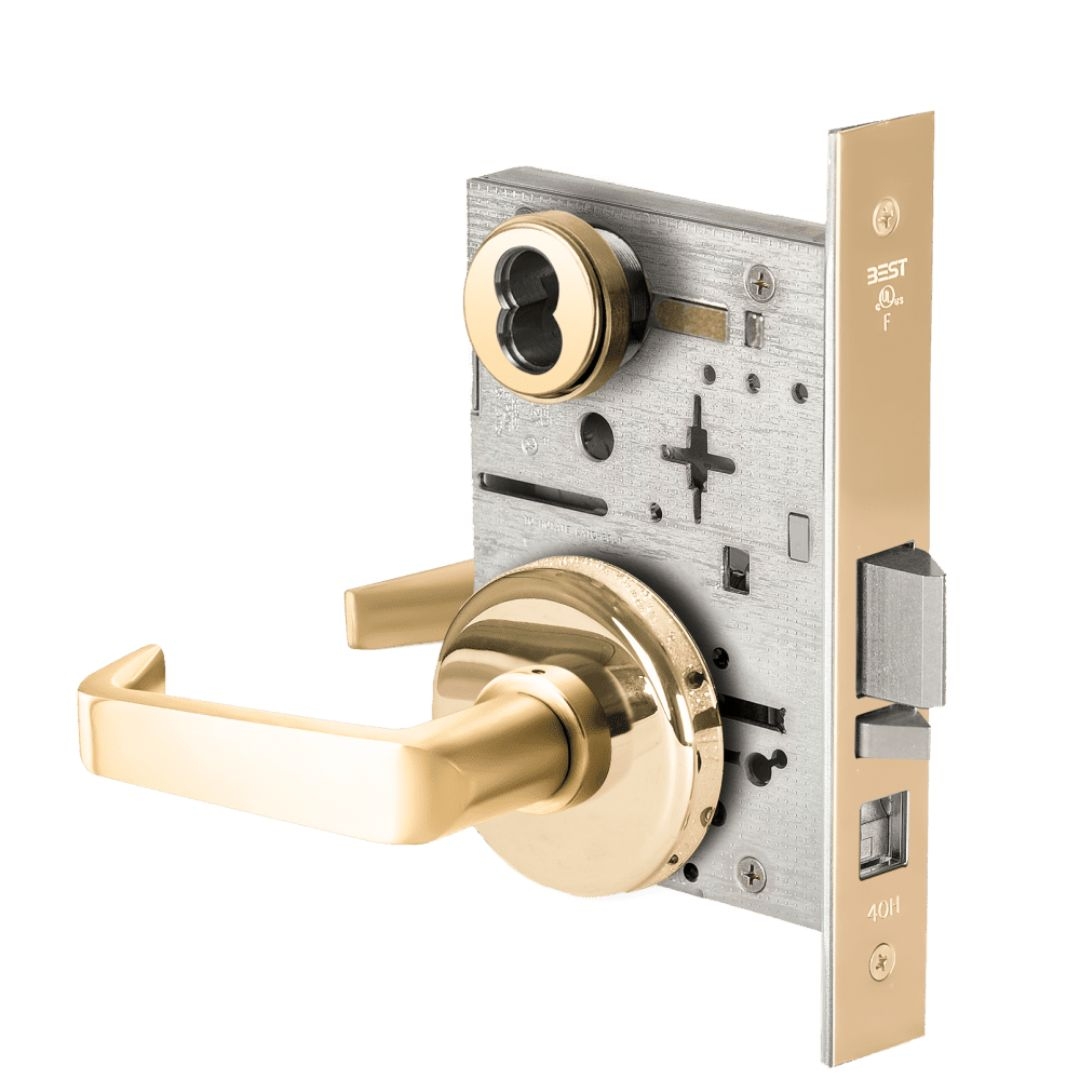

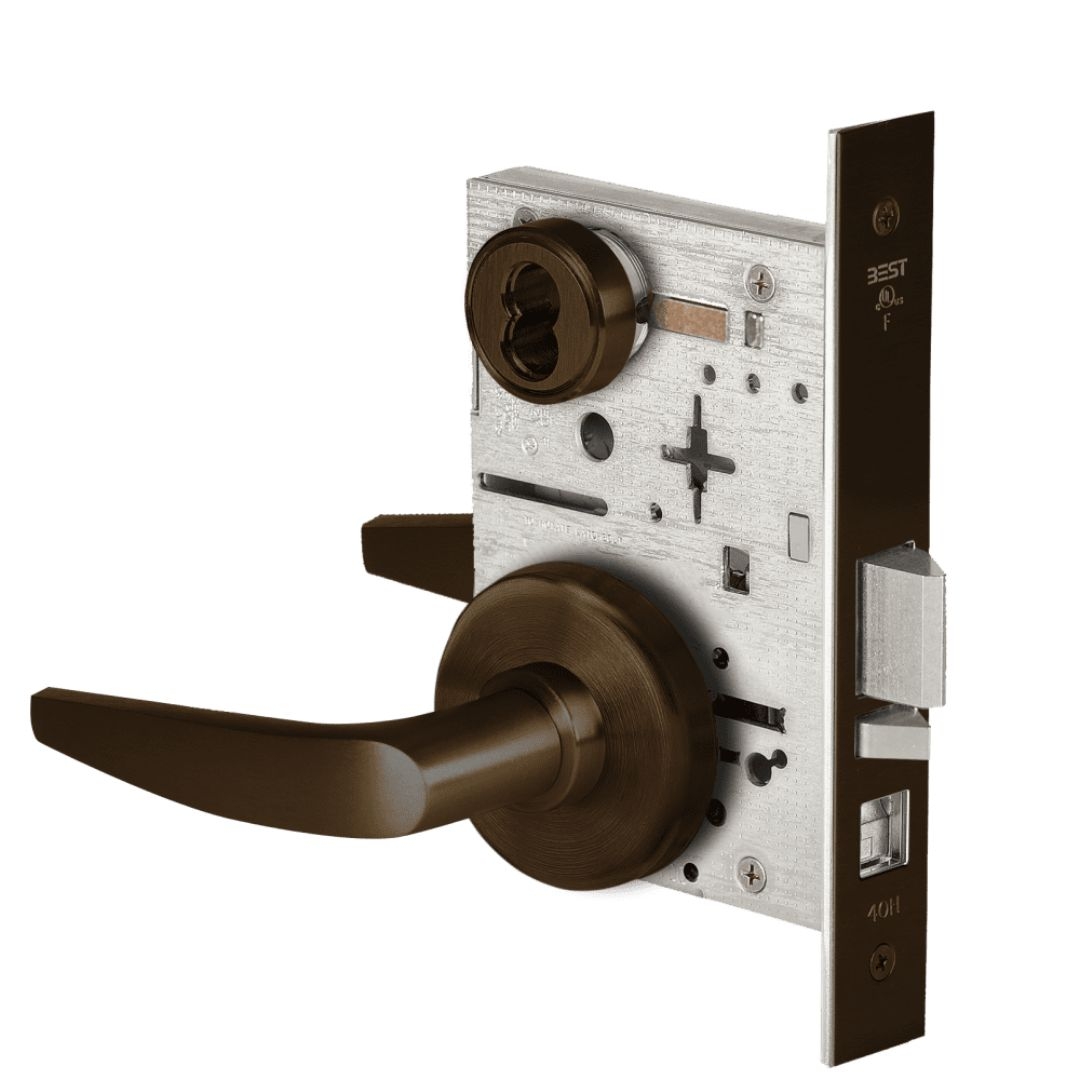

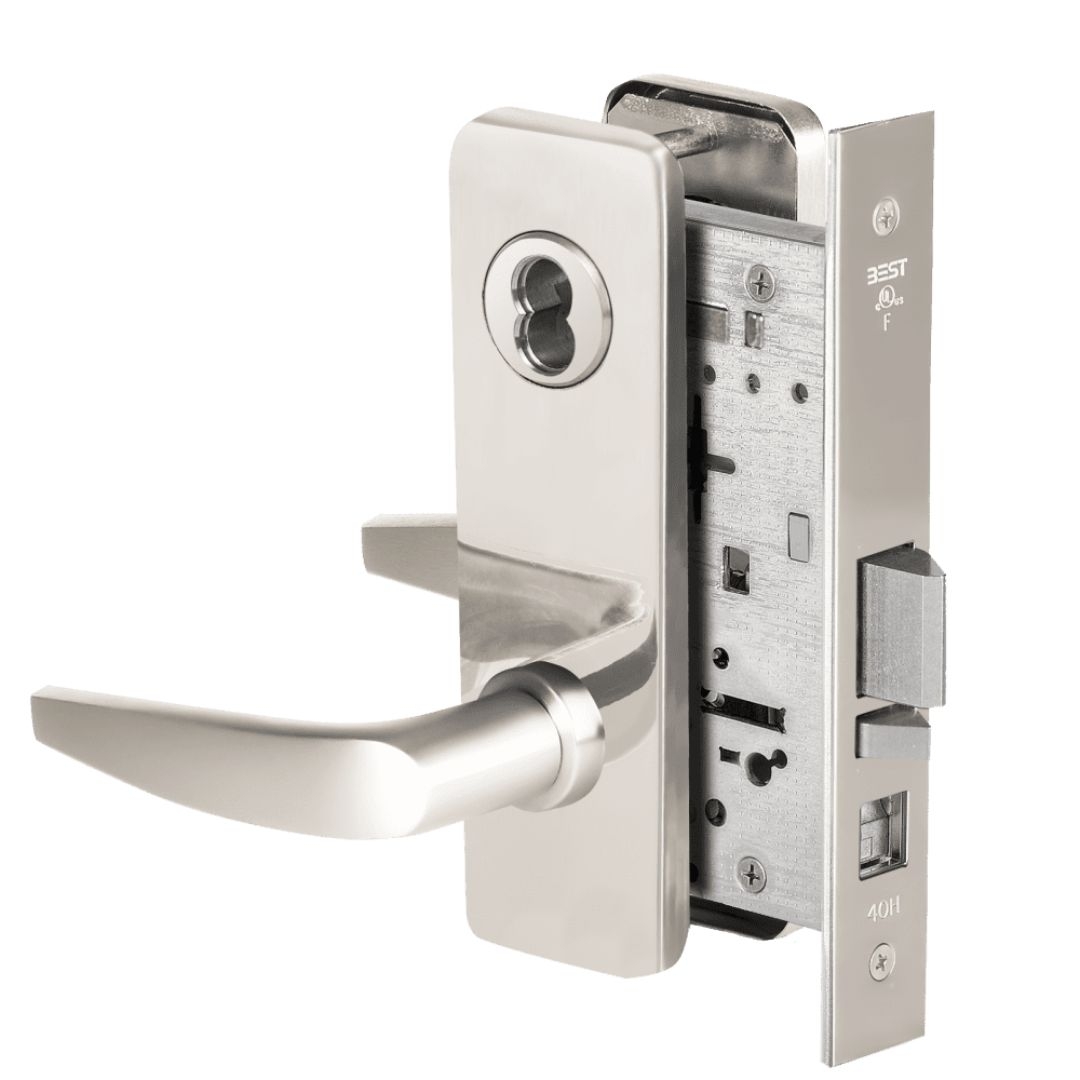

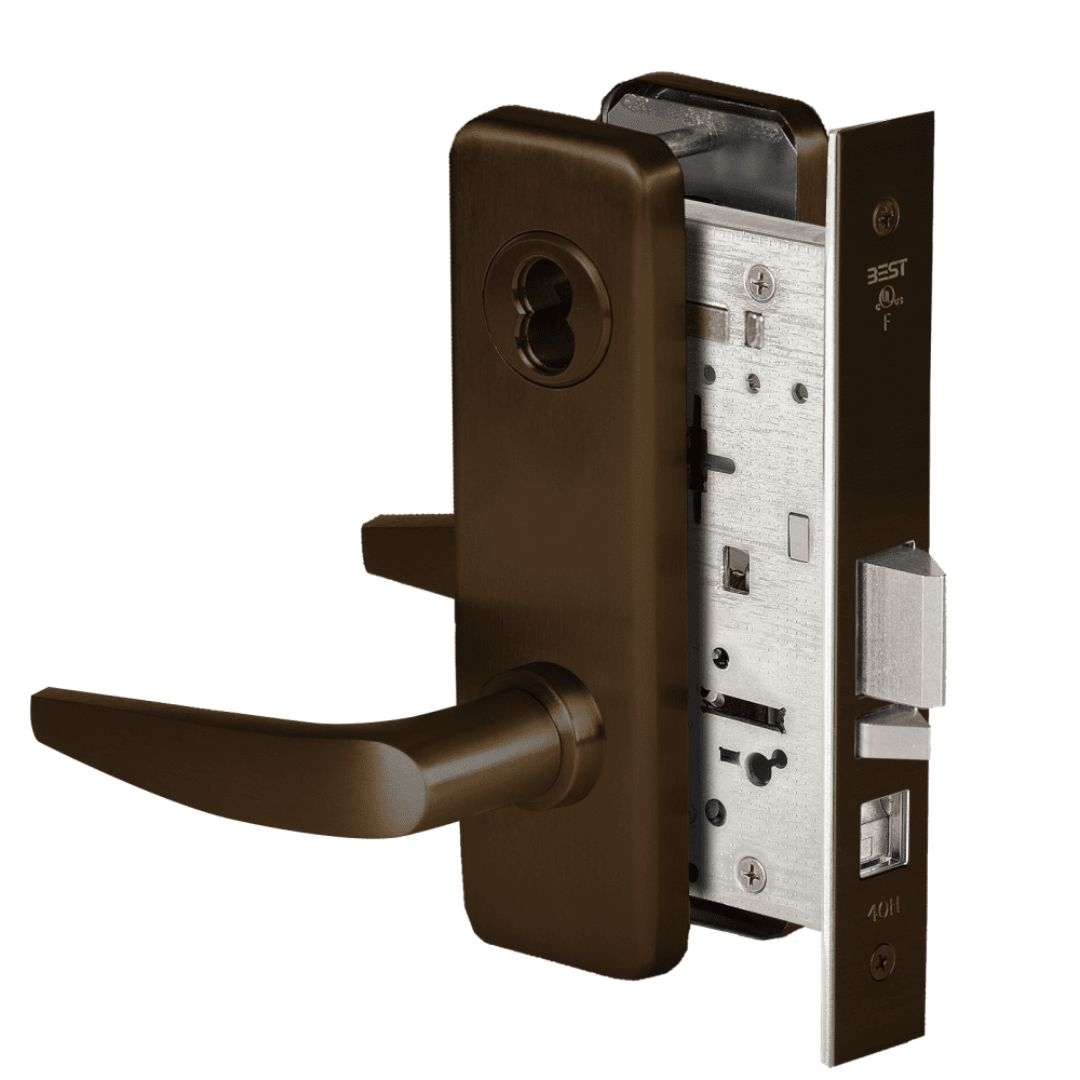

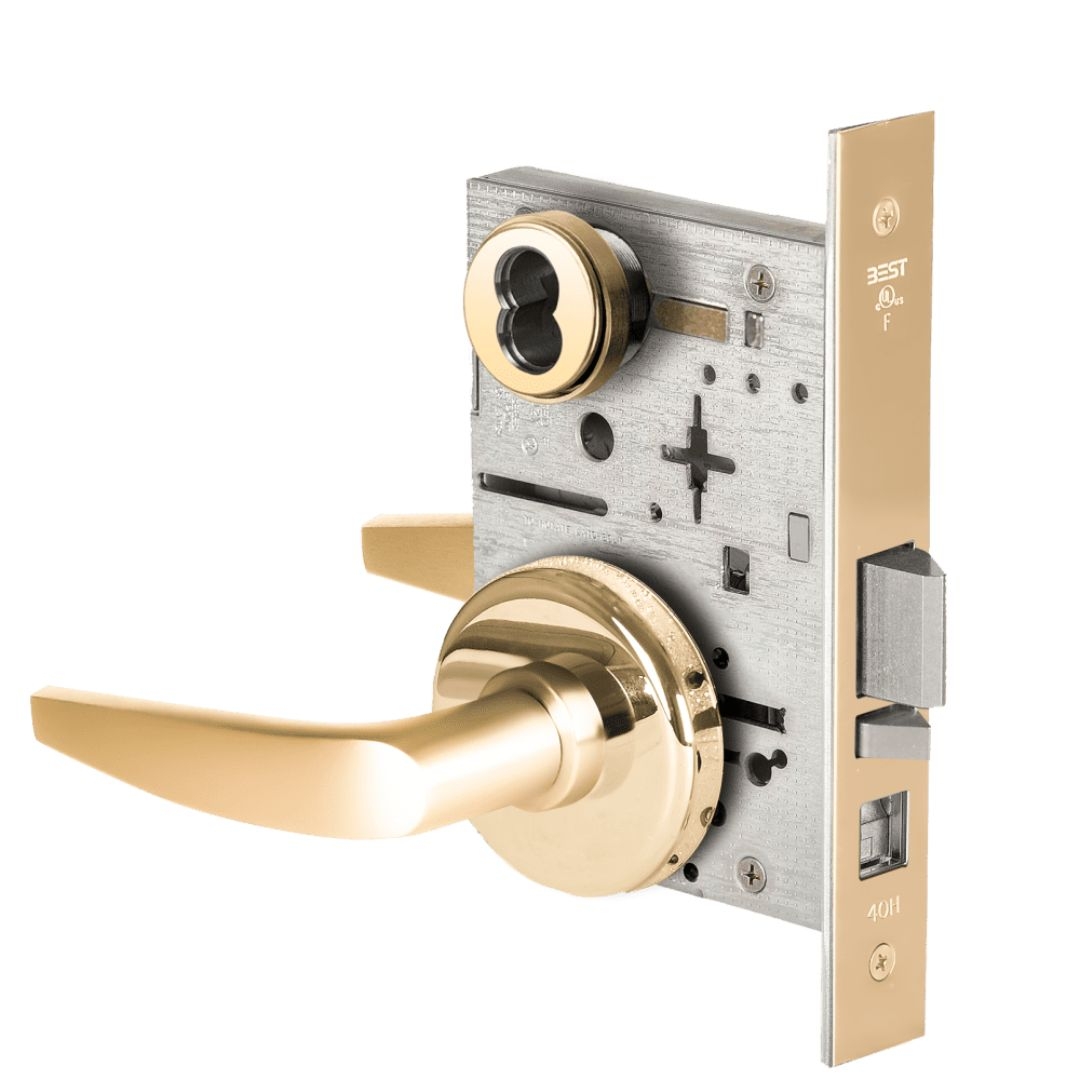

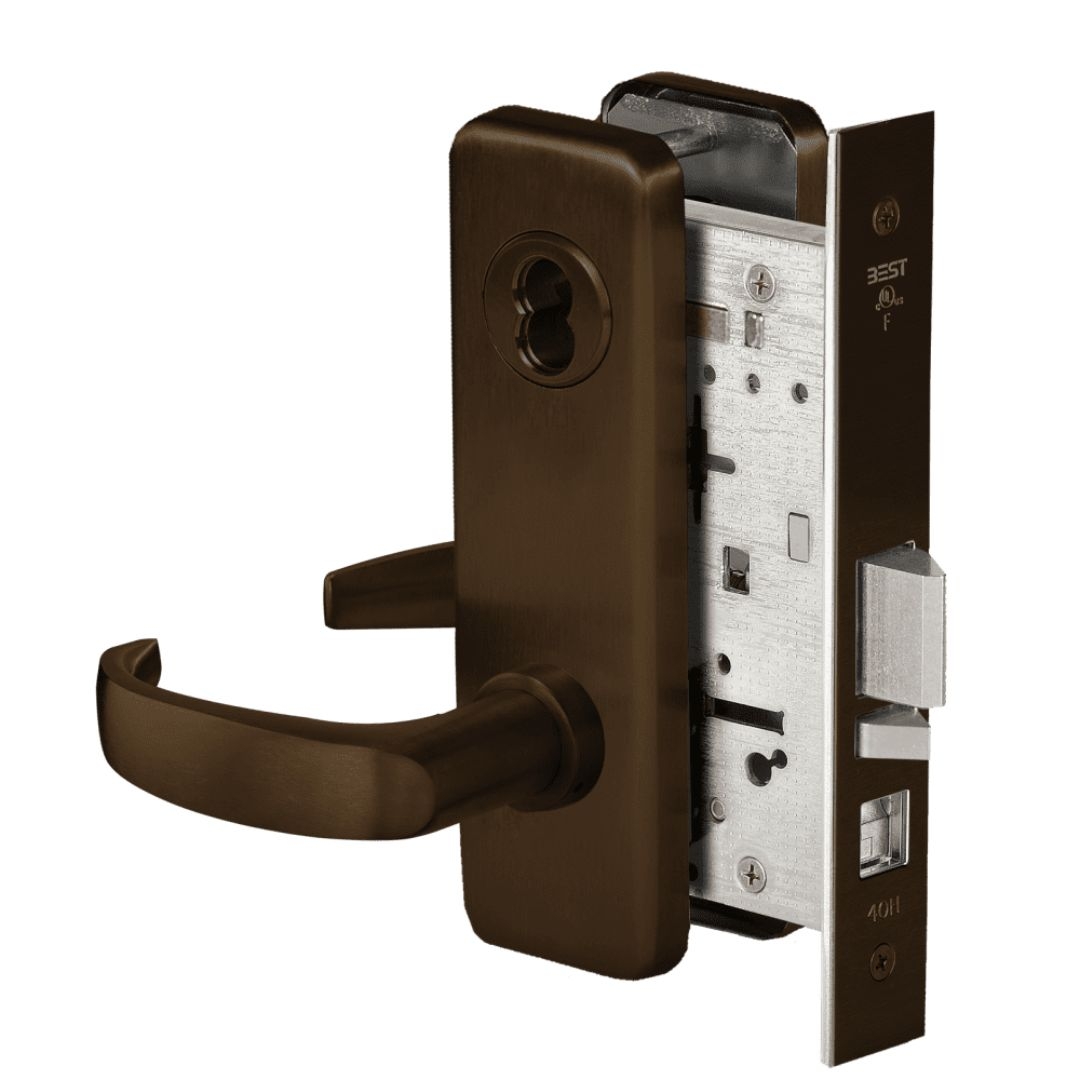

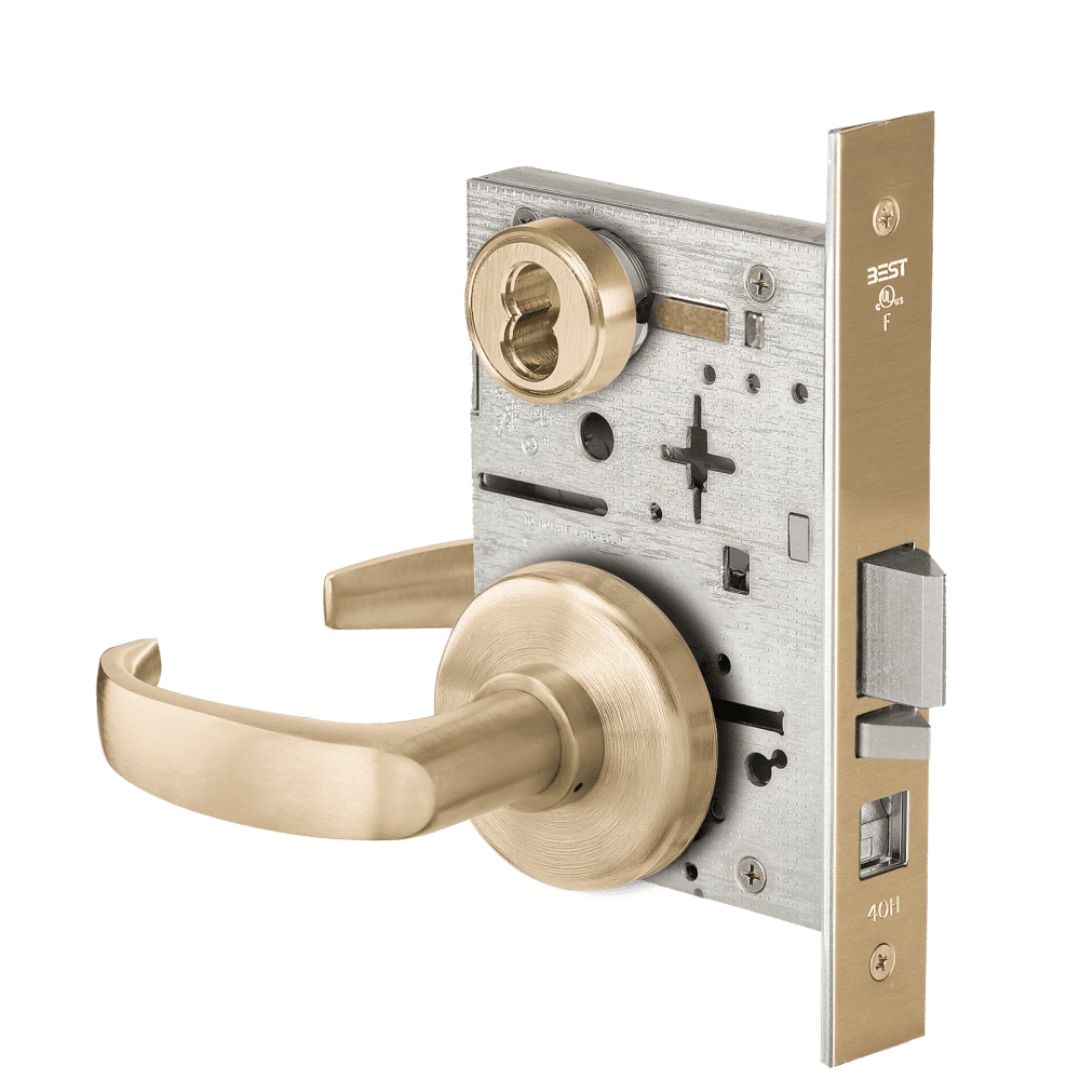

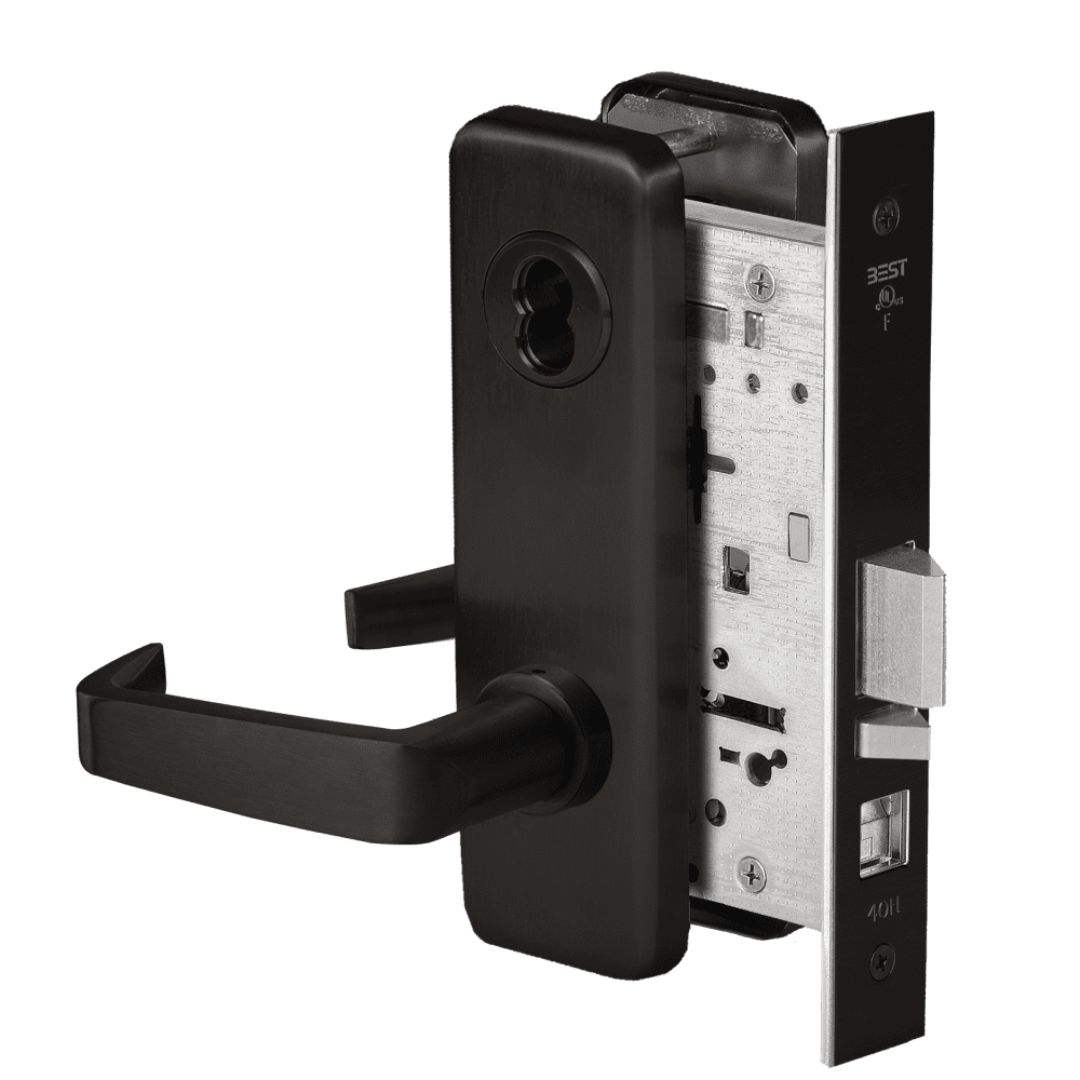

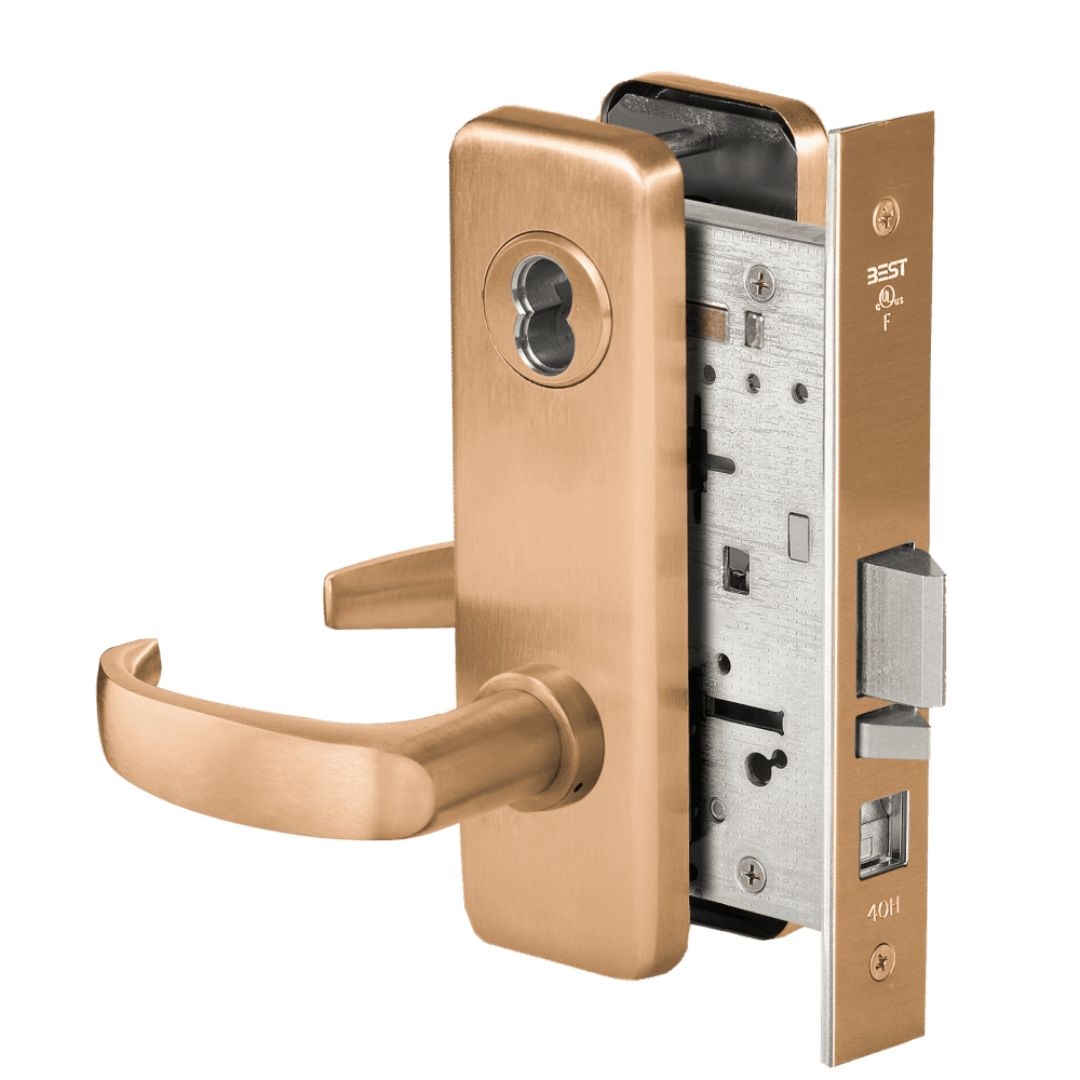

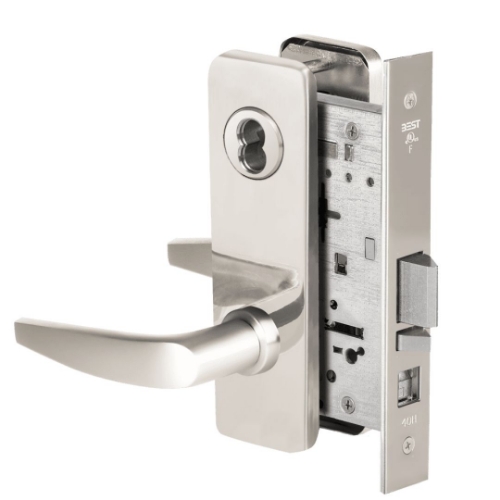

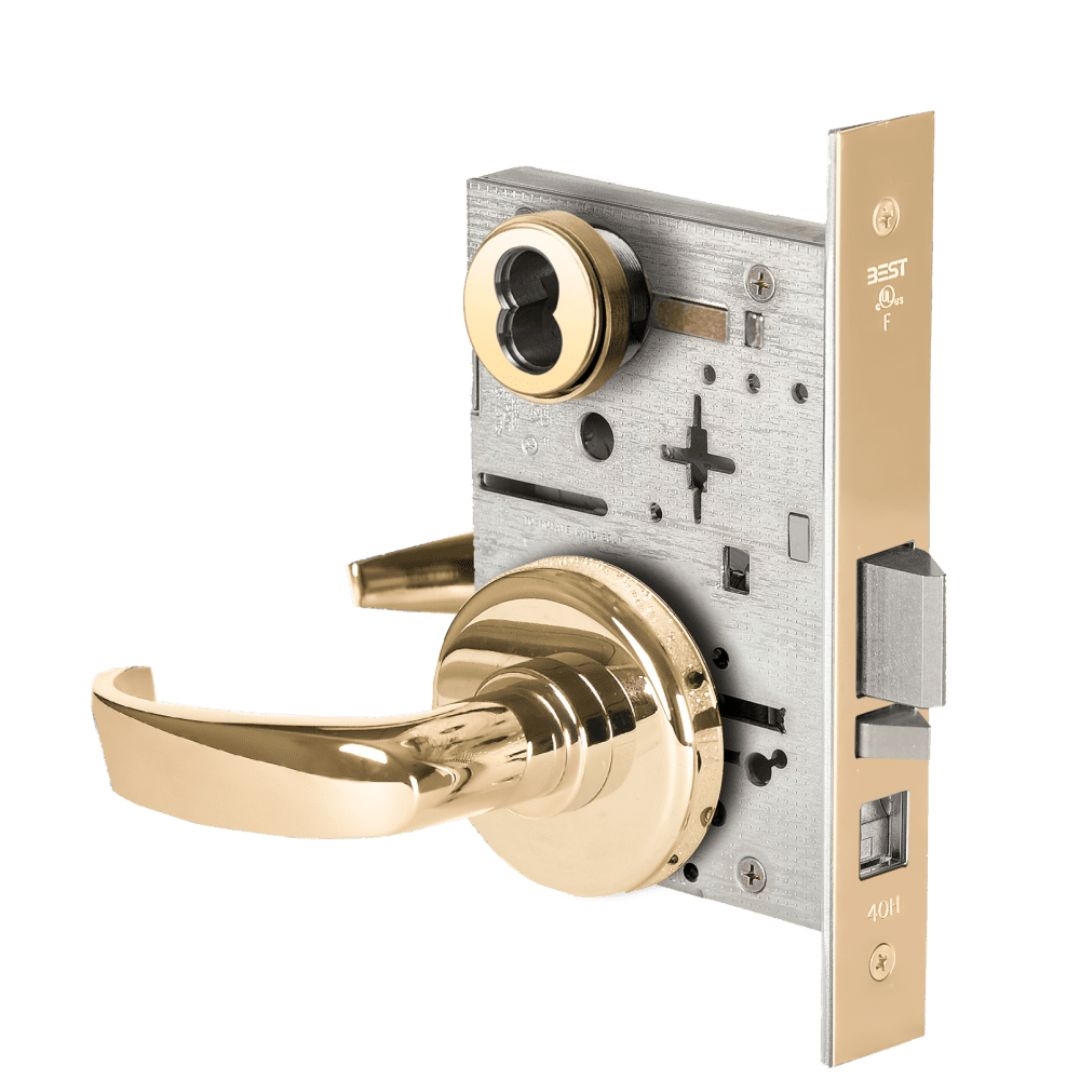

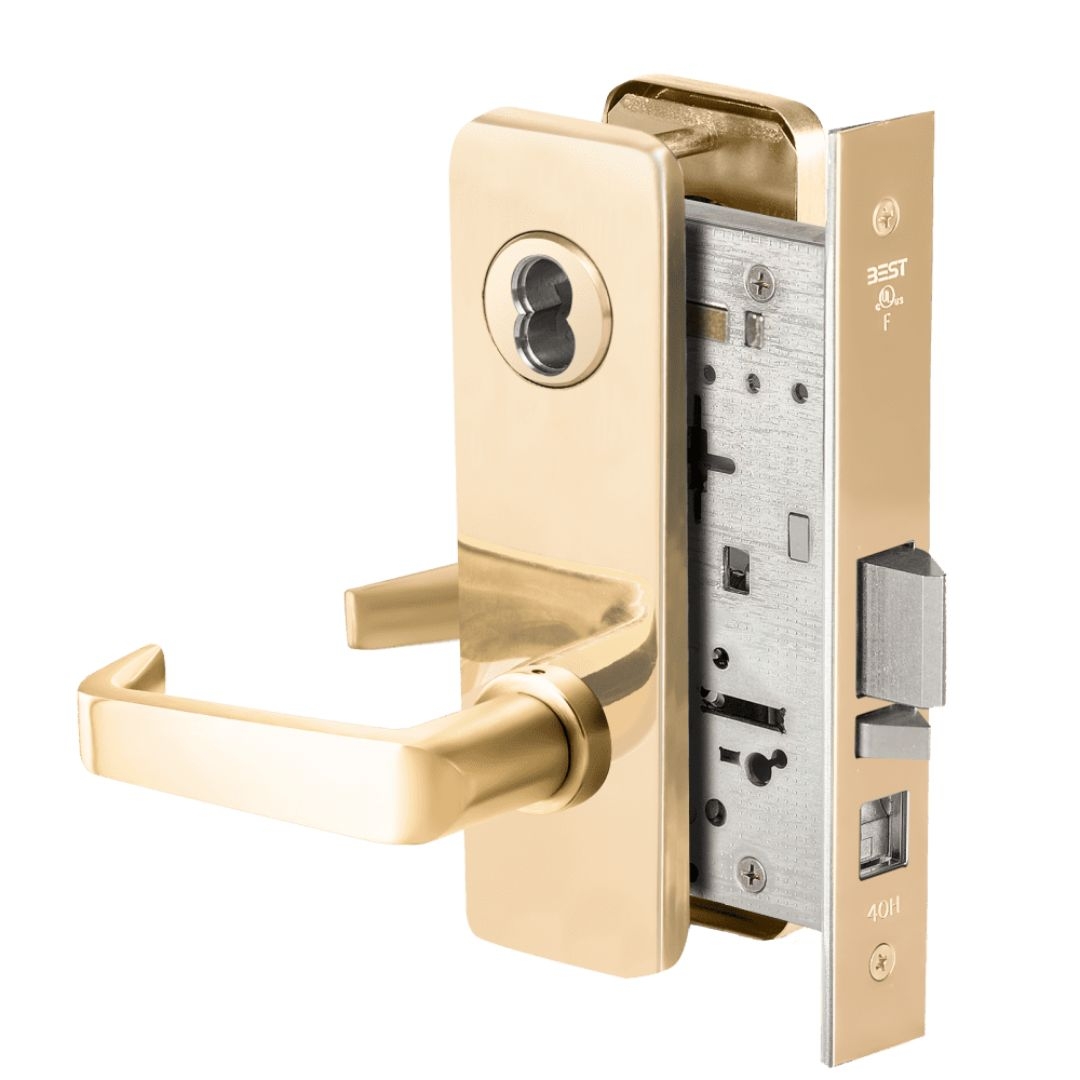

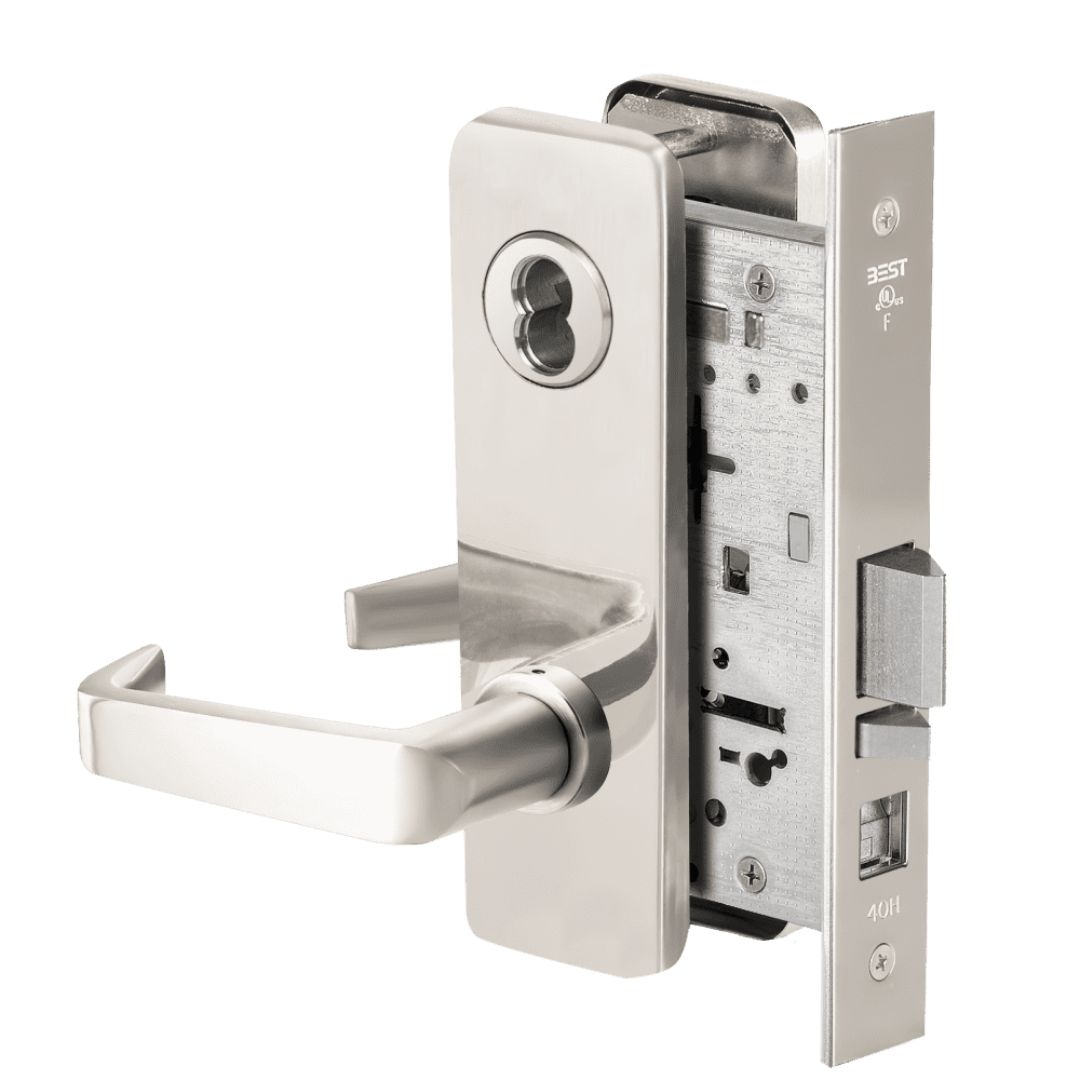

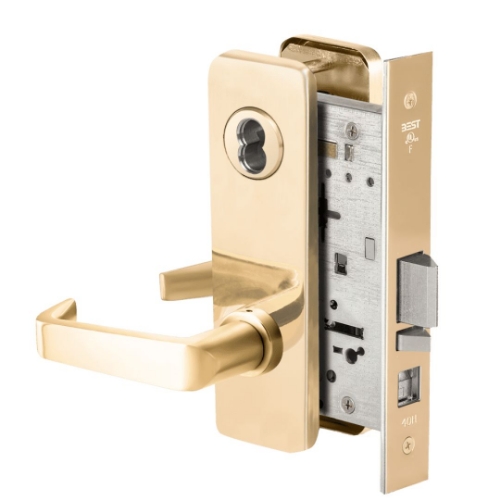

Stanley / BEST 45H7A Grade 1 Office (F04) Mortise Lever Lock

Stanley / BEST 45H-7-A Office (F04) Mortise Lever Lock

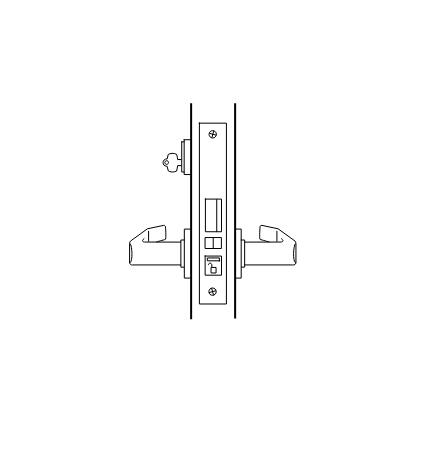

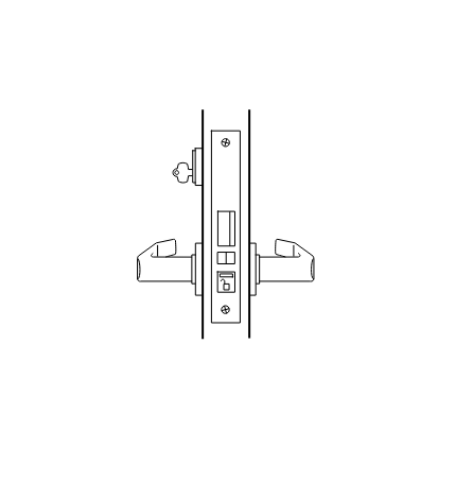

Function: ANSI # F04 A Office Lock

Latch operated by: Rotating inside lever. Rotating outside lever only when locking toggle is in unlocked position. Turning key in outside cylinder. The latchbolt is deadlocked with an auxiliary deadlatch

Outside Lever Deadbolt operated by: N/A

Outside Lever Locked by: Placing locking toggle in locked position

Outside Lever Unlocked by: Placing locking toggle in unlocked position

Inside Lever Locked by: Cannot be locked

Inside Lever Unlocked by: Always unlocked

Auxiliary bolt: Stainless steel, non-handed.

Backset: 2 3/4"

Case: 0.095 cold rolled steel, 5 7/8" H x 7/8" D x 4 1/16" W. Steel is zinc dichromate plated for corrosion protection.

Deadbolt: Stainless steel, 1" throw.

Latchbolt: Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.

Door Thickness: Standard lock configuration designed for doors 1 3/4" thick. Thick door configuration available for doors up to 5" thick (specify thickness when ordering).

Faceplate: Stainless steel, brass or bronze material, 8" H x 1 1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during installation.

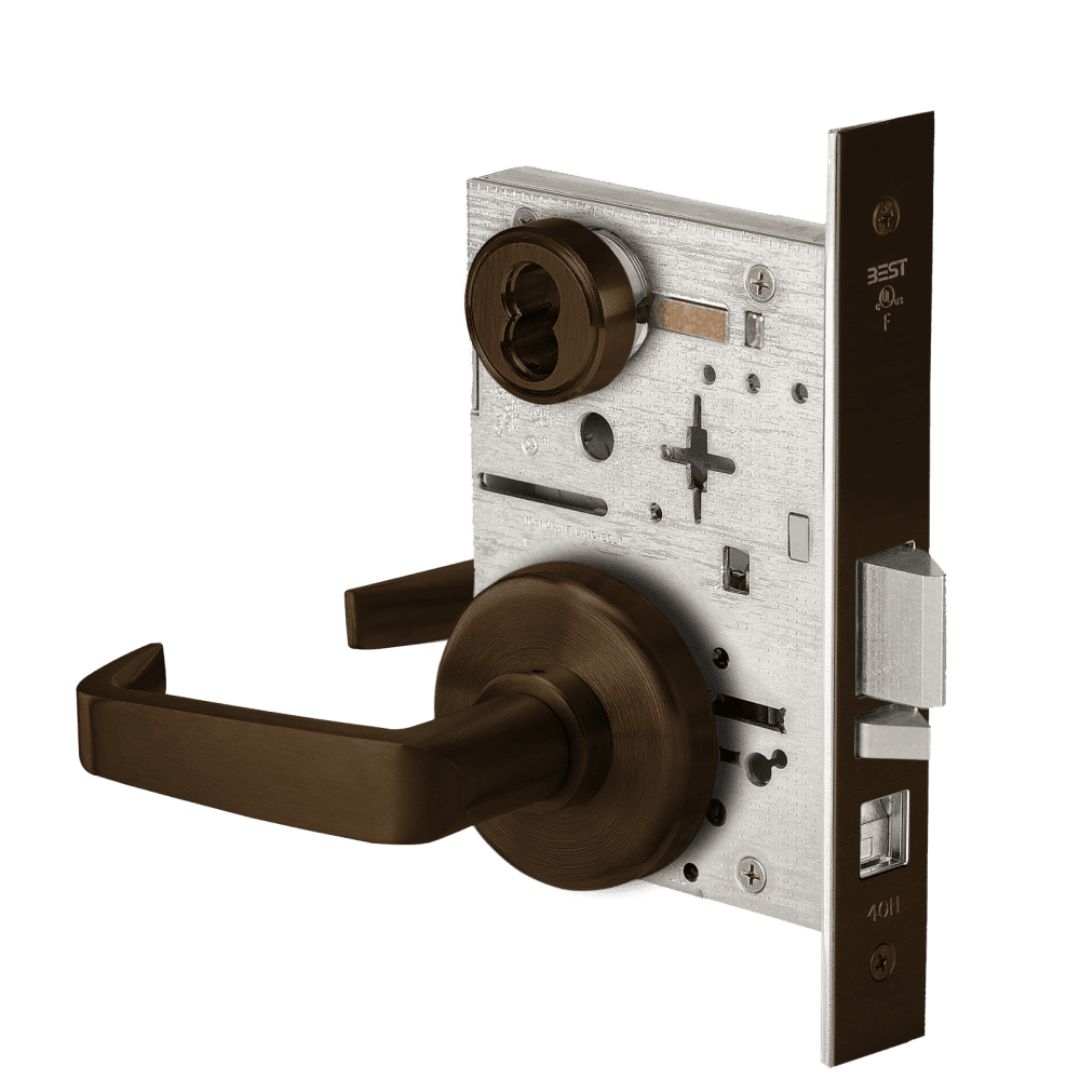

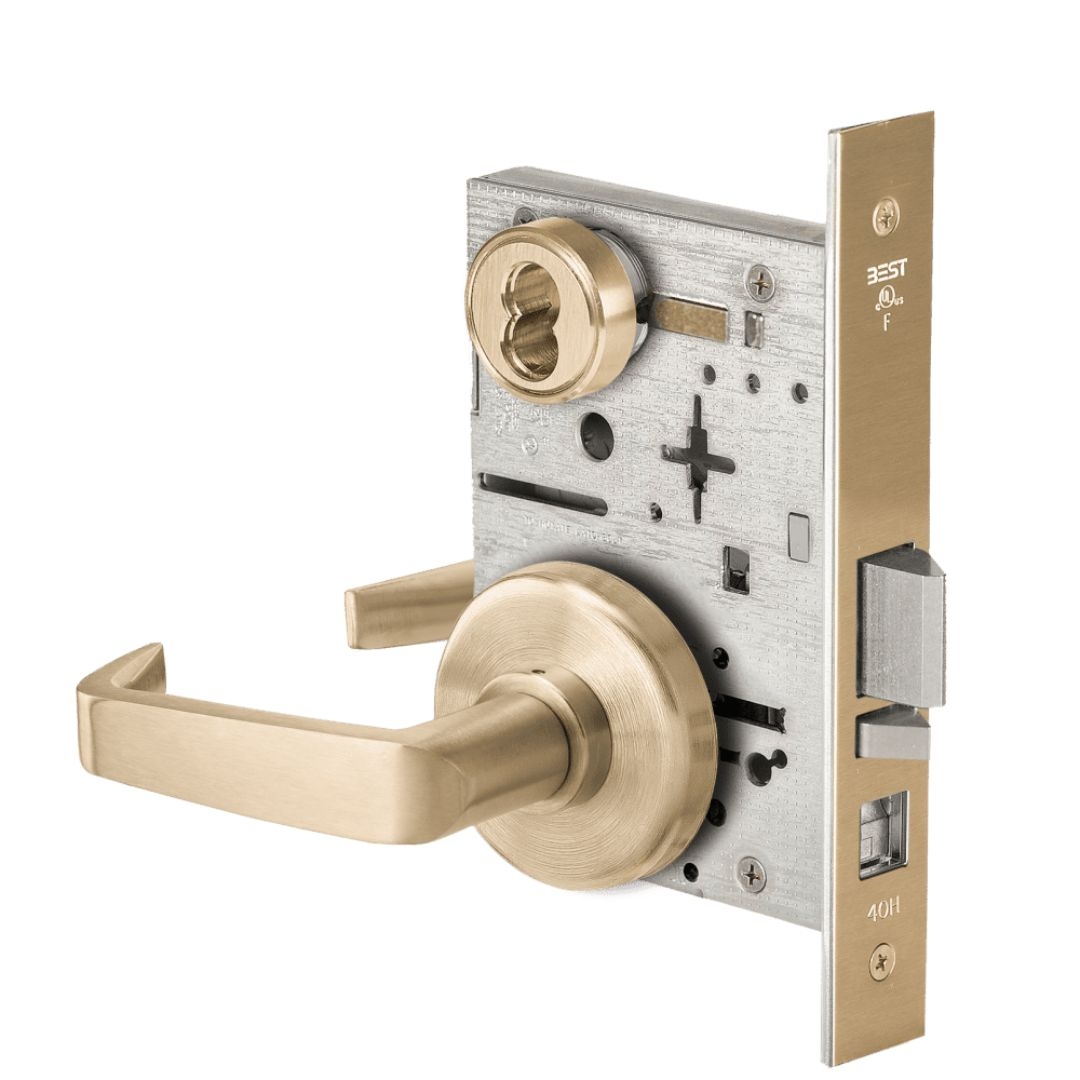

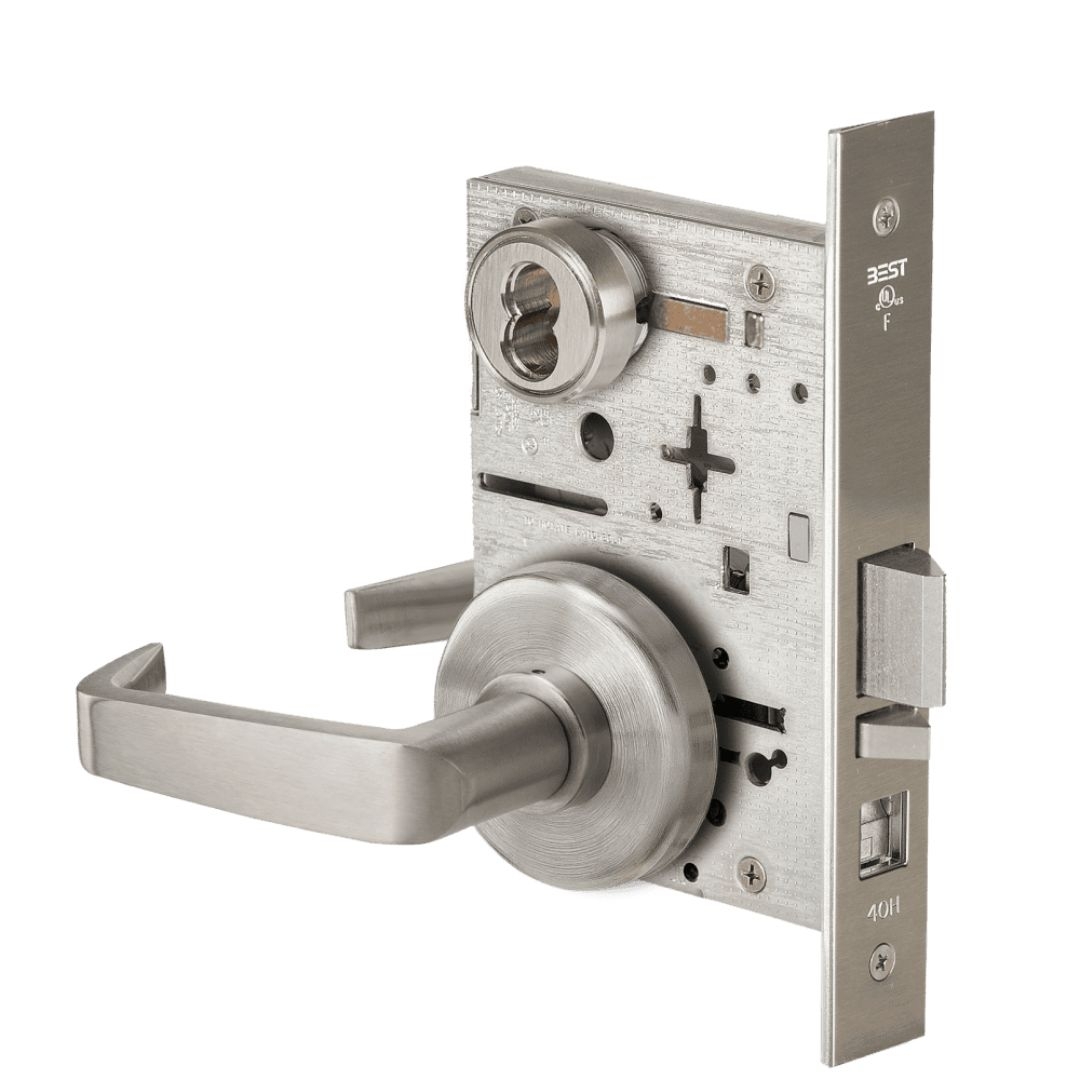

Finishes: 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oxidized Satin Bronze, Oil Rubbed, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome, 630 Satin Stainless Steel

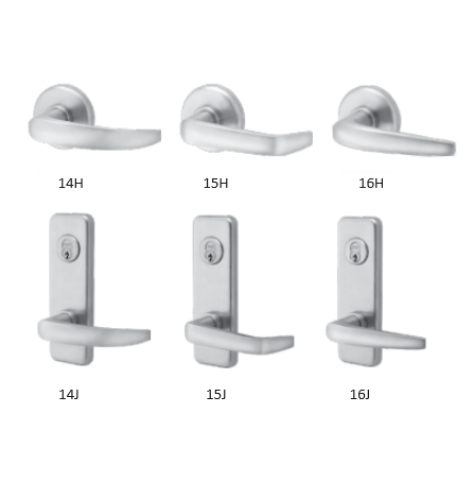

Standard Lever Handles: Brass, bronze, or stainless steel base material for standard lever designs. Lever styles #3, #14, and #15 return to a minimum of 1/2" of door surface. Lever styles #3 and #14 conform to California Titles 19 and 24. Lever styles 12, 16 and 17 do not return. Levers project 2 15/16" from door surface with H, J, R and S trim. Levers project 3 1/64" with M and N trim.

Roses: Wrought brass, bronze, or stainless steel base material.

H Flat w/ round edge, 2 3/4" diameter.

R Contoured w/ round edge, 2 3/4" diameter.

S Flat w/ beveled edge, 3 1/2" diameter.

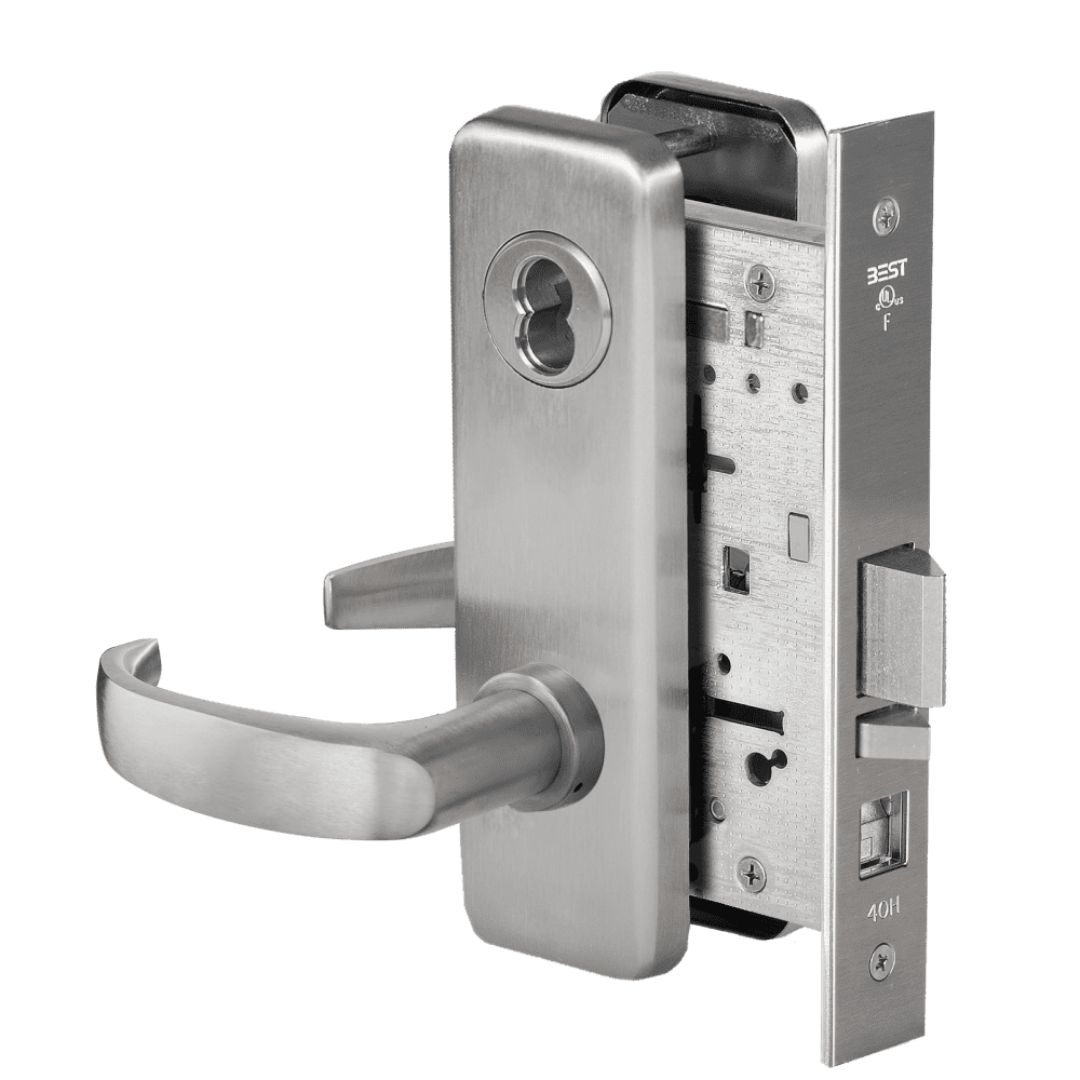

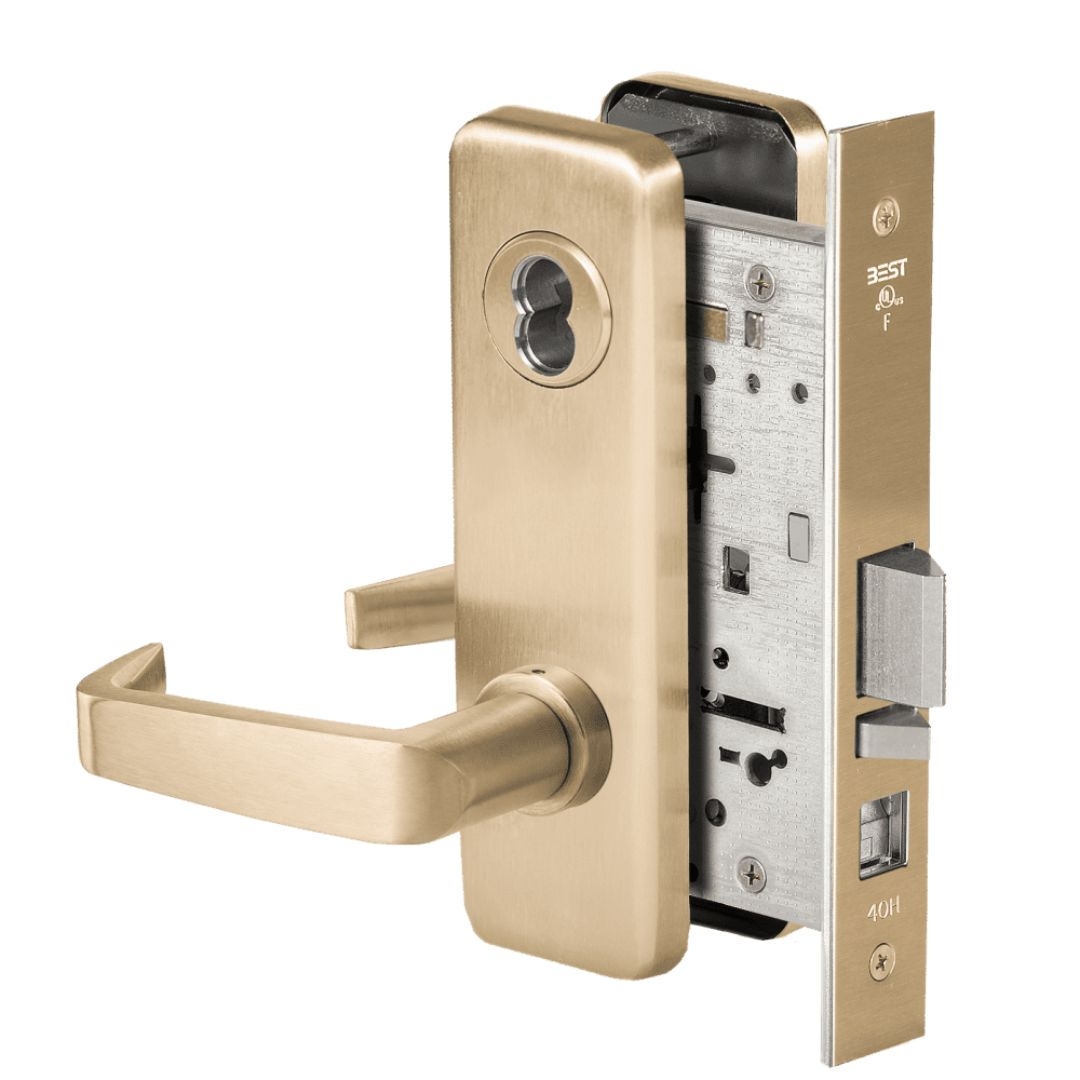

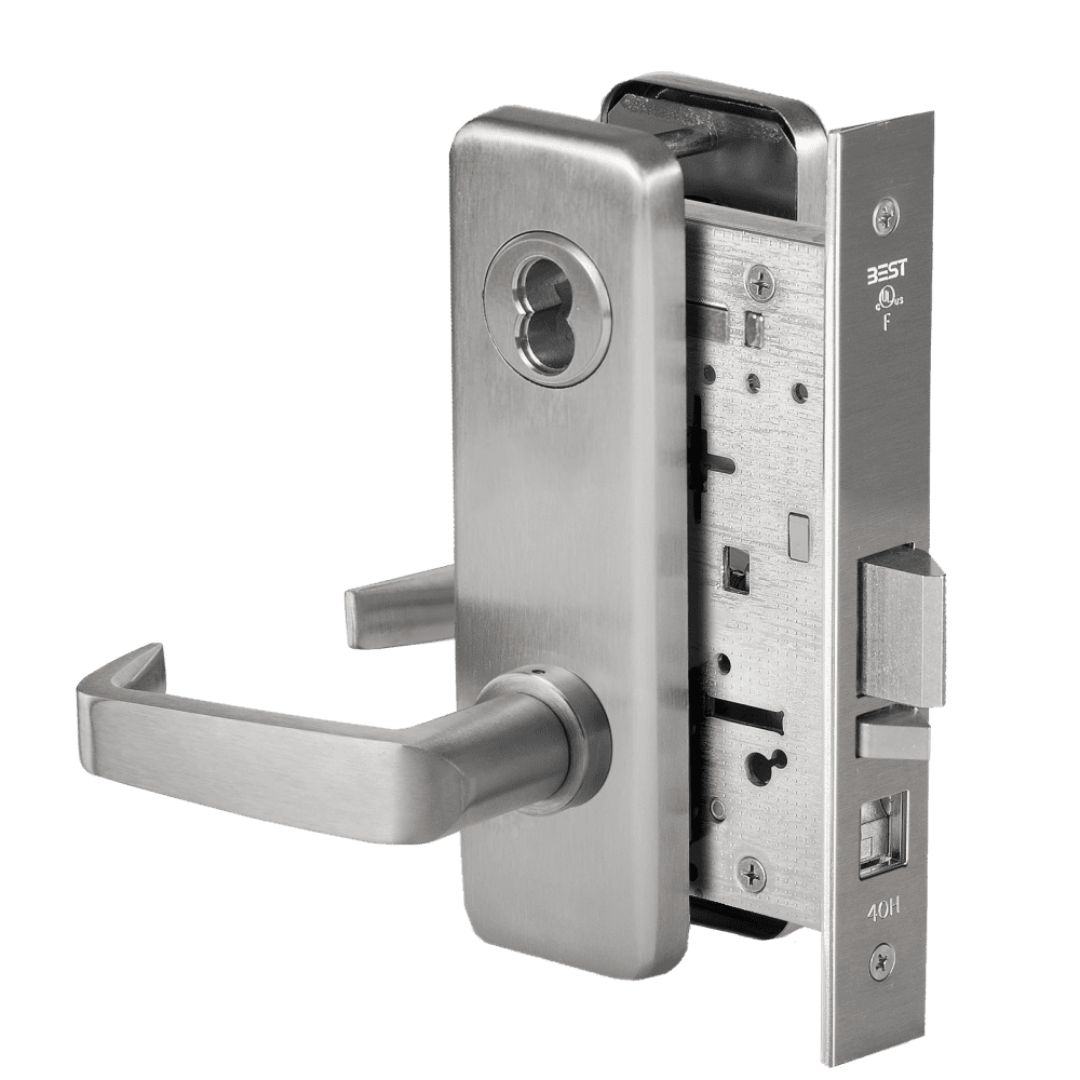

Escutcheons: J Wrought brass, bronze, or stainless steel base material, 7 1/2" H x 2 9/32" W x 17/32" T.

M Forged brass or bronze, 8" H x 2 1/8" W x 37/64" T, through bolt mounted (no exposed screws outside). M Standard cylinder.

Standard 1E74 Mortise Cylinder: Stanley/Best cylinders are machined from solid brass or bronze bar stock. Additional security is provided by a set screw that mounts diagonally into the cylinder wall. This set screw prevents unauthorized removal of the cylinder with out use of the control key.

Model: Best Stanley 45H7A14H605, 45H7A14H612, 45H7A14H613, 45H7A14H626, 45H7A14H630, 45H7A14J605, 45H7A14J612, 45H7A14J613, 45H7A14J626, 45H7A14J630, 45H7A15H605, 45H7A15H612, 45H7A15H613, 45H7A15H626, 45H7A15H630, 45H7A15J605, 45H7A15J612, 45H7A15J613, 45H7A15J626, 45H7A15J630, 45H7A16H605, 45H7A16H612, 45H7A16H613, 45H7A16H626, 45H7A16H630, 45H7A16J605, 45H7A16J612, 45H7A16J613, 45H7A16J626, 45H7A16J630

ADA-Americans With Disabilities Act: 45H Series - The design and operation of the BEST mortise lock meets the intent of the standard for ANSI A117.1 section 404.2.6.

Builders Hardware Manufacturers Association: 45H Series - ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security. To meet Grade 1 Security, a drill resistant core (1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims, and 1E7K4 high security cylinder must be used with sectional trims.

47H Series - ANSI A156.13, Series 1000, Grade 1 Operational, Strength, and Security. Underwriters Laboratories

The 40H series is listed by Underwriters Laboratories for use on a 3 hour A label doors. These locks also carry the C-UL mark which is officially accepted in all of Canada, indicating compliance with appropriate Canadian standards and codes.

The 47H series locks conform to UL437 standard for key locks, referencing door locks. The 1E7J4 cylinder used in the 47H series also conforms to UL437 standard for key locks, referencing high security cylinders, and is listed for Canada as well as the United States.
