About this item

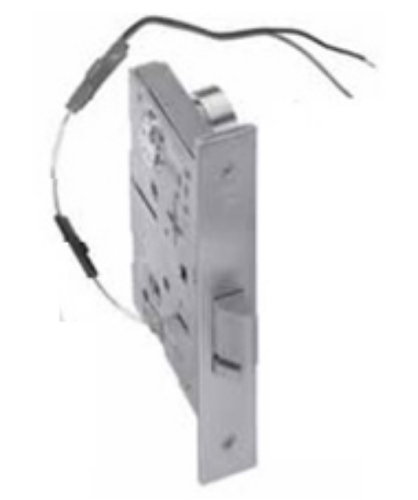

The Stanley BEST 45HWCA-DEU is the fail secure (DEU) electrified mortise lock case from BEST's 45H Series heavy duty platform 24VDC solenoid controlled, 0.095-inch cold rolled steel case, Grade 1 operation and strength, UL listed for 3-hour fire doors, 2-3/4-inch backset, field reversible without opening the case, and sold as a case-only (body only) unit requiring separate trim. American Locksets stocks the 45HWCA-DEU.
Stanley BEST vs BEST: The Brand Name Situation
If you're searching "stanley deu" or "stanley best locks" and landing here, the brand is now sold as BEST under Allegion. Stanley Security and BEST Access Systems merged their commercial hardware lines. The product catalog, part numbers, and specifications are unchanged; the 45HWCA-DEU runs on the same platform whether it appears on an old spec sheet as "Stanley BEST" or current literature as "BEST." Replacement parts, trim compatibility, and keying all carry over directly.

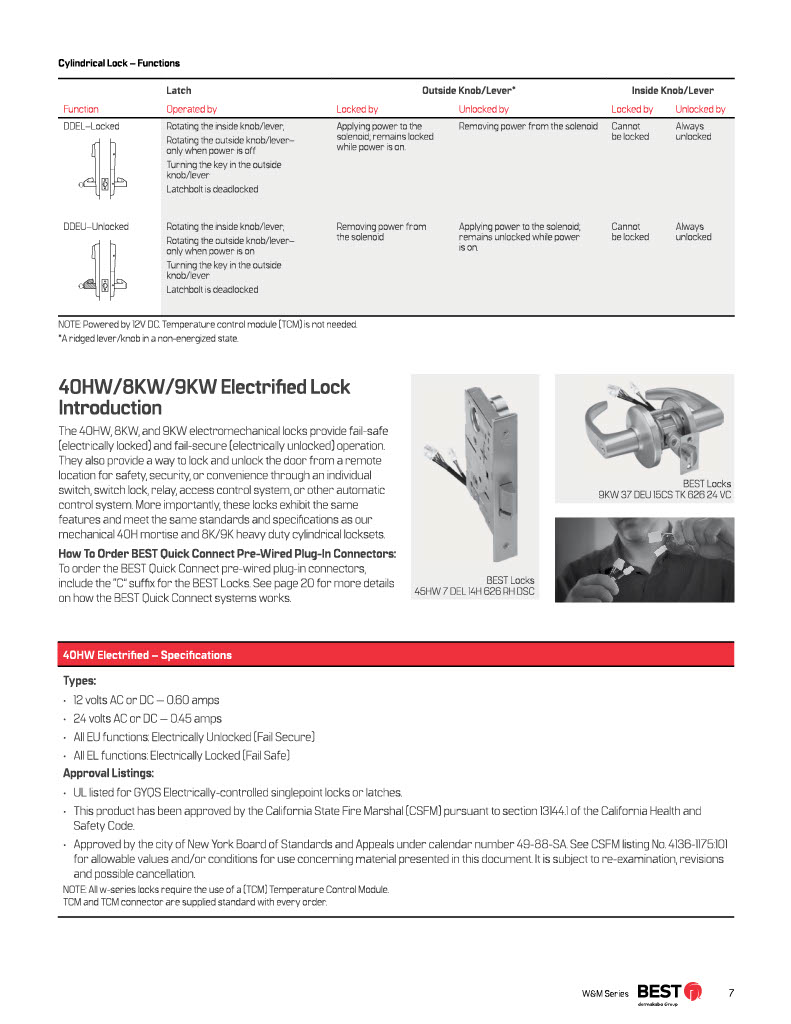

DEU Function: What Fail Secure Means
DEU is BEST's function code for fail secure electrified latch operation. It works the opposite of what people sometimes assume. Power applied to the solenoid = outside lever locked, outside access denied. Power removed from the solenoid = outside lever unlocked, outside access granted. In a complete power failure, the door defaults to the unlocked (open) state. Inside lever is always free for egress regardless of the power state.
This is the correct specification for access-controlled openings in occupied buildings where a power failure should allow exit and entry server rooms, controlled interior corridors, and institutional security doors where authorized access is managed by the presence of power rather than its absence. If your application requires the door to default to locked on power failure, specify the 45HWCA-DEL (fail safe / DEL function) instead.
The 45HWCA-DEU is ordered at 24VDC standard. If your access control system runs at 12VDC, specify the 12V voltage option at time of order.
What "Case Only" Means for Specification
The 45HWCA-DEU is the mortise lock body, the steel case that installs into the door edge. It does not include trim (roses, levers, escutcheons) or cylinders. This is intentional. Case-only ordering lets facilities and hardware specifiers choose their trim package separately: lever design, rose type, cylinder format (SFIC, LFIC, conventional), and finish, all matched to the existing door hardware schedule without being locked into a single pre-packaged configuration.
For complete access control integration, the 45HWCA-DEU pairs with BEST 9K Series or 45H Series trim, SFIC or LFIC cylinder housings, and can be ordered with an RQE (Request to Exit) option for door position monitoring specify the 45HWCADEURQE variant in that case.
45H Case Construction
The 45H case is 0.095-inch cold rolled steel the same gauge as the 40H mechanical mortise case zinc dichromate plated for corrosion protection. Case dimensions: 5-7/8"H x 7/8"D x 4-1/16"W. Four case cover screws, one at each corner, plus an interlocking armored front and cover design provide case integrity under forced entry attempts. A roller bearing hub mechanism gives smooth, wear-resistant lever operation. The fusible link is built in for fire-rated applications. The four-position hub toggle determines whether each hub is always locked, always unlocked, or locked by key handling is changed without opening the case.
The stainless steel faceplate (8"H x 1-1/4"W x 1/16"T) self-aligns to the door bevel automatically during installation on both standard 1-3/4-inch and reverse-bevel doors.

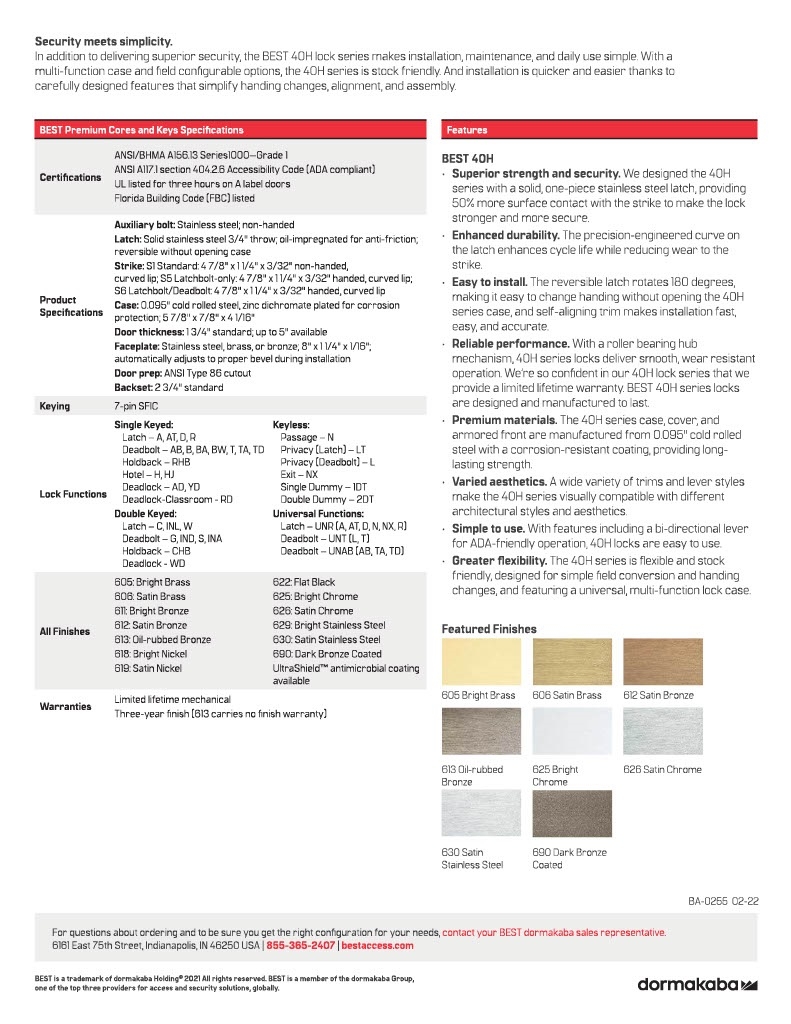

Specifications
Model: BEST 45HWCA-DEU (also: Stanley BEST 45HWCA-DEU)
Series: 45H Series Electrified Mortise Lock
Format: Case only (body only trim not included)
Function: DEU Fail Secure. Power applied locks outside lever. Power removed unlocks outside lever. Inside lever is always free.
Voltage: 24VDC standard. 12VDC optional (specify 12V suffix).
Case: 0.095" cold rolled steel, zinc dichromate plated. 5-7/8"H x 7/8"D x 4-1/16"W.
Backset: 2-3/4"
Deadbolt: Stainless steel, 1" throw
Latchbolt: Solid stainless steel, 3/4" throw, oil-impregnated
Auxiliary Bolt: Stainless steel, non-handed
Faceplate: Stainless steel, brass, or bronze. 8"H x 1-1/4"W x 1/16"T. Self-aligning bevel.
Door Thickness: 1-3/4" standard. Thick door up to 5" available (specify).
Handing: Field reversible without opening case
Grade: ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security
UL: Listed for 3-hour A label fire doors
Options: RQE (Request to Exit) order 45HWCADEURQE. 12V voltage adds 12V suffix.
Available Finishes: 605, 606, 612, 613, 619, 625, 626, 630
Fail Safe Equivalent: 45HWCA-DEL (DEL function power applied locks)
American Locksets has stocked BEST and Stanley BEST 45H Series mortise hardware since 2001.
