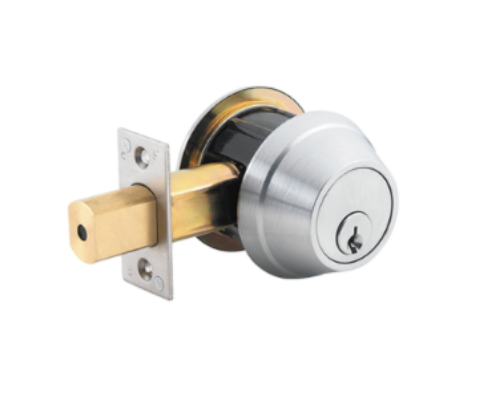

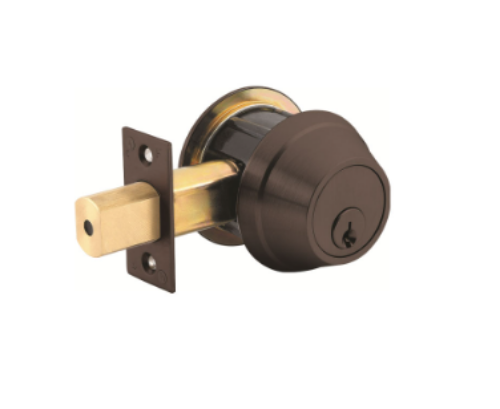

Stanley QDB186-S4-DBS-SC Grade 1 Heavy Duty Auxiliary Deadbolt - Classroom - 2-3/4" Square Latch - 1-1/8" x 2-3/4" Square Deadbolt Strike

Stanley QDB186-S4-DBS-SC Grade 1 Heavy*Duty Auxiliary Deadbolt  - Classroom *- 2-3/4" Square Latch - 1-1/8" x 2-3/4" Square Deadbolt Strike

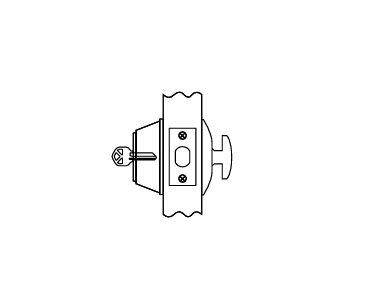

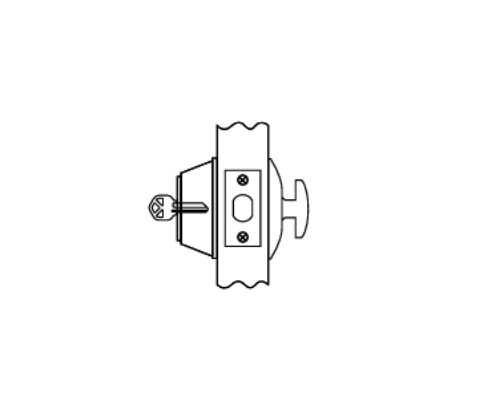

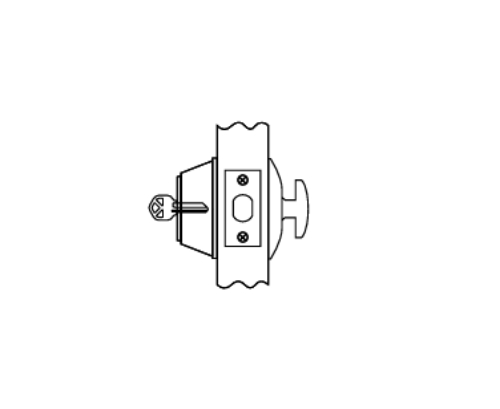

Function - 186 Classroom- Deadbolt is operated by a key from outside. Turnpiece retracts deadbolt for egress but can not project it.

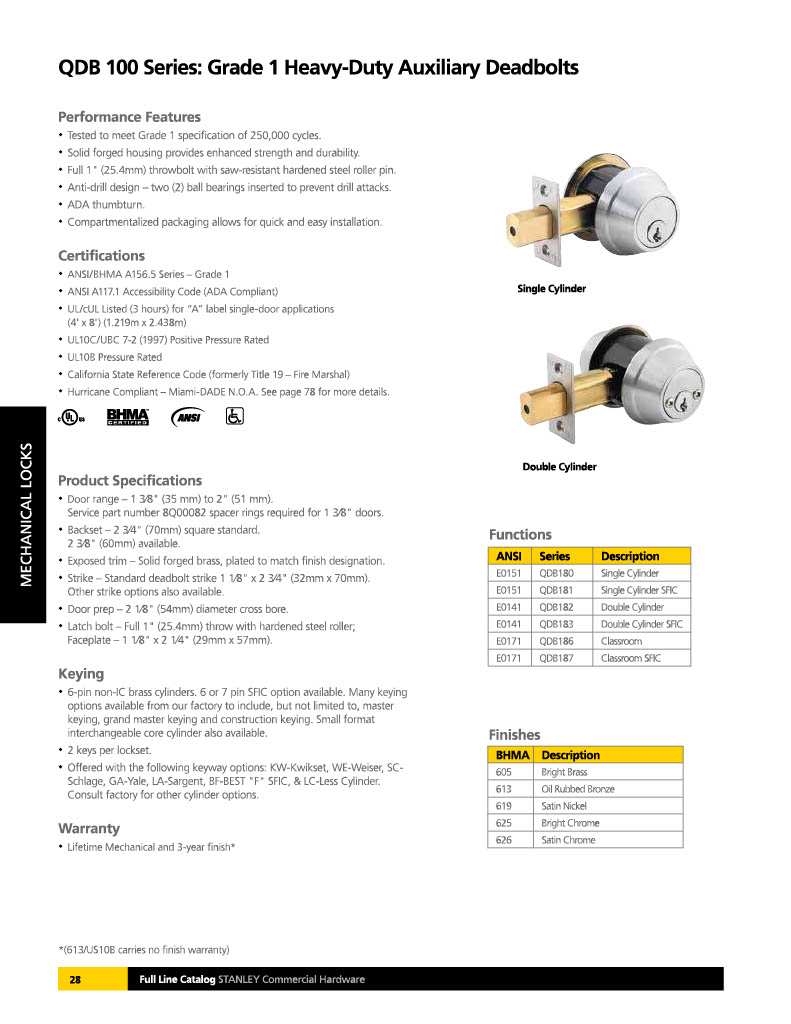

STANLEY Commercial Hardware's QDB100 line of ANSI/BHMA Grade 1 deadbolts provides strength, durability and reliability for high-security applications. We designed the QDB100 Series with solid forged housing for added strength and performance life, and then added anti-drill and saw-resistant features to deliver even greater security for a long-lasting, reliable deadbolt solution. From standard door prep to packaging designed for quicker installation, the QDB100 Series is simple to order and install or retrofit in a wide variety of high-security applications.

Performance Features: - Tested to meet Grade 1 specification of 250,000 cycles. - Solid forged housing provides enhanced strength and durability. - Full 1" (25.4mm) throwbolt with saw-resistant hardened steel roller pin. - Anti-drill design - two (2) ball bearings inserted to prevent drill attacks. - ADA thumbturn. - Compartmentalized packaging allows for quick and easy installation.

Certifications: -ANSI/BHMA A156.5 Series-Grade 1. - ANSI A117.1 Accessibility Code (ADA compliant). - UL/cUL listed (3 hour) for 'A' label single door applications (4' by 8'). - UL10C/UBC 7-2 (1997) positive pressure rated. - UL10B pressure rated. - California State Reference Code (formerly Title 19 - Fire Marshal). - Hurricane Compliant - Miami DADA N.O.A. - ADA compliant thumb turn.

Product Specifications:

Exposed trim:solid forged brass, plated to match finish designation. Door range:1 3/8" (35mm) - 2" (51mm); service part 8Q00082 spacer rings required for 1 3/8" doors. Backset:2 3/4" (70mm) square standard; 2 3/8" (60mm) available. Strike:standard deadbolt strike 1 1/8" (32mm) x 2 3/4" (70mm); other options available. Door prep:2 1/8" (54mm) diameter cross bore. Latch bolt:full 1"(25.4mm) throw with hardened steel roller. Latch faceplate:1 1/8" (29mm) x 2 1/4" (57mm) standard. Keying: - 6-pin non-IC brass cylinders. - 6- or 7-pin SFIC option available. - Two keys per lockset. Keying options include:master keying, grand master keying, construction keying Schlage "C" Keyway StandardKeyway options include: BF-SFIC 'F,  KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, LC-Less Cylinder. Functions: ANSI E0151 QDB180 Single Cylinder. ANSI E0151 QDB181 Single Cylinder SFIC. ANSI E0141 QDB182 Double Cylinder. ANSI E0141 QDB183 Double Cylinder SFIC. ANSI E0171 QDB186 Classroom. ANSI E0171 QDB187 Classroom SFIC. Finishes: 605: Bright Brass. 613: Oil Rubbed Bronze. 619: Satin Nickel. 625: Bright Chrome. 626: Satin Chrome. Warranties Lifetime mechanical. Three-year finish (613 carries no finish warranty).

QDB182, QDBStanley, StanleyQDB, Stanley QDB186, QDB186 Stanley, QDB186Stanley, StanleyQDB186

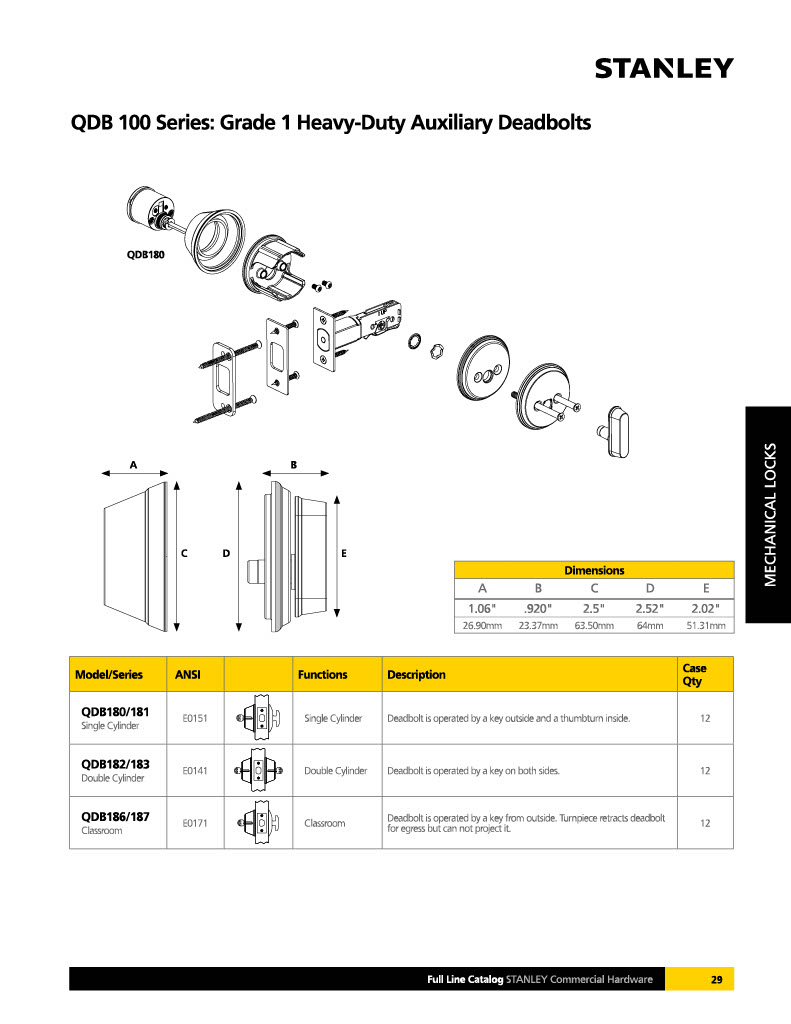

STANLEY Commercial Hardware QDB100

Built for durability and security.Solid forged housing, full 1" steel throw bolt with hardened steel roller pin for saw resistance, and anti-drill design with two ball bearings for drill resistance on non-IC cylinders are just a few of the heavy-duty security features we built into our QDB100 series. Backed by a leading warranty.The QDB100 series comes with lifetime mechanical and threeyear finish warranties. Easy to retrofit.Choose deadbolts with a SFIC option or keep your existing small format cores and use them with QDB100 series products. Standard door prep makes retrofit quick and easy. Simple to install.Compartmentalized packaging makes QDB100 deadbolts easier to install. Additional security features.Depending on your application, available options like hurricane compliance can add an additional layer of reliability and security.
