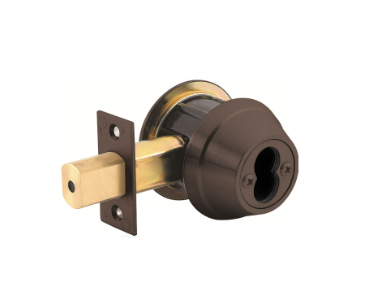

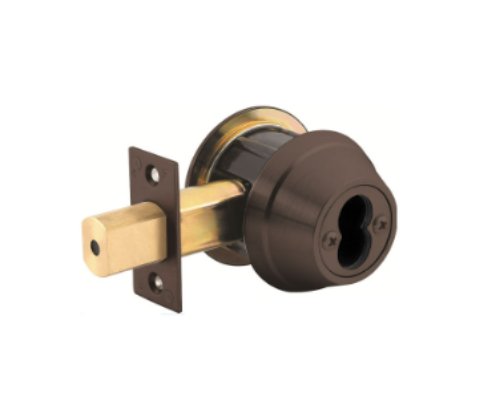

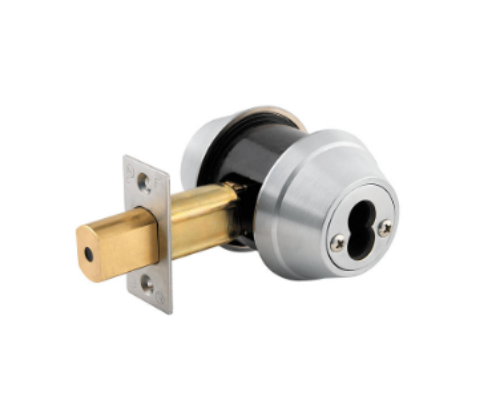

Stanley QDB283-S4-DBS Grade 2 Heavy Duty Auxiliary Deadbolt - Double Cylinder SFIC - 2-3/4" Square Latch - 1-1/8" x 2-3/4" Square Deadbolt Strike

Stanley QDB283-S4-DBS Grade 2*StandardDuty Auxiliary Deadbolt  - Double Cylinder SFIC- 2-3/4" Square Latch - 1-1/8" x 2-3/4" Square Deadbolt Strike*

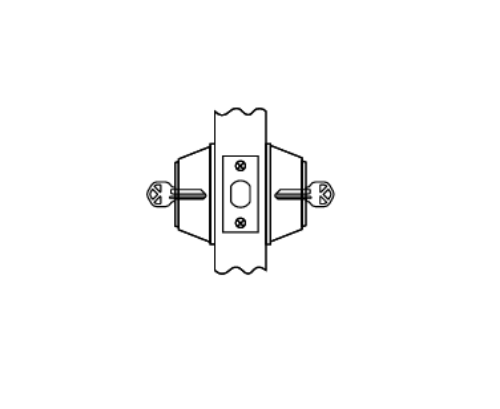

Function - 283 Double Cylinder*SFIC- Deadbolt is operated by a key on both sides. *ANSI:E0142

STANLEY Commercial Hardware's QDB100 line of ANSI/BHMA Grade 1 deadbolts provides strength, durability and reliability for high-security applications. We designed the QDB100 Series with solid forged housing for added strength and performance life, and then added anti-drill and saw-resistant features to deliver even greater security for a long-lasting, reliable deadbolt solution. From standard door prep to packaging designed for quicker installation, the QDB100 Series is simple to order and install or retrofit in a wide variety of high-security applications.

Performance Features: - Tested to meet Grade 2 specification of 150,000 cycles. - Full 1" (25.4mm) throwbolt with saw-resistant hardened steel roller pin. - Free-spinning cylinder collar prevents against wrench attacks. - Anti-drill design - Two (2) ball bearings inserted to prevent drill attacks. - ADA thumbturn. - Compartmentalized packaging allows for quick and easy installation. - Available with SmartKey Technology. Certifications:

- ANSI/BHMA A156.12 - 1999 Grade 2 - ANSI A117.1 Accessibility Code (ADA Compliant) - UL/cUL Listed (3 hours) for "A" label single-door applications (4' x 8') (1.219m x 2.438m) - UL10C/UBC 7-2 (1997) Positive Pressure Rated - UL10B Pressure Rated - Hurricane Compliant - Miami-DADE N.O.A.

Product Specifications: Door range - 1 3⁄8" (35mm) to 2"(51 mm). Service part number 8Q00082 spacer rings required for 1 3⁄8" doors. Backset -2 3⁄4" (70mm) square standard. 2 3⁄8" (60mm) available. Exposed trim -Stainless steel with iron forged cylinder guard. Strike - Standard deadbolt strike 1 1⁄8" x 2 3⁄4" (32mm x 70mm). Other strike options also available. Latch bolt- Full 1" (25.4mm) throw with hardened steel roller. Faceplate - 1 1⁄8" x 2 1⁄4" (29mm x 57mm) standard. 1" x 2 1⁄4" (25.4mm x 57mm) faceplate available. Keying:

- 6-pin non-IC brass cylinders. 6 or 7 pin SFIC option available. Many keying options available from our factory to include, but not limited to, master keying, grand master keying and construction keying. Small format interchangeable core cylinder also available. - 2 keys per lockset. - Offered with the following keyway options: SMT-SmartKey, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, BF-BEST "F" SFIC, & LC-Less Cylinder. Consult factory for other cylinder options. Warranty:

- Lifetime Mechanical and 3-year finish*

QDB283, QDBStanley, StanleyQDB, Stanley QDB283, QDB283 Stanley, QDB283Stanley, StanleyQDB283

STANLEY Commercial Hardware QDB200

SmartKey- flexibility.An available re-key system to permit re-keying the lock without having to change or remove the product from the door, and an available key control function make the QDB200 series more versatile and convenient for use and maintenance. Greater security.Constructed with a full 1" steel throw bolt and hardened steel roller pin, two ball bearings, and free-spinning cylinder collar, QDB200 series deadbolts resist saw, drill, and wrench attacks. Backed by leading warranties.The QDB200 series comes with lifetime mechanical and threeyear finish warranties. Easy to retrofit.Choose deadbolts with a SFIC option or keep your existing small format cores and use them with QDB200 series products. Standard door prep makes retrofit quick and easy. Flexible installation.Compartmentalized packaging makes QDB200 deadbolts easier to install, and an adjustable backset deadbolt latch gives you greater flexibility at the point of installation. Additional security features.Depending on your application, available options like hurricane compliance can add an additional layer of reliability and security.
