Product Details

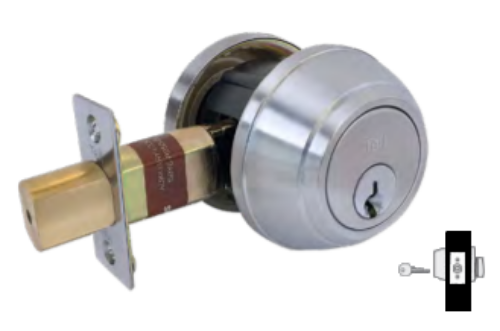

Tell DB1051, Heavy Duty Tubular Single Cylinder Deadbolt - Grade 1 - US26D
ANSI:E0151
Equal To:Schlage B660
Function:Deadbolt operated by key outside, thumb turn inside
Single Cylinder.
Standard Features
Performance:
Complies with ANSI A156.5, Grade 1, 250,000 cycles.
Chassis:
Tubular, steel.
Finish:
US32D.
Deadbolt:
1" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel),
1" throw, roller bar (added security for hacksaw or reciprocating blade cutting).
Backset:
2-3/4" (standard).
Strike:
1-1/8" x 2-3/4", square corner faceplate.
Door Range:
1-3/8" to 2".
Door Preparation:
2-1/8" diameter for bore, 1" diameter for bolt. Fits standard 161 door prep.
Cylinder:
Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD).
Other Cylinder:
Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Options Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA).
Keys:
Two nickel silver per lock cylinder.
IC Keyway Cylinder: AVAILABLE 6- OR 7-PIN
AVAILABLE 6- OR 7-PIN - Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q (BQ), Best U (BU), Black construction core (BLK), Less core (00), Not specified (XX).
Warranty:
5 year limited.
Optional FeaturesCylinder:
Othermanufacturers including small format interchangeable cores.Keying:
Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)
