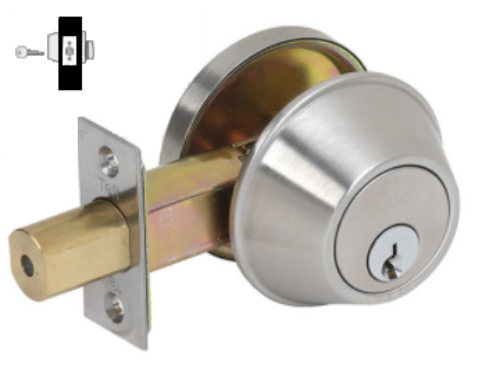

Tell DB2051, Standard Duty Tubular Single Cylinder Deadbolt - Grade 2

Product Details

Tell DB2041, Standard Duty Tubular Double Cylinder*Deadbolt - Grade 2*

ANSI:E0151 Equal To:Schlage B160, BC160

Function:  Deadbolt operated by key outside, thumb turn E0151 inside.

Standard Features

Performance: Complies with ANSI A156.5, Grade 2, 150,000 cycles,UL/ULC listed 3 hour fire rating. Chassis: Tubular, steel. Finish: US32D. Deadbolt: 1" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1" throw, roller bar (added security for hacksaw or reciprocating blade cutting). Backset: Adjustable 2-3/8" to 2-3/4". 2-1/4" X 1" faceplate standard. Drive-In optional. Strike: 1-1/8" x 2-3/4", square corner faceplate. Door Range: 1-3/8" to 1-3/4". Door Preparation: 2-1/8" diameter for bore, 1" diameter for bolt. Fits standard 161 door prep.  Cylinder: Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD). Other Cylinder: Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Options Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA). Keys: Two nickel silver per lock cylinder. IC Keyway Cylinder: AVAILABLE 6- OR 7-PIN   AVAILABLE 6- OR 7-PIN - Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q (BQ), Best U (BU), Black construction core (BLK), Less core (00), Not specified (XX). Warranty: 1 year limited. Optional FeaturesCylinder:

Other manufacturers including small format interchangeable cores. Keying: Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT) DB2041 , DB2000 Tell, PDQ DB2000, DB2051Tell, TellDB2051, Tell DB2051, DB2051 Tell, TellDB, DBTell, Tell DB, DB Tell, Tell Deadbolts, Tell Deadbolt

Tell DB2051, Standard Duty Tubular Single Cylinder Deadbolt - Grade 2

SKU: DB2051

In Stock

Finish *

32D - Satin Stainless - Steel
32D - Satin Stainless - Steel
10B - Oil Rubbed Bronze [+$1.56]
10B - Oil Rubbed Bronze [+$1.56]

Cylinder *

Keying *

$30.16

$58.00

You saved $27.84

About this item

Tell DB2041, Standard Duty Tubular Double Cylinder Deadbolt - Grade 2

ANSI: E0151
Equal To: Schlage B160, BC160


Function:  Deadbolt operated by key outside, thumb turn E0151 inside.

Standard Features

Performance:
Complies with ANSI A156.5, Grade 2, 150,000 cycles,UL/ULC listed 3 hour fire rating.
Chassis:
Tubular, steel.
Finish:
US32D.
Deadbolt:
1" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel),
1" throw, roller bar (added security for hacksaw or reciprocating blade cutting).
Backset:
Adjustable 2-3/8" to 2-3/4". 2-1/4" X 1" faceplate standard. Drive-In optional.
Strike:
1-1/8" x 2-3/4", square corner faceplate.
Door Range:
1-3/8" to 1-3/4".
Door Preparation:
2-1/8" diameter for bore, 1" diameter for bolt. Fits standard 161 door prep.
Cylinder:
Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD).
Other Cylinder:
Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Options Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA).
Keys:
Two nickel silver per lock cylinder.
IC Keyway Cylinder:  AVAILABLE 6- OR 7-PIN
 AVAILABLE 6- OR 7-PIN - Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q (BQ), Best U (BU), Black construction core (BLK), Less core (00), Not specified (XX).
Warranty:
1 year limited.
Optional Features
Cylinder:

Other manufacturers including small format interchangeable cores.
Keying:
Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)
DB2041 , DB2000 Tell, PDQ DB2000, DB2051Tell, TellDB2051, Tell DB2051, DB2051 Tell, TellDB, DBTell, Tell DB, DB Tell, Tell Deadbolts, Tell Deadbolt

Tell DB2041, Standard Duty Tubular Double Cylinder*Deadbolt - Grade 2*

ANSI:E0151 Equal To:Schlage B160, BC160

Function:  Deadbolt operated by key outside, thumb turn E0151 inside.

Standard Features

Performance: Complies with ANSI A156.5, Grade 2, 150,000 cycles,UL/ULC listed 3 hour fire rating. Chassis: Tubular, steel. Finish: US32D. Deadbolt: 1" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1" throw, roller bar (added security for hacksaw or reciprocating blade cutting). Backset: Adjustable 2-3/8" to 2-3/4". 2-1/4" X 1" faceplate standard. Drive-In optional. Strike: 1-1/8" x 2-3/4", square corner faceplate. Door Range: 1-3/8" to 1-3/4". Door Preparation: 2-1/8" diameter for bore, 1" diameter for bolt. Fits standard 161 door prep.  Cylinder: Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD). Other Cylinder: Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Options Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA). Keys: Two nickel silver per lock cylinder. IC Keyway Cylinder: AVAILABLE 6- OR 7-PIN   AVAILABLE 6- OR 7-PIN - Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q (BQ), Best U (BU), Black construction core (BLK), Less core (00), Not specified (XX). Warranty: 1 year limited. Optional FeaturesCylinder:

Other manufacturers including small format interchangeable cores. Keying: Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT) DB2041 , DB2000 Tell, PDQ DB2000, DB2051Tell, TellDB2051, Tell DB2051, DB2051 Tell, TellDB, DBTell, Tell DB, DB Tell, Tell Deadbolts, Tell Deadbolt

DB2051--
Tell DB2051, Standard Duty Tubular Single Cylinder Deadbolt - Grade 2

Product code: DB2051

In Stock

$58.00

$30.16

DB2051--
Tell DB2051, Standard Duty Tubular Single Cylinder Deadbolt - Grade 2

Product code: DB2051

In Stock

$58.00

$30.16
