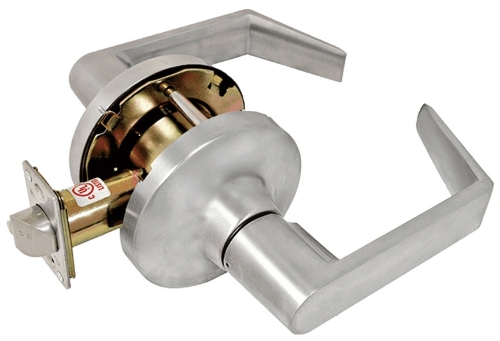

TownSteel CDC-75-S 626 Passage Clutched Cylindrical Lockset - Satin Chrome

TownSteel CDC-75-S 626 Passage Clutched Cylindrical Lockset, Sentinel Lever - Satin Chrome

Passage- ANSI F75 - Latchbolt operated by lever from either side at all times.

SPECIFICATIONS Handling: Non-Handed

Door Thickness: 1-3/8″-2″

Backset: 2-3/4″ standard, 2-3/8″, 3-3/4″, 5″ optional

Faceplate: Forged brass or stainless steel, 1-1/8″ x 2-1/4″

Latch Bolt: Stainless steel, 1/2″ throw, deadlocking on keyed functions

Strike: ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard, T-strike optional

Door Prepatation: Standard 161 door prep with 2-3/4" (70mm) center to center thru-bolt

Warranty: 10 years linited for mechanical, 5 years for finishes

CODE COMPLIANCE:

ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified

UL - UL 10C 3-Hour Rated

ADA - Meet Requirements of The Americans with Disabilities Act

BAA - Meet Guidelines of The Buy American Act

CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)

Model: CDC75S, CDC75S626
